3. Displaying the production monitors
2-25
Chapter 2 Basic operation
3. Displaying the production monitors
Press the [Monitor] button and check each monitor screen that appears to confirm the operation status
during the production. The monitor screens includes the [Main], [Vision], [Alignment], [Retry] etc. Select
the corresponding tab to check the ongoing mounting information.

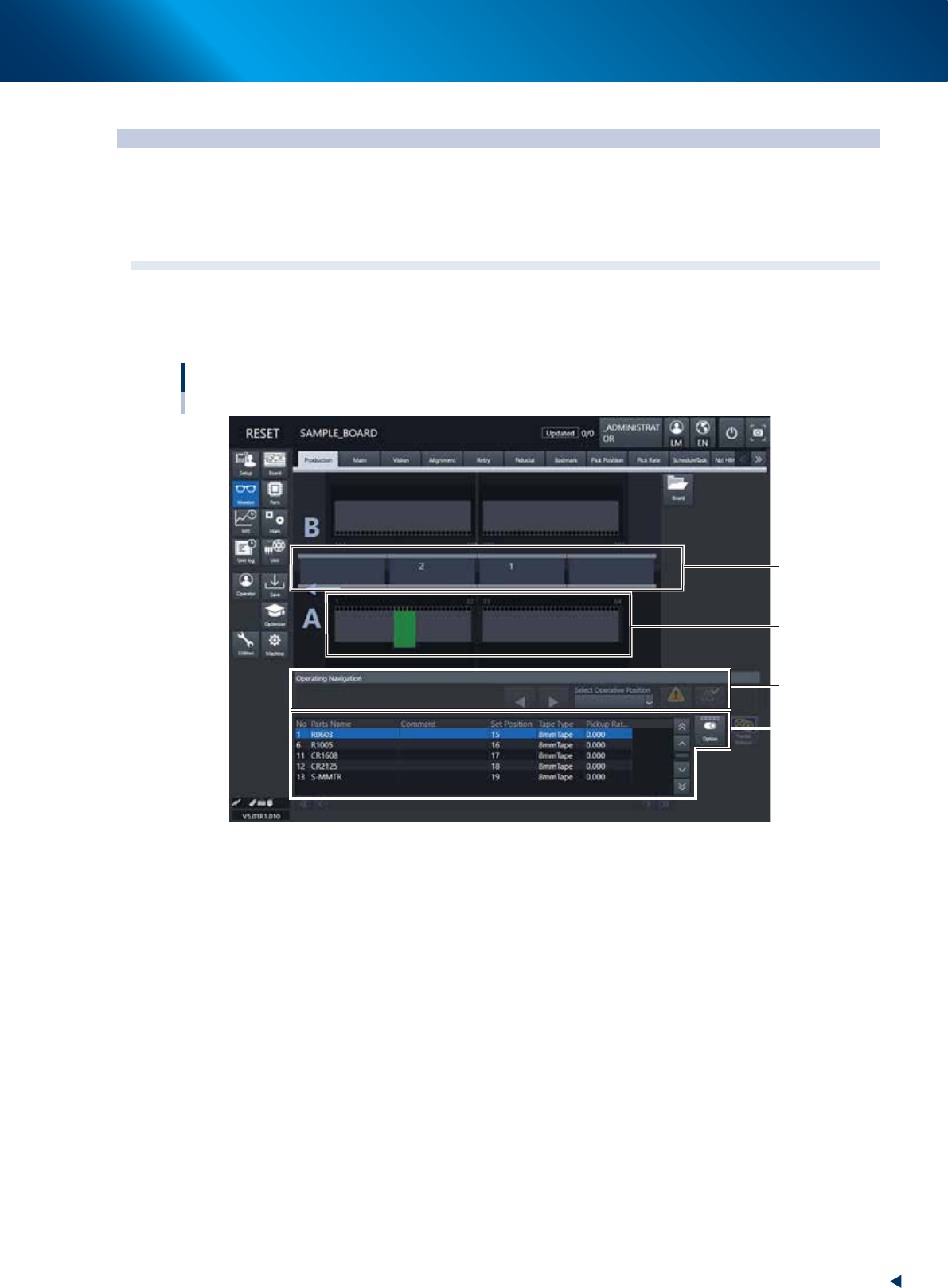

3.1 Production
This screen graphically shows the information of machines currently producing boards. The machine status
information such as errors that the machine is currently experiencing or work instructions appears on the
lower part of the screens.
Monitor: Production
1
2
3
4
24212-KMX-00
1. Transfer status area
The board that the machine is currently working on is displayed in green.
If an error related to transfer has occurred or if a hazard prediction sensor is activating, the board is
displayed in red.
2. Feeder status area
This area displays the feeder at the feeder set position that is registered on [Parts] - [Pick] tab - A:
Feeder Set No. of the board that the machine is currently working on. Nothing appears at the feeder set
position where no components are registered. The feeder is displayed in green where the feeder is
correctly set up and ready for process. It is displayed in red if the feeder is incorrectly set up or
experiencing an error.
3. Displaying the production monitors
2-26
Chapter 2 Basic operation
3. Operating Navigation area (operating instruction message area)
• Operating Navigation instructions
This displays messages with countermeasures for handling errors, operating instructions or warnings
at operating position selected with the "Select Operating Position" drop-down list. When multiple
errors occur, those items with the highest priority for countermeasures are displayed in sequence. To
switch to other instruction messages, press the left/right arrow buttons.
• Select Operating Position drop-down list
If the machine is experiencing errors at more than one location, select the location to check from the
drop-down list. Note that the drop-down list shows only positions that require operator task.
TIP
Errors are also displayed in the graphic layout view on the upper part of the screen.
The operating position can be selected by clicking the error area on the graphic layout view. However, the operating
position cannot be selected if clicking an area where there are no errors or operating instructions.
• [Error Detail] button
Pressing this button displays an error message screen that contains detailed information and
countermeasures for the error and operating instruction, or warning displayed in the "Operating
Navigation" area.
• [Error Clear] button
Press this button after recovering from the error or after handling the operating instruction or warning
displayed in the "Operating Navigation" area. Pressing this button shows that recovery is complete
by following the message in the "Operating Navigation" area, and that automatic operation can
restart. However, automatic operation will not restart if a recovery task is still incomplete.
TIP
If an error has occurred that affects the entire machine, the entire background area is displayed in blue.
4. Component information display area
Displays basic information on components currently being used in the program (board data) for
production. Data that is causing an error appears in a different color.
• [Option] button
Switches the "part details" area display ON and OFF.
3. Displaying the production monitors
2-27
Chapter 2 Basic operation

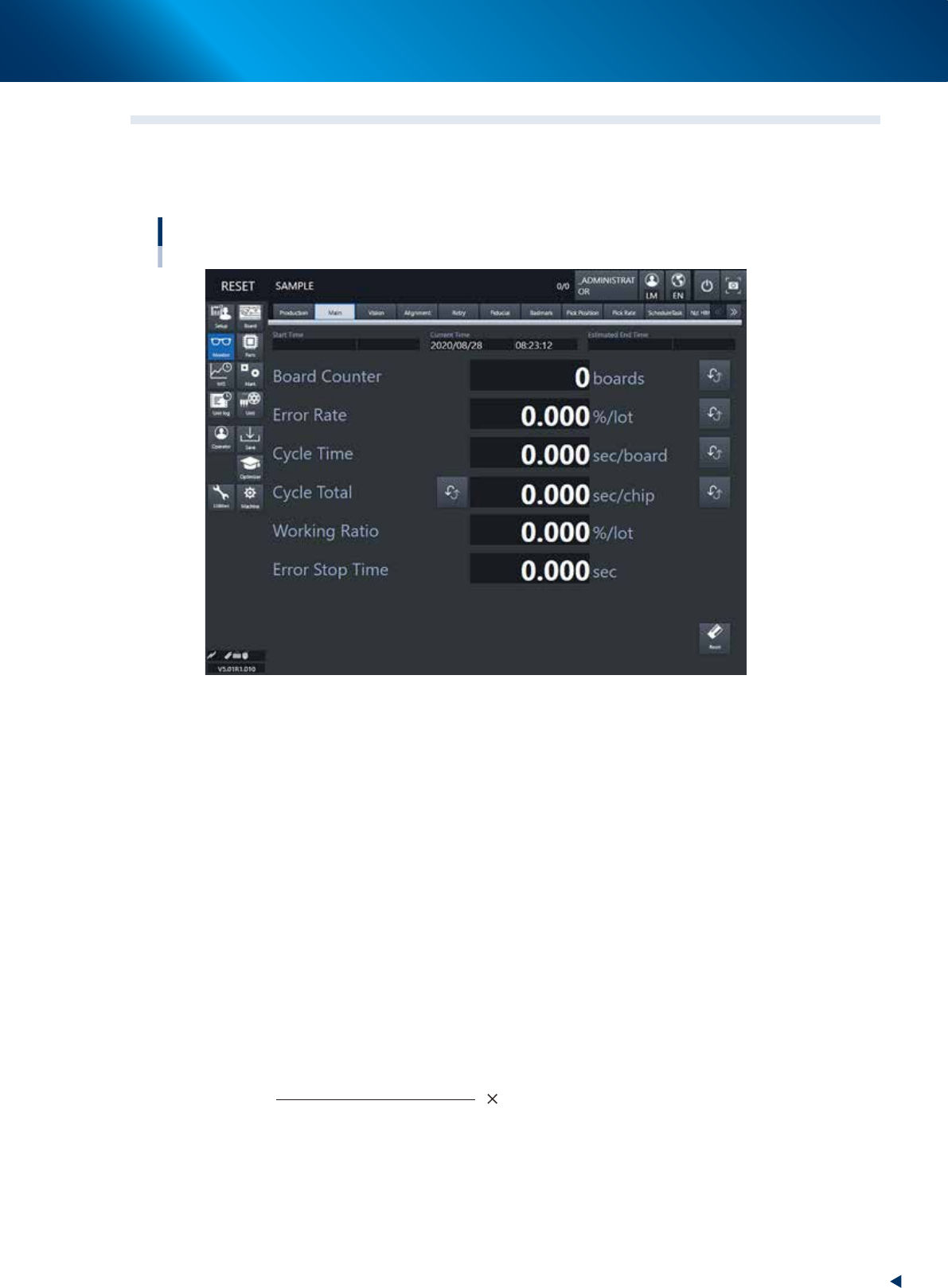

3.2 Main
The [Monitor] - [Main] tab screen shows you the real-time production status such as the board count and
cycle time. Displaying this screen during production is handy. All information will be cleared when the
board type is changed.
Monitor: Main
24213-KMX-00
• Start Time
Displays the date and time that the board data currently being produced was changed.
• Estimated End Time
Displays the estimated time of finishing the production.
• Current Time
Displays the current date and time of the system clock time built-in the machine.
• Board Counter
The board counter displays the number of boards produced after changing to the current production
board data. The board counter counts only the boards completed the mounting. Pressing the button on
the right side allows to switch between “Board Counter” and “Block Counter”.
• Error Rate
The ratio of components discarded due to the pick up error or recognition error occurred from the time
of changing to the board data currently producing to present to all the consumed components. This data
is updated when changing the production board.
Number of discarded components
Total component consumption
Error rate (%) = 100
Pressing the button on the right allows to switch between “Error Rate” and “Pickup Rate (= 100% - Error
Rate)”.
