4. Preparing component tape
2-57
Chapter 2 Basic operation
4.1.2 Setting feeders on the feeder exchange carriage
This section describes the procedure to set the feeder with component tape on the feeder exchange carriage
using ZSR feeder as example.
c
CAUTION
Always use a temporary tape set station or a power station for the off-line setup to set the tape. Make sure to prevent
essentially to set tape on tape feeder on feeder exchange carriage already attached to mounter, as a component tape may
fall inside of mounter upon working.
n
NOTE
The 4 types of tape feeder are provided and applicable for YRM20; ZSR feeder, ZS feeder, auto loading feeder, and SS
feeder. Though some limitation occur upon using SS feeder.
See "4.2 SS Feeder" for details.
1
Clean the feeder plate.
Before setting the feeder on the carriage, remove dust or foreign matter from the feeder plate. Use
the feeder plate cleaning brush that comes with the machine, a vacuum cleaner (home use) or the
vacuum assembly (option) to get rid of dust or foreign matter on the feeder plate.
c
CAUTION
If a component or foreign matter disturbs when setting a feeder to carriage, the feeder may not sit there correctly, making
it unable to pick up components in a stable manner.
Foreign object where the feeder sits in may cause electrical short circuit, possibly causing devices to be damaged. When
cleaning the feeder plate, be sure not to let foreign object contaminate the connectors.
TIP
The air joint equipped in feeder exchange carriage can be actuated only when the carriage is attached to mounter.

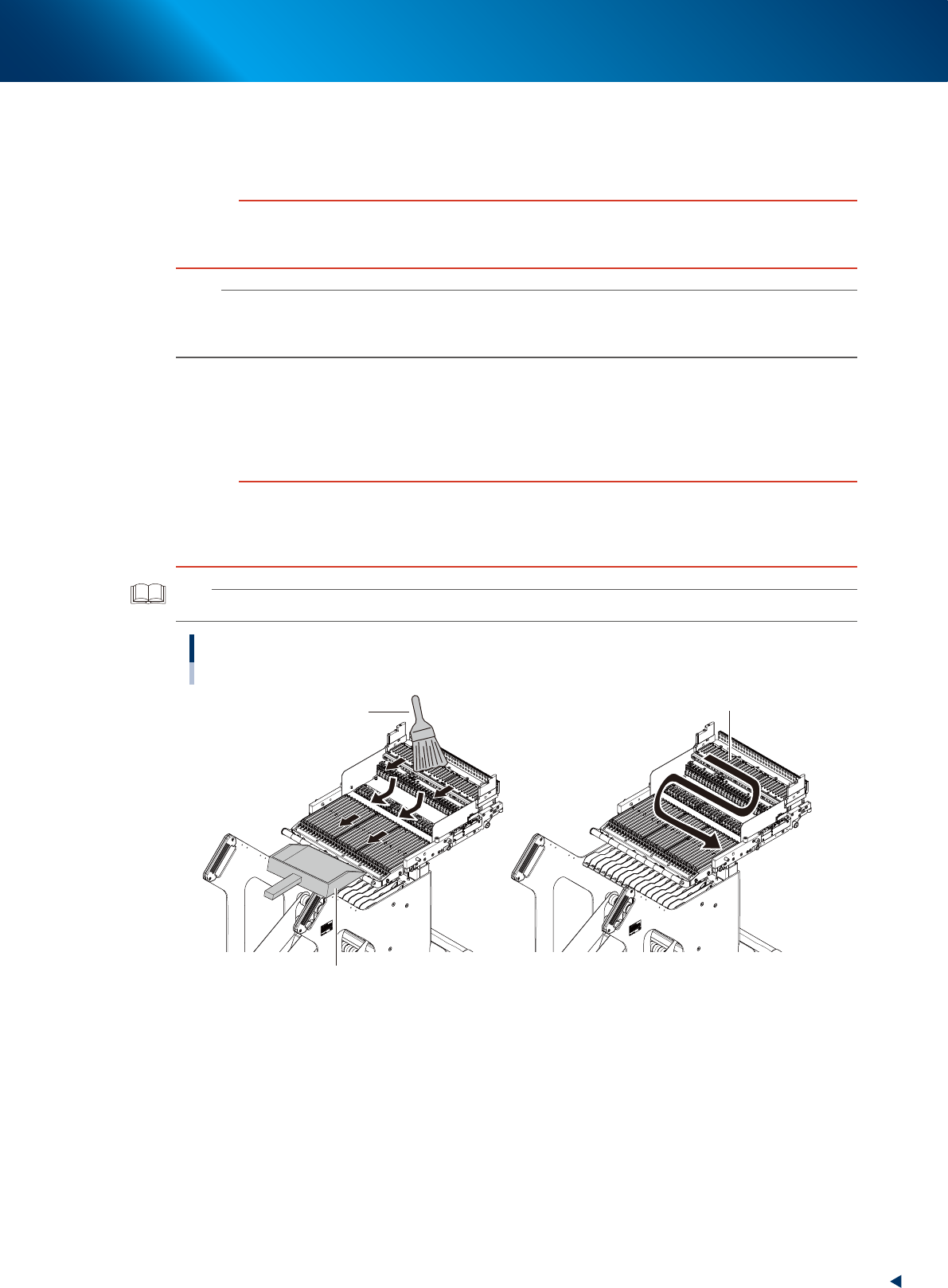

Cleaning feeder plate for carriage
Use home vacuum cleaner.
Cleaning brush
Use dust pan to collect foreign objects.
23213-KMX-00
4. Preparing component tape
2-58
Chapter 2 Basic operation
2

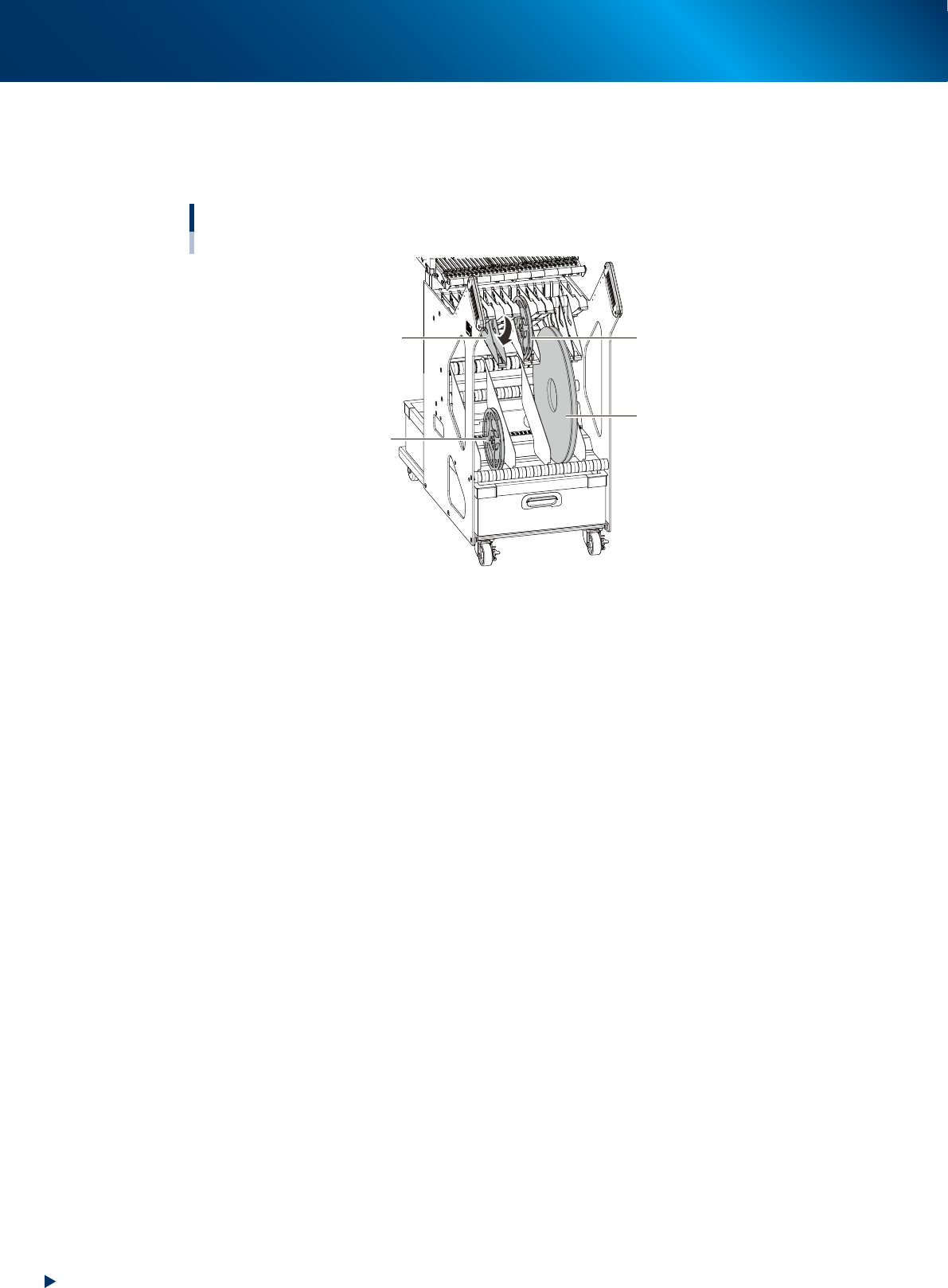

Place the tape reels in the slots of the reel holder.
The storing position varies depending on the tape reel size. A 7-inch tape reel can be stored on both
upper and lower holders. Descend the reel holder to store a 7-inch reel in the upper reel holder. A
tape reel over 7 inches are stored in the lower reel holder. Lift the upper holder as needed.
Setting the tape reel in the reel holder
7-inch reel
Tape reel over 7 inches
Reel holder
7-inch reel
23214-KMX-00
4. Preparing component tape
2-59
Chapter 2 Basic operation
3

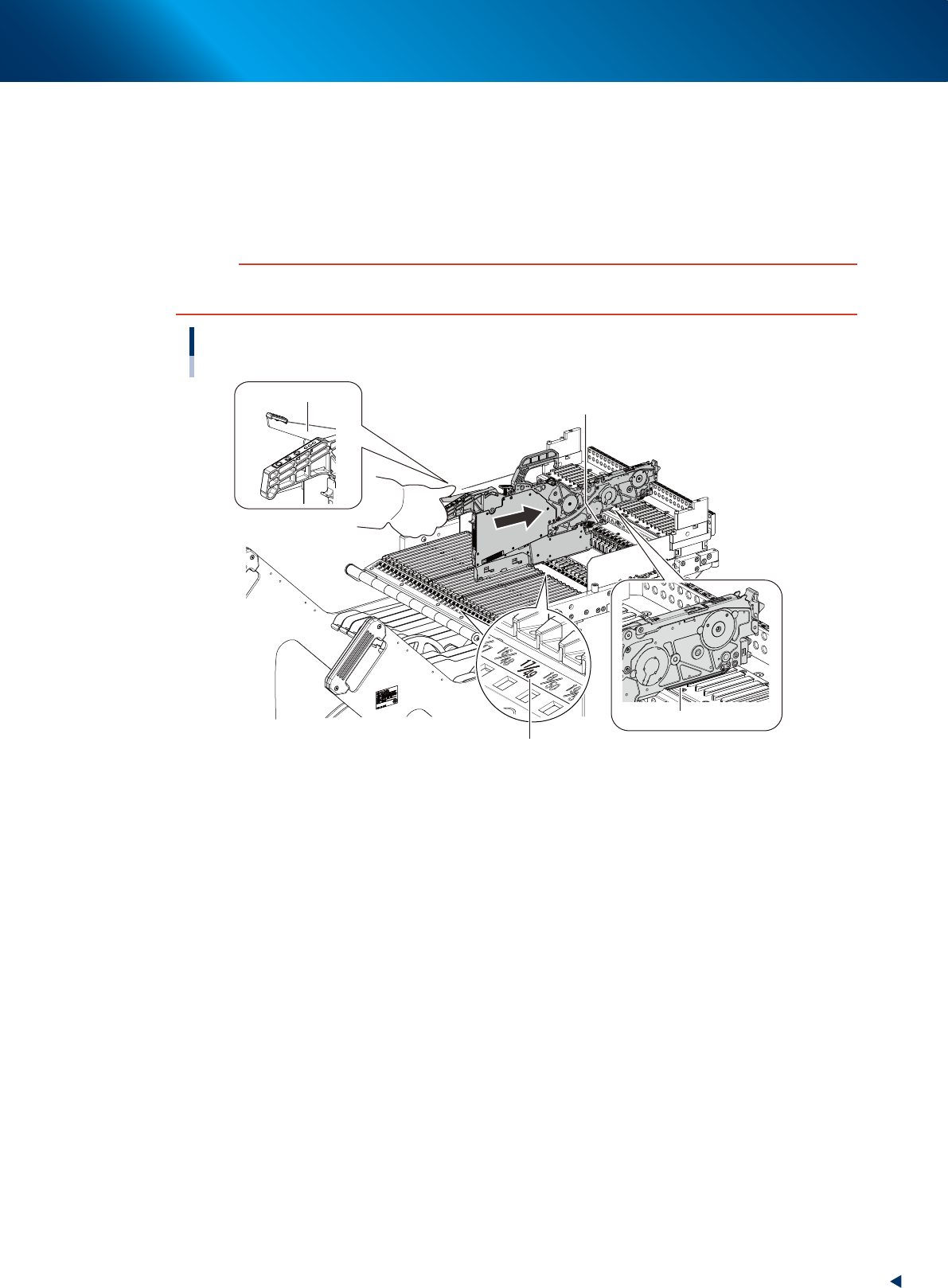

Set ZS feeder to carriage.
1. Grip the unclamping lever of a feeder.
2. Confirm the setting number on the carriage.
3. Place the feeder temporarily with its under rail aligned with the guide on the feeder plate side.
4. While keeping gripping the unclamping lever firmly, slide the feeder on the feeder plate to
insert the feeder to the end.
c
CAUTION
Be careful not to insert the feeder with excessive force.
Also, grip the unclamping lever firmly, or the clamping lever assembly does not open enough.
Feeder exchange carriage
Setting ZS/ZSR feeder
Check the setting number.
Unclamping lever
Under rail
Clamping lever assembly
23215-KMX-00
4
Lock the clamping lever assembly.
Upon releasing the unclamping lever, the clamping lever assembly closes and locks.
Confirm that the clamping lever assembly is locked firmly and the feeder does not come off.
Otherwise, the feeder may come off while mounting.
