4. Preparing component tape 2-67 Chapter 2 Basic o pera tion 2 Cu t the use d co ver tap e. 1. When the cover tape still remains, use the edge cutter installed behind the tail cover to cut off the used cover tape. 2. Dis…
4. Preparing component tape
2-66
Chapter 2 Basic operation
4.1.5 Disposing of used cover tape and carrier tape
As a daily routine, dispose of the used cover tape and carrier tape from time to time.
█
Disposing of used cover tape
As a result of mounting components on the production operation, the cover tape accumulates inside of
feeder. The feeder tail cover is catched with magnet, so the accumulation of tape in the feeder excesses
its capacity, that the tail cover is pushed and opened automatically illustrated below. Though, the
periodical inspection and disposing the used cover tape before opening of tail cover is recommended.
TIP
As to 8mm feeder, the tail cover opens when the accumulation reaches approximately of two 7-inch tape reels of 8mm.
Tape feeder with its tail cover automatically opened
Pushed out cover tapeTail cover
23220-KMX-00
1
Check the used cover tape.
Open the tail cover periodically to see whether the used cover tape is accumulated.
Checking the used cover tape
Cover tape in the feeder
Tail cover
23221-KMX-00
4. Preparing component tape
2-67
Chapter 2 Basic operation
2

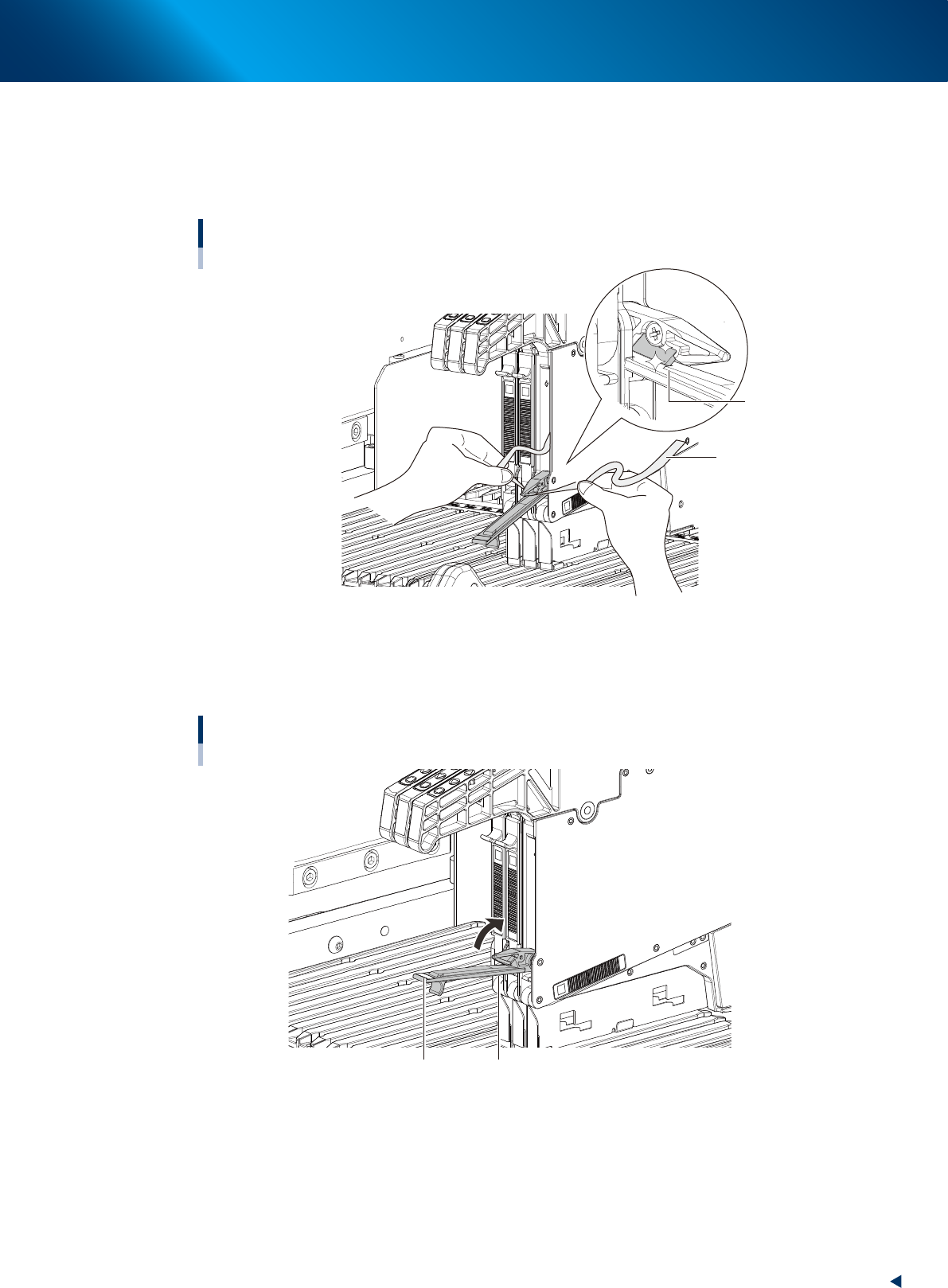

Cut the used cover tape.
1. When the cover tape still remains, use the edge cutter installed behind the tail cover to cut off
the used cover tape.
2. Dispose the cut cover tape.
Cutting the used cover tape
Cover tape to be cut
Edge cutter
23222-KMX-00
3
Close the tail cover after the operation.
Note that the tail cover has a magnet to be caught to feeder body.
Closing the tail cover
Tail coverMagnet
23223-KMX-00
4. Preparing component tape
2-68
Chapter 2 Basic operation
█
Disposing of used carrier tape
The used cut-up pieces of carrier tape are collected in the empty tape dust box as the production goes
on. Check the empty tape dust box from time to time and dispose of the carrier tape.
Disposing of the carrier tape
Empty tape dust box
Cut-off carrier tape
Checking window
23224-KMX-00
TI
The feeder exchange carriage for YRM20 has the window to check inside the empty tape dust box and it enables to check
inside the box without pulling out to some extent. Check through this window upon partial checking.
