4. Preparing component tape
2-80
Chapter 2 Basic operation
4.2.3 Detaching the feeder exchange carriage from mounter
e
1
Press the emergency stop button.
2
Turn the clamp switch to the right (OFF).
Upon turning to right (OFF) the clamp switch corresponding to the detaching carriage, the clamp unit
of machine side moves up. The LED indicator of clamp switch blinks during moving up the clamp unit.
When the feeder is unclamped, the clamp switch indicator will go off.
c
CAUTION
While the clamp switch is blinking, do not touch inside of machine or carriage.
The clamp unit moving down might pinch hands.
n
NOTE
When the emergency stop button is nott pressed, the clamp unit does not move up even the clamp switch is turned OFF.
3
Check that clamp switch lamp is off.
4
Open machine safety cover.
5
Open upper cover of machine.
1. Push the cover locks on both sides of upper cover and unlock the upper cover locks.
2. Open upper cover with hands.

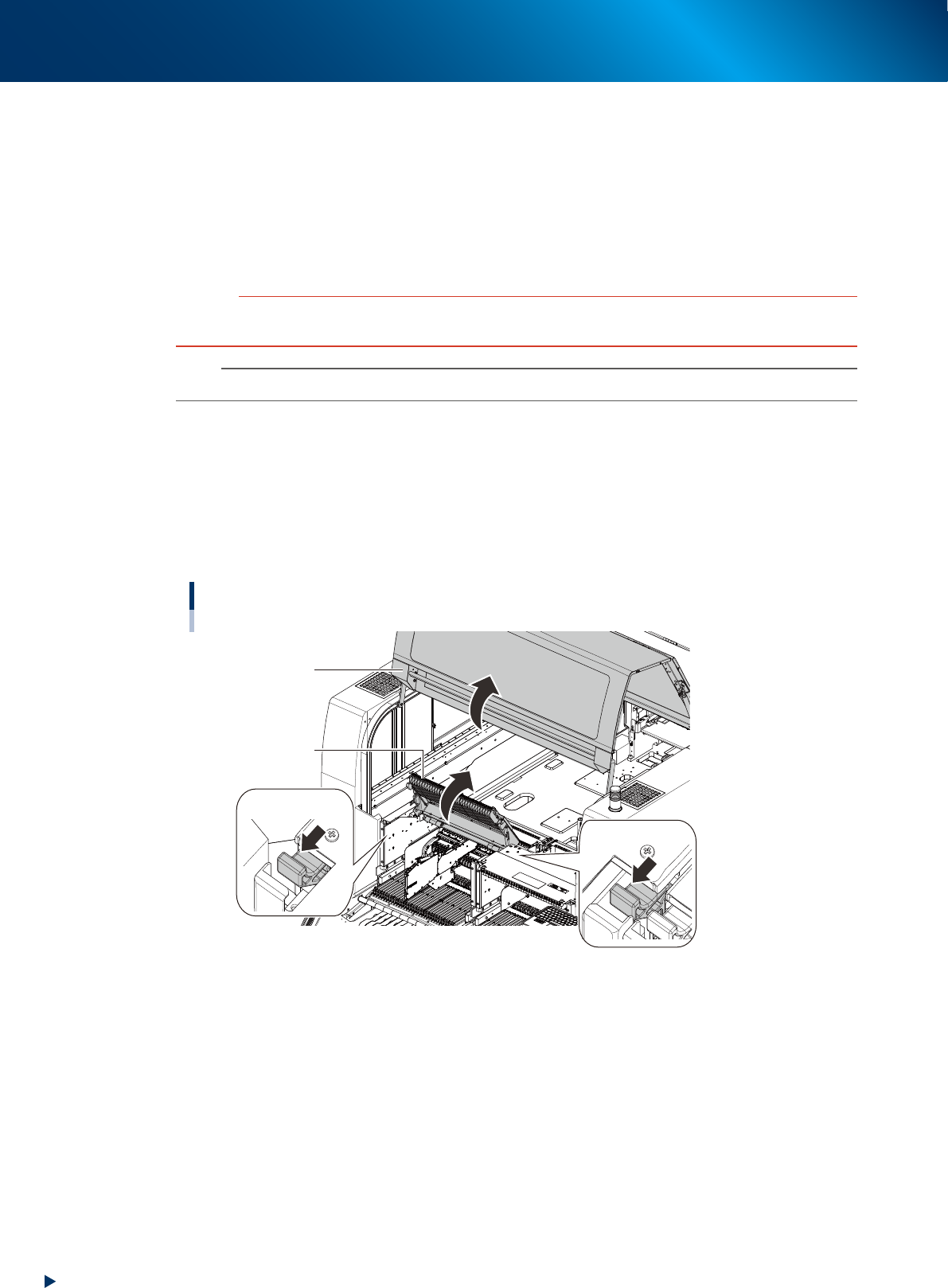

Opening the safety cover and upper cover
Cover lock
Cover lock
Upper cover
Safety cover
23237-KMX-00
4. Preparing component tape
2-81
Chapter 2 Basic operation
6
Detach feeder exchange carriage from machine.
Hold the handles of feeder exchange carriage and pull back straight to separate carriage from
machine.

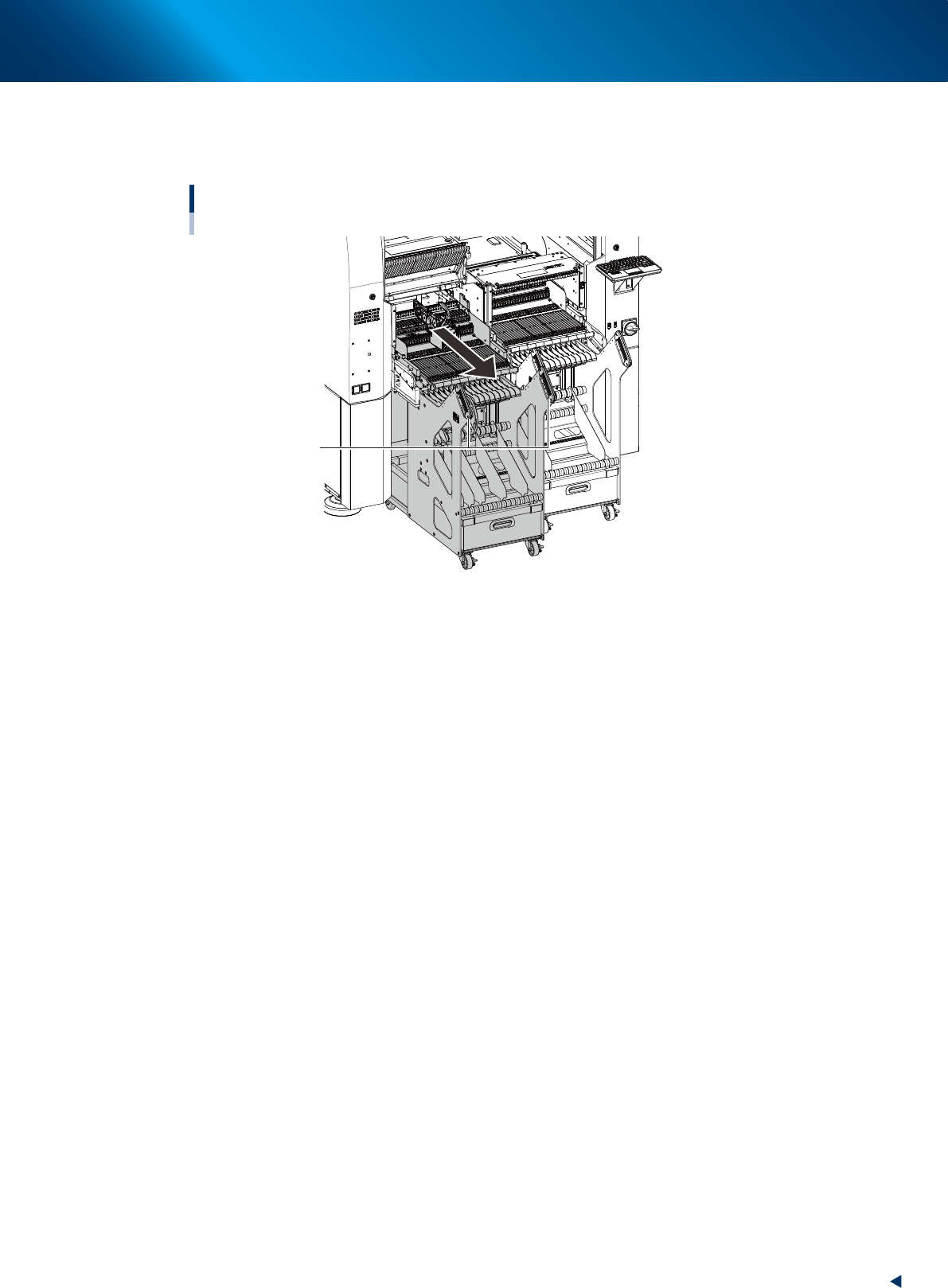

Detaching feeder exchange carriage from machine
Feeder exchange carriage that is set SS feeders
Handles
23238-KMX-00
7
Close upper cover of machine.
8
Olose machine safety cover.
4. Preparing component tape
2-82
Chapter 2 Basic operation
4.2.4 Detaching SS feeder from carriage
1
Detach feeder from carriage.
1. Hold the bottom of SS feeder and pull the handle to near side of operator.
2. While keeping pulling the handle backward, pull the feeder straight out.
Feeder exchange carriage

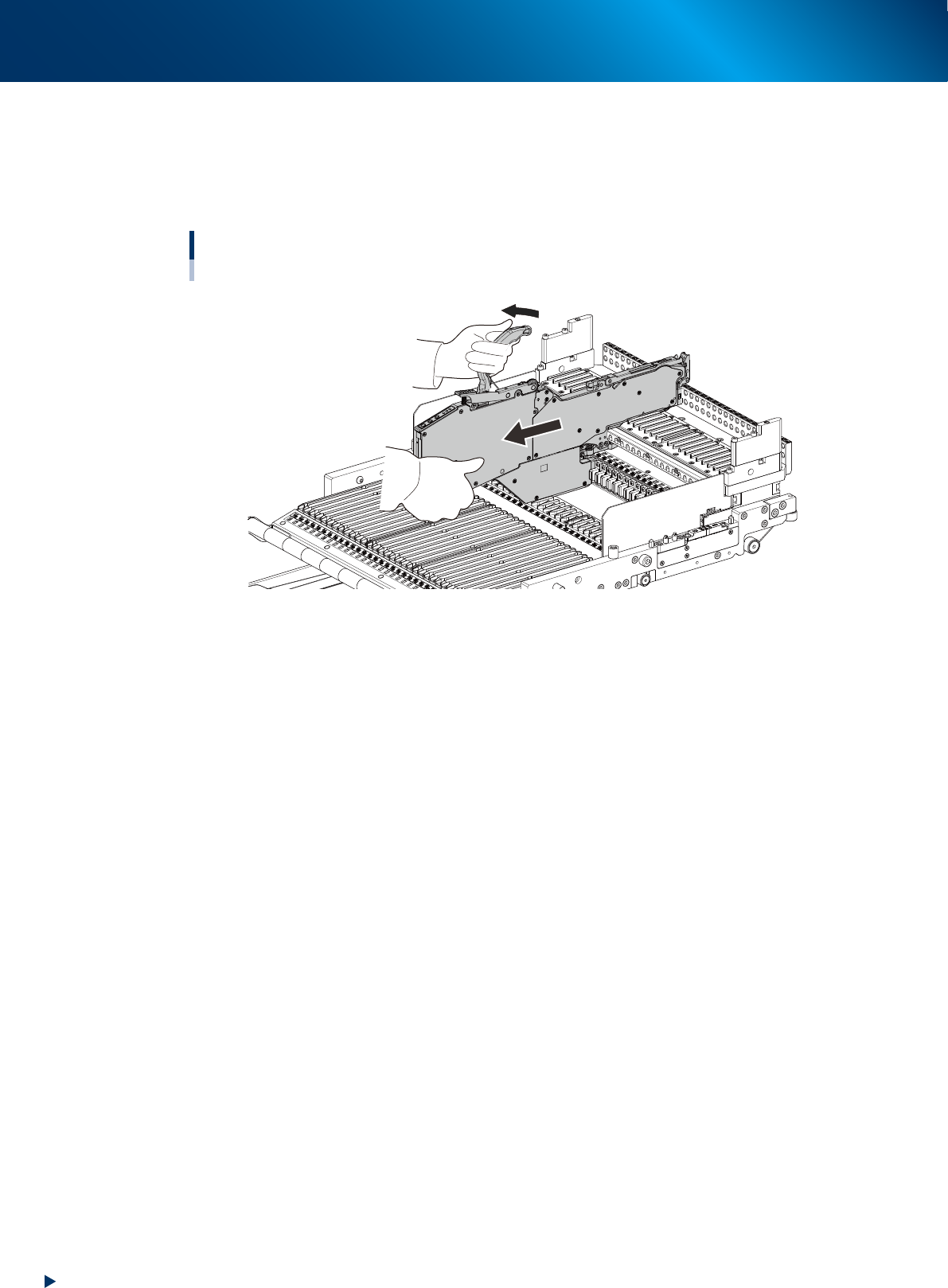

Detaching SS feeder from carriage
Pull the handle to near side of operator
23239-KMX-00
2
Detach the reel.
Detach the reel from the reel holder of carriage.
