3. Head unit 1-20 Chapter 1 Unit names and functions 3.3.5 Attaching/Detaching nozzle holder █ Detaching nozzle holder 1. Push down the nozzle holder detaching lever . 2. Lift up the whole nozzle holder and detach it. █ …
3. Head unit
1-19
Chapter 1 Unit names and functions
3.3.4 Type B nozzle holder
Type B nozzle holder can store not only the small diameter nozzles but also the bigger nozzles as such
8011H and 8012H nozzles. Type B nozzle holder can store up to 37 nozzles.
Type B Nozzle holder
1/51 2/52 14/64 15/65
29/79 30/80
31/81 33/83 34/84 35/85
32/82 36/86 37/87 16/66 17/67
31/81 : Starts from nozzle no.31 for holder 1
Starts from nozzle no.81 for holder 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
23116-KMX-00
►
Nozzle holder TypeB
No Nozzle type No Nozzle type
1/51
TYPE 8103A
TYPE 8104A
TYPE 8105A
TYPE 8106A
TYPE 8107A
TYPE 8108A
TYPE 8109A
TYPE 8004H
TYPE 8006H
TYPE 8110R
20/70
TYPE 8103A
TYPE 8104A
TYPE 8105A
TYPE 8106A
TYPE 8107A
TYPE 8108A
TYPE 8109A
TYPE 8004H
TYPE 8006H
TYPE 8110R
2/52 21/71
3/53 22/72
4/54 23/73
5/55 24/74
6/56 25/75
7/57 26/76
8/58 27/77
9/59 28/78
10/60 29/79
11/61 30/80
12/62 31/81
Type 8012H or custom nozzle
13/63 32/82
14/64 33/83
Type 8011H
15/65 34/84
16/66 35/85
17/67 36/86
18/68 37/87
19/69
n
NOTE
This machine manages the stored nozzles by recognizing their ID. The small diameter nozzles can be installed regardlessly
in No.1 to No.30 or No.51 to No.80 of nozzle holder.
3. Head unit
1-20
Chapter 1 Unit names and functions
3.3.5 Attaching/Detaching nozzle holder
█
Detaching nozzle holder
1. Push down the nozzle holder detaching lever.
2. Lift up the whole nozzle holder and detach it.
█
Attaching nozzle holder
1. Insert the nozzle holder like hooking the mounting block unit of nozzle station base unit.
2. Push down the lever side of nozzle holder while making the mounting block side as a supporting
point.
3. Press the nozzle holder downward. It clicks upon being locked.
n
NOTE
The nozzle holder shutter is equipped with magnet and it is closed after detaching the nozzle holder.
The nozzle can be detached while shifting the shutter by hand.
Moreover, do not make upside down the nozzle holder with opening the shutter as the nozzles may drop off.
3. Head unit
1-21
Chapter 1 Unit names and functions

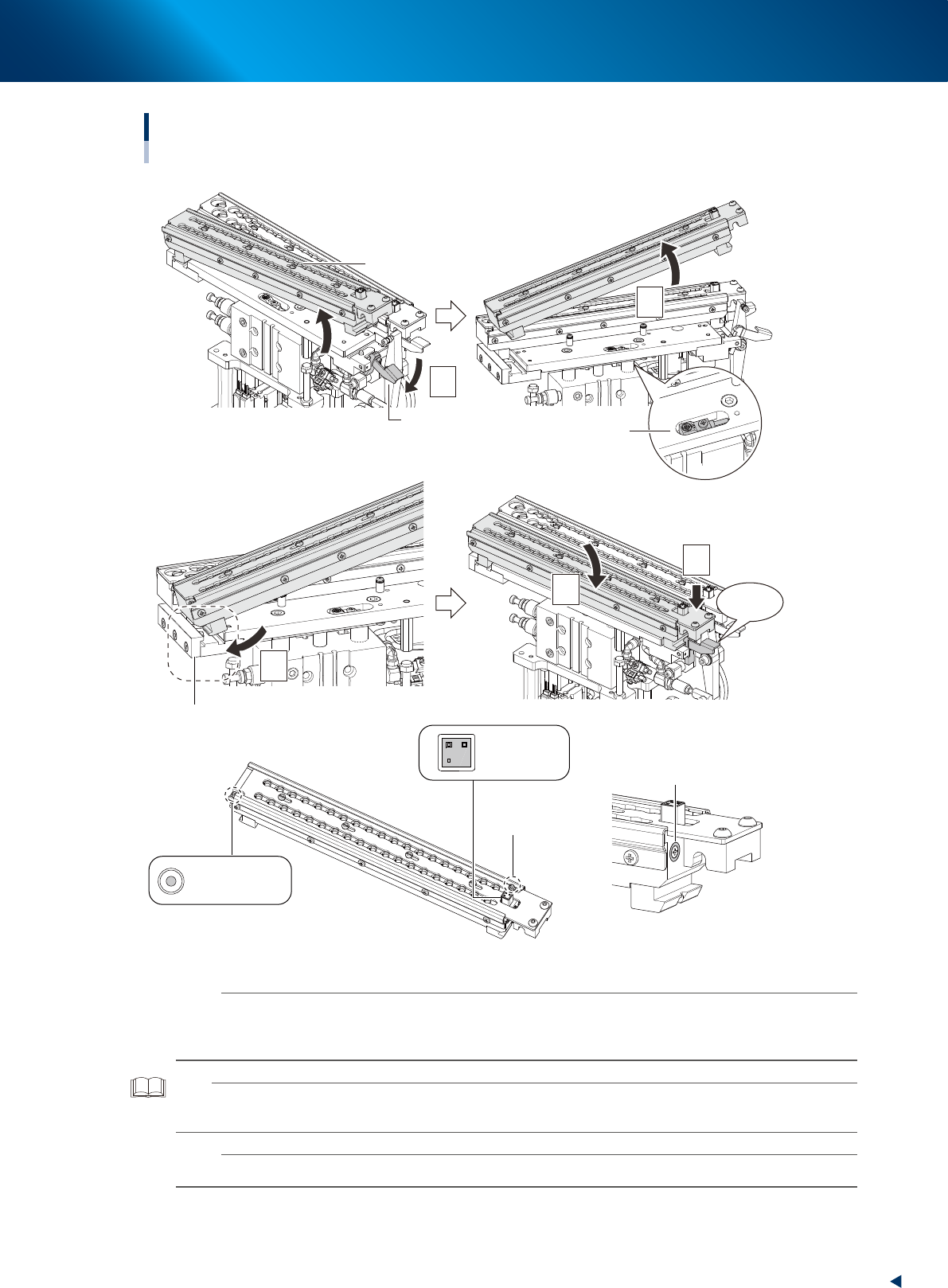

Attaching/Detaching nozzle holder
Nozzle holder
• Detaching nozzle holder
• Attaching nozzle holder
Click!
Nozzle holder
detection sensor
Nozzle holder
detaching lever
ANC MACS
ANC MACS
QR code
Mounting block
1
2
4
5
3
Magnet
23117-KMX-00
n
NOTE
The position of nozzle holder is calibrated by scanning a positioning mark (ANC MACS) with fiducial camera.
Moreover, a nozzle holder detection sensor is equipped at mounting position of nozzle holder and the automatic operation
without nozzle holder is prevented by interlock.
TIP
MACS is an abbreviation of "Multiple Accuracy Compensation system" and used to mean the position correction system
for YAMAHA mounter or the positioning mark.
n
NOTE
Be careful not to scratch or dirt the QR code label and ANC MACS, or it may occur a recognition error.
