4. Preparing component tape 2-74 Chapter 2 Basic o pera tion 6 Pull out component tape from f eeder . 1. Pull out the component tape from the inser tion slot at rear of feeder . 2. Rotate the tape reel to roll up the com…
4. Preparing component tape
2-73
Chapter 2 Basic operation
4
Lift the tape guide assembly.
1. Lift the tape guide front lever to the arrow direction.
2. Lift the tape guide assembly.
5
Pull out carrier tape and cover tape
1. Pull out carrier tape from the tape guide front lever.
2. Pull out cover tape from the tape guide assembly.
Pullling out carrier tape and cover tape
Tape guide front lever
Tape guide assembly
Pull out carrier tape.
Pull out cover tape.
23229-KMX-00
c
CAUTION
Do not pull out the cover tape forcibly. Otherwise the tape guide assembly is deformed. Pull out slowly and with care the
carrier tape and cover tape. The pulling out forcibly causes the coming off the cover tape and falling off the components.
4. Preparing component tape
2-74
Chapter 2 Basic operation
6

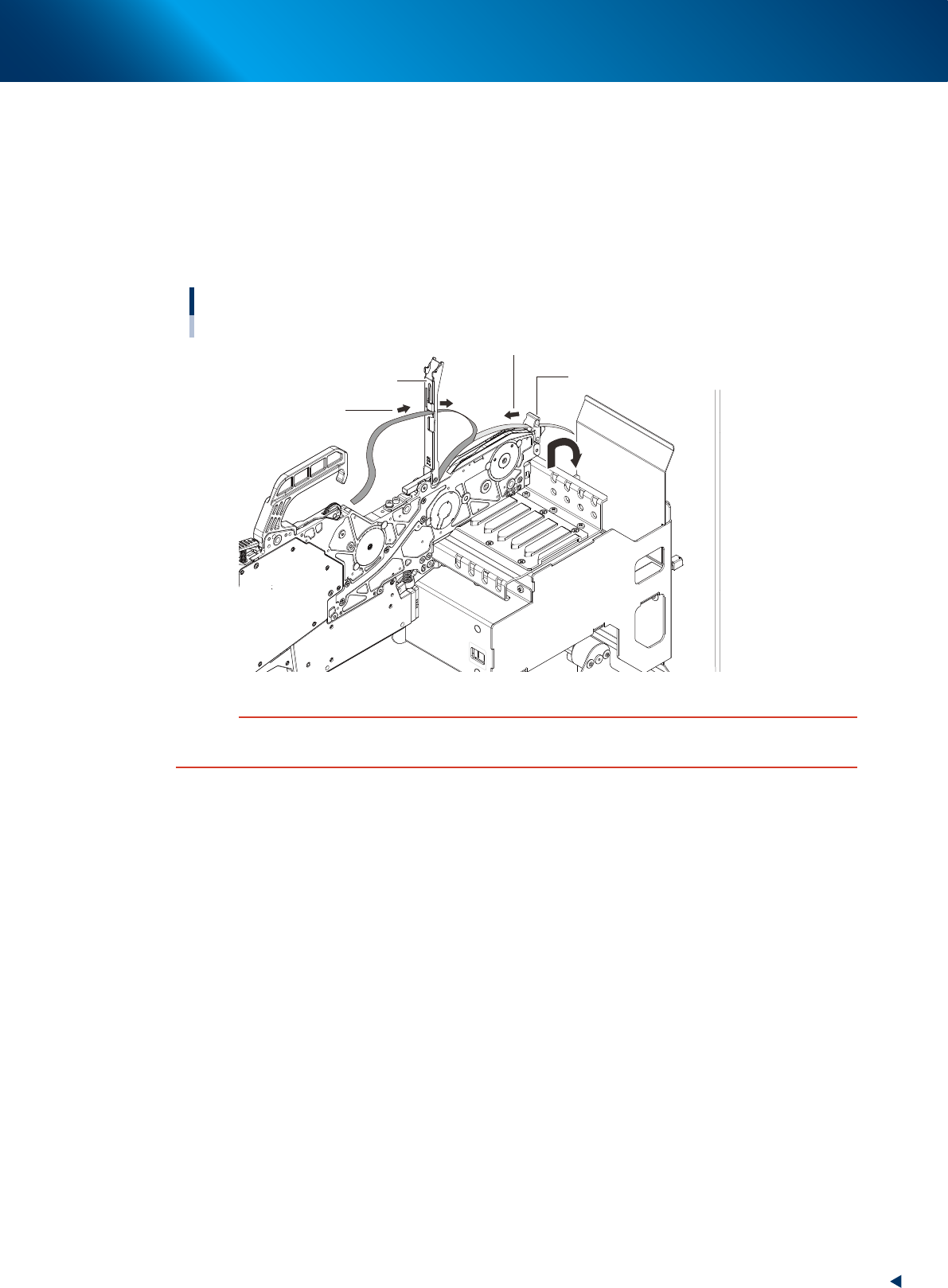

Pull out component tape from feeder.
1. Pull out the component tape from the insertion slot at rear of feeder.
2. Rotate the tape reel to roll up the component tape.
Pulling out component tape
Component tape
Tape reel
Component tape insertion slot
23230-KMX-00
7
Fix tape guide assembly with tape guide front lever to clamp it.
c
CAUTION
Upon clamping the tape guide assembly, the squeezing of tape guide assembly into the tape guide front lever may wear
the claw of tape guide front lever. Make sure to lift up the tape guide front lever and then engage the claws of tape guide
assembly and tape guide front lever to clamp the tape guide assembly.
4. Preparing component tape
2-75
Chapter 2 Basic operation
4.2 SS Feeder
n
NOTE
SS feeder is applicable with YRM20.
Though it is not recommended as the following limitation occur.
█
The non-stop feeder pulling out/inserting cannot be performed with SS feeder.
The production must be stopped once and the machine safety cover and upper cover are required to
open to attach SS feeder. Also, attaching the feeder exchange carriage with SS feeder to machine
requires to open the machine safety cover and upper cover.
█
SS feeder makes the mounting speed slower than that of ZS/ZSR feeders.
The component tape feeding speed of SS feeder is relatively slower than that of ZS feeder/ZSR feeder.
So, mounting with only SS feeders and even using with other feeders, actual mounting time is largely
changed from calculated mounting time with off-line software (YSUP-Mounter), as the machine operates
mounting at speed according to the component tape feeding speed of SS feeder.
c
CAUTION
Attaching the feeder exchange carriage that SS feeders are set without opening machine safety cover and upper cover
may damage equipment as SS feeder and upper cover interfere each other.
Feeder exchange carriage
Interference of SS feeder and upper cover
Upper cover
SS Feeder
23231-KMX-00
This document describes "Attaching SS feeder to feeder exchange carriage", "Attaching feeder
exchange carriage that SS feeders are set to machine", "Detaching feeder exchange carriage that SS
feeders are set from machine", and "ing SS feeder from feeder exchange carriage".
