3. Head unit
1-16
Chapter 1 Unit names and functions
3.3 Nozzle station (option)
3.3.1 Overview of Nozzle station

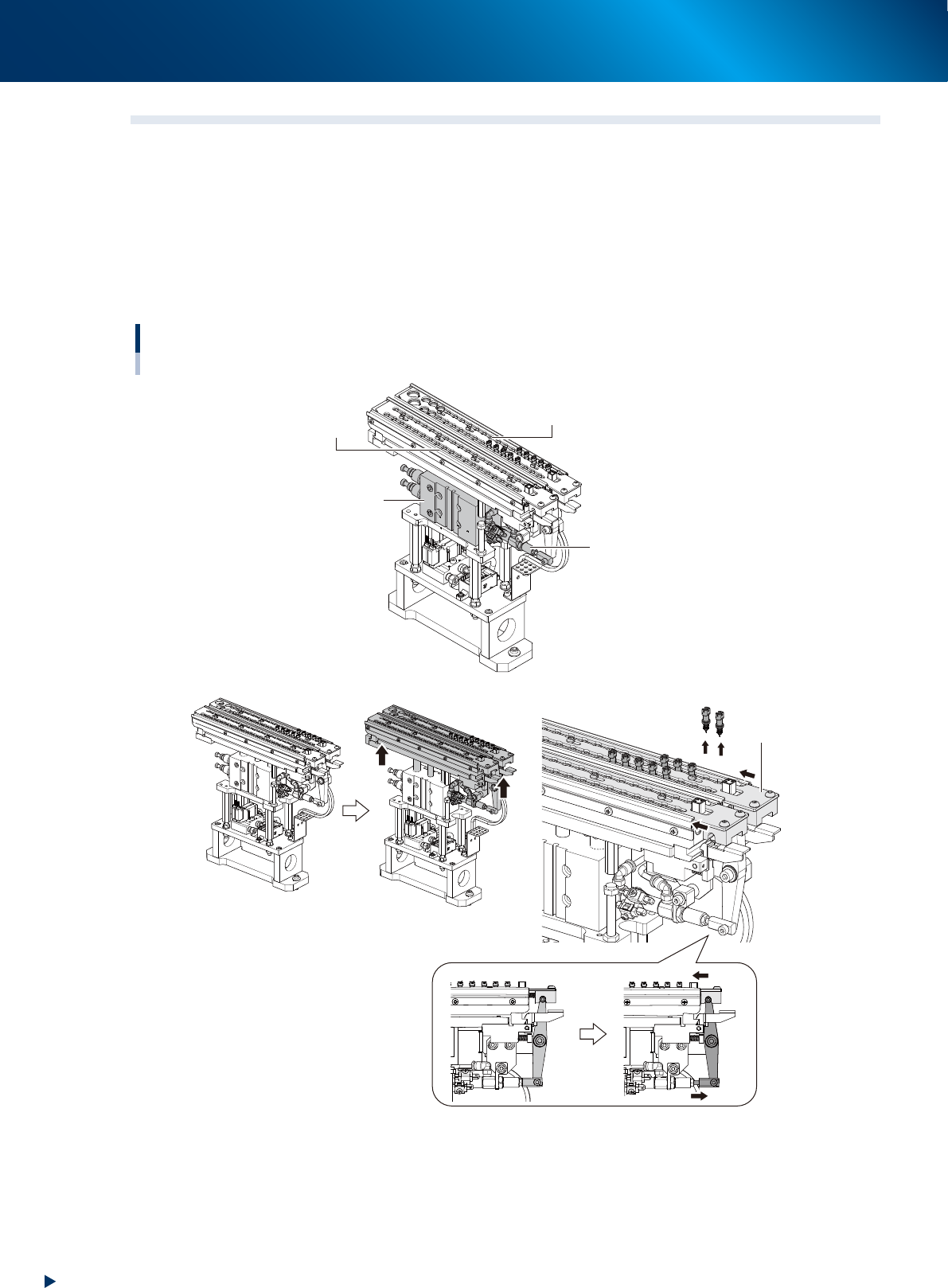

The nozzle station stores multiple types of nozzle described at "3.2 Nozzle types" above to perform
automatic nozzle change. The nozzle station is comprised of its base unit and nozzle holder storing nozzles
and whole nozzle holder can be attached/detached.
The nozzle station is equipped cylinders to perform ascending/descending the optional nozzle holder unit,
or opening/closing the nozzle holder shutter. The automatic nozzle change is performed by ascending the
nozzle holder unit and opening the nozzle holder shutter.
Nozzle station
Nozzle holder
Nozzle holder
Nozzle holder
shutter
Cylinder for ascending/descending
the nozzle station
Cylinder for opening/closing
the nozzle holder shutter
■ Ascending the nozzle holder ■ Opening/Closing the nozzle holder shutter
23113-KMX-00
3. Head unit
1-17
Chapter 1 Unit names and functions
3.3.2 Nozzle holder 1 and 2

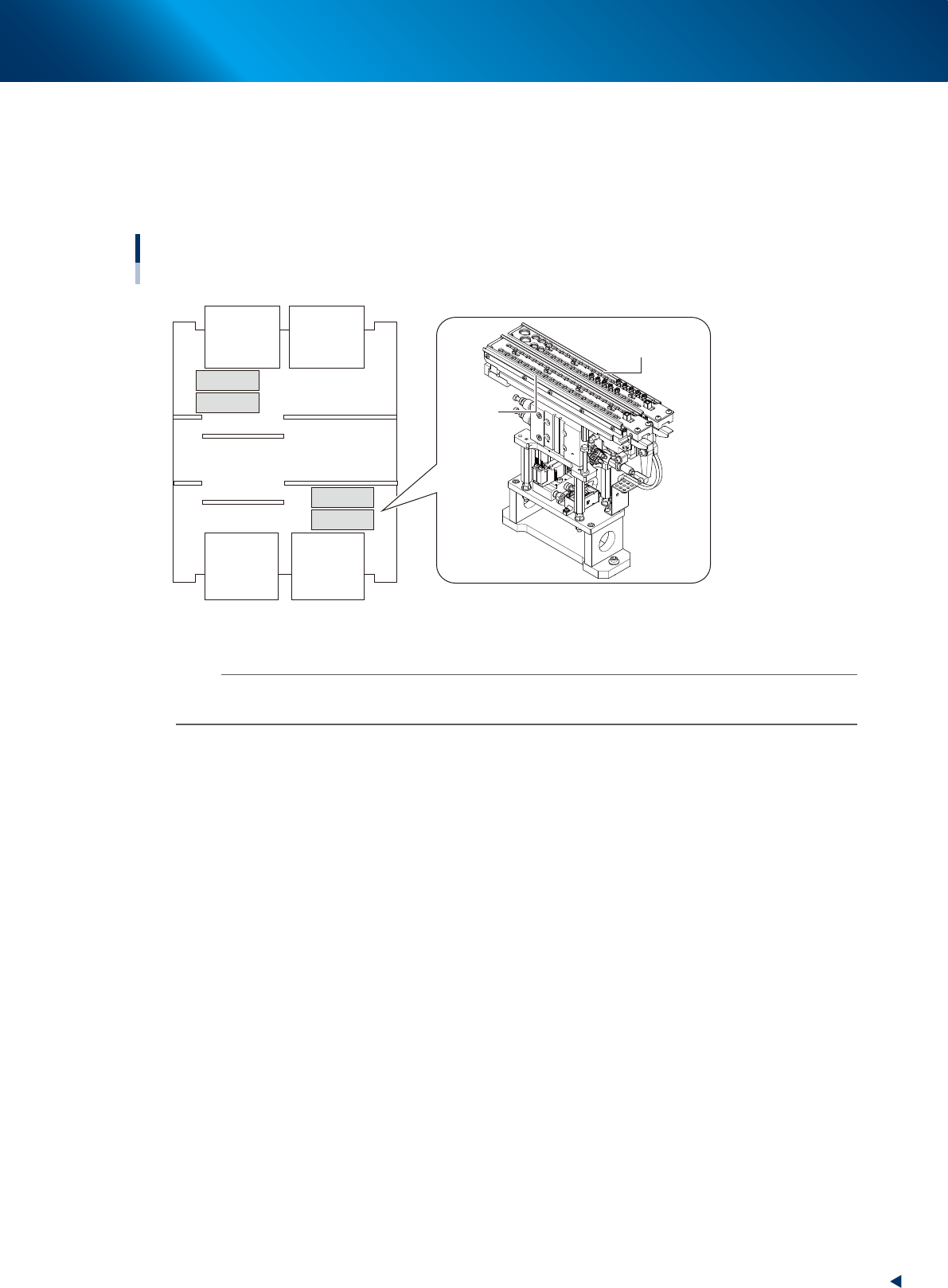

The nozzle stattion can be installed one per front and rear side of machine. Moreover, two nozzle holders
are equipped per one nozzle station.
The nozzle holder of back side from operator is called nozzle holder 1 and near side, nozzle holder 2,
regardless of it is front/rear nozzle station.
Nozzle holder 1 / Nozzle holder 2
Holder 2
Holder 1
Holder 2
Holder1
Front
Rear
Holder 1
Holder 2
23114-KMX-00
n
NOTE
The numbering of nozzle storage position described at following section varies depending on the position where nozzle
holder is attached.
3. Head unit
1-18
Chapter 1 Unit names and functions
3.3.3 Type A nozzle holder
There are two types of nozzle holders, Type A and Type B, and they are selected according to the type of
head unit or mounting components.

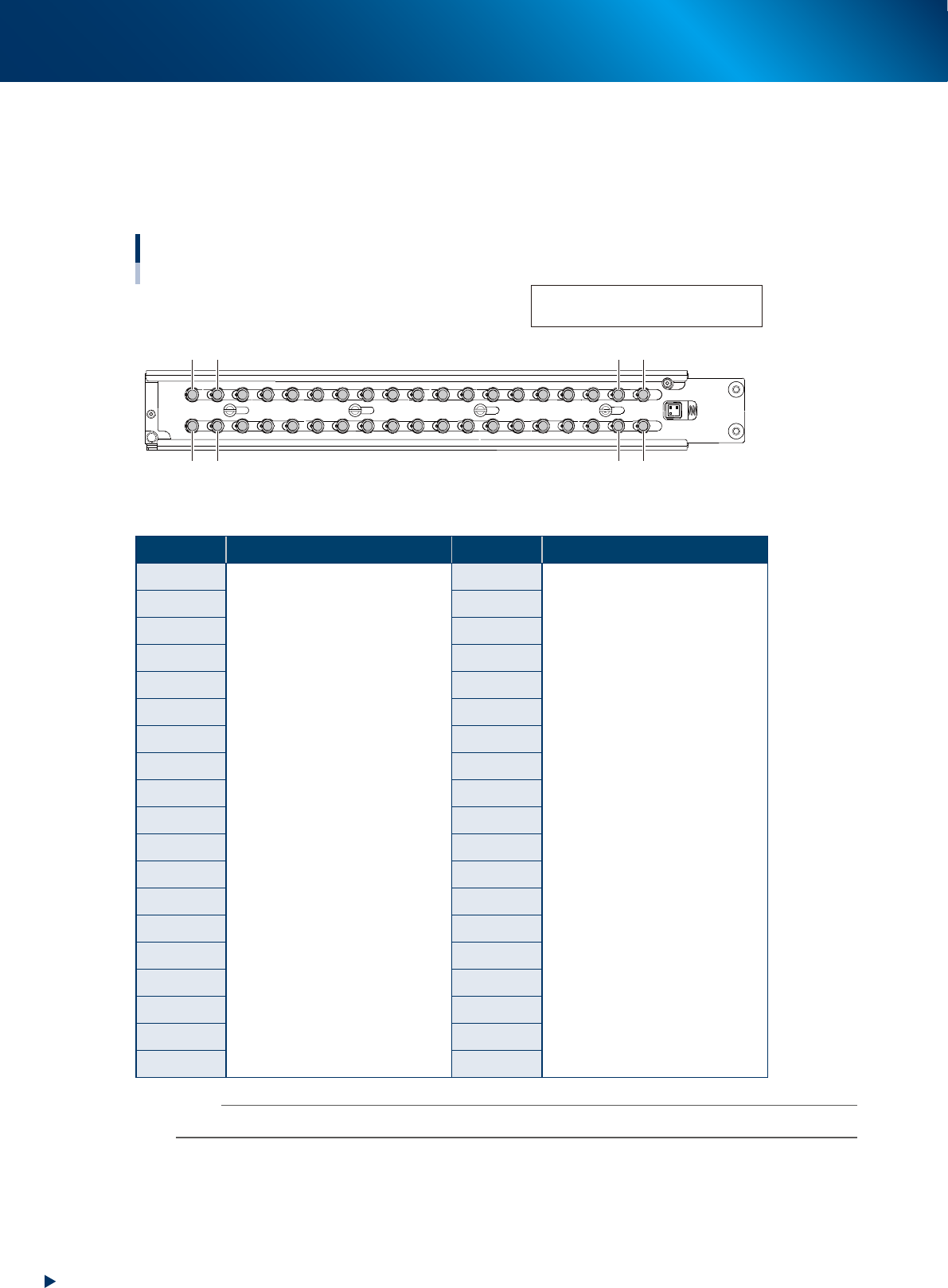

The following describes the numbering of nozzle storage position of Type A nozzle holder.
The Type A nozzle holder can store up to 38 small diameter nozzles.
TypeA Nozzle holder
1/51 2/52 18/68 19/69
20/70 21/71 37/87 38/88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1/51 : Starts from nozzle no.1 for holder 1
Starts from nozzle no.51 for holder 2
23115-KMX-00
►
Nozzle holder TypeA
No Nozzle type No Nozzle type
1/51
TYPE 8103A
TYPE 8104A
TYPE 8105A
TYPE 8106A
TYPE 8107A
TYPE 8108A
TYPE 8109A
TYPE 8004H
TYPE 8006H
TYPE 8110R
20/70
TYPE 8103A
TYPE 8104A
TYPE 8105A
TYPE 8106A
TYPE 8107A
TYPE 8108A
TYPE 8109A
TYPE 8004H
TYPE 8006H
TYPE 8110R
2/52 21/71
3/53 22/72
4/54 23/73
5/55 24/74
6/56 25/75
7/57 26/76
8/58 27/77
9/59 28/78
10/60 29/79
11/61 30/80
12/62 31/81
13/63 32/82
14/64 33/83
15/65 34/84
16/66 35/85
17/67 36/86
18/68 37/87
19/69 38/88
n
NOTE
YRM20 recognizes and manages stored nozzle ID, so the nozzles can be arranged to any position in nozzle holder.
