4. Component supply section
1-36
Chapter 1 Unit names and functions
LOCK
Feeder exchange carriage
1
5
3
4
2
7-inch reel
Tape reel over 7 inches
■ Pulling out small reel holder
■ Reel partition
■ Connector section of feeder exchange carriage
Connector for the QFP
recovery conveyor.
Power connector
Air joint
23123-KMX-00
4. Component supply section
1-37
Chapter 1 Unit names and functions

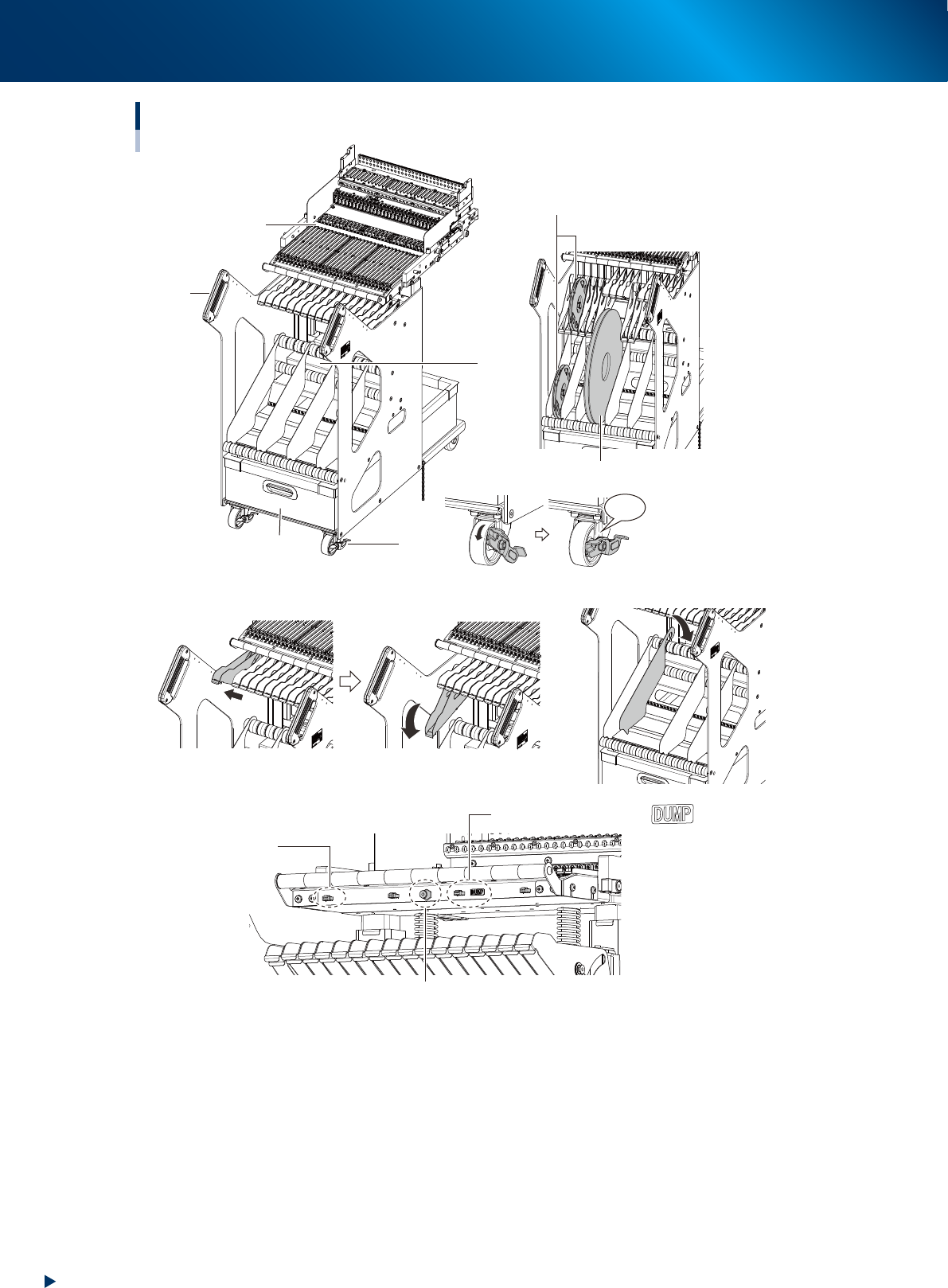

1. Handle
This handle is used when moving the feeder exchange carriage.
2. Feeder plate
Is a section to set feeders. For one feeder exchange carriage, ZS feeder, ZSR feeder and auto loading
feeder of 8mm can be set up to 32 pieces.
TIP
SS feeder can be attached to feeder exchange carriage for YRM20, but some limitation occurs.
See
Chapter 2
"4.2 SS Feeder" for details.
3. Empty tape dump box (option)
This box is for catching empty tape after components have been picked up.
Check it periodically and dispose the built-up empty tapes.
4. Caster lock
Step on to lock the casters to prevent movement after the feeder exchange carriage has been detached
from the mounter. Unlock by returning the lever.
5. Reel holder
The upper reel holder can be slided frontward and lowerd to store 7-inch reels. The lower reel holder
can store the tape reel over 7 inches and the reel partition can be shifted according to width of reel
stored.
n
NOTE
When placing 7-inch reels continuously, set them in the upper and lower racks alternately.
Power connector
A power connector for option devices, such as stick feeder.
Connector for the QFP recovery conveyor
Is a connector for signal wire to actuate the QFP recovery conveyor.
Also, one power connector is used for actuating QFP recovery conveyor.
Air joint
Is an air joint for actuating optional tools as such air blow tool or vacuum assembly. Used by connecting
air tube of the outer diameter
φ
4mm.
n
NOTE
The air joint/power connector can be actuated only when the feeder exchcange carriage is attached to machine.
4. Component supply section
1-38
Chapter 1 Unit names and functions

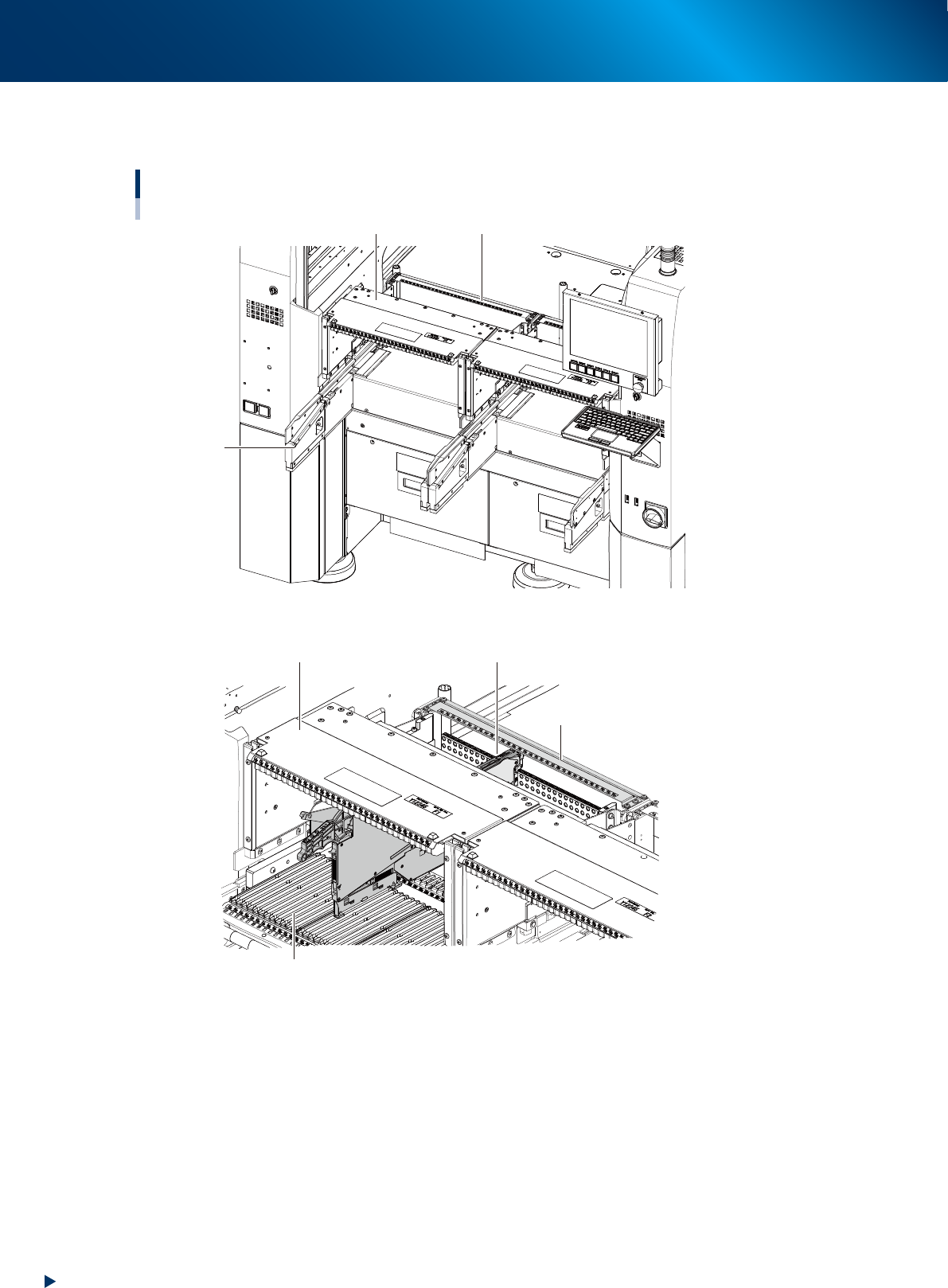

4.2.2 Feeder exchange carriage attaching section of machine
YRM20 has up to four carriage attaching section, two for front and rear side each.
Feeder exchange cariage attaching section
• Attached status of feeder exchange cariage and feeder
Feeder tape guide
Slope for feeder
exchange carriage
Tape guide cover
Upper cover
Tape guide cover
Upper cover
Feeder plate (Feeder exchane cariage)
23124-KMX-00
