1. Flow from starting up machine to production
3-14
Chapter 3 Flow from starting up machine to production
OK
OK
NG
OK
OK
NG
NG
OK
76
mm
Support pin
Layout of the push-up pins
Viewed from above
Magnet stand
Push-up pin
Push-up plate
Main stopper
Mounting board
Conveyor frame
NG
NG
(Fail) A push-up pin is under
the conveyor frame.
(Fail) The magnet stand
comes out the push-up plate.
23304-KMX-00
c
CAUTION
Lay out the push-up pins in a manner that when the push-up plate lifts, it does not come into collision with the conveyor
rail or other parts. Do not change the distance between the bottom face of the magnet stand and the tip of the pin that is
adjusted to 76 mm.
TIP
It may be convenient to mark the positions of the push-up pins on the push-up plate with stickers, a permanent marker or the
like for each board type.
5
Release the emergency stop.
1. Close the upper cover and machine safety cover.
2. Attach the feeder exchange carriage on machine.
3. Release the [EMERGENCY STOP] button.
6
Reset the machine.
Press [RESET] button to reset the machine.
n
NOTE
Pressing [RESET] button makes the push-up stage move down and the conveyor move to the transfer position.
1. Flow from starting up machine to production
3-15
Chapter 3 Flow from starting up machine to production
1.6.2 Adjusting board hold plate position
1
Enter the board.
1. Press the [Convey Board] button on [Unit] - [Conveyor] screen.
2. The "Convey Boards" check screen appears. Confirm that "All position" is ticked, and then
press the [OK] button.
3. The "CONVEY AND FIX" screen appears. Set the board on the conveyor entrance of the
machine.
4. Pressing the [OK] button on the "CONVEY AND FIX" screen transfers the board and fixes it on
the mount position.

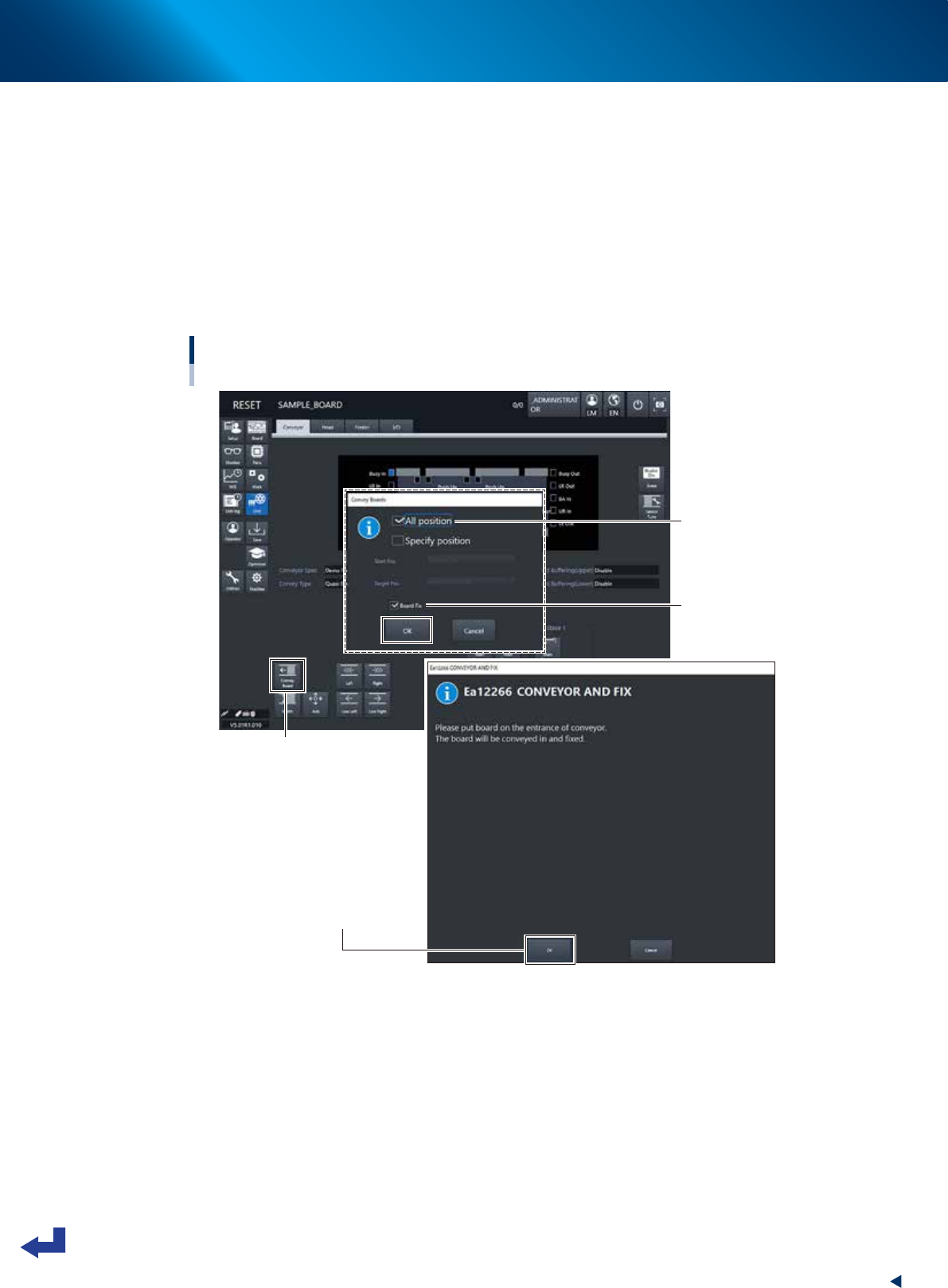

Entering board
[Unit] - [Conveyor] screen
[Convey Board] button
Set a board and press
the [OK] button
Tick "All position"
Tick “Board fix”
24310-KMX-00
1. Flow from starting up machine to production
3-16
Chapter 3 Flow from starting up machine to production
2
Move down the Board clamp plate.
Press [Board Clamp] button in [Unit] - [Conveyor] screen to move down the board clamp plate.
Moving down the board clamp plate
[Unit] - [Conveyor] screen
Stage 1 [Board Clamp] button
Stage 2 [Board Clamp] button
24311-KMX-00
