4-4 4 Creating and setting the data 2. “Print Condition, Running Condition” area T he parameters mainly related to the print condition setting are extracted from those provided on the [Squeegee] and [Cleaner] tab screens…
4-3
4
Creating and setting the data
2. Basic data setting
As you have set the parameters on the [Basics] tab screen, you can start the normal printing.
Each parameter is linked with normally used parameters provided on the [Board], [Mask], [Squeegee] and
[Cleaner] tab screens. If you want to make the detailed setting, you must select relevant tab and set data
directly.

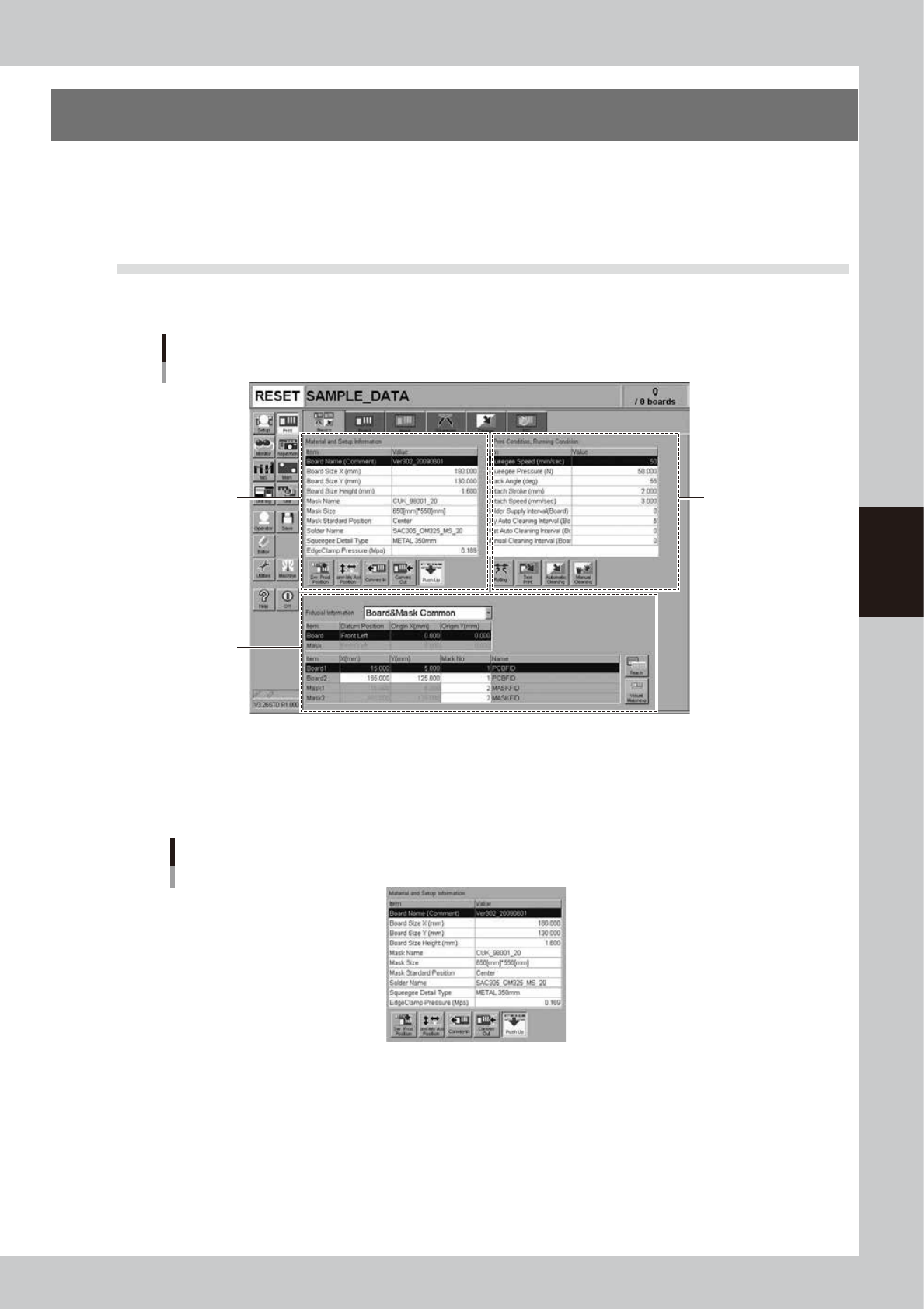

2.1 Configuration of [Basics] tab screen
The [Basics] tab screen is mainly classified into three areas. Additionally, operation buttons on this tab screen
are intended to directly perform the manual operation necessary for the setup or other work.
[Basics] tab
2
1
3
64404-L3-10
1. “Material and Setup Information” area
The parameters mainly related to the setup work are extracted from those provided on the [Board], [Mask], and
[Squeegee] tab screens.
Material and Setup Information area
64405-L3-10
• Board Name, Board Size XY, Board Height, Solder Name, Edge Clamp Pressure
For more details, see items A to E and N of “3. Board data setting” in a later part.
• Mask Name, Mask Size, Mask Standard Position
For more details, see items A to E of “4. Mask data setting” in a later part.
• Squeegee Detail Type
For more details, see item A of “5. Squeegee data setting” in a later part.
4-4
4
Creating and setting the data
2. “Print Condition, Running Condition” area
The parameters mainly related to the print condition setting are extracted from those provided on the [Squeegee] and
[Cleaner] tab screens.
Print Condition, Running Condition area
64406-L3-10
• Squeegee Speed, Squeegee Pressure, Solder Supply Interval, Attack Angle
For more details, see items E, F, J, and B of “5. Squeegee data setting” in a later part.
• Detach Stroke, Detach Speed
For more details, see “5.1 Squeegee detail setting” in a later part.
• Dry Auto Cleaning Interval, Wet Auto Cleaning Interval, Manual Cleaning Interval
For more details, see items C, F, and I of “6. Cleaner data setting” in a later part.
3. “Fiducial Information” area
You can directly enter the board and mask fiducial information in this area.
Fiducial Information area
64407-L3-00
• Board-Datum Position, Origin XY
For more details, see items F, G, and H of “3. Board data setting” in a later part.
• Mask-Datum Position, Origin XY
For more details, see items F, G, and H of “4. Mask data setting” in a later part.
• Fiducial coordinates
For more details, see items 4 and 5 of “3. Board data setting” in a later part.
4-5
4
Creating and setting the data
3. Board data setting
The following parameter items can be checked and edited on the [Print]-[Board] tab.
3.1 Board marks and parameter setting
[Print]-[Board] tab
[Edit] button
1 4 5 62 3
7
64408-L3-10
1: Board Fiducial
Set this parameter to "Use" when using fiducial marks on the board for position alignment by vision recognition. If not
using vision recognition then set to "NotUse". Pressing the [Edit] button at the upper right displays the dialog box shown
below. Select the desired item from the Board Fiducial drop-down list.
Board fiducial mark setting dialog box
64409-L3-00
2: Fiducial Type
When "Board Fiducial" is set to "Use", select the fiducial type (number of fiducial marks to be recognized) from among "
1 Point" to "4 Points". These marks can be different in shape and size from each other. Pressing the [Edit] button at the
upper right displays the dialog box shown above. Select the desired item from the Fiducial Type drop-down list.
Fiducial Type example (2 points)
(0, 0)
Board origin (when different from Board Datum Position)
Mark 2
(X, Y)
Mark 1
(X, Y)
+X
+Y
Board Datum Position
63401-L3-10
