1-8 1 Part names and functions 3.2 3S squeegee T his 3S squeegee allows you to adjust the squeegee scraper contact angle as needed. Since the same scr aper surface is used for solder printing in the forward and bac kward…
1-7
1
Part names and functions
3. Printing section
This machine uses a printing pressure feedback head and a highly rigid printing table to perform solder
paste printing at high speeds yet with high accuracy.
3.1 Squeegee head and printing table
Squeegee head and printing table
1 2
3
6
4
5
63109-L3-00
1. Squeegee head
Moves the squeegee vertically (along the SZ-axis) and forwards or backwards (along the SY-axis ). The 3S squeegee head
rotates slightly even in the R direction.
2. Squeegee holder
The squeegee can be easily mounted in this squeegee holder with two screws.
3. Mask clamp
Clamps a mask frame on the printing table. There are two clamps each on the left and right sides (a total of 4 clamps).
When using a small mask, attach the special adaptor at two locations on the rear.
4. Mask clamp switch
Turn this switch CCW or CW to release or clamp the mask.
5. Mask (prepared by user)
Various types of masks (stencils) with different frame sizes can be used by just changing the position of the stopper pin.
For information about the mask frame sizes and stopper pin positions, see Appendix 2, "Compatible masks".
6. Handle
Use the handles on both sides to move the squeegee head forwards or backwards by hand during servo-off. Never move
the squeegee head by pushing it or the squeegee.
1-8
1
Part names and functions

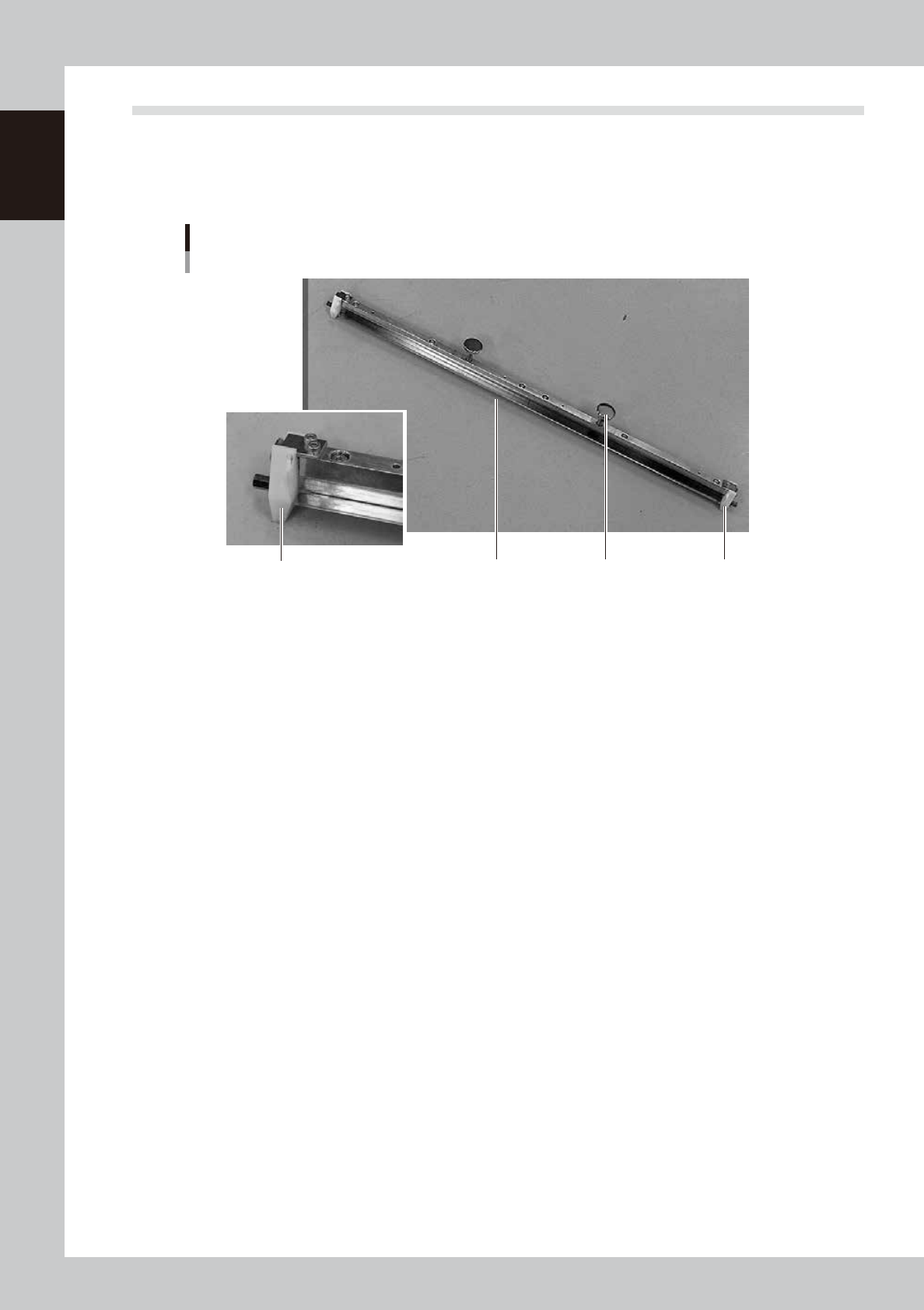

3.2 3S squeegee
This 3S squeegee allows you to adjust the squeegee scraper contact angle as needed. Since the same scraper
surface is used for solder printing in the forward and backward directions there will be less solder wasted.
Metal or urethane scraper 3S squeegees with a length of 250mm, 300mm, 350mm, 400mm, 440mm or 530mm
are supplied with the machine according to your order.
3S squeegee
1
2
3
3
63112-L3-00
1. Scraper
Prints solder patterns on a board while uniformly scraping solder paste placed on the mask. The 3S squeegee has
double-edge scrapers made of urethane or metal.
2. Mount knob
Tighten these mount knobs to install the squeegee on the squeegee holder.
3. Side plate
Prevents solder paste on the mask from spreading beyond the squeegee width. This side plate contains a snap-in
mechanism which allows you to easily detach or attach the side plate during the squeegee cleaning.
1-9
1
Part names and functions
3.3 Double squeegee (option)
Standard machine uses a double squeegee with urethane scrapers or metal scrapers. This double squeegee can
be easily attached or detached from the squeegee holder by using the mount knobs. Double squeegees with a
length of 250mm, 300mm, 350mm, 400mm, 440mm or 530mm are supplied according to your order.
Double squeegee
1
2
3
3
63110-L3-00
1. Scraper
Prints solder patterns on a board while uniformly scraping solder paste placed on the mask. Squeegee scrapers are made
of urethane or metal.
2. Mount knob
Tighten these mount knobs to install the squeegee on the squeegee holder. The squeegee with the narrower mount knob
spacing is should be installed at the front.
3. Side plate
Prevents solder paste on the mask from spreading beyond the squeegee width.
When using metal squeegees, fully insert the side plate onto the guide pin while aligning the side plate notch with the
guide pin, and tighten the thumbscrew to secure the side plate. (Fit the side plates onto both sides of the squeegee.)
Side plate for double squeegee
Side plate
Guide pin
63111-L3-00
