2-10
2
Basic operations
2.2 Starting the machine
1
Turn the power switch ON.
Turn on the power switch at the front lower right of the machine, by turning it to the right. The
initialization screen appears to start loading the program needed for machine operation.
ON
OFF
Power switch
63204-L3-00
2
Perform return-to-origin.
The return-to-origin dialog box appears after initialization. Follow the instructions on the screen to start
return-to-origin operation. The main screen then appears when return-to-origin is complete.
Return-to-origin dialog box
Press [Yes] to start return-to-origin.
64203-L3-00
c
CAUTION
Before starting return-to-origin, always make sure no squeegee is attached to the squeegee head.
2-11
2
Basic operations
3
Press the [Operator] button on the operation screen.
The ID WINDOW dialog box appears for specifying the machine operator.
[Operator] button
[Operator] button
64204-L3-00
4
Specify the operator and enter the password.
You may select "Administrators" or "Operators" from the GROUP NAME dropdown list as needed.
If the password is correct, the initial screen (Setup screen before selecting a board) appears on the
screen.
Specifying the operator
Select operator and press [OK].
64205-L3-00
TIP
For information on how to select board data or how to operate the machine, see Chapter 3, "Daily operation", after
making sure that you understand the contents of this chapter.
TIP
The active menu buttons depend on the operation level setting of each operator. For example, the operation level of
"Default operator",which is the initial operation level at the factory setting, is "level-0" at the time of shipment. This level
allows only the basic operation. This operation level can be changed as needed. The type of operators and operation
items can be arranged by the password and the operation level setting.
2-12
2
Basic operations
2.3 Turning off the machine
To turn off the machine, follow these steps.

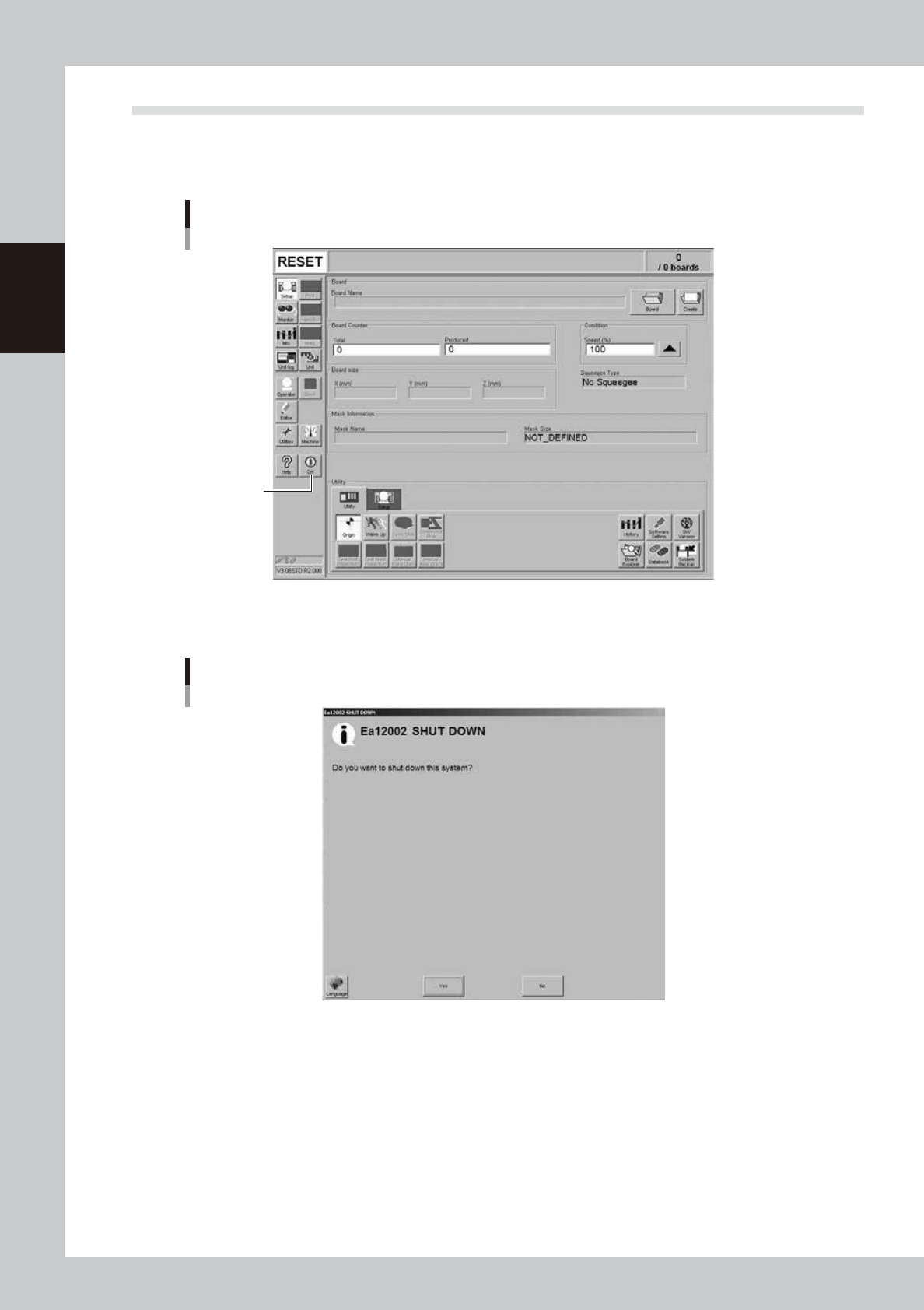

1
Press the [Off] button on the operation screen.
[Off] button
[Off] button
64206-L3-10
2
Press "Yes" when the confirmation dialog box appears.
Confirmation dialog box
64207-L3-00
3
Press the [OK] button when the move-to-origin dialog box appears.
All axes moves back to their origins.
