1.2.2 NEXT INTERFACE connector

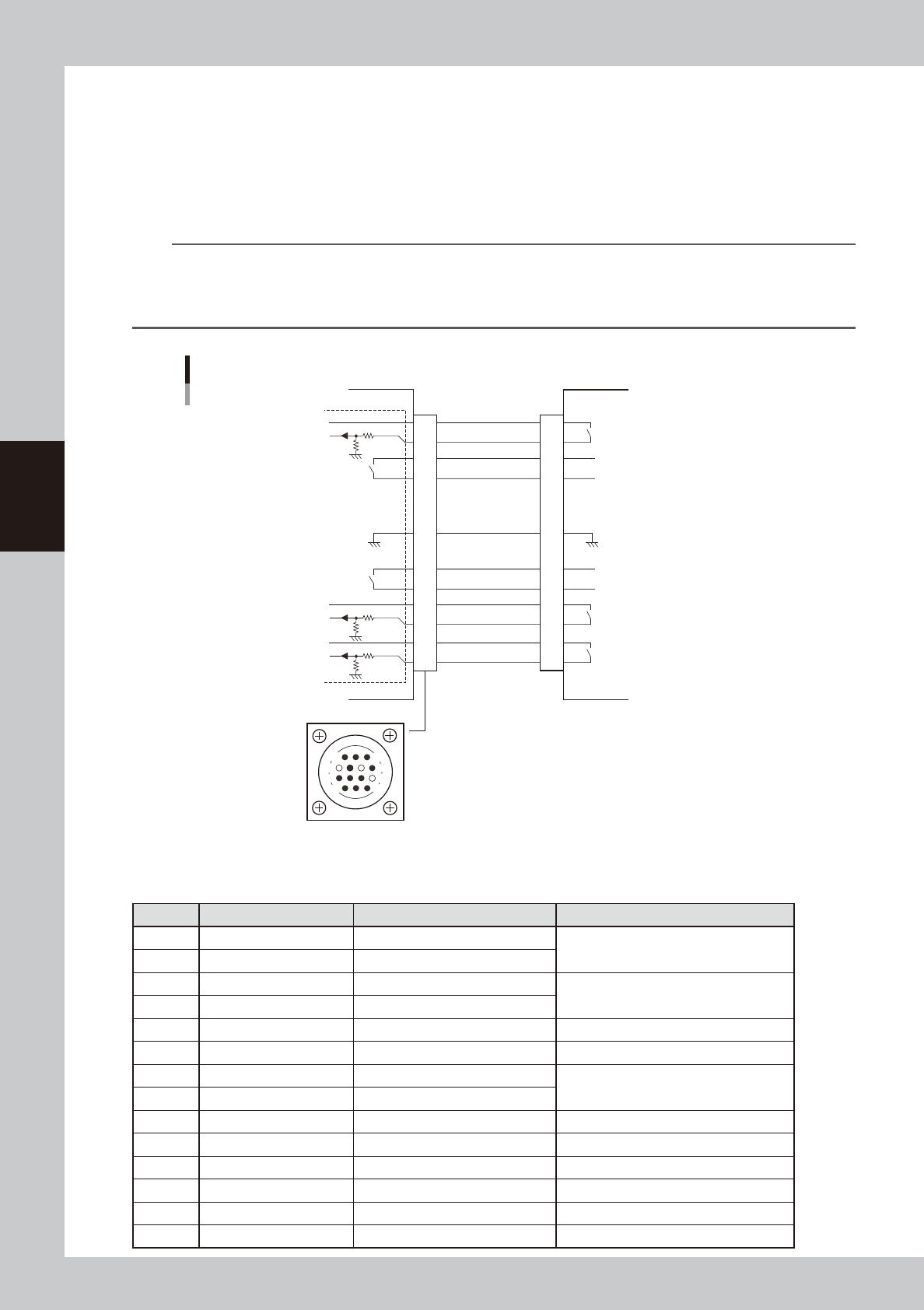

When the following three conditions are met, the NEXT INTERFACE circuit in the machine allows the board to
be carried out.
1. Machine is ready for carrying out the board (BA OUT: ON)
2. Board carry-in signal is input from the downstream machine. (BUSY IN [N0108220] : ON)
3. Automatic operation signal is input from the downstream machine. (LR IN [N0108223] : ON)
n
NOTE
• When the automatic operation signal (LR IN) from the downstream machine turns off during transfer of a board,
the machine stops temporarily carrying out the PC.
• When the board being carried out is detected by the exit sensor, the BA OUT signal turns off.
• Carrying out the board is finished when both the BUSY IN and BA OUT turn off.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
BUSY IN
(N0108220)
+24V
+24V
UR OUT(T01080E6)
LR IN
(N0108223)
+24V
COUNT RESET
(N0108224)
BA OUT
(T01080E5)
COUNT RESET OUT
I/O BOARD
GND
14
11
12
7
4
8
3
1
NEXT INTERFACE circuit
This machine
NEXT INTERFACE connector
Signal output during board carry-in
Signal input to request board carry-out
Signal input during automatic operation
Signal output during automatic operation
GND
Downstream machine
63007-L3-00
n
Board transfer signal specifications
NEXT INTERFACE
Pin No. Signal name I/O specifications Signal specifications
1 +24V Input common (+24V) Signal input during board carry-in
2 BUSY IN (N0108220) Voltage input
3 BA OUT (T01080E5) Relay contact (zero voltage) output Signal output to request board carry-out
4 BA OUT (T01080E5) Relay contact (zero voltage) output
5 NC
6 NC (with dummy pins) (Prevents misinsertion.)
7 GND
8 NC
9 UR OUT (T01080E6) Relay contact (zero voltage) output Signal output during automatic operation
10 UR OUT (T01080E6) Relay contact (zero voltage) output
11 +24V Input common (+24V) Signal input during automatic operation
12 LR IN (N0108223) Voltage input
13 +24V Input common (+24V) Signal input for COUNT RESET
14
COUNT RESET (N0108224)
Voltage input
A-5
A
Appendix
1.3 Power connection terminals

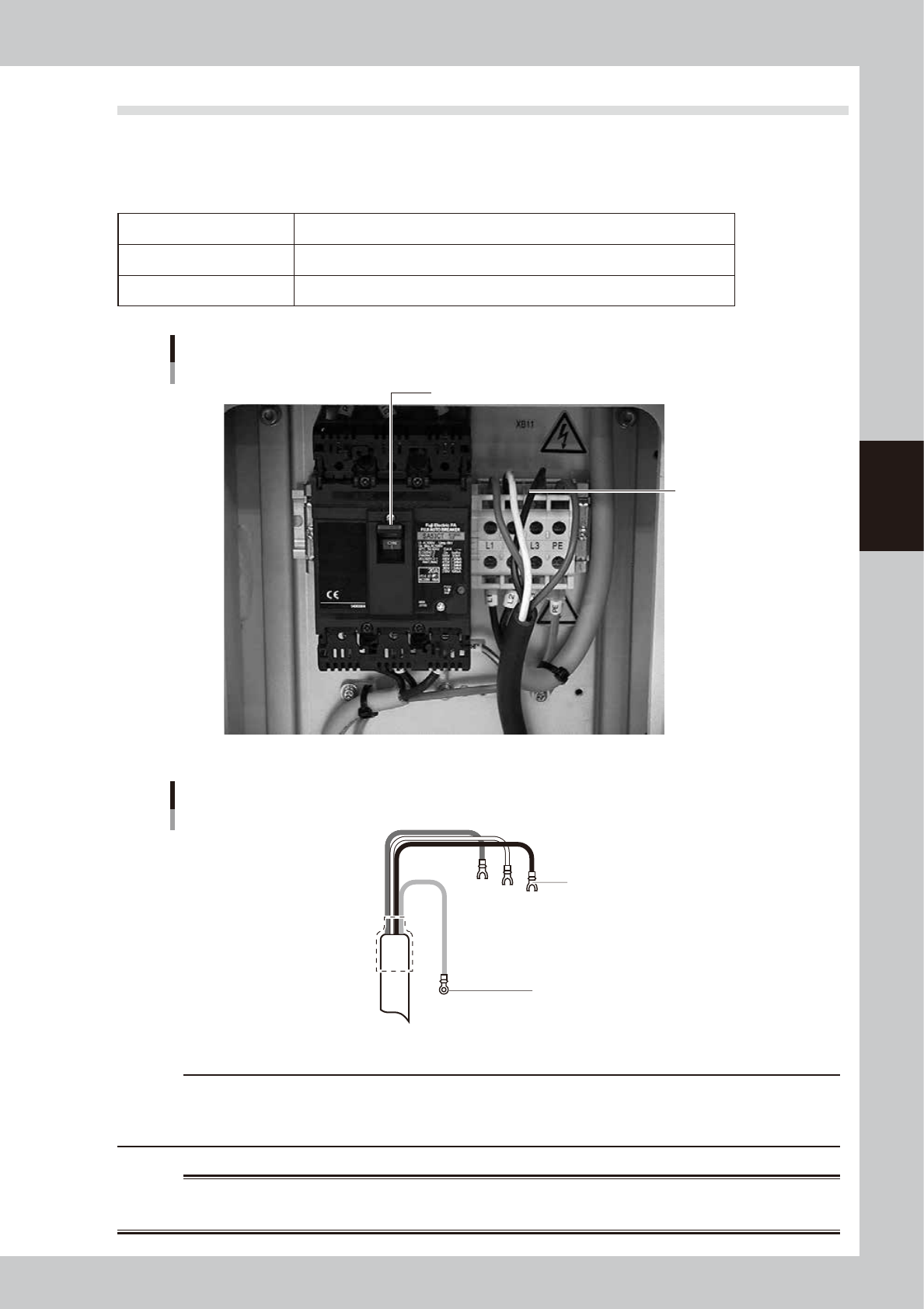

The power connection terminals are located behind the lower right panel on the front of the machine. Use the
power cable shown in the figure below to connect the power cable leads to the primary terminals L1, L2 and
L3 on the main circuit breaker.
n
Power supply specifications
Power 3-phase AC 200 / 208/ 220 / 240 / 380 / 400 / 416V ±10%
Frequency 50/60Hz
Power capacity 3.0kVA (excluding optional temperature control unit)
Power connection terminals
Power input terminal
(L1, L2, L3, PE)
Main breaker
63008-L3-00
L1
U
L2
V
L3
W
Earth
Green
L=350mm
L=350mm
Ring tongue terminal
Fork tongue terminal (vinyl-insulated)
Power cable example
63009-L3-00
c
CAUTION
Use a power cable with a grade of AWG12 (cross-sectional area of the conductor is 3.5 mm
2
) or more.
Make sure that the power cable connections are correct. If misconnected, the vacuum operation of the suction unit
will be reversed (air blows outward).
w
WARNING
TO AVOID THE RISK OF ELECTRICAL SHOCK, MAKE SURE THAT THE POWER SOURCE IS OFF BEFORE CONNECTING THE
POWER CABLE. ALSO MAKE SURE THAT THE GROUND CABLE IS SECURELY CONNECTED TO THE MACHINE.
A-6
A
Appendix
2. Compatible masks
2.1 Mask size and mask stopper pin position
The mask stopper pin position must be changed according to the mask frame size to be used as shown below. One
screw-type mask stopper pin sets the left end position of the mask frame. Screw this stopper pin into one of the "F"
positions when the front conveyor rail is fixed, or one of the "R" positions when the rear conveyor rail is fixed.
n
Mask frame size and stopper pin position
Mask frame size
L (mm) × W(mm)
Applicable board dimensions
L (mm) × W(mm)
Mask frame stopper pin position
L direction W direction
750×750
Board size L50 × W50mm (minimum)
to L510 × W460mm (maximum)
Not used Not used.
750×650
Board size L50 × W50mm (minimum)
to L510 × W460mm (maximum)
Not used 2 (2 locations)
736×736
Board size L50 × W50mm (minimum)
to L510 × W350mm (maximum)
A 1 (2 locations)
650×550
Board size L50 × W50mm (minimum)
to L330 × W250mm (maximum)
B 3 (2 locations)
600×550
Board size L50 × W50mm (minimum)
to L330 × W250mm (maximum)
C Mask adaptor (option)*
550×650
Board size L50 × W50mm (minimum)
to L330 × W250mm (maximum)
D Mask adaptor (option)*
*See "5.1 Using the mask adaptor" in chapter 3 for the mask adaptor (option).
TIP : Store the pins that are not in use.
1
2
1
2
3
A BCD
3
Mask frame size and stopper pin position
Mask frame L
Mask clamp
Mask frame W
63011-L3-10
Mask stopper pin
Mask stopper pin
63012-L3-00
