5-2
5
Managing the data
1.1.1 Backing up onto a USB memory device
Follow the steps below to backup data to a USB memory device using the Board Explorer.
When using a USB memory device, you need to create a "board" folder to make a directory (folder) named
"No1". Backup data should be stored there.
TIP
You may use the [Save] button to save board data to a USB memory device.
1
Insert a USB memory device into the USB port.
Insert a specified USB memory device into the USB port of the machine.
The USB drive can be seen when opening the panel door at the lower portion of the front of this
machine.
USB port
USB port
63501-L3-00
2
Close the media access door.
Before operating the USB drive, always close the media access door.
3
Check the USB memory device connection.
Check the indicator on the lower left of the operation display.
The connection is complete when the USB memory device icon appears red.
The connection is incomplete if the USB memory device icon is grayed out.
Checking the USB memory device connection
Not connectedConnected
Icon appears "red".
Icon is grayed out.
64523-L3-00
4
Press the [Board Explorer] button on the [Utility] tab of the Setup screen.
The Board Explorer dialog box appears and shows the lists of board data stored in the machine. (The
right-hand and left-hand lists will show the same contents when the Board Explorer first opens.)
5-3
5
Managing the data
5
Press the [Media] button.
The "Media Select" dialog box appears.
6
Select the media and create a board folder.

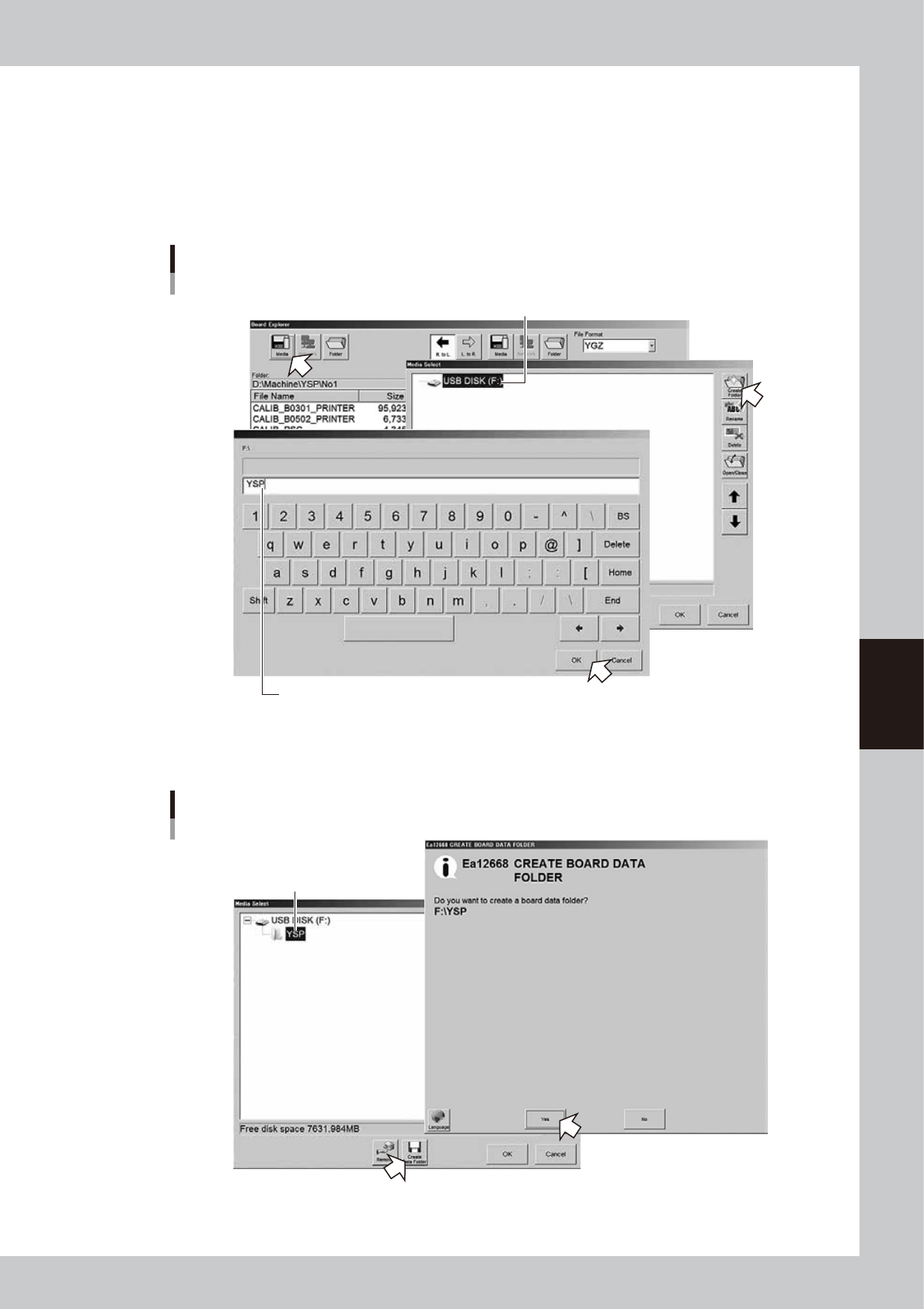

1. In the "Media Select" dialog box, select the media (USB memory device) and press the [Create
Folder] button. When the keyboard dialog box appears, enter a folder name and press the [OK]
button.
Selecting the media
Select the media (USB memory device).
Enter a folder name.
64529-L3-00
2. Select the folder you have just created, and press the [Board folder making] button.
The "Board Folder Making" dialog box appears. Check the message and press the [Yes] button.
Making a board folder
Select the folder.
64530-L3-00
5-4
5
Managing the data
3. When the setting is complete, press the [OK] button in the "Media select" dialog box to close it.
4. After returning to the Board Explorer window, check the "Folder" box to see if the "No1" folder is
created.
Checking the folder
Check that a folder named "No1" is created.
64531-L3-00
7
Select the file format.
Select the file format from the "File Format" drop-down list box.
8
Select the board data you want to back up.
Line up the cursor with the board data you want to back up. You can select multiple board data by
selecting them while holding down the [Ctrl] key or [Shift] key. When you want to select all board data
in the list, press the [All Selected] button.
9
Designate the copy destination.
Press the [Media] button on the left when copying from right to left, or press the [Media] button on the
right when copying from left to right.
Copy from left to right
[Copy] button
Copy from right to left
Selecting the copy destination
64532-L3-00
