7-8
7
Replacing the consumable parts
3.2 Changing the roll size
If the roll size needs to be changed during the setup work, it is necessary to use a special cleaner width change
unit (option).
n
Cleaner width change unit
Part No. Part name Notes
KHT-M36C0-00X ROLL UNIT 530 Shaft holder 2 sets, roll core, plate (for 530 mm)
KHT-M36C0-A0X ROLL UNIT 440 Shaft holder 2 sets, roll core, plate (for 440mm)
KHT-M36C0-B0X ROLL UNIT 360 Shaft holder 2 sets, roll core, plate (for 360mm)
KHT-M36C0-C0X ROLL UNIT 260 Shaft holder 2 sets, roll core, plate (for 260mm)
e
1
Press the emergency stop button
and open the safety cover at the
lower portion of the front panel.
2
Cut the roll sheet.
Remove the roll from the wind-up side (lower
side) and cut the roll sheet.
63707-L3-00
3
Remove also the roll from the feed
side (upper side).
Remove the roll from the feed side
completely in the same manner as
described for the wind-up side.
4
Remove the plate.
Use an Allen wrench to remove the plate
that becomes the cleaning solvent blow out
port.
63708-L3-00
c
CAUTION
If a roll having a different size is used without
replacement of the plate, this may cause the solvent to
flow out or the cleaning effect to lower.
Always replace the plate with a one having an
appropriate size.
Removing the roll sheet.
Step 2
Cut the roll sheet.
Removing the plate.
Step 4
Plate
Allen wrench
7-9
7
Replacing the consumable parts
5
Install a new plate.
Next, install a plate suitable for the roll sheet
width to be used.
63709-L3-00
6
Insert the shaft holders into the roll
on the feed side (upper side).
Insert the shaft holders into both sides while
carefully checking the direction of the roll
sheet.
7
Install the roll on the take-up side
(lower side).
Insert the shaft holders onto the roll core in
the same manner as described for the feed
side and install the roll at the set position.
63710-L3-00
8
Feed the gauze roll through the
guides.
Feed the gauze roll through the guides while
keeping the parallelism between the left
and right.
c
CAUTION
Do not attempt to use the backside of the used up
gauze roll.
9
Attach the top end of the new
gauze roll onto the roll core
inserted onto the take-up shaft.
Fasten the top end of the new gauze roll
with an adhesive tape or similar item so that
both ends feed in parallel with each other.
After that, turn the take-up shaft 2 or 3
rotations to wind up the gauze roll.
c
CAUTION
Make sure to wind up the gauze roll. If the gauze roll is
loosen and operate the machine, it will interfere with
each part and the machine may be damaged.
0
Close the safety cover and cancel
the emergency stop.
Mounting a new plate.
Step 5
Plate (for replacement) Portion where the solvent accumulates.
Mounting the adaptor (shaft holder).
Step 7
Roll adaptor on drive side
(Shaft holder)
Insert this part onto
the roll core.
7-10
7
Replacing the consumable parts
4. Refilling the cleaning solvent
4.1 Precautions when handling cleaning solvent
w
WARNING
USE ONLY ISOPROPYL ALCOHOL OR ETHYL ALCOHOL (ETHANOL) AS THE CLEANING SOLVENT. OTHER SOLVENTS MAY
CAUSE FIRES.
w
WARNING
NEVER USE ACETONE FOR CLEANING. ACETONE MAY DAMAGE SOLVENT TUBES OR CLEANING UNIT, CAUSING CLEANING
FLUID TO LEAK THROUGH DAMAGED PARTS. ALSO BE SURE TO USE VIRGIN CLEANING FLUID (DO NOT USE USED CLEANING
FLUID).
w
WARNING
BE CAREFUL WHEN USING ISOPROPYL ALCOHOL, SINCE INHALING ALCOHOL FUMES OVER LONG PERIODS CAN BE
HAZARDOUS TO HEALTH.

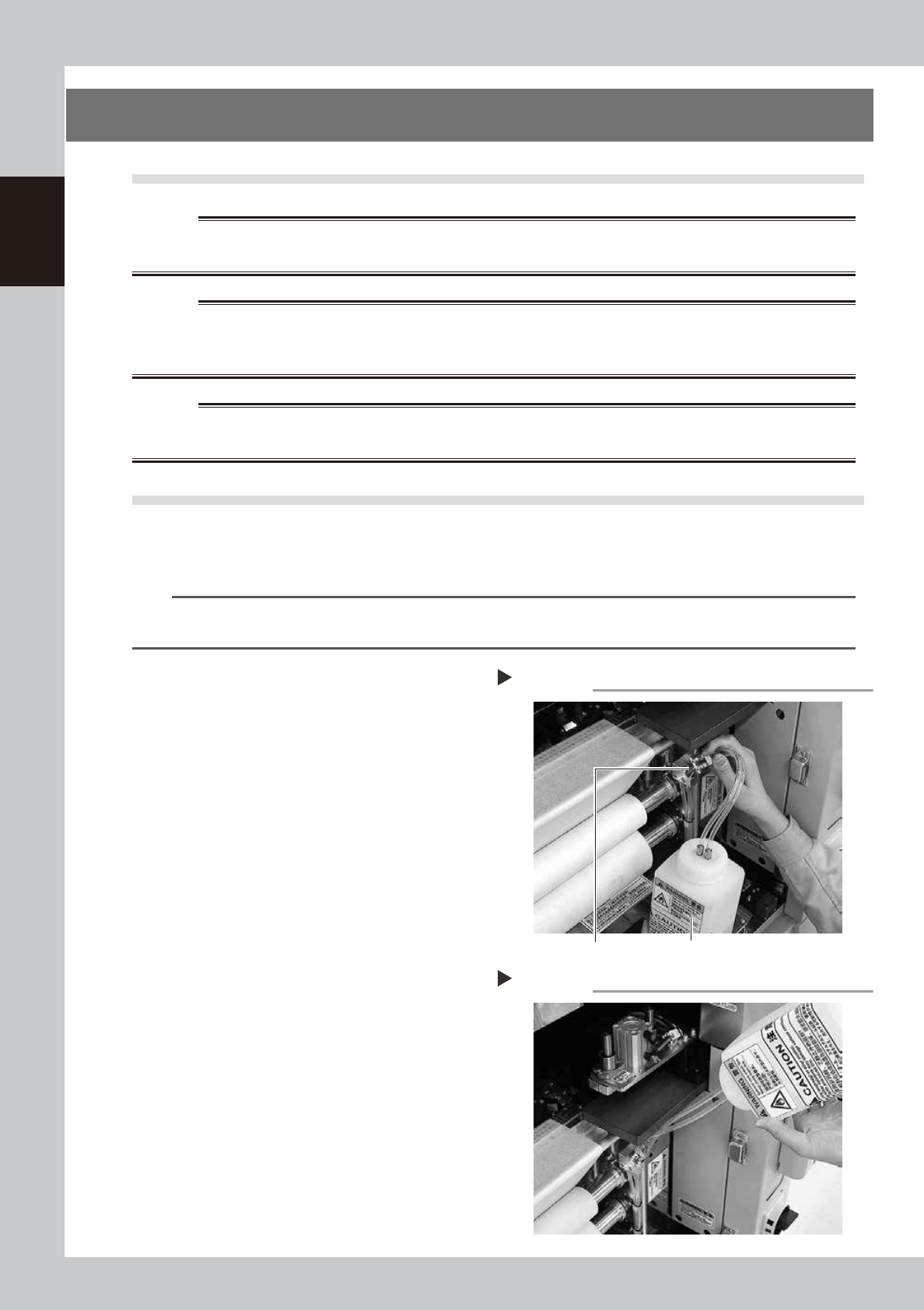

4.2 Refilling the cleaning solvent
When the remaining volume of the cleaning solvent is low, the cleaning solvent does not reach the pump. If
this happens, the error screen appears and the wet cleaning cannot be performed. Follow the steps below to
refill the cleaning solvent using the special tool.
n
NOTE
Before beginning work, fill up the solvent refilling bottle to make it easier to refill the solvent. Also make sure the bottle
cap is tightly closed.
1
Press the emergency stop button
and open the front lower safety
cover.
2
Insert the nozzle into the joint.
Insert the nozzle of the refill tool (solvent refill
bottle) filled with solvent into the refilling
joint of the solvent tank.
63717-L3-10
3
Pour the solvent into the tank.
Pour the solvent into the tank by inverting
the bottle as shown.
63719-L3-00
Inserting the nozzle
Step 2
Bottle for refilling solvent
Joint
Refilling the solvent
Step 3
