3-5
3
Daily operation
4. Changing the conveyor unit setup
When producing boards that are different from the previous production board, you need to change the
conveyor unit setup to match the selected board. (This procedure is not necessary when you are producing
the same board as last time.)
c
CAUTION
When producing board whose width is narrower than the previous production board, remove in advance the matrix
pins (or board support jigs) from the push-up plate.
1

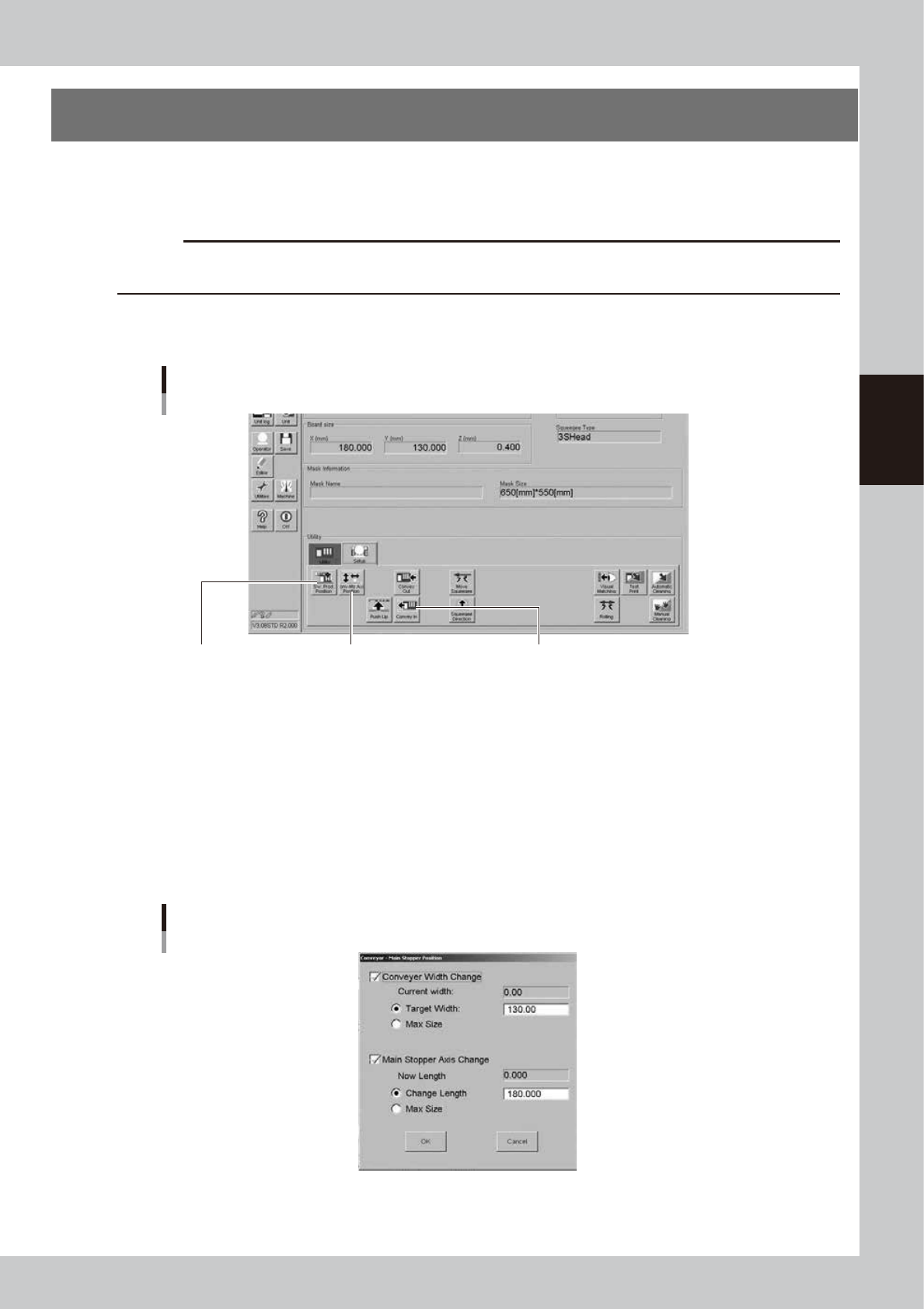

Open the [Unit]-[Conveyor] tab.
The buttons on this screen are used in the following steps to change the conveyor unit setup.
[Unit]-[Conveyor] tab
Step 3:
[Conv-MS Axis Position] button
Step 2:
[SW. Prod. Position] button
Step 6:
[Convey In] button
64306-L3-00
2
Press the [SW. Prod. Position] button.
The conveyor table rises to the same height as the conveyor rails and the squeegee head moves to the
position where the squeegee is attached and detached.
3
Adjust the conveyor width and main stopper position.
1. Press the [Conv-MS Axis Position] button.
The dialog box appears for changing the conveyor width and main stopper position.
2. Check the board width and length shown in the dialog box and press the [OK] button.
The conveyor width and main stopper position are automatically changed to match the board size.
Dialog box for changing conveyor width and main stopper position
64307-L3-00
3-6
3
Daily operation
e
4
Set the matrix pins (or board support jigs).
Press the emergency stop button and open the upper door. Arrange the matrix pins on the push-up
plate according to the width of a production board. When using optional board support jigs, they can
also be used together with the matrix pins.
OK
NG
Arranging the matrix pins
Matrix pins
(When board support jigs and matrix pins are used together)
Board support jig
Board support jig
Machine front side
Matrix plate
Matrix pins
Matrix plate
63302-L3-10
n
NOTE
When the matrix pin arrangement has been input by pressing the [Backup Pin Pos.] button on the [Print]-[Board] tab
screen, this is convenient to arrange the matrix pins. (For more details, see “3. Back pin arrangement” in Chapter 6.)
5
Cancel emergency stop.
Close the upper door, release the emergency stop button and press the [READY] button on the
operation panel.
6
Press the [Convey In] button to load a board.
Load a board by following the message that appears on the screen, and the board will be
automatically clamped in printing position.
e
7
Check that the board is uniformly clamped on the conveyor.
After pressing the emergency stop button, lightly press and tap on the board by hand to check that
there is no warp or play in the board.
3-7
3
Daily operation
5. Setting up the mask and squeegee
This section explains procedures for clamping the mask (stencil) you have prepared on the printing table and
installing the squeegee onto the squeegee head.
e
1
Press the emergency stop button and open the upper door.
2
Check or change the mask stopper pin position.
If you are using a mask whose frame size is different from the mask previously used, you must change
the mask stopper pin position on the left side of the printing table (W and L). Screw the mask stopper pin
into the correct hole by referring to the diagram affixed to the inner side of the upper door or Appendix
2.1, "Mask size and mask stopper pin position" in this manual.)
Mask stopper pin
L direction
Mask stopper pin
Put it here when do not
use the mask stopper pin.
63303-L3-10
3
Bring the mask in contact with the stopper.
While keeping the mask frame horizontal, fully insert it in against the left stopper pins along the rear
stopper pins on the printing table.
Mask frame setup
Mask clamp
Mask clamp (adaptor)
Mask frame
63304-L3-00
