3-9 3 Daily operation 5.1 Using the mask adaptor Optional special mask adaptors are necessary for the masks with the size "600 x 550" or "550 x 650". F ollow the procedure below to install the mask ad…
3-8
3
Daily operation
4
Clamp the mask.
With the mask kept in contact with the left corner on the rear of the printing table, turn the mask clamp
switch located on the right of the machine clockwise to clamp the mask.
c
CAUTION
Be careful not to pinch or crush fingers between the mask frame and mask clamps.
5
Move the squeegee head to the attach/detach position.
1. After closing the upper door and canceling emergency stop, press the [Move Squeegee] button.
The squeegee position dialog box appears.
2. Select the "Front Side" position (attach/detach position) and press the [OK] button.
The squeegee head moves to the front side (towards you).
Squeegee position dialog box
64309-L3-00
e
6
Press the emergency stop button and open the upper door.
7
Install the squeegee to the squeegee head.
Fit the mount knobs into squeegee head holder and tighten them as below.
c
CAUTION
Be sure to use squeegees specified for use with the YSP.
Attaching the 3S squeegee
Mount knobs
Squeegee holder
63307-L3-10
3-9
3
Daily operation
5.1 Using the mask adaptor

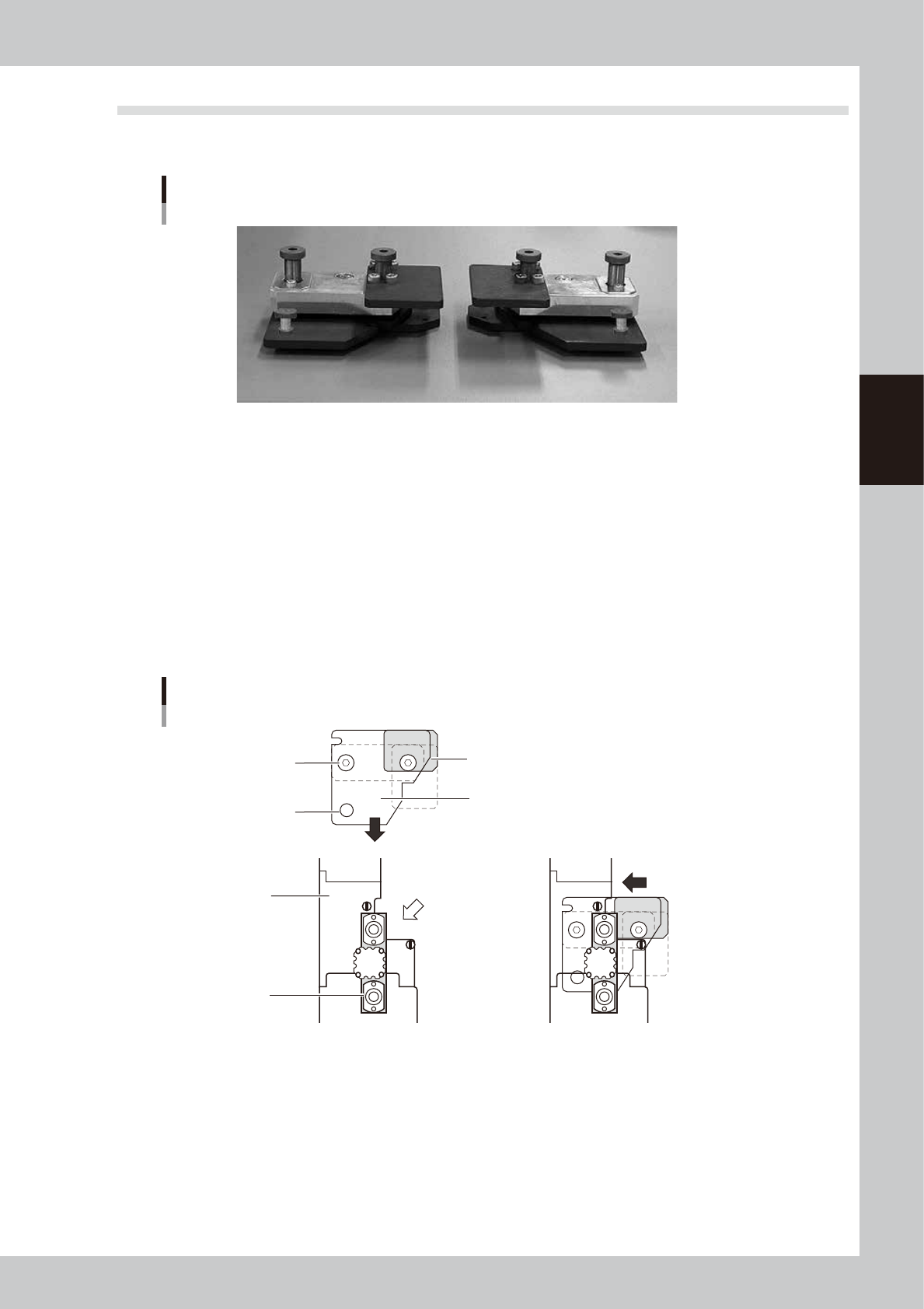

Optional special mask adaptors are necessary for the masks with the size "600 x 550" or "550 x 650".
Follow the procedure below to install the mask adaptors on the left and right of the mask plate.
Mask adaptor
For left side For right side
63309-L3-00
e
1
Press the emergency stop button and open the upper door and front panel.
2
Move the squeegee head to the rear.
Hold the handle on the right of the squeegee head to move the squeegee head to an easy work
position.
3
Insert the mask adaptor into the specified position.
1. Slide the mask adaptor on the mask plate from the rear so that the mask clamp is fastened by the
guide as shown in the figure below.
2. Slide the mask adaptor left at the position shown in the figure below to press-fit the lowest plate
(shaded portion shown in the figure below) of the mask adaptor into the notch of the mask plate.
Installing the mask adaptor
Mask adaptor
Mask clamp
Guide
Mount knob
Mask plate
Notch of mask plate
Bottommost plate (gray-colored part)
63311-L3-10
4
Secure the mask adaptor.
Turn the mount knob to secure the mask adaptor.
3-10
3
Daily operation
5
Raise the clamp plate.
Raise the clamp plate of the mask adaptor to attach it to the mask clamp on the machine side.
The clamp plate is kept raised by the magnet on the adapter.
6
Install the L side (X direction) stopper.
Install the mask stopper pin at the specified position of the left mask plate while referring to the label
stating “Mask sizes and stopper positions” attached to the machine.
7
Set the mask.
Set the mask while referring to the mask installation position shown in the figure below and turn on the
mask clamp switch to secure the mask.
Mask adaptor
Mask installation position
"600x550" mask position
"550x650" mask position
Mount knob
Clamp plate
63310-L3-00
