5-10
5
Managing the data
3. Another message appears when system full backup is complete. Press the [OK] button to close the
message screen.
System full backup
Check the backup destination.
64539-L3-00
4. When returned to the “System backup” screen, press the [Close] button to exit it.
5. Check that three files were created in the destination folder.
These files are used to restore the system full backup.
Full backup data
64540-L3-00
c
CAUTION
The files created by system full backup contain the machine settings, network settings, and board data, so keep them
very carefully.
5-11
5
Managing the data
1.3 Restoring the system data
System data can be restored by using either the system backup data or system full backup data.
1.3.1 Restoring a system backup
The system backup data can be restored on the machine.
The following steps describe how to restore the machine setting information using the system backup data
stored in a USB memory device.
1
Press the [System Backup] button on the Setup screen.
The "System backup" screen appears.
Starting the “System backup” screen
64541-L3-00
2
Restore the system backup data.
1. Insert the USB memory device that contains the system backup data, into the USB port on the
machine, and then press the [Restore] button on the "System backup" screen.
2. The "Media Select" screen appears. Select the system backup data you want to restore and press
the [OK] button.
Selecting the system backup data
64542-L3-00
5-12
5
Managing the data

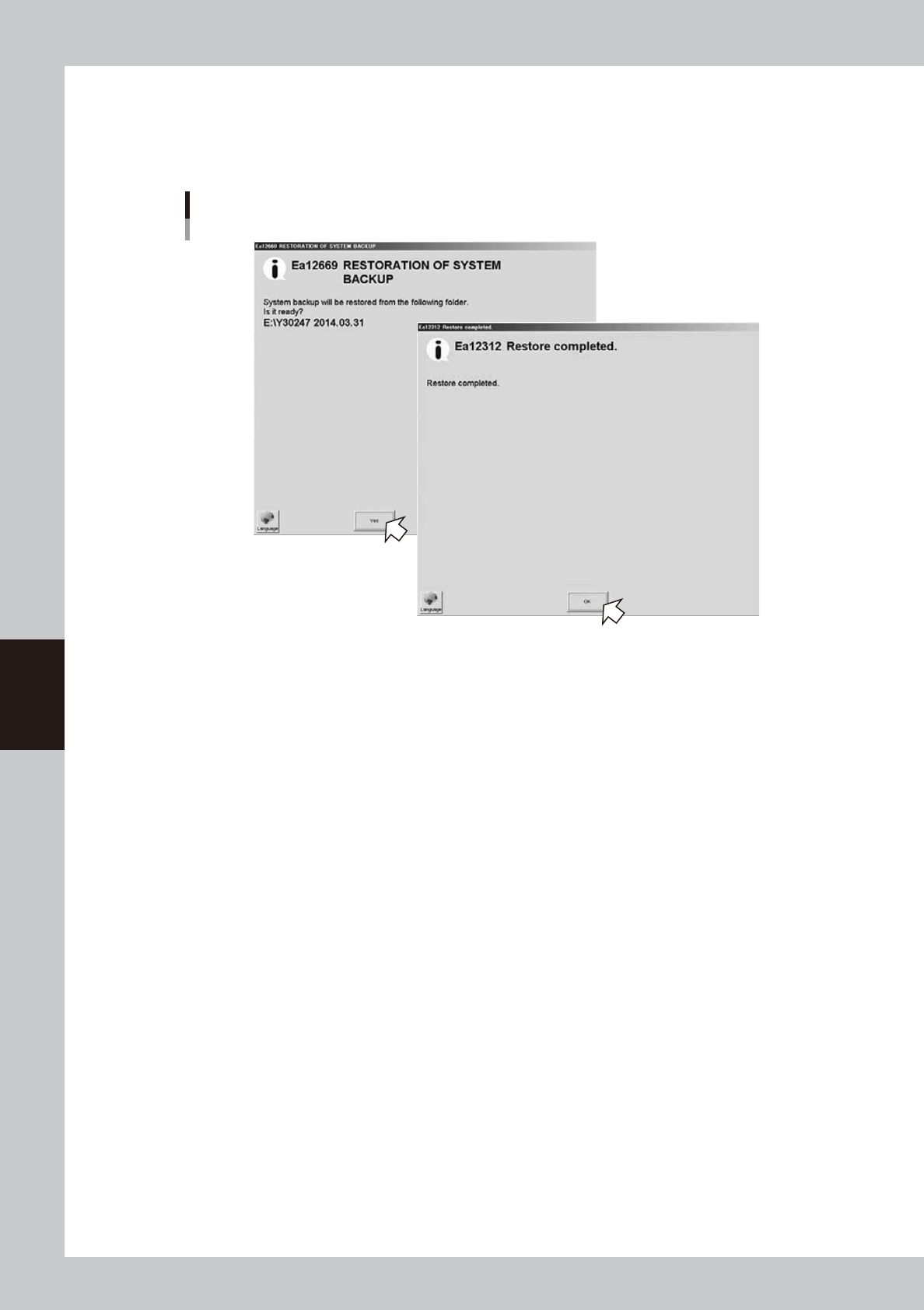

3. A confirmation dialog box appears asking if you want to restore the backup data. Press the [Yes]
button to start restoring the system data.
4. When the system data has been restored, a "Restore Completed" dialog box appears. Press the [OK]
button to close the dialog box.
Restoring the system data
64543-L3-00
5. When returned to the "System backup" screen, press the [Close] button to exit it.
Restoring the system backup data is now complete.
