7. Servo-controlled axes
The mechanical units of this machine move along the following servo-controlled axes. Other mechanical
devices are driven by compressed air.

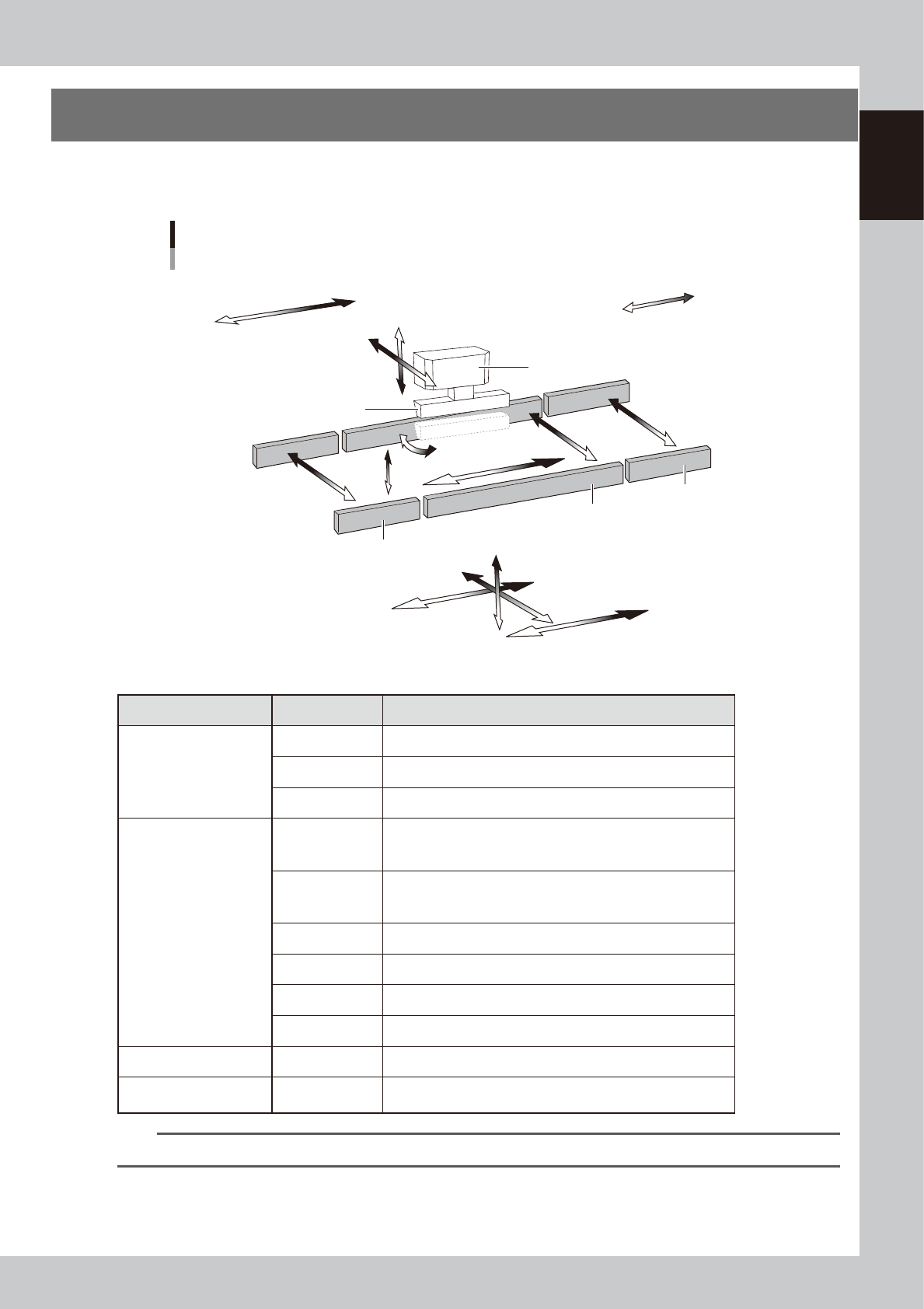

Servo-controlled axis configuration
Squeegee
Squeegee head
Conveyor rail
Conveyor rail
Board clamp conveyor (board clamp table)
SR-axis
PU-axis
W2-axis
W3-axis
W1-axis
MS-axis
X2-axis
X1-axis
Z-axis
Y-axis
SY-axis
SZ-axis
Plus direction
Minus direction
CX-axis
Camera unit
63124-L3-00
n
Axis functions
Unit name Axis Function
Squeegee head
SY Moves the squeegee head parallel to the Y-axis.
SZ Moves the squeegee head vertically.
SR Adjusts the squeegee scraper angle. (3S head only)
Board clamp conveyor
(Board clamp table)
X1
Moves the board clamp table along the X-axis. This X1-axis
synchronizes with the X2-axis to function as R-axis during
operation.
X2
Moves the board clamp table along the X-axis. This X2-axis
synchronizes with the X1-axis to function as R-axis during
operation.
Y Moves the board clamp table along the Y-axis.
Z Moves the board clamp table vertically.
PU Raises and lowers the push-up plate.
MS Moves the main stopper and mask camera along the X-axis.
Conveyor W1, W2, W3 Adjusts the carry-in, board clamp and carry-out conveyor width.
Camera unit CX
Moves the board camera and print-inspection camera along the
X-axis.
TIP
You can manually move each unit on the operation screen. See "4.1 Move Axis screen" in Chapter 6 for more details.
Chapter 2 Basic operations
This chapter explains how to start up the machine and turn it off, as well as basic menus displayed on the operation screen.
We recommend you read this chapter while actually operating the machine as instructed.
Contents
1.
Canceling emergency stop and clearing an error
2-1
1.1 Canceling emergency stop 2-1
1.2 Clearing an error 2-2
1.3 Typical errors and troubleshooting 2-3
2. Starting and stopping the machine 2-8
2.1 Inspecting before operation 2-9
2.2 Starting the machine 2-10
2.3 Turning off the machine 2-12
3. Operation screen description 2-14
3.1 Basic configuration of operation screen 2-14
3.2 Various buttons and parameter input grids 2-15
2-1
2
Basic operations
1. Canceling emergency stop and clearing an error
The following explains how to cancel emergency stop and clear errors.
1.1 Canceling emergency stop
When the machine is in emergency stop, the red signal lamp on the top of the machine is lit and the red
"EMERGENCY STOP" sign is displayed in the status area of the operation screen. Follow these steps to cancel
emergency stop.
1
Release the emergency stop button.
When the emergency stop button is pressed (turned on), turn it clockwise to release it. There are two
emergency stop buttons on the YSP main unit: One is on the operation panel (front upper right) and the
other is at the upper right on the rear panel.
TIP
When emergency stop was triggered by a safety interlock switch, first eliminate the cause of emergency stop and
then cancel it.
2
Check safety.
Before continuing the procedure, check the surrounding area for safety.
3

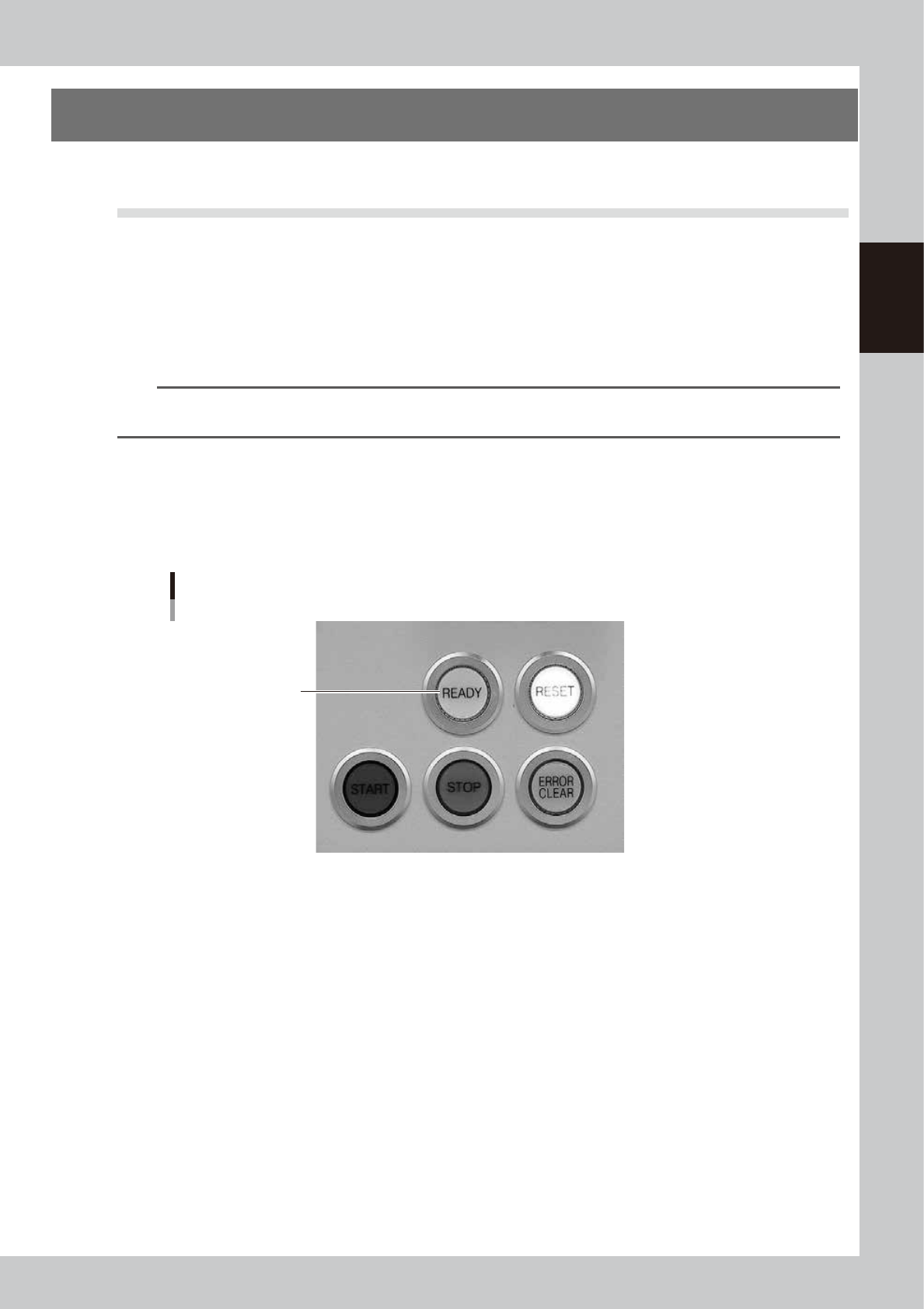

Press the [READY] button on the operation panel.
Pressing the [READY] button turns on the servomotors.
[READY] button
[READY] button
63201-L3-00
4
Check the signal light and screen display.
Check that the red signal lamp is off and the emergency stop sign in the upper left (status area) of the
operation screen is now off.
