6-17
6
Other functions
4. Manual operation
When you press the [Unit] button, the following screen appears. This screen is divided by several tabs such
as [Conveyor], [Mask], [Squeegee] and [Cleaner] to allow manually operating the servo-controlled units. You
can also check the status of each sensor and I/O signal on the [I/O] tab screen.
Unit screen
Selection tab
64616-L3-10
6-18
6
Other functions
4.1 "Move Axis" screen
Pressing the [Axis] button on the Unit screen opens the "Move Axis" screen as shown below. You can use this to
manually move the unit on each axis.
"Move Axis" screen
Selection tab
64617-L3-00
Selection tab Function
X1/X2 Moves the board clamp table in the X direction.
Z/Y Moves the board clamp table in the Z (up/down) or Y direction.
CX Moves the board (print inspection) camera unit in the X direction.
SY/SZ Moves the squeegee head in the Y direction or moves it vertically.
SR Adjusts the 3S squeegee scraper angle. (3S squeegee only)
Width Adjusts the conveyor width.
PU Raises and lower the push-up plate.
MS
Moves the main stopper and mask camera along the board clamp table in the X
direction.
6-19
6
Other functions
n

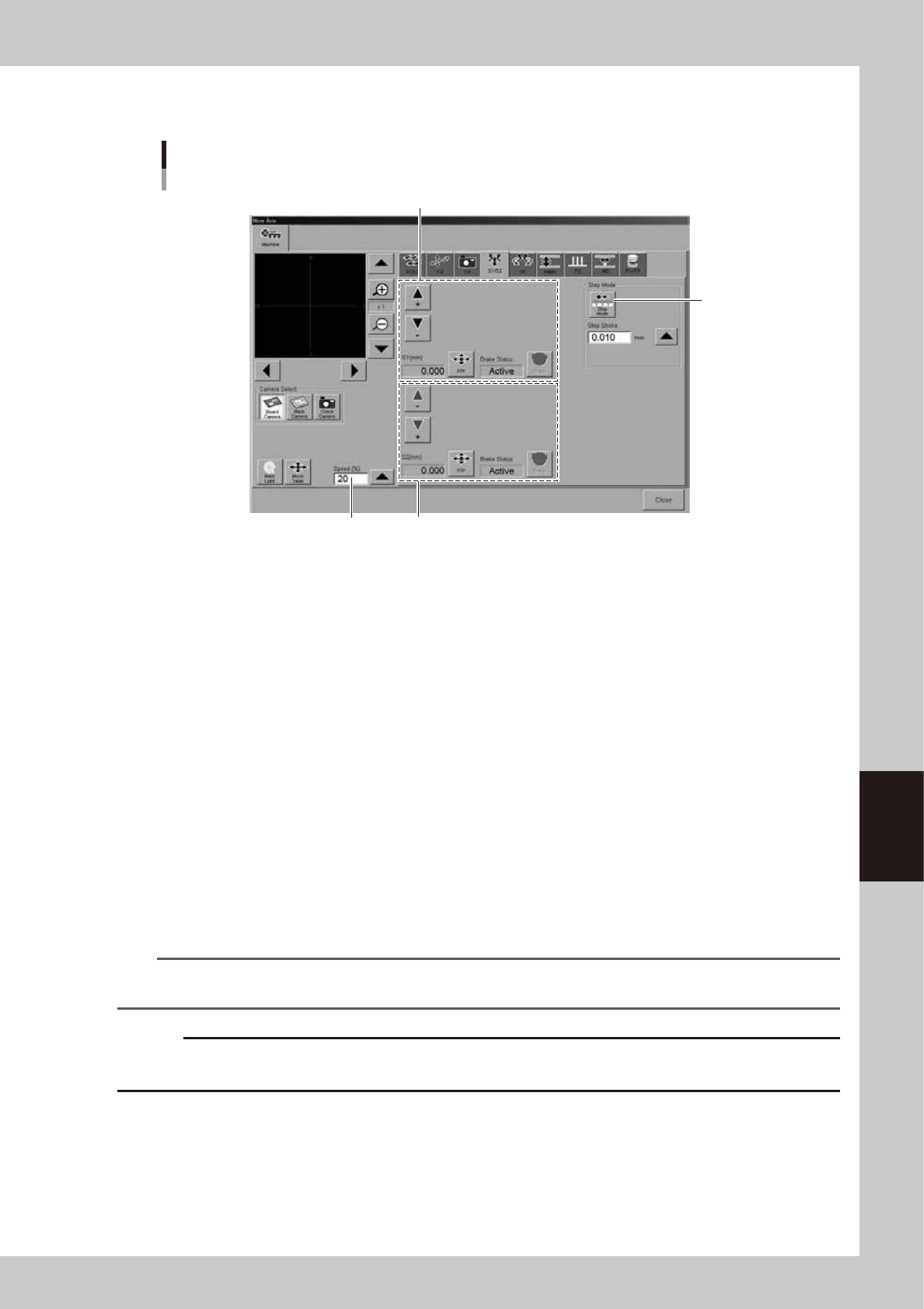

Manual axis movement
This section describes how to use the buttons on the "Move Axis" screen, using the [SY/SZ] tab as an example.
"Move Axis" screen
[SY/SZ] tab
4
2
3
1
64618-L3-10
1. SY-axis movement buttons, [PTP] button, [Brake] button
Pressing the arrow buttons moves the squeegee head in the Y direction. When the [Step Mode] button is in the depressed
state, the squeegee head moves at the specified step stroke each time the arrow buttons are pressed.
Pressing the [PTP] button displays the "PTP" dialog box. You can directly specify the position where you want to move the
squeegee head. The current position is displayed in the "SY (mm)" box.
The [Brake] button turns the SY-axis brake on or off.
2. SZ-axis movement buttons, [PTP] button, [Brake] button
Pressing the arrow buttons moves the squeegee head vertically. When the [Step Mode] button is in the depressed state,
the squeegee head moves at the specified step stroke each time the arrow buttons are pressed.
Pressing the [PTP] button displays the "PTP" dialog box. You can directly specify the position (height) where you want to
move the squeegee head. The current position is displayed in the "SZ (mm)" box.
The [Brake] button turns the SZ-axis brake on or off.
3. [Step Mode] button
Press this button to set axis movement to "step mode (inching mode)". (The button will remain depressed until you press
it again to exit "step mode".)
Specify the step stroke (inching stroke) with the arrow button or enter it directly in the "Step Stroke" box.
4. "Speed (%)" box
Select the speed to move the unit.
TIP
Operation of buttons on the other tabs is basically the same. The [Y/Z], [SY/SZ], [SR] and [PU] tab have a [Brake] button
that turns the motor brake on or off.
c
CAUTION
The X-axis is operated in synchronization with the X1, X2 and Z axes. If each axis is used independently, moving to a
target position may become difficult. To move on the X-axis and R-axis, use the [PTP] button.
