Press the [Copy] button.

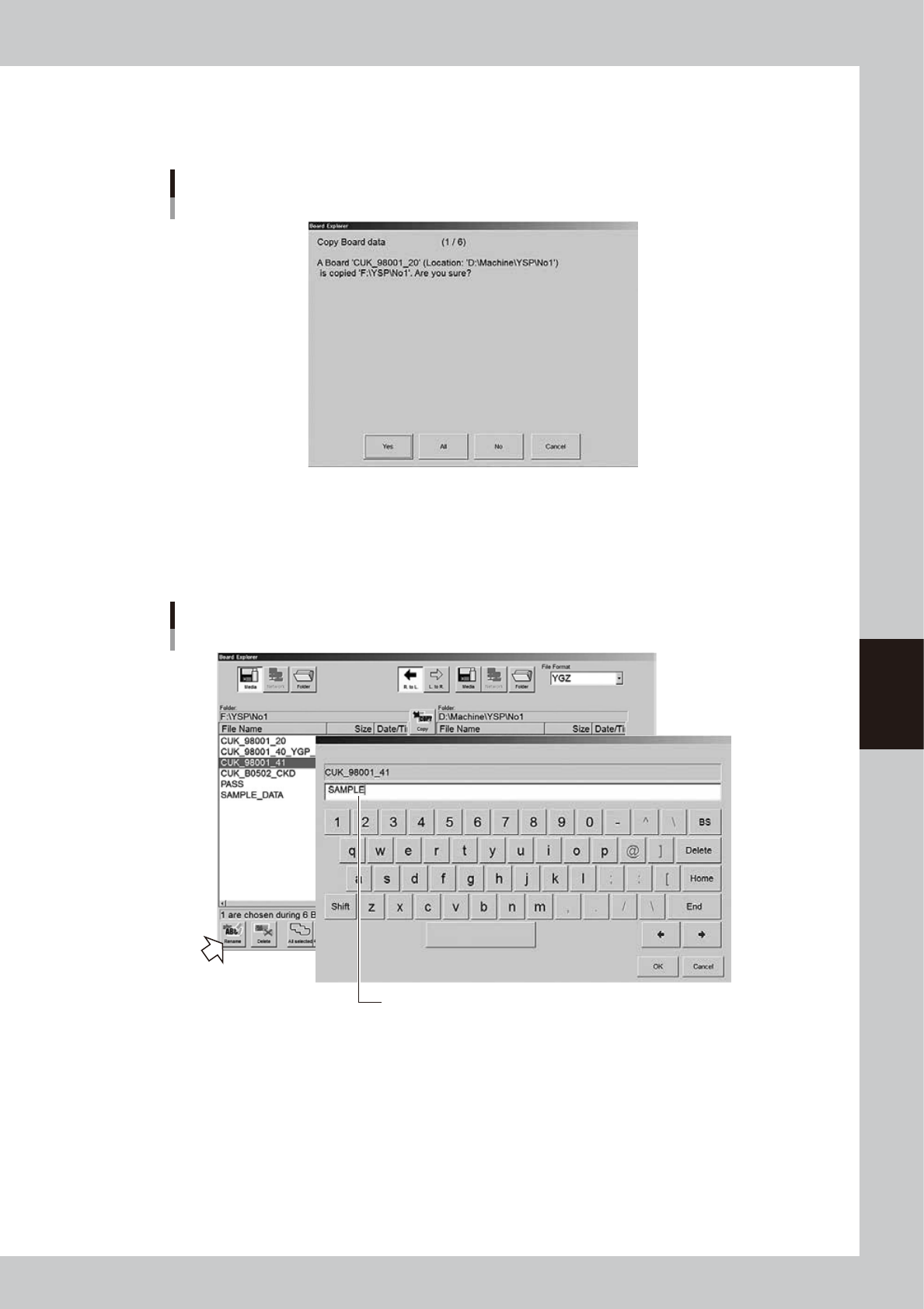

A confirmation dialog box appears. Press the [Yes] or [All] button to make a copy to the USB memory
device.
Copy confirmation dialog box
64533-L3-00
q
Rename the board data as needed.
When you want to change the board name so that you can easily identify it as backup data, press the
[Rename] button. When the keyboard dialog box appears, enter a new name and press the [OK]
button.
Enter a new name for backup data.
Rename
64534-L3-00
5-6
5
Managing the data
1.2 Making a backup of system data
System data can be backed up by two methods: system backup and system full backup.
The backup data can be stored either on a USB memory or network drive.
n
System backup
This function backs up only the machine setting information.
The backed up data is used to register the machine to offline software. For safety reasons, making a system backup is
recommended before upgrading the application software or changing the machine settings.
When restoring system data using the data acquired by the system backup function, only the machine setting parameters
will be restored. The restore task is performed on the machine.
If for some reason the flash disk in the machine is destroyed, the system backup data can be used to restore the machine
settings. However, the system and application software must be reinstalled before restoring the machine settings.
n
NOTE
Keep a storage capacity of 50MB by considering an allowance.
n
System full backup
This function backs up all data stored in the machine’s flash disk.
This backup data contains all information including the machine application software, OS, board data, and production
logs.
If for some reason the flash disk in the machine is destroyed, the system full backup data can be used to restore all data
necessary for machine operation into a new replacement flash disk.
A personal computer and dedicated software are needed to restore the system full backup data.
To use this backup function, the machine software version must be V3.27std R2.000 or later.
n
NOTE
A free space larger than the capacity of the machine’s flash disk is required in the location where the backup data
will be stored. The flash disk capacity may differ depending on the machine model, so check it with the [Check
Capacity] button on the VmSpec window before making a backup.

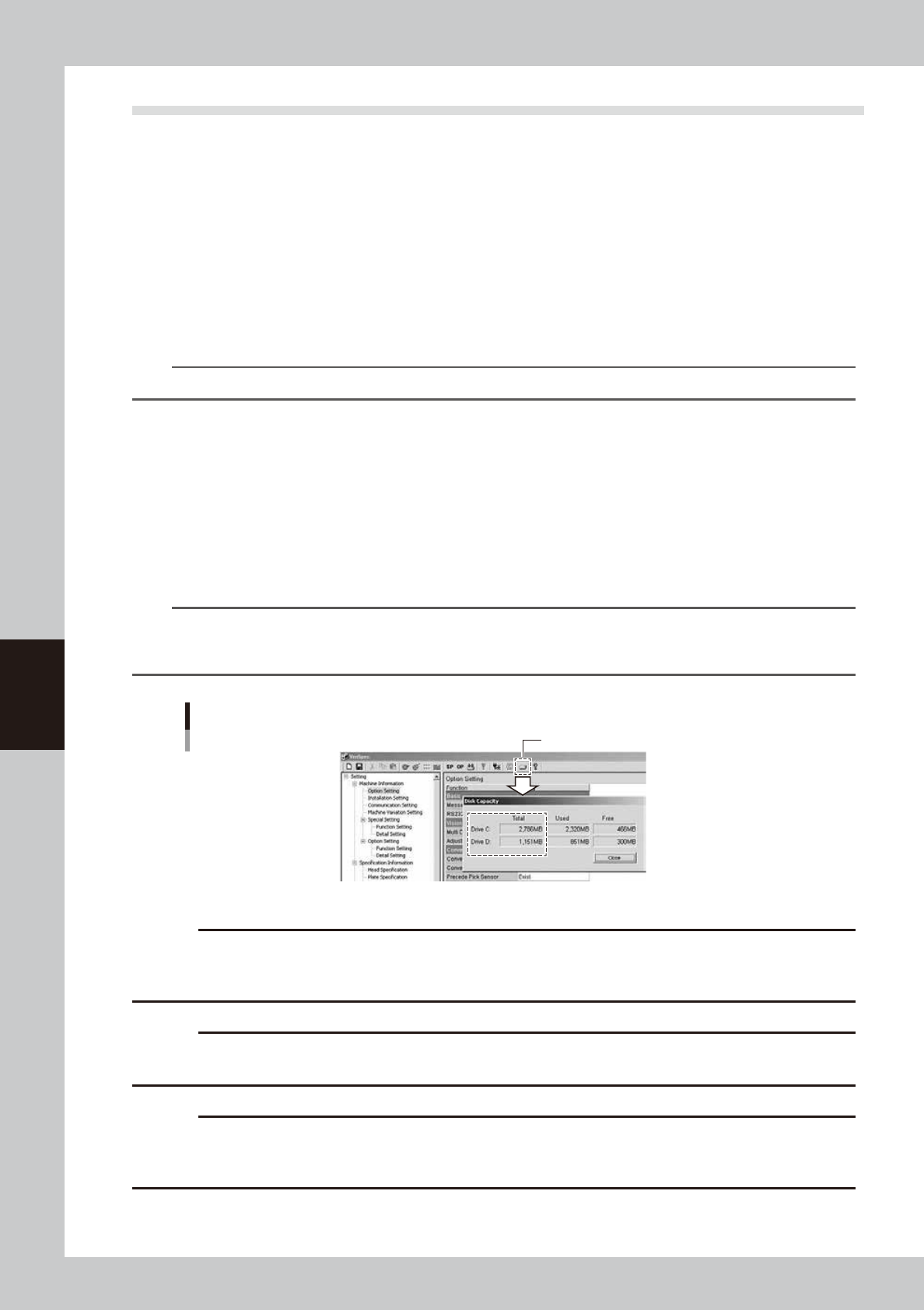

Checking the disk capacity
[Check Capacity] button
64535-L3-00
c
CAUT ION
Use a USB memory device (supplied with the machine or purchased from YAMAHA sales reps) specified by YAMAHA
Motors Co., Ltd. Using a USB memory device other than specified might cause problems. Do not use any other type of
USB memory device with YAMAHA surface mounters and related machines.
c
CAUT ION
Before copying data to the USB memory device, always close the media access door to prevent dust from adhering
to the USB port and to protect the USB memory device from electrostatic noise.
c
CAUT ION
After copying board data or system data into a USB memory device, do not leave that data in the USB memory device
for a long time. Use the USB memory device just as a copy medium for backup data. Prepare other backup media
(CD, DVD, MO, etc.) to store the backup data.
5-7
5
Managing the data
1.2.1 System backup settings
Make the following settings to back up system data. These system backup settings are also used to make a
system full backup.
Press the [Software Setting] button on the Setup screen to open the "Setting" screen, and press the [System
Backup] button on the [Basic] tab. The "System backup setting" dialog box then appears. Make the necessary
settings in this dialog.
Making the system backup settings
Enter the folder nameSpecify the backup destination.
64536-L3-00
"Folder is fixed"
• Select this check box to automatically create a folder under the name you have entered in the
"Folder Name" text box and back up the system data into that folder.
• When this check box is cleared, a dialog box will appear when you back up the system data,
allowing you to select the folder to store the system data.
"Folder Name"
• Enter the folder name to store the system backup data. This is used only when the "Folder is fixed"
check box is selected.
c
CAUT ION
Do not add the drive name to the folder name.
n
NOTE
A suffix “-FULL-” is added to the folder name for system full backup.
"The date is attached to the name of a folder"
When this check box is selected, the system data will be backed up in the folder whose name
includes the date.
n
NOTE
If you back up the system data twice or more a day, a number (2), (3) ... will be added to the end of each folder
name.
Path setting for saving or restoring data
• When “Media” is selected:
The system backup data is stored in the USB memory connected to the machine. If no USB memory is
connected, an error message “No media are found” appears.
• When “Network Folder” is selected:
A dialog box for selecting a folder appears when you back up system data. Select the folder to store
the system backup data.
