8-16 8 Inspection and maintenance 3.3 Conveyor unit 3.3.1 PU-axis Lubrication locations of PU-axis PU-axis linear guide PU-axis guide shaft Front of machine Front of machine 2 1 1 1 1 3 3 63807-L3-00 Lubrication point Lu…
8-15
8
Inspection and maintenance

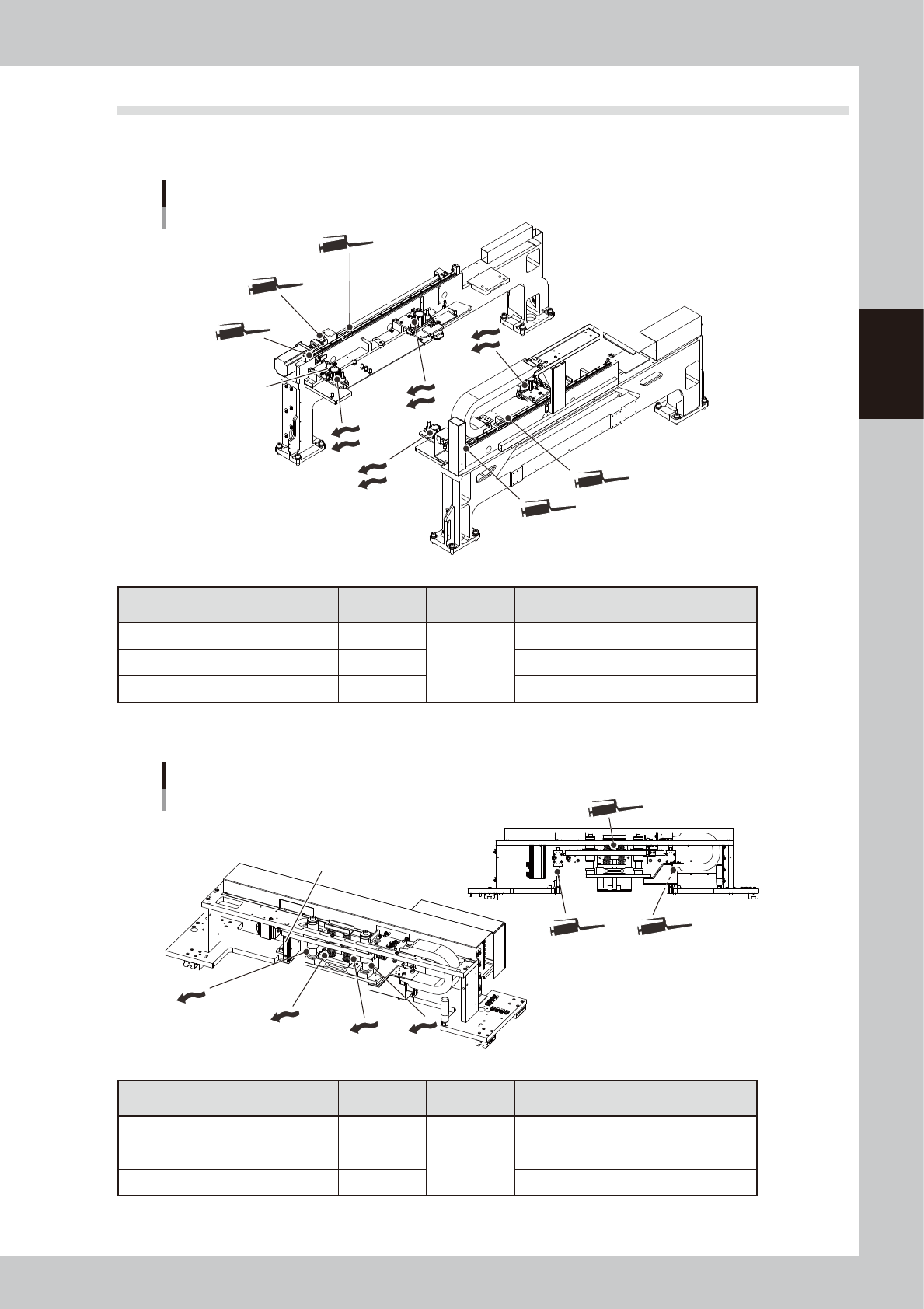

3.2 Printing head
3.2.1 SY-axis
Lubrication locations of SY-axis
Mask clamp guide
SY-axis ball screw
SY-axis linear guide
1
1
1
1
2
3
3
3
3
63805-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 SY-axis linear guide 4
Monthly
Grease gun
2 SY-axis ball screw 1 Grease gun
3 Mask clamp guide 8 Manual lubrication
3.2.2 SZ-axis
Lubrication locations of SZ-axis
SZ-axis linear guide
2
1
1
3
3
3
3
63806-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 SZ-axis linear guide 2
Monthly
Grease gun
2 SZ-axis ball screw 1 Grease gun
3 Shaft guide, spring 4 Manual lubrication
8-16
8
Inspection and maintenance

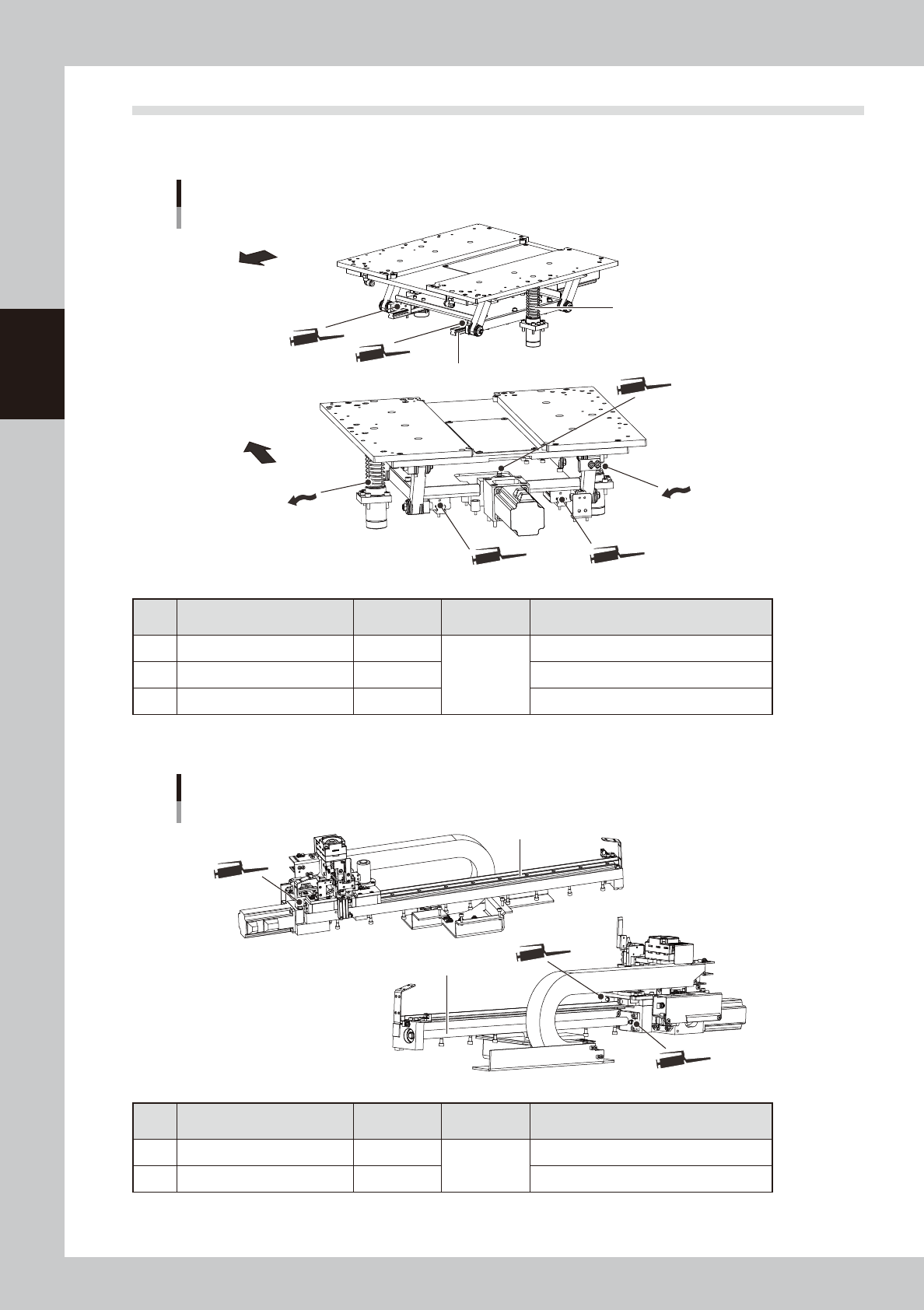

3.3 Conveyor unit
3.3.1 PU-axis
Lubrication locations of PU-axis
PU-axis linear guide
PU-axis guide shaft
Front of machine
Front of machine
2
1
1
1
1
3
3
63807-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 PU-axis linear guide 4
Monthly
Grease gun
2 PU-axis ball screw 1 Grease gun
3 PU-axis shaft guide 2 Manual lubrication
3.3.2 MS-axis
Lubrication locations of MS-axis
MS-axis ball screw
MS-axis linear guide
2
1
1
63808-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 MS-axis linear guide 2
Monthly
Grease gun
2 MS-axis ball screw 1 Grease gun
8-17
8
Inspection and maintenance

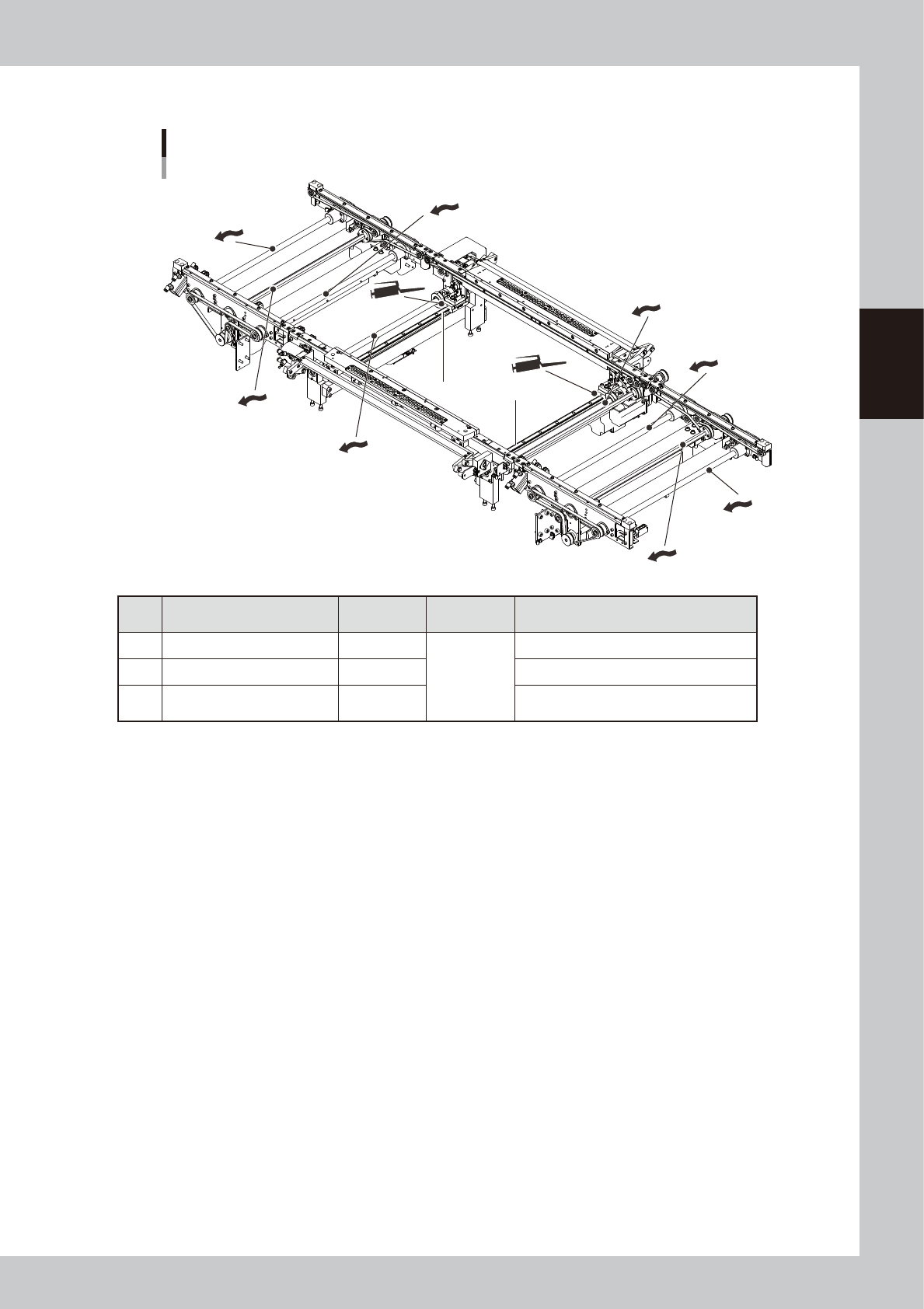

3.3.3 W-axis (Conveyor auto width adjustment)
Lubrication locations of W-axis
W2-axis linear guide
1
1
2
2
2
2
3
3
2
2
63810-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 W2-axis linear guide 2
Monthly
Grease gun
2 Each W-axis ball screw 6 Manual lubrication
3
W1- and W3-axis hexagon
spline
2 Manual lubrication
