8-18 8 Inspection and maintenance 3.4 Vision camera unit 3.4.1 CX-axis Lubrication locations of CX-axis CX-axis ball screw CX-axis linear guide 1 1 1 1 2 63809-L3-00 Lubrication point Lubrication location Interval Lubric…
8-17
8
Inspection and maintenance
3.3.3 W-axis (Conveyor auto width adjustment)
Lubrication locations of W-axis
W2-axis linear guide
1
1
2
2
2
2
3
3
2
2
63810-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 W2-axis linear guide 2
Monthly
Grease gun
2 Each W-axis ball screw 6 Manual lubrication
3
W1- and W3-axis hexagon
spline
2 Manual lubrication
8-18
8
Inspection and maintenance

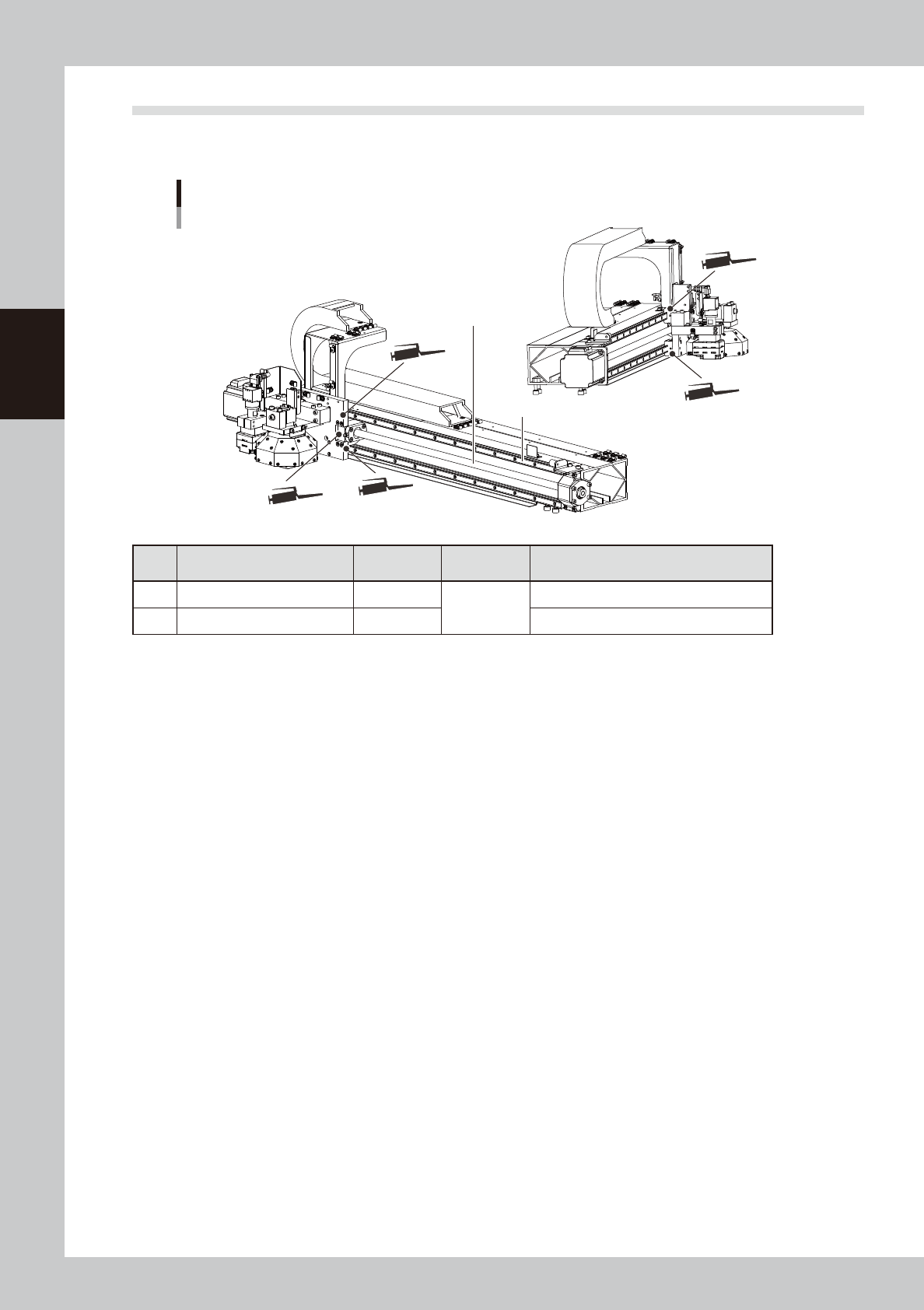

3.4 Vision camera unit
3.4.1 CX-axis
Lubrication locations of CX-axis
CX-axis ball screw
CX-axis linear guide
1
1
1
1
2
63809-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 CX-axis linear guide 4
Monthly
Grease gun
2 CX-axis ball screw 1 Grease gun
Appendix
Contents
1. Specifications A-1
1.1 Air regulator unit A-1
1.1.1 Air supply A-1
1.2 Connection between machines A-2
1.2.1 PREVIOUS INTERFACE connector A-3
1.2.2 NEXT INTERFACE connector A-4
1.3 Power connection terminals A-5
2. Compatible masks A-6
2.1 Mask size and mask stopper pin position A-6
2.2 Mask frame dimensions and mask standard position A-7
3. Inverter (suction unit) A-8
4. Board support jig combinations A-9
