7-5 7 Replacing the consumable parts n Double squeegee (Squeegee scraper) *Option Squeegee scraper Part No. Part name Q'ty Notes Standard MET AL W -SQG KHT -M71C3-00X MET AL SQG.,530 1 530mm KGY -M71R3-01X MET AL SQ…
7-4
7
Replacing the consumable parts

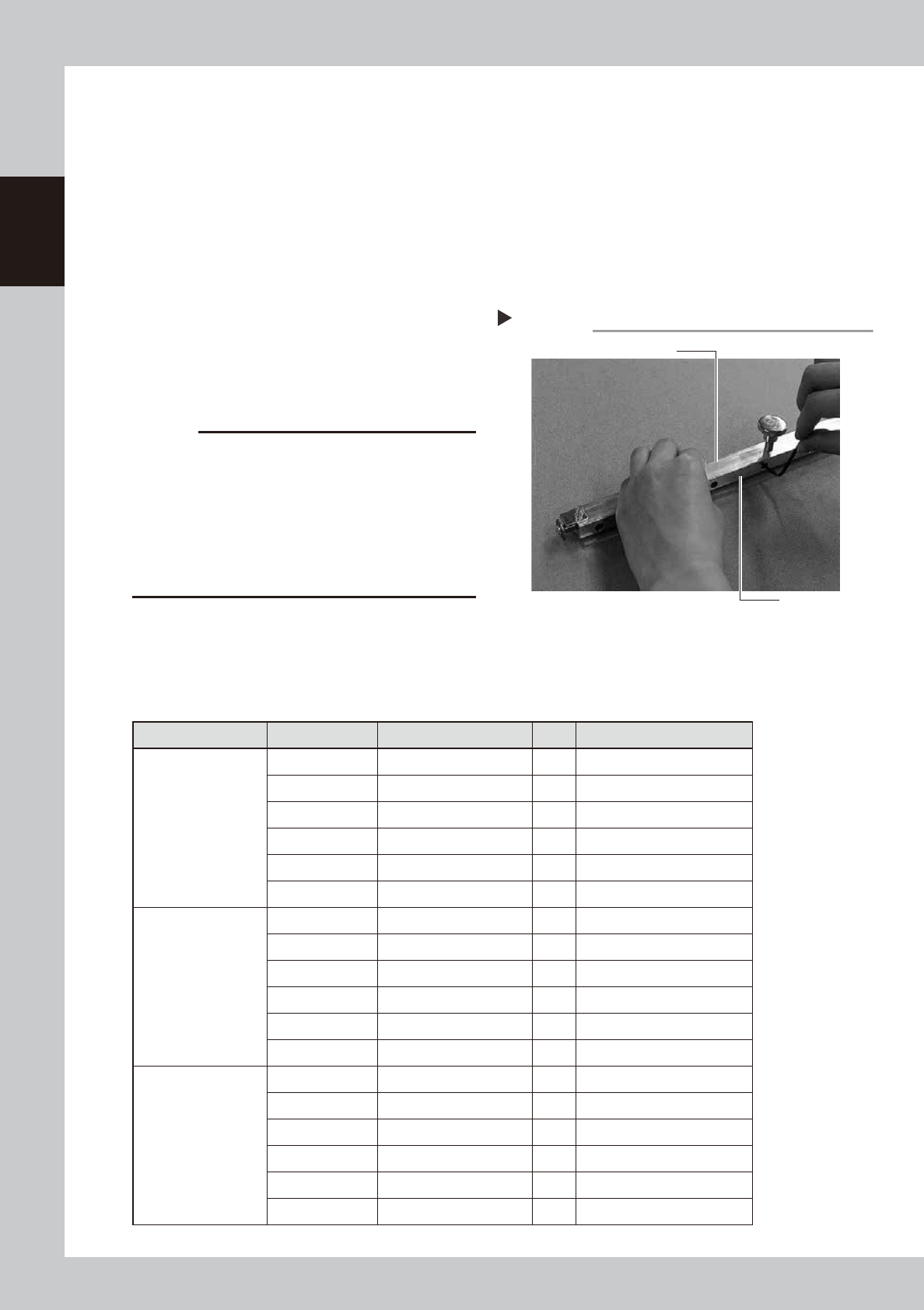

2.2.2 Urethane squeegee scraper
The edge of the urethane squeegee scraper is worn away as it is used. If the edge is worn away or chipped,
loosen the bolts that fasten the urethane scraper from the sides and replace it with a new one.
1
Remove the side plates.
Remove the side plates from both sides of
the squeegee.
2
Loosen the squeegee frame.
Use an Allen wrench to remove the bolts of
the plate that fasten the squeegee scraper.
3
Install a new squeegee scraper.
Sandwich a new squeegee scraper by the
frame and plate and tighten the bolts with
an Allen wrench.
63715-L3-00
c
CAUTION
When tightening the bolts of the urethane squeegee
scraper, gradually tighten the bolts from the center
portion to the outer portion in order with even tightening
torque. If you start tightening the bolts from the outer
portion, the center portion of the urethane part may be
bent. Additionally, it is strongly recommended to install
a new squeegee scraper with the urethane part kept
pushed against the flat surface, such as a level block.
4
Install the side plates.
Install the side plates you have removed in
the above step on the squeegee in the
reverse order of removal work.
n
3S squeegee (Squeegee scraper)
Squeegee scraper Part No. Part name Q'ty Notes
Standard METAL 3S
KHT-M71AA-A0X METAL SQG.WELD,3S 530 1 530mm
KGY-M71EA-A0X METAL SQG.WELD,3S 44 1 440mm
KGY-M71DA-A0X METAL SQG.WELD,3S 40 1 400mm
KGY-M71CA-A0X METAL SQG.WELD,3S 35 1 350mm
KGY-M71BA-A0X METAL SQG.WELD,3S 30 1 300mm
KGY-M71AA-A0X METAL SQG.WELD,3S 25 1 250mm
For half-etching
KHT-M71AA-B0X METAL (S)WELD,3S 530 1 530mm
KGY-M71EA-B0X METAL SQG.(S)WELD,3S 1 440mm
KGY-M71DA-B0X METAL SQG.(S)WELD,3S 1 400mm
KGY-M71CA-B0X METAL SQG.(S)WELD,3S 1 350mm
KGY-M71BA-B0X METAL SQG.(S)WELD,3S 1 300mm
KGY-M71AA-B0X METAL SQG.(S)WELD,3S 1 250mm
URETHANE 3S
KHT-M71BB-00X URETHANE ASSY,3S 530 1 530mm
KGY-M71K3-A0X URE.SQG.ASSY,3S 440 1 440mm
KGY-M71J3-A0X URE.SQG.ASSY,3S 400 1 400mm
KGY-M71H3-A0X URE.SQG.ASSY,3S 350 1 350mm
KGY-M71G3-A0X URE.SQG.ASSY,3S 300 1 300mm
KGY-M71F3-A0X URE.SQG.ASSY,3S 250 1 250mm
Urethane squeegee scraper
Step 3
Squeegee frame
Plate
7-5
7
Replacing the consumable parts
n
Double squeegee (Squeegee scraper) *Option
Squeegee scraper Part No. Part name Q'ty Notes
Standard METAL W-SQG
KHT-M71C3-00X METAL SQG.,530 1 530mm
KGY-M71R3-01X METAL SQG.,440 1 440mm
KGJ-M7183-03X METAL SQG.,400 1 400mm
KGJ-M7173-03X METAL SQG.,350 1 350mm
KGJ-M71A3-01X METAL SQG.,300 1 300mm
KGJ-M7193-01X METAL SQG.,250 1 250mm
For half-etching METAL
W-SQG
KHT-M71C3-10X METAL SQG.(S),530 1 530mm
KGY-M71R3-10X METAL SQG.(S),440 1 440mm
KGJ-M7183-10X METAL SQG.(S),400 1 400mm
KGJ-M7173-10X METAL SQG.(S),350 1 350mm
KGJ-M71A3-10X METAL SQG.(S),300 1 300mm
KGJ-M7193-10X METAL SQG.(S),250 1 250mm
URETHANE W-SQG
KHT-M71E3-00X URETHANE SQG.,530 1 530mm
KGY-M71W3-00X URETHANE SQG.,440 1 440mm
KGJ-M710C-E0X SQUEEGEE,400 1 400mm
KW3-M7126-00X SQUEEGEE,M 1 350mm
KGJ-M71C3-00X URETHANE SQG.,300 1 300mm
KGJ-M71B3-00X URETHANE SQG.,250 1 250mm
c
CAUTION
The part Nos. given in this manual are the original part Nos. which were assigned to the parts when this manual was
issued. Because these part Nos. may be changed without prior notice, be sure to verify the latest part Nos. before
ordering parts.
7-6
7
Replacing the consumable parts
3. Replacing the cleaning gauze roll
If the cleaning gauze roll is wound up completely or if the gauze roll with a different size needs to be used
during the setup work, follow the steps below to replace the cleaning gauze roll.
c
CAUTION
For a new gauze roll, use YAMAHA genuine spare parts listed in the table below to prevent any trouble.
n
Gauze roll part No.
Part No. Part name Notes
KHT-M3660-00X BENCOT,ROLL 530 Roll sheet width, 530 mm
KGY-M3660-A0X BENCOT,ROLL 440 Roll sheet width, 440 mm
KGY-M3660-B0X BENCOT,ROLL 360 Roll sheet width, 360 mm
KGY-M3660-C0X BENCOT,ROLL 260 Roll sheet width, 260 mm
c
CAUTION
Select a gauze roll width that matches the squeegee head size. Using the wrong gauze roll width might damage the
squeegee head and mask.
c
CAUTION
When moving the cleaning unit by hand, be careful not to get your hand pinched in the gap (shown by the arrow
below) under the mask plate.
Cleaning unit
Mask plate
Cleaning unit
63725-L3-00
