8-13 8 Inspection and maintenance 3. List of lubrication locations 3.1 X-, Y -, and Z-axis 3.1.1 X1-axis and X2-axis Lubrication locations of X-axis Z-axis guide shaft X-axis ball screw X-axis linear guide X-axis bearing…
8-12
8
Inspection and maintenance
n

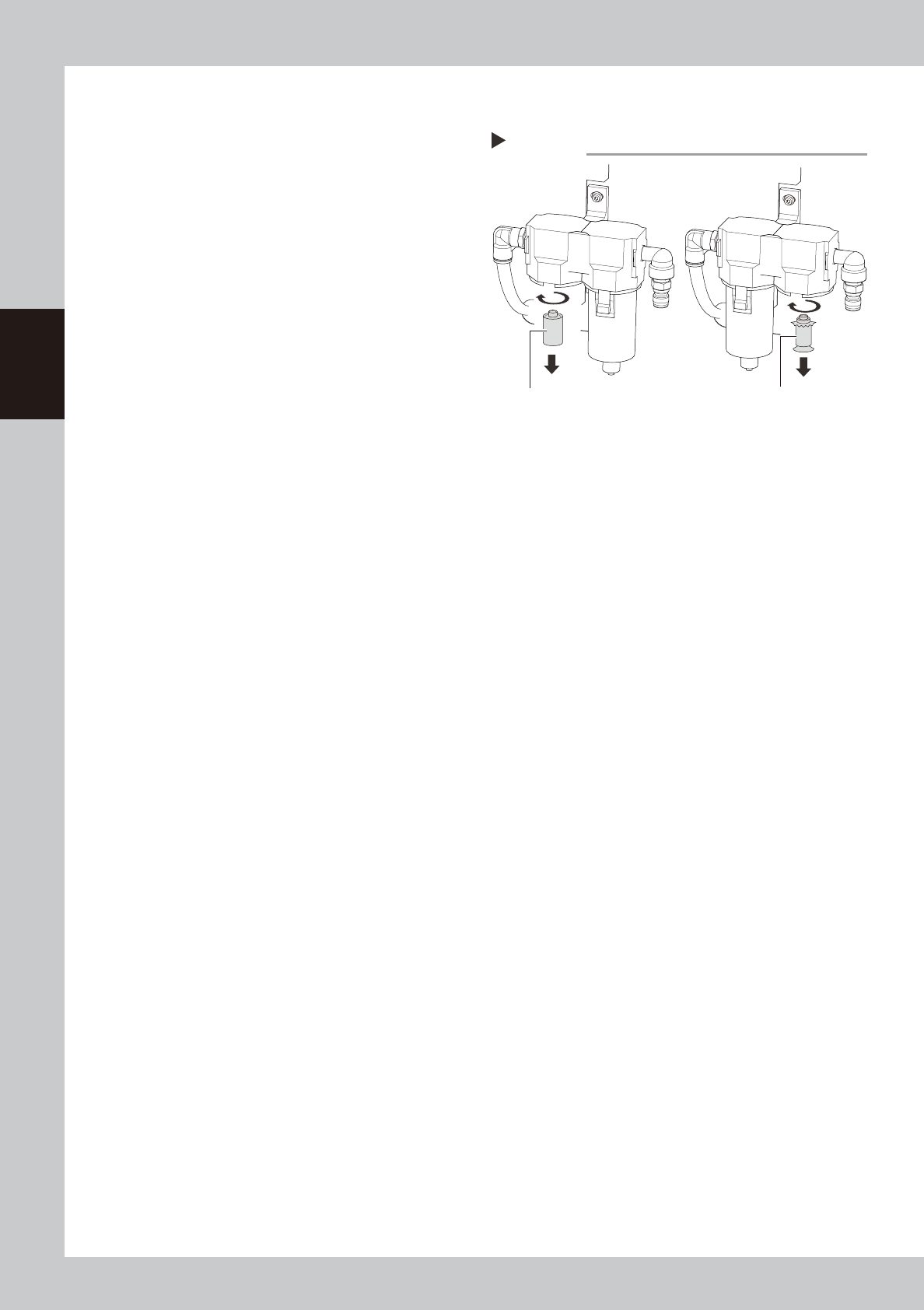

Cleaning the air/mist filters
1
Remove the filter cup.
See the previous procedure in "Cleaning the
filter cup".
2
Remove the filter.
Remove the filter by turning it.
63816-L3-00
3
Clean the filter element.
Use an air blow gun to blow away dust and
impurities trapped by the filter element. If
the filter is excessively dirty and cannot be
cleaned, replace it with a new filter.
4
Reattach the filter.
5
Reattach the filter cup.
6
Reconnect the air hose to the air
coupler.
After connecting the air hose, check that no
air is leaking.
Step 2
Removing thefilter
MIST FILTER ELEMENT
( MANTLE)
FILTER ELEMENT
( ELEMENT)
8-13
8
Inspection and maintenance

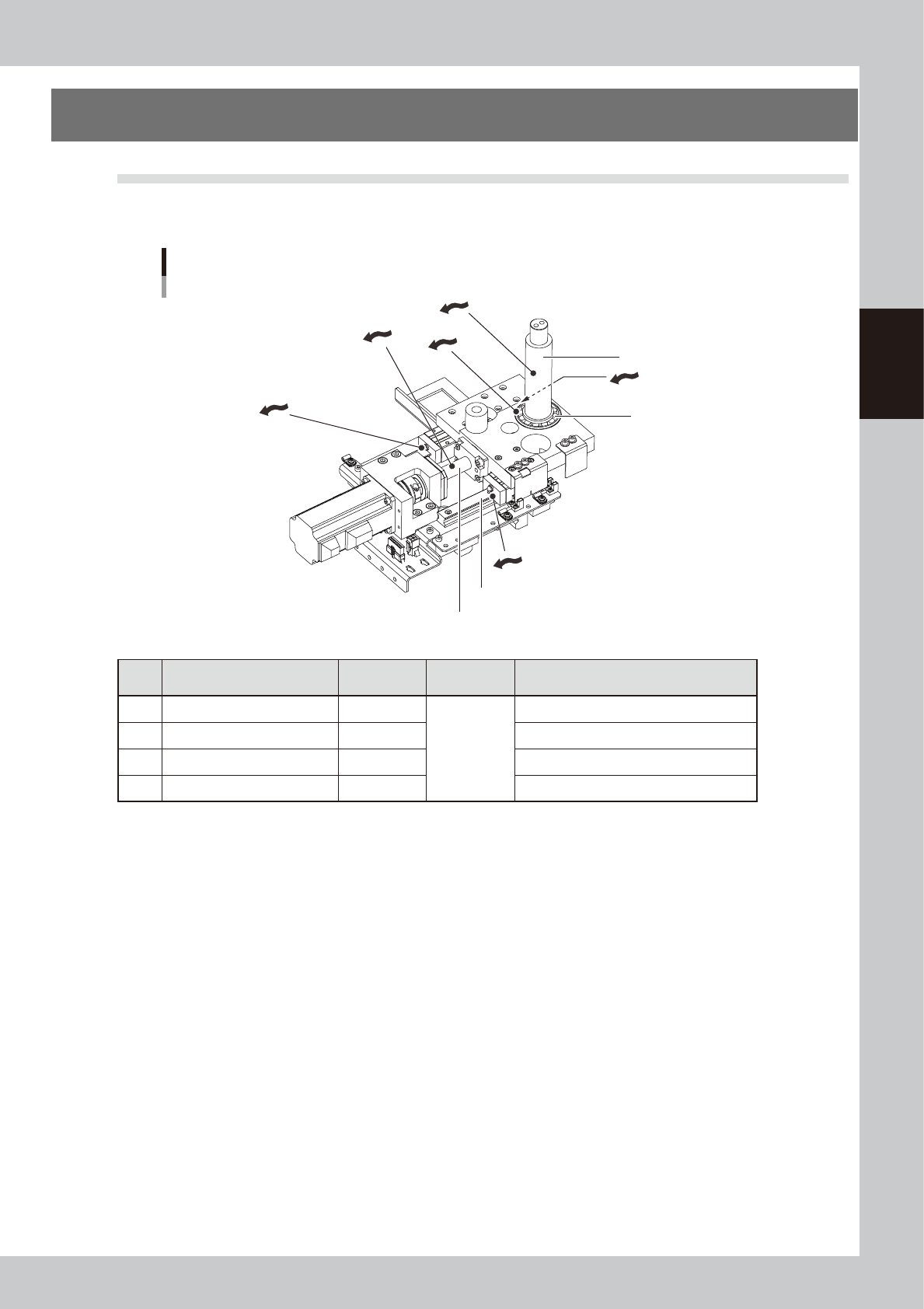

3. List of lubrication locations
3.1 X-, Y-, and Z-axis
3.1.1 X1-axis and X2-axis
Lubrication locations of X-axis
Z-axis guide shaft
X-axis ball screw
X-axis linear guide
X-axis bearing
1
2
3
4
1
1
63801-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 X-axis linear guide 3
Monthly
Manual lubrication
2 X-axis ball screw 1 Manual lubrication
3 X-axis bearing 1 Manual lubrication
4 Z-axis guide shaft 1 Manual lubrication
8-14
8
Inspection and maintenance

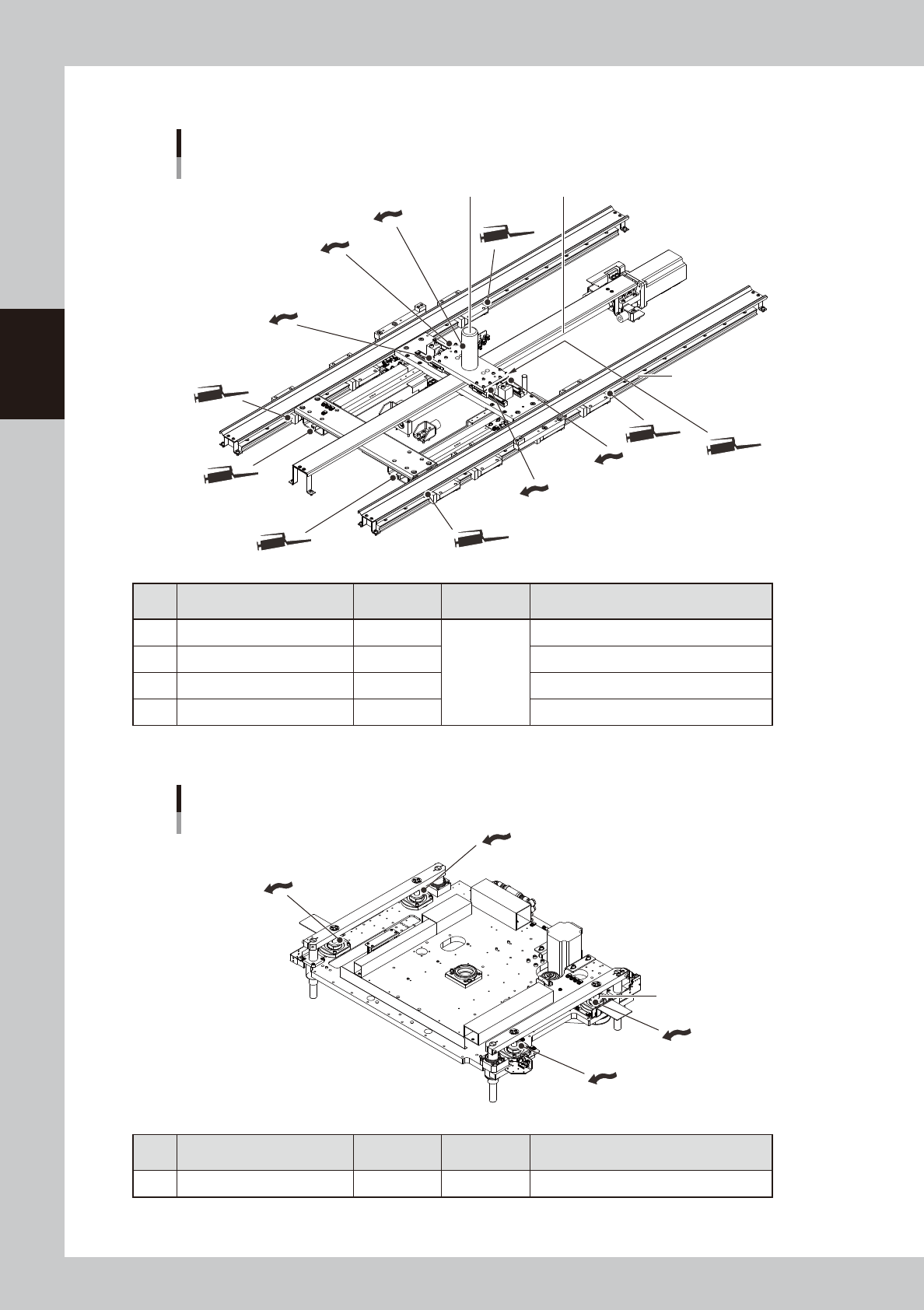

3.1.2 Y-axis
Lubrication locations of Y-axis
Y-axis shaft Y-axis ball screw
Y-axis linear guide
1
1
1
1
2
1
1
4
3
4
4
4
63803-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
1 Y-axis linear guide 6
Monthly
Grease gun
2 Y-axis ball screw 1 Grease gun
3 Y-axis shaft 1 Manual lubrication
4 Linear guide in X direction 4 Manual lubrication
3.1.3 Z-axis
Lubrication locations of Z-axis
Z-axis ball screw
63804-L3-00
Lubrication point
Lubrication
location
Interval Lubrication method
Y-axis ball screw 4 Monthly Manual lubrication
