JaNets Instruction Manual 2. Installation
2-54
(6) Specify a password for the created account. Click the menu item “Create a password.”
Figure 2.5-40 Screen for changing an account (displayed on the mounter)
(7) Specify a password for the created account. Enter “is_user_2008.” The machine distinguishes
between uppercase letters and lowercase letters. When you enter the password, click the
<Create Password> button.
Figure 2.5-41 Screen for setting a password (displayed on the mounter)
JaNets Instruction Manual 2. Installation
2-55

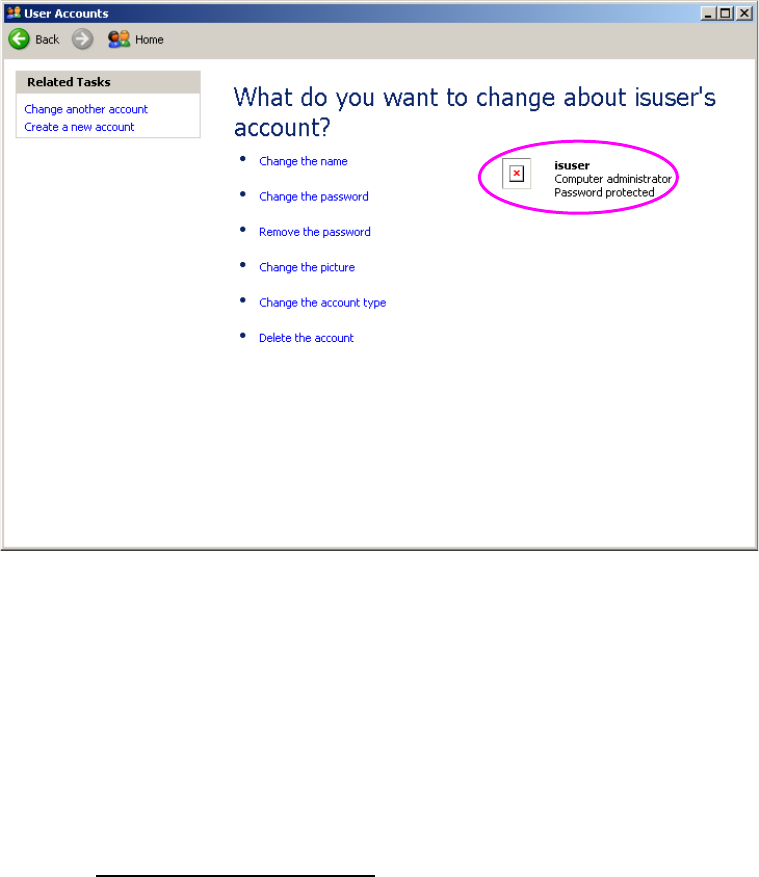

(8) The screen is switched back to the screen for changing an account. Check to see if
“Password protected” is displayed at the created account.
Figure 2.5-42 Screen for setting a password
(displayed after you set a password) (on the mounter)
You have finished creating a user account at this point.
- Note on operation performed after you finish creating a user account
The following machine models: FX-3/3R/3RA, KE-3010A/3020VA/3020VRA,
KE-3010/20V/20VR, KE-3020/20R, KE-2070/80, KD-2077 and JM-10 use the Enhanced
Write Filter (EWF) to protect the Operating System (OS) and handle the drive C as a ROM.
Since data written on the drive C is erased when you restart the system, follow the description
of Section 2.5.1.4 “Updating the Drive C” to update the drive C in order to change the
information of the OS.
JaNets Instruction Manual 2. Installation
2-56
2.5.4.2 Disabling the firewall
Disable the firewall. When the firewall is enabled, the JaNets cannot perform any communication.
(1) Display the “Control Panel” shown in “Figure 2.5-43” from the “Start” menu, and then select
“Administrative Tools.”
Figure 2.5-43 Control Panel (displayed on the mounter)
(2) Select “Services” among the administrative tools.
Figure 2.5-44 Administrative Tools (displayed on the mounter)
