1 - 38
Student Guide SIPLACE HF/HF3
2 Overview Edition 09/2005
38
2.2.15.5 Nozzle changer for 6 segment C&P head
The nozzle changer for a 6 segment C&P head consists of at least one, and up to twelve maga-
zines, each with six nozzle garages (see Fig. 2.2 - 26). The magazines are seated on a common
support and each magazine is centered using two parallel pins and fixed in place with a spring
hook.
Magazines for the 9xx and 8xx nozzle types can be set up. The magazines can be arranged as
required.
Fig. 2.2 - 26 Nozzle changer 6 segment C&P head
Fig. 2.2 - 27 Description of the positions nozzle changer
Magazin for 6
nozzle Typ 8xx
Magazin for 6
nozzle Typ 9xx
Transport direction
(1) Component reject position
(2) Nozzle reject position
1 - 39
Student Guide SIPLACE HF/HF3
Edition 09/2005 2 Overview
39
2.2.16 TwinHead for high accuracy
2.2.16.1 Description
This Twin head developed consists of two P&P heads of same model coupled together who work
according to the Pick&Place principle.The second P&P head is rotate of 180 degree. Two compo-
nents are pick up from the feeder, on the way to placement position the component are recognize
optically and turn it into placement position. After this are put gently with the aid of controlled air
kiss and position precisely they onto the PCB board.
For the TwinHead, new nozzles (Type 5xx) were developed. However, the nozzles of the
Pick&Place head type 4xx and the nozzles of the Collect&Place heads from the type 8xx and 9xx
can use with an adapter.

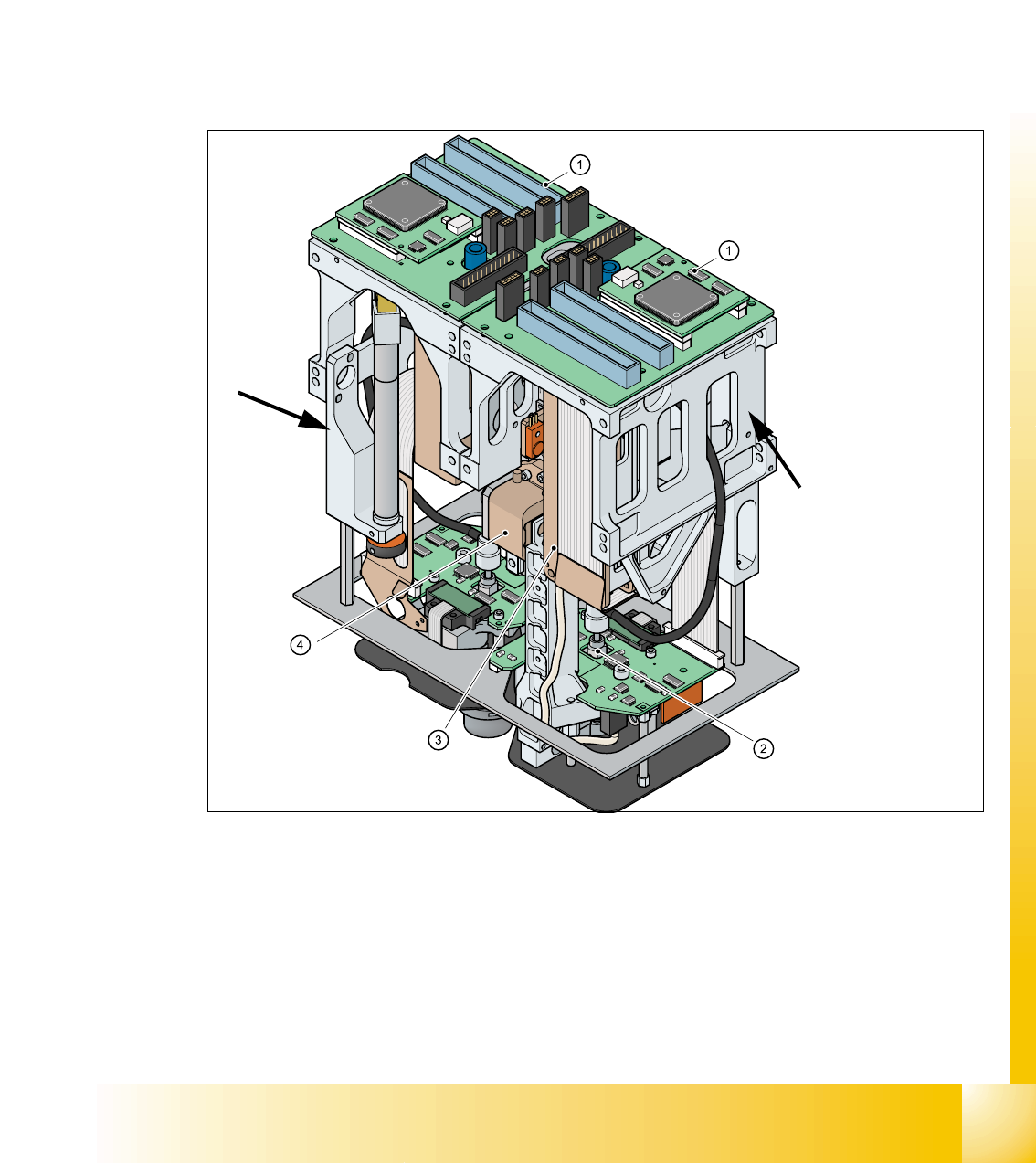

Fig. 2.2 - 28 TwinHead
1. Main board on modul 1 and modul 2
2. D-Axis
3. linear motor Z-Axis
4. Incremental measurement system Z-Axis
Modul 2, rotate 180 °
concerning Modul 1.
Modul 1
1 - 40
Student Guide SIPLACE HF/HF3
2 Overview Edition 09/2005
40
2.2.16.2 Nozzle changer Twin head
The Siplace HF is supplied with a standard nozzle changer for the Twin head. The nozzle changer
is installed in section 3.
The nozzle changer for a Twin head consists of the standard module as 3 garage, each with two
nozzle and one garage for one special nozzle (see Fig. 2.2 - 29).

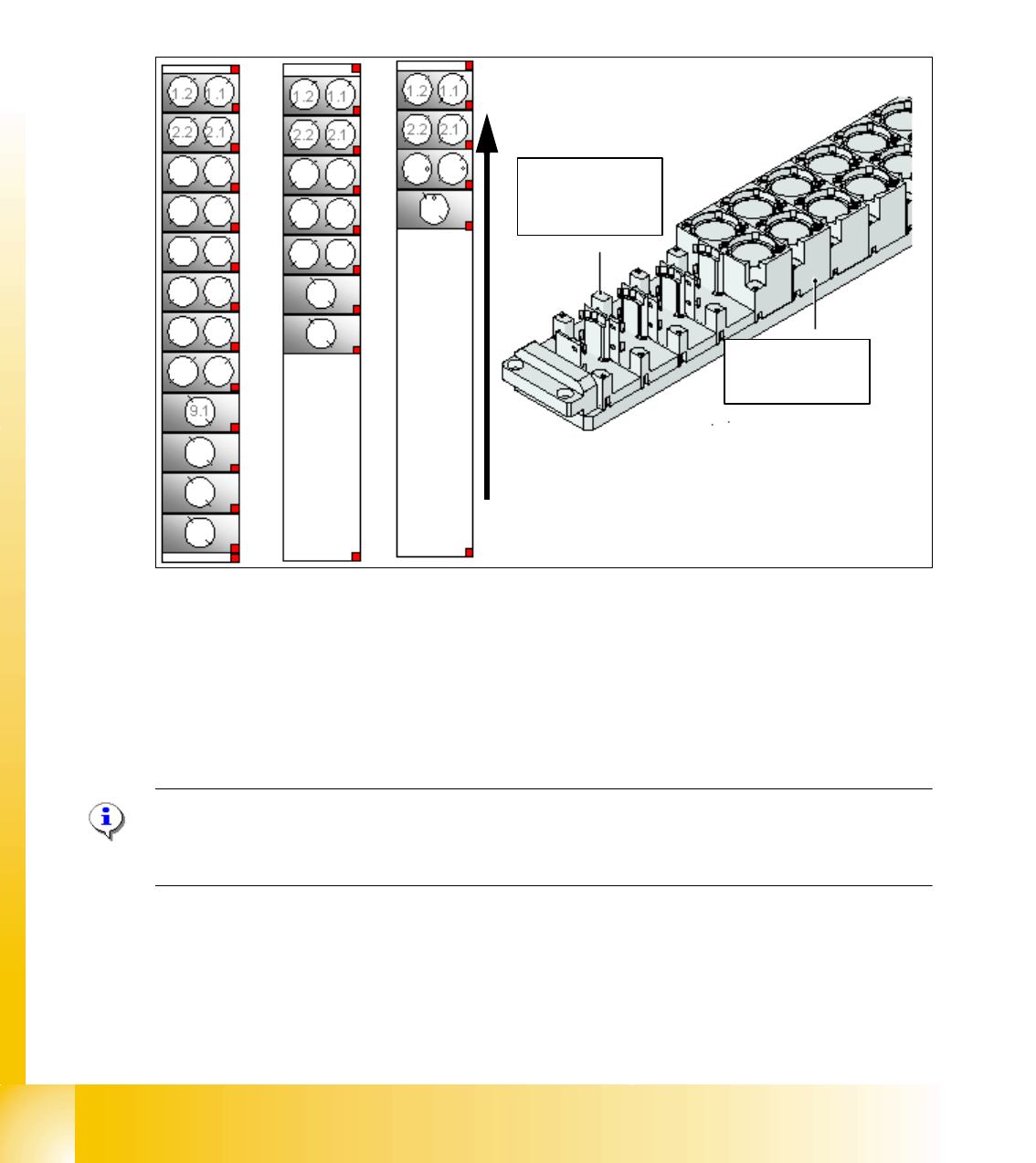

Fig. 2.2 - 29 Nozzle changer Twin head
1. Standard nozzle changer
2. extended nozzle changer
3. completed nozzle changer
Please Note:
The configurations mentioned above could be changed as required and magazines for standard
and special nozzles can be added one by one.
Magazin for 1
special nozzle
Magazin for 2
standard nozzle
Transport direction
