1 - 5
Student Guide SIPLACE HF/HF3
Edition 09/2005 3 Communication and Control
5
3.2 Networking Address
Network Card 1:
The network address for the SC and MC is a fixed address, for 100Mbit/sec net.
– Station computer: 192.168.255.249
– Machine controller: 192.168.255.250
Network Card 2:
The networking between station computer and Siplace Pro is using the ’Dual LAN Unit’ connector
LAN 2. The networking address is not fixed.
IP address LAN example: 172.22.10.xx
Network Card 3:
At the ’Dual LAN Unit’ connector LAN 1 you can connect a GEM Computer via network.

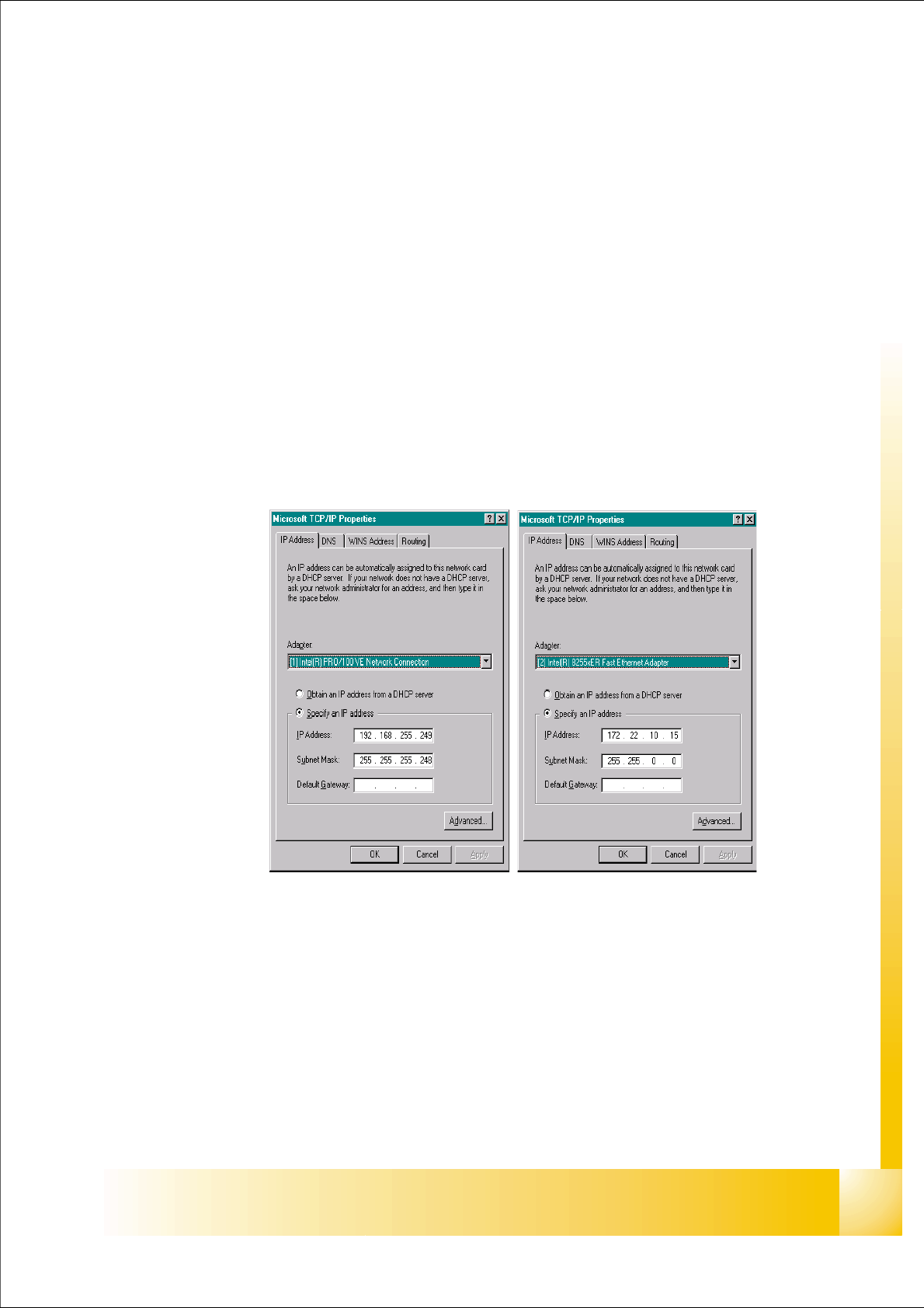

Fig. 3.2 - 1 network card 1 station computer(left) network card 2 customized IP address
1 - 6
Student Guide SIPLACE HF/HF3
3 Communication and Control Edition 09/2005
6
3.2.1 Computer at the LAN Network
The SIPLACE Pro programming computer read the files, which are required for programming,
from the hard drive and compiles it. The compile run creates the required data format and send it
to the station computer. This data files are then saved on the hard drive at the station.

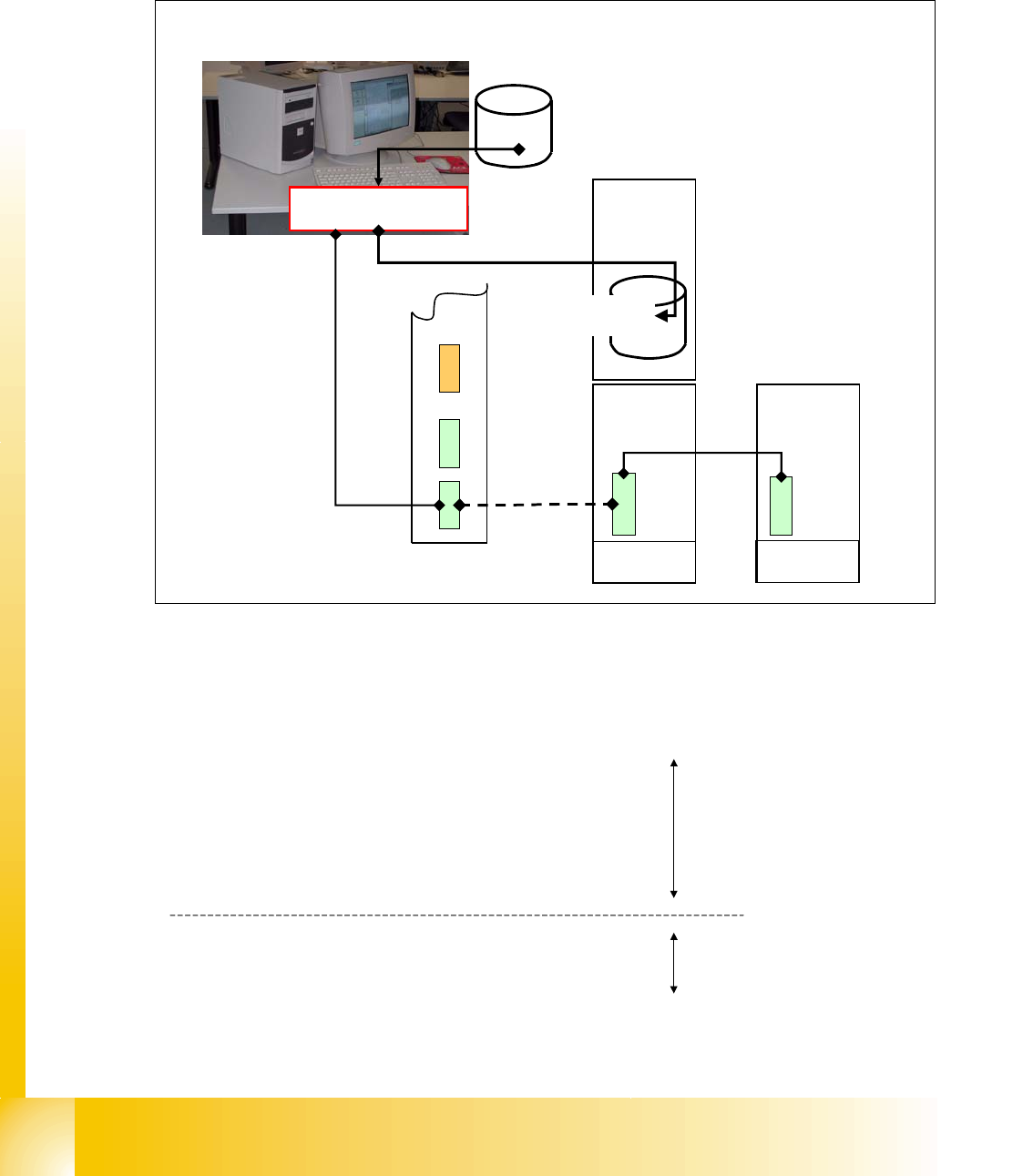

Fig. 3.2 - 2 computer at LAN network
Compiling the pick-up position (X/Y coordinates and angle) 3
following values are taken into account for calculating the theoretical pick-up position:
Machine
Controller
Station
Computer
Data for placement
program
compile run of data used
for placement program
compiled Line
computer data
XXX.la
XXX.rs
XXX.gf
XXX.pm
...
aktuell.nu
aktuell.rs
XXX_12.gf
XXX_5.mk
...
• feeder table is on the left side or right side (0 or 180 degree)
• feeder track
• feeder pick-up position
• programmed pick-up offset
• offset from feeder table position calibration
• segment offset 1 of segment x
• segment offset 2 of segment x
Compile run
SIPLACE Pro
Compile run
station computer
1 - 7
Student Guide SIPLACE HF/HF3
Edition 09/2005 3 Communication and Control
7
Compiling the placement position (X/Y coordinates and angle) 3
following values are taken in account for calculating the theoretical placement position:
3.2.2 Communication on HF placement machine
The placement data files, stored at the hard drive, are compiled at the station computer. This com-
piling add the calibrated values, taken during calibration in Sitest, to the pick up and placement
data.

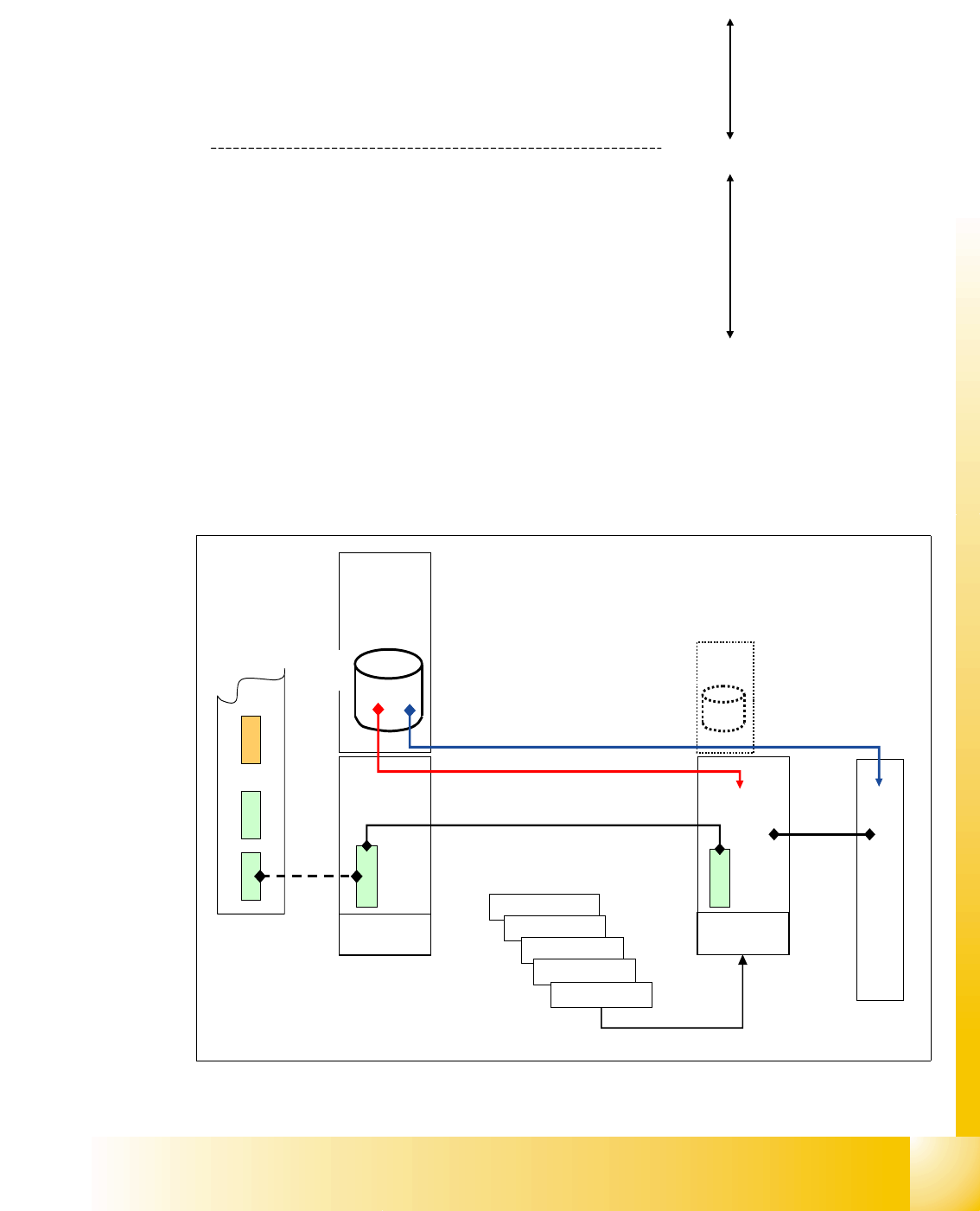

Fig. 3.2 - 3 communicaton on HF
Compile run
SIPLACE Pro
Compile run
station computer
• PCB angle in conveyor (how is the PCB in the transport,
0,90,180,270 degree?).
• PCB zero point offset
• placement position on PCB
• fixed PCB corner
• offset PCB - component camera
• segment offset 1
• segment offset 2
• mapping values
• fine calibration values
Axis controller
Axis controller
Axis controller
Axis controller
Machine
Controller
Station
Computer
Compiled
data LC
aktuell.nu
aktuell.rs
XXX_12.gf
XXX_5.mk
...
Compile
run SC
MVS
340
Axis controller
HS3L
CAN BUS 1Mbit/s
