12-47 校正 12.1.9. 贴装头 & 照明机校准 (Head & Camera Calibration) 实行相机校准。 校准的执行顺序与所需工具 如下。 High Speed Head (HSH) Multi Function Head (MFH) Calibration High Sp eed Calibration T ool Rough R-Axis HomeOf fset Ο Up Camera…
12-46
Cutting-edge Modular Mounter HM Series Administrator's Guide
8. ANC位置测量完成后，会显示 “ANC位置扫描完成”的对话框。按下<确定>
键，关闭对话框。
9. 按下<更新>键，保存测定值。
备注 需要调整基准符号信息时，点击 <符号详细信息>按钮调整基准
符号。
12-47
校正
12.1.9. 贴装头 & 照明机校准(Head & Camera Calibration)
实行相机校准。校准的执行顺序与所需工具如下。
High Speed Head (HSH)
Multi Function Head (MFH)
Calibration High Speed Calibration Tool
Rough R-Axis HomeOffset Ο
Up Camera Scale 1 Ο
Fid to Up Camera Hole Offset1 Ο
Head Z-Axis Home Offset Ο
Light Mapping Ο
HNFidMap Nozzle 1EA
HNFixMap Nozzle 1EA
Fine R-Axis Home Offset Ο HNHeadXY Nozzle 3EA
Up Camera Scale 2 Ο
Fid to Up Camera Hole Offset2 Ο
Head T-Axis Home Offset Ο HNHeadXY Nozzle 1EA
Nozzle Holder Inspection Ο
Head Block COR Ο
Head Block Ref.Mark Ο
Up Camera Thermal Pos Ο
Head Z Offset Ο HNHeadZ Nozzle 1EA
Head Offset Ο HNHeadXY Nozzle 1EA
SVS Z Position (SVS Camera) Ο HNHeadZ Nozzle 1EA
Height Sensor Offset (Option) Ο
Calibration Multi Functional Calibration Tool
Up Camera Scale 1 Ο
Fid to Up Camera Hole Offset1 Ο
12-48
Cutting-edge Modular Mounter HM Series Administrator's Guide

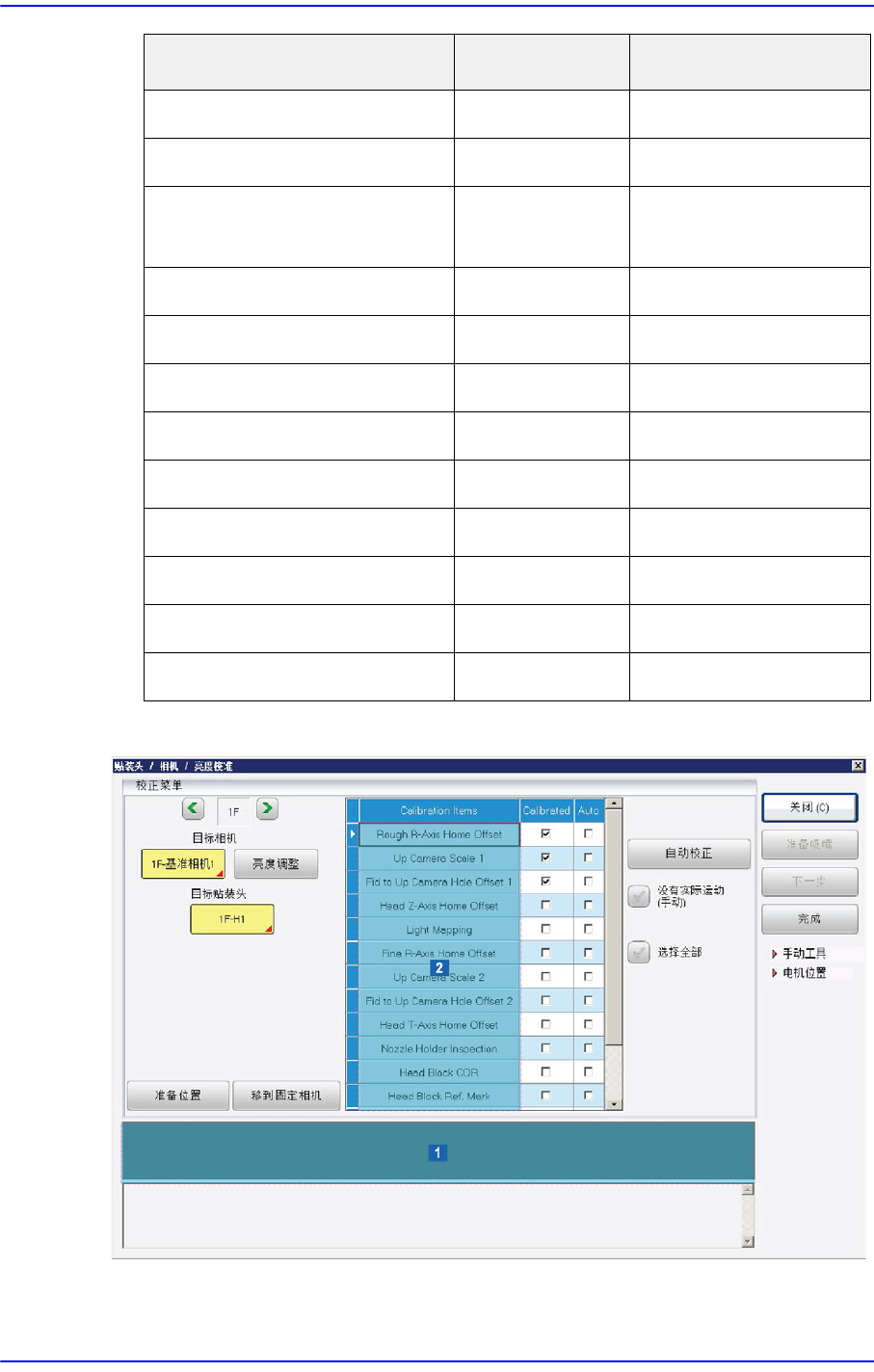

图
12.9 “
贴装头
/
相机
/
照明校准
”
对话框
1:
信息框
2: Calibration Item
Nozzle Holder Inspection Ο
Head Z Offset Ο CN065 Nozzle 1EA
Light Mapping Ο
CNFidMap Nozzle 1EA
CNFixMap Nozzle 1EA
Up Camera Scale 2 Ο CNHeadXY Nozzle 1EA
Fid to Up Camera Hole Offset2 Ο
Head Block Center Ο
Head Block Ref.Mark Ο
Head Offset Ο CNHeadXY Nozzle 1EA
Head T-Axis Offset Ο CNHeadXY Nozzle 1EA
Up Camera Thermal Pos Ο
SVS Z Position (SVS Camera) Ο CN065 Nozzle 1EA
Height Sensor Offset (Option) Ο
Calibration Multi Functional Calibration Tool
