4OM-1603 1-50 3. Maintenance Spots : Chap.1 1012-001 Cam Follower Every Month Cleaning and Lubrication (MOLYNOC GREASE AP1) Shutter Flange Pin Sliding Section Every 3 Months Cleaning and Lubrication (MOLYNOC GREASE AP1) …
4OM-1603
1-49
3. Maintenance Spots : Chap.1
1012-001

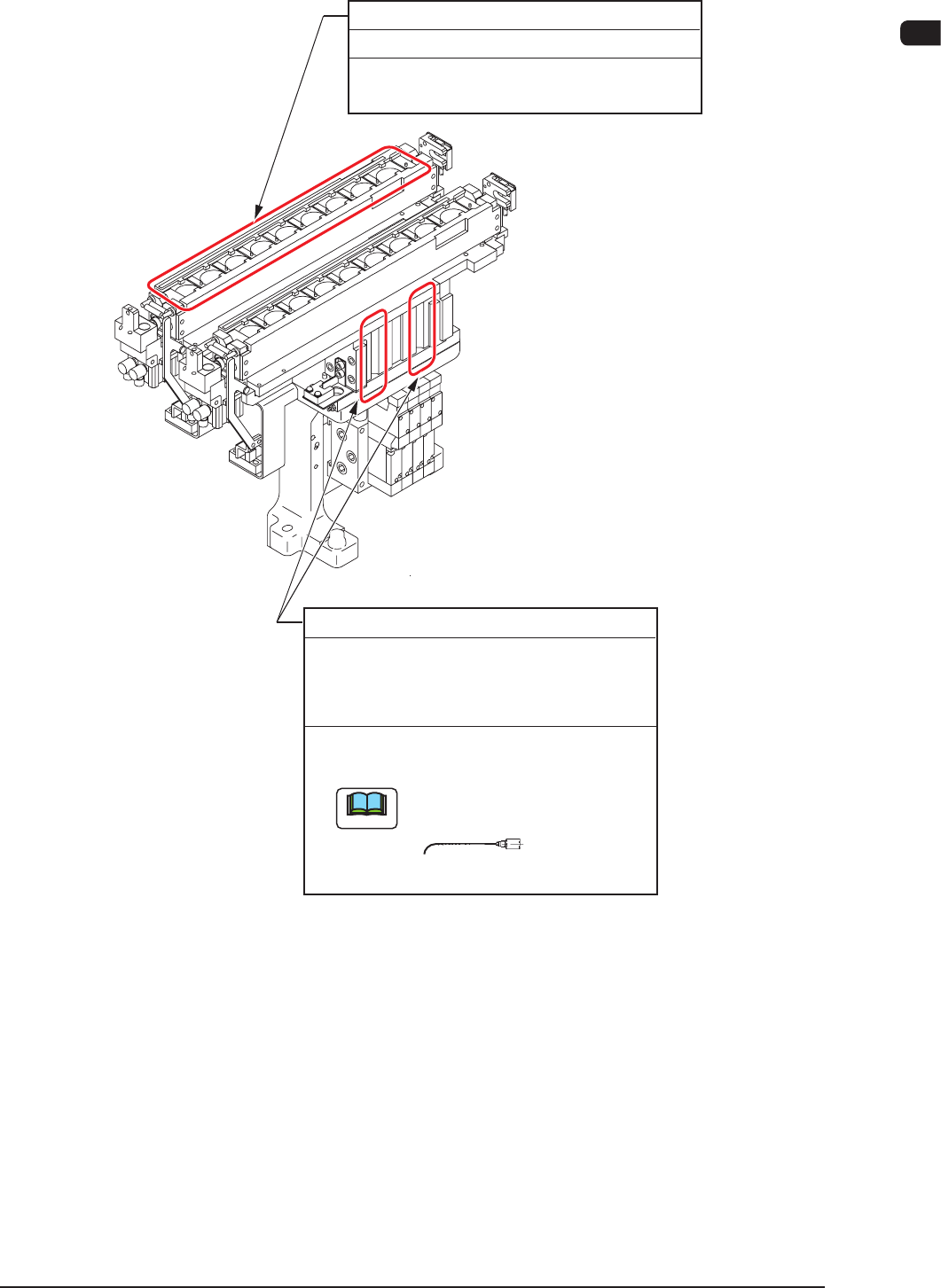

Nozzle Stocker for Multi-Functional Nozzle
Nozzle Storage Section
Every Month Cleaning
Suck dirt and dust with a vacuum cleaner.
Nozzle Stocker Sliding Section
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
F4A36-1
4OM-1603
1-50
3. Maintenance Spots : Chap.1
1012-001
Cam Follower
Every Month Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease by hand or with a
brush.
Use No. 19 (brown) nozzle.
No.19
Note
Take ample care not to
leave the waste threads
after the old grease is
wiped off.
Shutter Flange Pin Sliding Section
Every 3 Months Cleaning and Lubrication
(MOLYNOC GREASE AP1)
Required Time: 5 minutes
(1) Wipe off old grease with an oiled rag.
(2) Apply new grease with a syringe.
Use No. 19 (brown) nozzle.
No.19
Note
Notice
F4A36-2
4OM-1603
1-51
3. Maintenance Spots : Chap.1
1007-003
3.2.12 Control Box Section
Screws
Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the screws (3 locations) fixing the
dust filter and remove the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A37
