4OM-1603
1-35
3. Maintenance Spots : Chap.1
1109-006

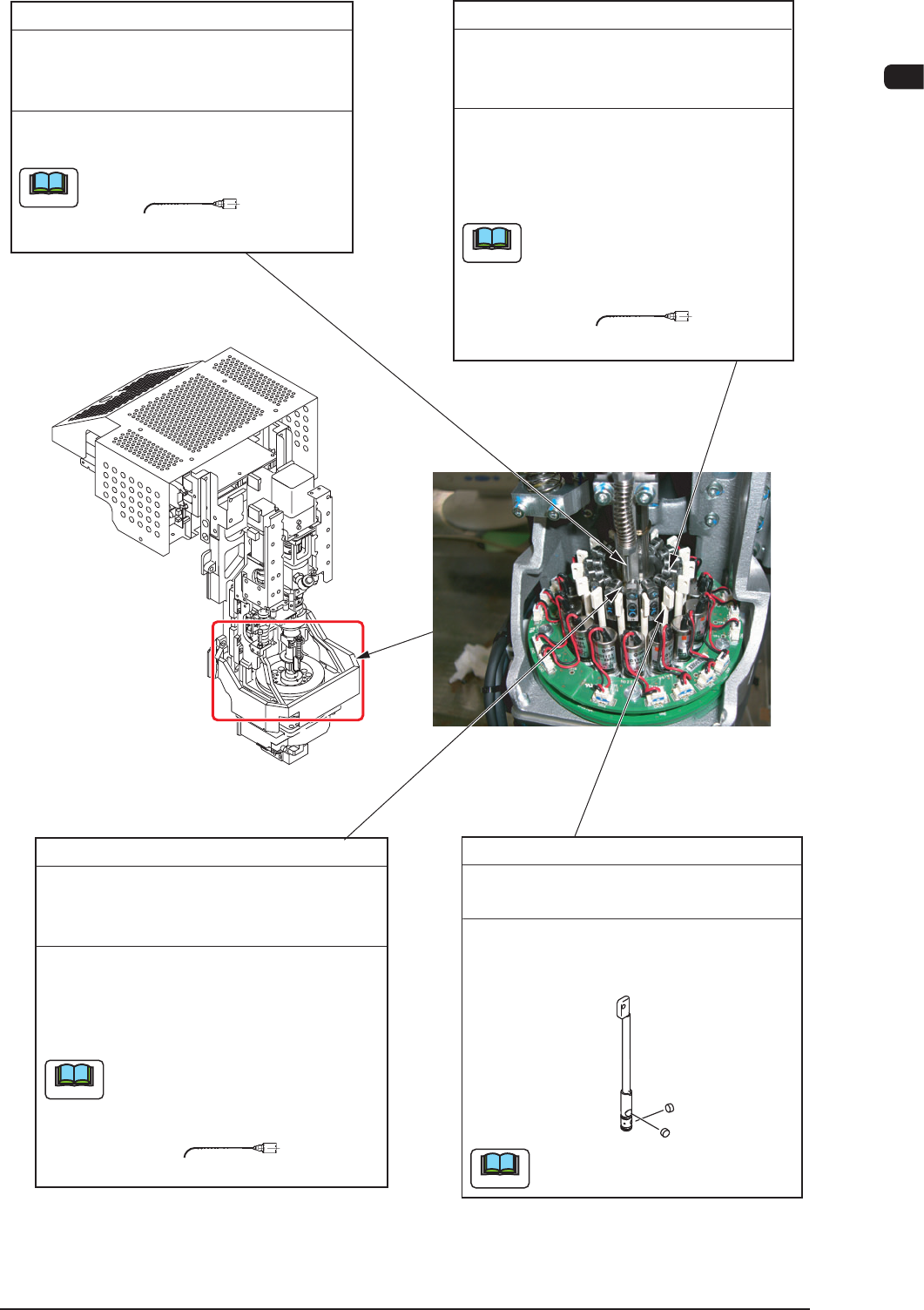

Cam Followers
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
If foreign substances adhere to the cam
followers, remove them with a pair of tweezers.
Apply grease (0.01 cc) to the upper sides
of the cam followers with a syringe.
(a) "0.01 cc" is almost equivalent
to the size of "1005 Chip".
(b)
Use No. 19 (brown) nozzle.
Note
No. 19
Center Spline
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 4 minutes
Apply grease to the groove of the center spline
with a syringe.
Use No. 19 (brown) nozzle.
Note
No. 19
Nozzle Change Cam Face (Upper Side)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
If a foreign substance adheres to the cam face,
remove it with a pair of tweezers.
Apply grease (0.01 cc) to the upper side of
the cam face with a syringe.
(a) "0.01 cc" is almost equivalent
to the size of "1005 Chip".
(b)
Use No. 19 (brown) nozzle.
Note
Note
No. 19
Vacuum Filters (15 locations)
Every 3 Months Replacement
Required Time: 30 minutes
Pull up the 2 vacuum filters with the filter
attachment/detachment jig and replace it with
a new one.
Use commercially available tweezers
for filter changes.
F4A26
4OM-1603
1-36
3. Maintenance Spots : Chap.1
1109-001
NOTICE
Makesureofthelterfolderinsertiondirection,and
then insert the folder securely to the end.
Makesurethatthelterfolderuppersurfaceis
aligned with the top block upper surface.
Filter Holder
Make sure that the height
of the filter folder is aligned
with that of the top block.
F4A26-1
4OM-1603
1-37
3. Maintenance Spots : Chap.1
1109-006
Multi-Functional Head
Ball Screw (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Linea Guide (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Grease should be applied every 3 months after
the initial month.
Notice
Apply grease, taking care that the
grease does not stick to the sensor.
Sensor
Multi-Functional Head F4A26-2
