4OM-1603
1-7
1. Outline of Maintenance : Chap.1

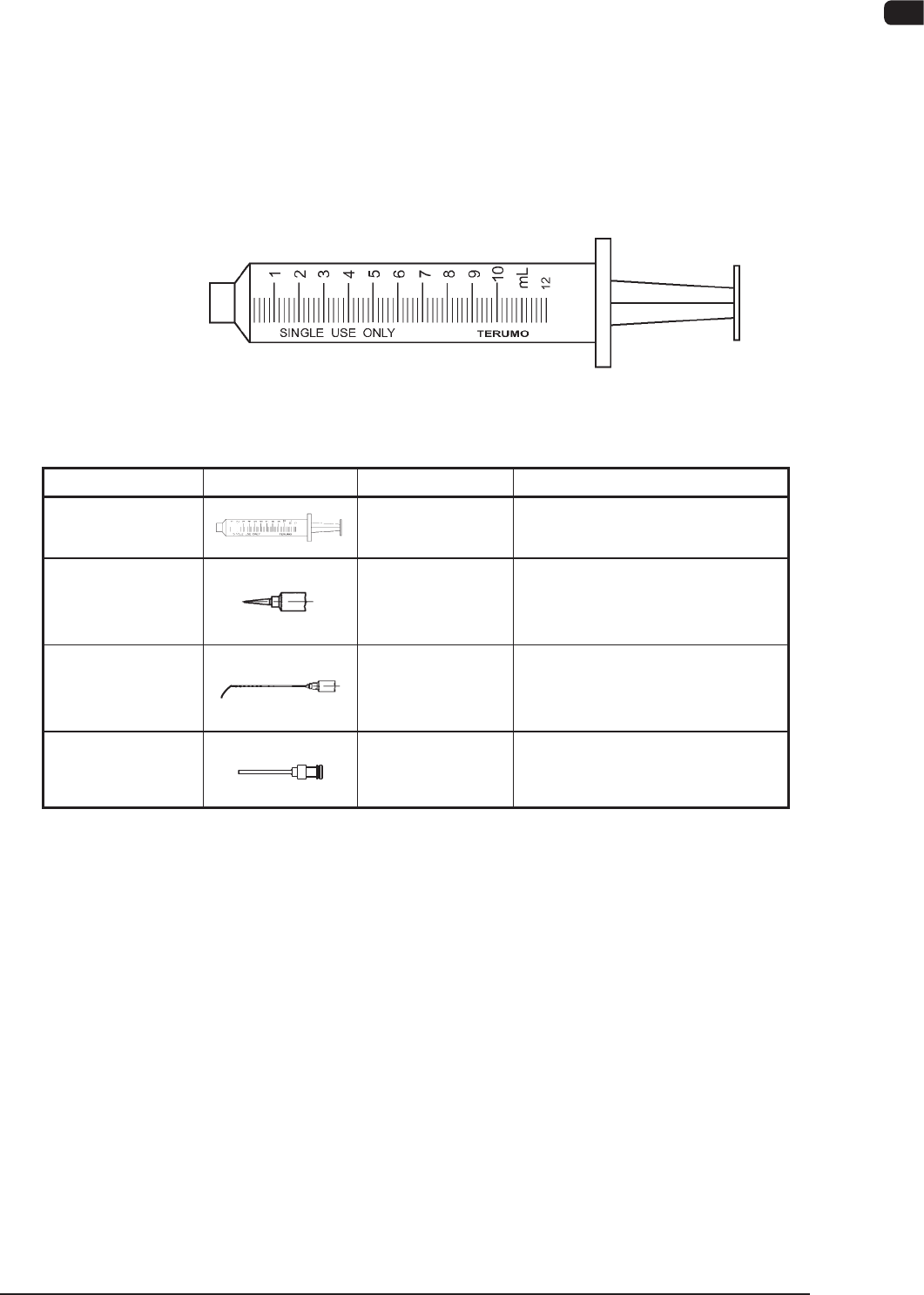

(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
F4A5
Standard Shape Part No. Remarks
Syringe
228A0171
Maker : TERUMO
10ml SS-10-LZ
Nozzle No.18
(Color : Green)
216A0451
Maker : SAN-EI TECH
Inside Diameter :
f
0.84
Tapered Nozzle #5118TT-B
Nozzle No.19
(Color : Brown)
0916D108
Maker : NIPRO
Inside Diameter :
f
0.79
Length : 65 mm Flat End
Nozzle No.49
0916D712 Length : 145 mm
T4A5
1003-003
4OM-1603
1-8
1. Outline of Maintenance : Chap.1
1.3 Items for Periodic Maintenance
The items (inspection, cleaning, lubrication, etc.) that require periodic
maintenance are classied and described based on each individual devices.
Reference
Refer to "2. Maintenance Check List" in "Chapter 1" for the maintenance based
on frequency of use.
Notice
The * -marks represent that the items require maintenance only for the
rsttime.
Followthe○-markedmaintenancecycleforthesubsequentuse.
Device Name
Inspection Cleaning,
and Lubricating Spots
Work
Maintenance Cycle
Daily Weekly Monthly
Every
3 Months
Every
6 Months
Yearly
3.2.1 Air Source
Main Air Pressure
Inspection
○
Air Blowing Pressure
Inspection
○
Z Clamp Pressure
Inspection
○
Drain
Cleaning
○
Filter
Cleaning
○
3.2.2 Vacuum System
Vacuum Pressure
Inspection
○
Filter
Cleaning
○
3.2.3 Component
Recognition Camera
Section
Component Recognition
Camera
Cleaning
○
Component Storage Box
Cleaning
○
Hanenaito
Cleaning
○
Fiducial Mark
Cleaning
○
QFP Glass Plate Jig
Cleaning
○
Teaching Plate
Cleaning
○
3.2.4 Feeder Base
Driving Section
Worm Gear
Lubrication
○
3.2.5 Feeder Cart Section
Groove on Feeder Base
Cleaning
○
Upper Surface of Feeder
Base
Cleaning
○
Real Box
Cleaning
○
Scrap Box
Cleaning
○
Upper Surface of
Suppressor
Cleaning
○
T4A6
1003-003
4OM-1603
1-9
1. Outline of Maintenance : Chap.1
Device Name
Inspection Cleaning,
and Lubricating Spots
Work
Maintenance Cycle
Daily Weekly Monthly
Every
3 Months
Every
6 Months
Yearly
3.2.6 Feeder Cart Section
(Cutter Section)
Cutter Box
Cleaning
○
Linear Guide
Lubrication
○
Flat Ring
Change
○
Fluorine Sheet
Change
○
Urethane Clamp
Change
○
Needle Bearing
Lubrication
○
3.2.7 Head Section
High Speed Head
Nozzle U/D Ball Screw
(NL Axis)
Cleaning,
Lubrication
○
Head U/D Ball Screw
(HL Axis)
Cleaning,
Lubrication
○
Head U/D Linear Guide
(HL Axis)
Cleaning,
Lubrication
○
Nozzle Shaft
Inspection,
Cleaning
○
Diffusion Plate
Cleaning
○
Linear Measure Sensor
(Light Emitter and
Receiver)
Cleaning
○
Nozzle Change Cam Face
(Lower Side)
Cleaning,
Lubrication
○
Center Spline
Lubrication
○
Cam Follower
Cleaning,
Lubrication
○
Vacuum Filter
Change
○
Nozzle Filter
Change
○
3.2.7 Head Section
Multi-Functional
Head
Ball Screw
(3 locations)
Lubrication
○
Linear Guide
(3 locations)
Lubrication
○
Pan
(3 locations)
Cleaning
○
Vacuum Filter
Change
○
Nozzle Filter
Change
○
Vacuum Nozzle
Change
○
Vacuum Nozzle
Inspection
○
T4A7
