4OM-1603 1-37 3. Maintenance Spots : Chap.1 1 109-006 Multi-Functional Head Ball Screw (3 locations) No.49 Every 3 Months Lubrication (DAPHNE EPONEX GREASE No. 1) Required T ime: 15 minutes Apply new grease with a syring…
4OM-1603
1-36
3. Maintenance Spots : Chap.1
1109-001

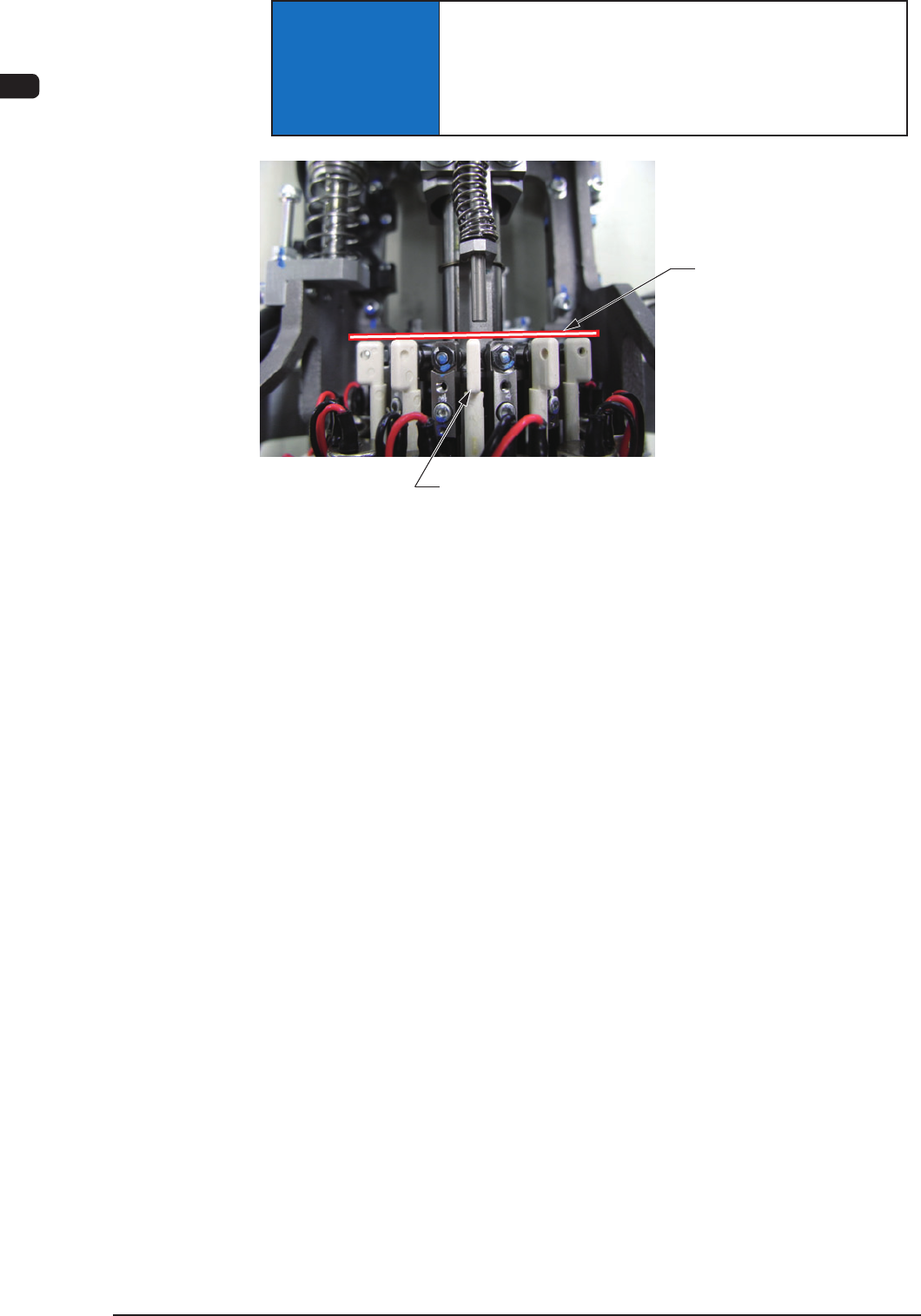

NOTICE
Makesureofthelterfolderinsertiondirection,and
then insert the folder securely to the end.
Makesurethatthelterfolderuppersurfaceis
aligned with the top block upper surface.
Filter Holder
Make sure that the height
of the filter folder is aligned
with that of the top block.
F4A26-1
4OM-1603
1-37
3. Maintenance Spots : Chap.1
1109-006
Multi-Functional Head
Ball Screw (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Linea Guide (3 locations)
No.49
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 15 minutes
Apply new grease with a syringe.
Use No. 49 nozzle.
Note
Grease should be applied every 3 months after
the initial month.
Notice
Apply grease, taking care that the
grease does not stick to the sensor.
Sensor
Multi-Functional Head F4A26-2
4OM-1603
1-38
3. Maintenance Spots : Chap.1
Note
Vacuum Filter
Filter Holder
Filter Attachment /
Detachment Jig
Pan (3 locations)
When the filter is changed,
attach or detach the jig
vertically.
Pull down the filter holder to remove.
Use the filter mounting jig to change the
vacuum filter.
After changing, insert the filter holder
into the shaft located at the center of the
nozzle holder.
Every 3 Months Cleaning
Every 3 Months Change
Required Time: 3 minutes
Wipe out old grease in the pan using an oiled
rag.
F4A26-3
1109-006
