2. Maintenance Check List : Chap.1
1109-006
Object Unit
Inspection, Cleaning,
and Lubricating Spots
Work Grease Required Tools Check
3.2.11 Nozzle Stocker
Section
Nozzle Stocker
for High Speed
Nozzle
Nozzle Stocker Sliding
Area
Cleaning,
Lubrication
DE1 Oiled Rag
Shutter Flange Pin
Sliding Section
Cleaning,
Lubrication
NM1
Nozzle Stocker
for Multi-
Functional
Nozzle
Nozzle Stocker Sliding
Area
Cleaning,
Lubrication
DE1 Oiled Rag
Shutter Flange Pin
Sliding Section
Cleaning,
Lubrication
NM1
3.2.12 Control Box
Section
Filter
Cleaning
-----
3.2.13 Fans
Ventilating Fan
Cleaning
-----
Air-Intake Fan
Cleaning
-----
T4A13
2.5 Half-Yearly Maintenance
Grease Symbols
DE1
: DAPHNE EPONEX GREASE No. 1
IEL/V
: BARRIERTA IEL/V
Object Unit
Inspection, Cleaning,
and Lubricating Spots
Work Grease Required Tools Check
3.2.8 X/Y Beam
Section
X-Axis Cable Side Face
Cleaning,
Lubrication
IEL/V Oiled Rag, Brush
X-Axis Cable Fixing
Places
Inspection
----- -----
X-Axis Liner Scale
Cleaning
----- Rag
Y-Axis Cable Side Face
Cleaning,
Lubrication
IEL/V Oiled Rag, Brush
Y-Axis Cable Fixing
Places
Inspection
----- -----
Y-Axis Liner Scale
Cleaning
----- Rag
3.2.9 PCB Positioning
Section
Ball Screw Splines
Cleaning,
Lubrication
DE1 Oiled Rag,
Hand Grease Gun,
SPK-3C
T4A14
2.6 Yearly Maintenance
Object Unit
Inspection, Cleaning,
and Lubricating Spots
Work Grease Required Tools Check
3.2.6 Feeder Cart
Section (Cutter)
Fluorine Sheet
Change
----- Screwdriver, Wrench
Urethane Clamp Assy
Change
----- Screwdriver, Wrench
Flat Ring
Change
----- Screwdriver, Wrench, Torque
driver
T4A15
4OM-1603
1-16
3. Maintenance Spots : Chap.1
3. Maintenance Spots
3.1 Whole View
Notice
Any operations with a cover(s) being removed are included.
After the maintenance work, be sure to attach the cover.

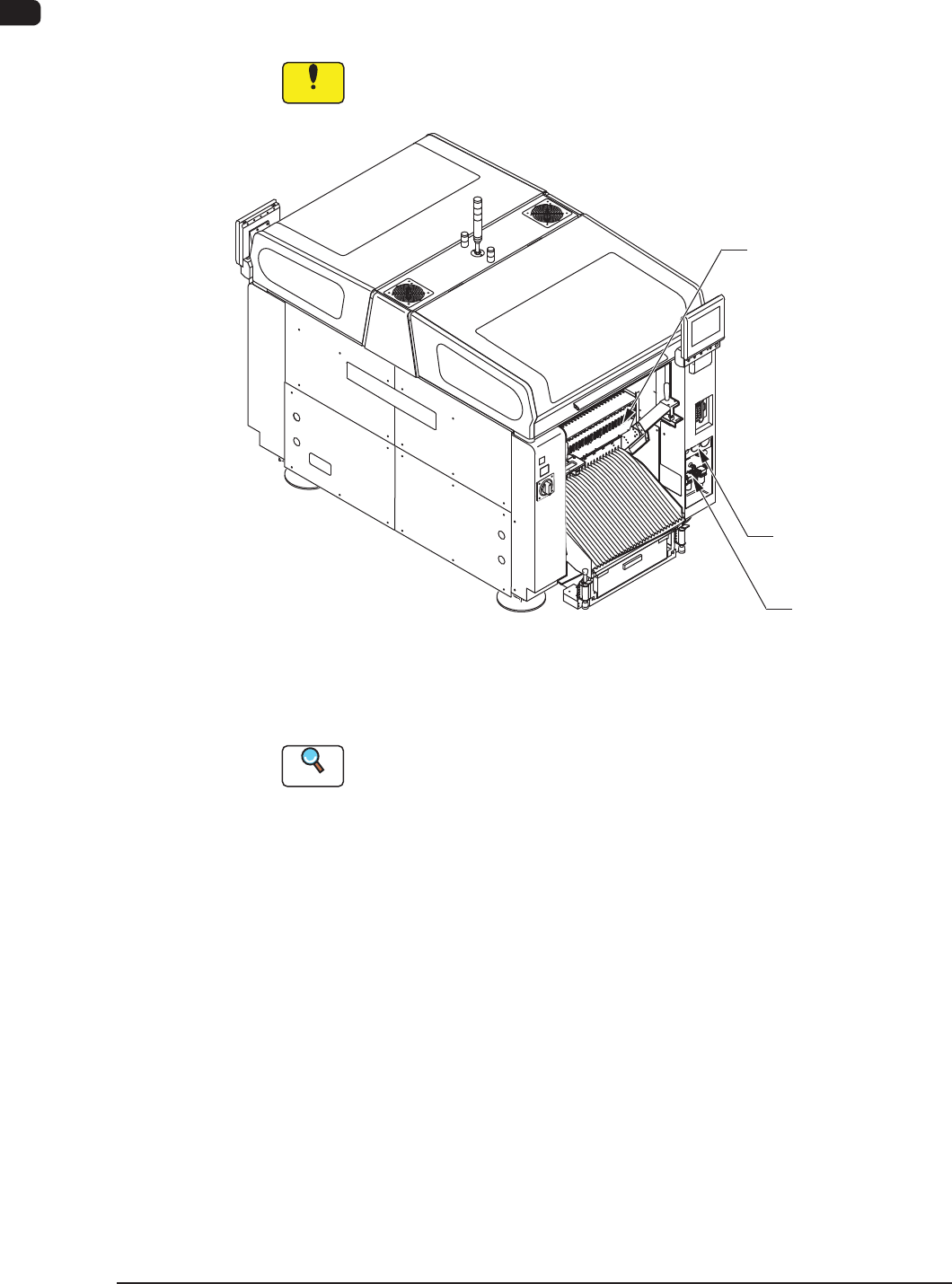

Feeder Cart Section
Air Source
Vacuum System
Front View of Machine
F4A6
Reference
(a) Refer to "3.2" in "Chapter 1" and the subsequent items for the detailed
information on the spots of each section to be maintained and how to
maintain them.
(b) As for the options, refer to each instruction manual of the specially
specied devices for the maintenance.
1003-003
4OM-1603
1-17
3. Maintenance Spots : Chap.1

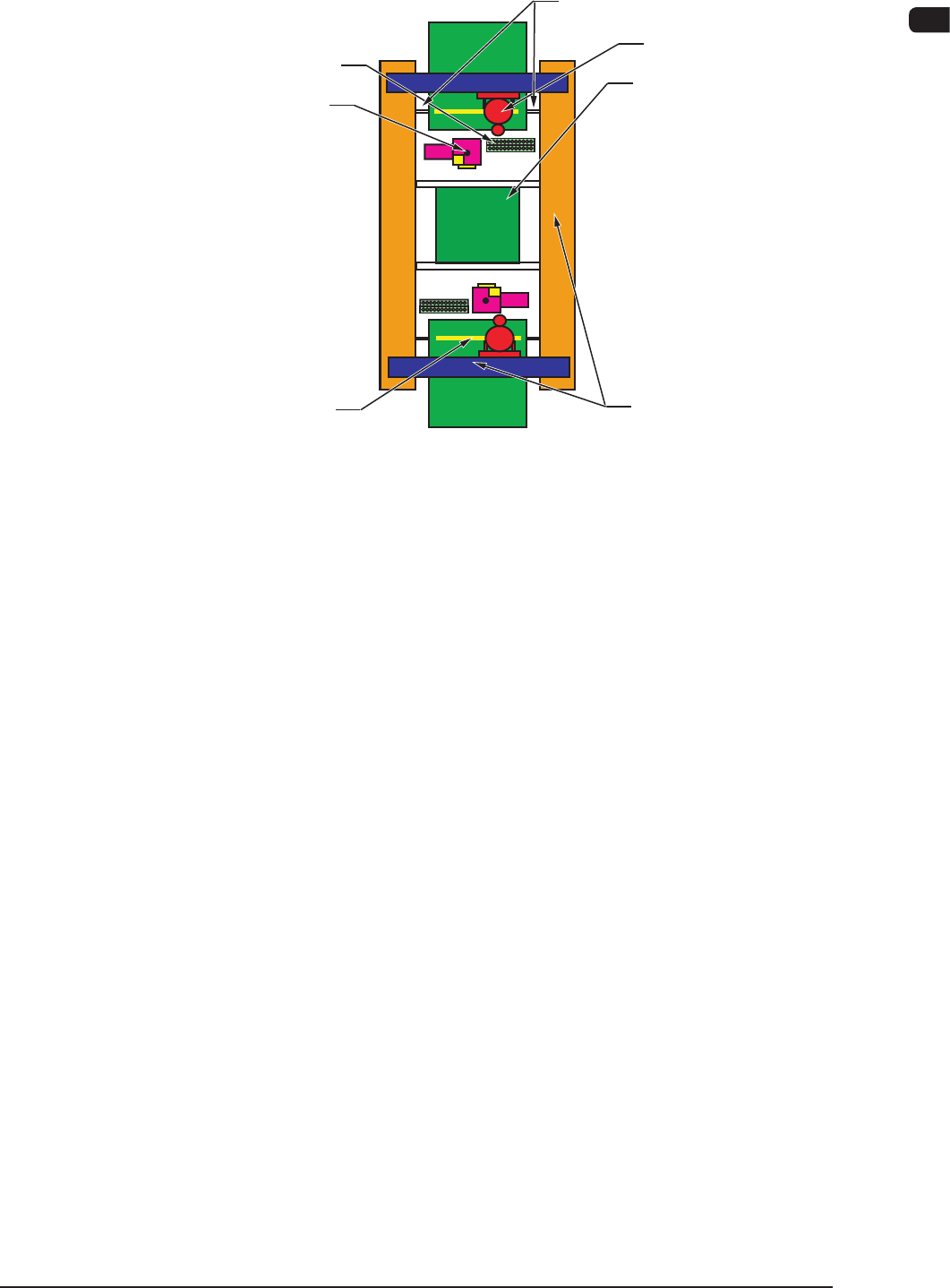

(Front Side of Machine)
(Rear Side of Machine)
Nozzle Stocker Section
PCB Positioning Section
Head Section
XY Beam Section
Component Recognition
Camera Section
Cutter Section
Feeder Base Driving Section
F4A7
