4OM-1603
2-25
3. Machine Information : Chap.2
3. Machine Information

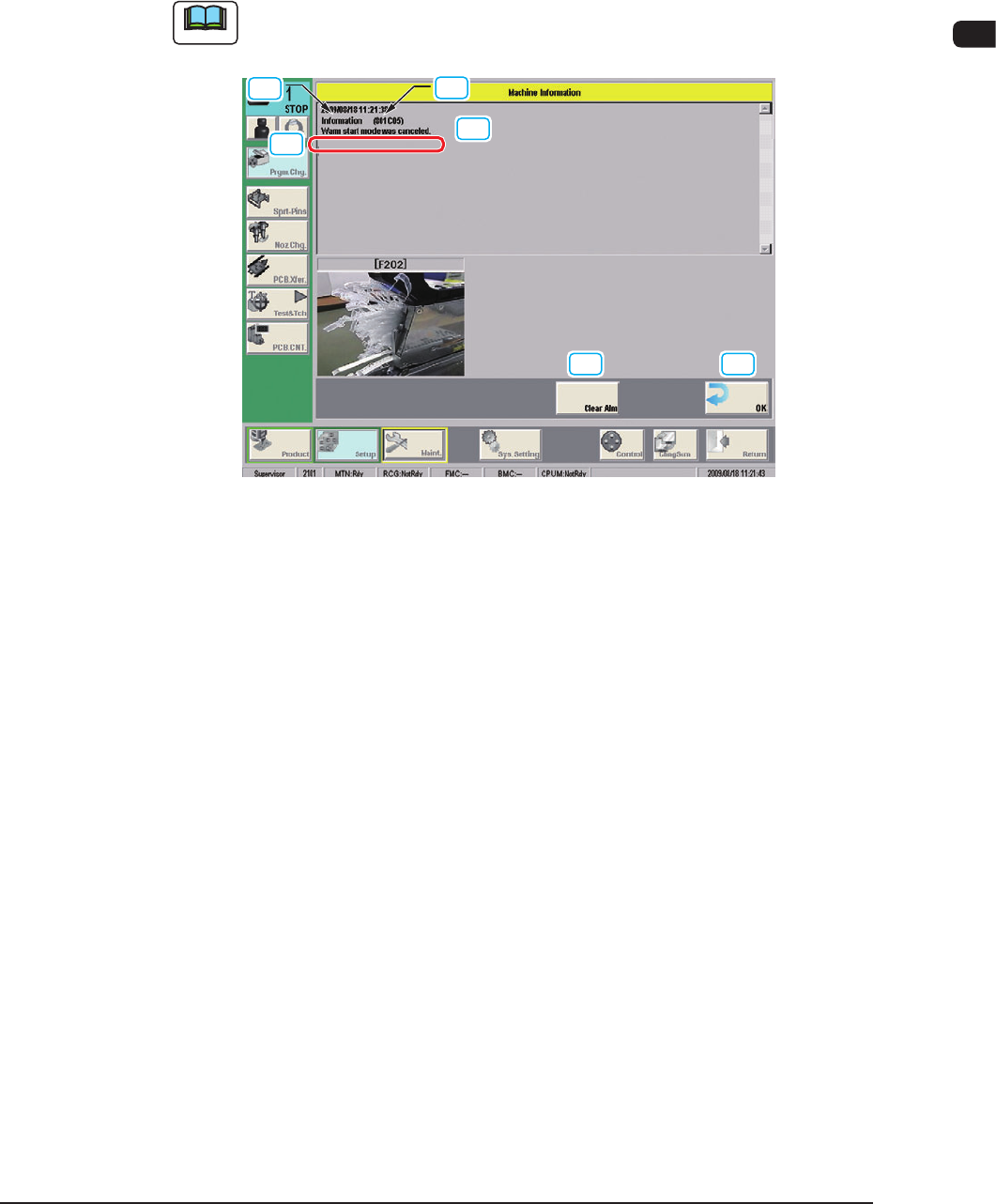

3.1 Machine Information Window
In this window, various machine information items are displayed during the
machine operation.
Note
The machine is not stopped with this indication.
[1]
[4]
[3]
[2]
[5] [6]
F4B3
[1] Machine Information Code
The machine information code is described in this text box.
[2] Display Area A
The outline of the machine information is displayed in this area.
[3] Display Area B
The details of the machine information are displayed in this area.
[4] Display Area C
The check procedure for the machine information item is displayed in this
area.
[5] [Clear Alm] Button
When this button is pressed, only the alarm buzzer is cancelled.
[6] [OK] Button
When this button is pressed, the "Machine Information" window is closed.
[7] Error Display
When a full previous notice of the cover tape has occurred (Error code
0x802401), the feeder number and the image are displayed. (Three subjects
can be displayed in order from the left)
1202-006
4OM-1603
2-26
3. Machine Information : Chap.2
3.2 Machine Information List
Machine
Information Code
Display Area A (The outline of the Machine Information)
Display Area B (The details of the Machine Information)
800301 Warning: Decreasing of Comp. Hdlg. Rate(For Nozzle.)
Nozzle message rate :
-----
800302 Warning: Decreasing of Comp. Hdlg. Rate(For Nozzle.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
-----
800401 Warning: Decreasing of Comp. Hdlg. Rate(For Fdr.)
Feeder message rate :
-----
800402 Warning: Decreasing of Comp. Hdlg. Rate(For Fdr.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
-----
800505 Alternated Tray Magazine Axis
Shortage of component
-----
800601 Alternated Feeder
Shortage of component
-----
800602 Alternated Feeder
Splice waiting
-----
800603 Alternated Feeder
Comp. Vertical(sensor)
-----
800604 Alternated Feeder
Comp. Thickness(sensor)
-----
800605 Alternated Feeder
Comp. Missing(sensor)
-----
800606 Alternated Feeder
Comp. Recog. Error(recog.)
-----
800607 Alternated Feeder
Comp. Missing(recog.)
-----
800608 Alternated Feeder
Coplanarity Check Error
-----
800609 Alternated Feeder
The feeder at the alternation destination is invalid. Please set it effectively.
-----
1012-005
4OM-1603
2-27
3. Machine Information : Chap.2
Machine
Information Code
Display Area A (The outline of the Machine Information)
Display Area B (The details of the Machine Information)
80060a Alternated Feeder
Feeder unloading
-----
80060b Alternated Feeder
Returned to the priority feeder
-----
80060c Alternated Feeder
It was alternated.
-----
80060d Alternated Feeder
Feeder Alarm
-----
80060e Alternated Feeder
Alarm Code:A0 - Internal Parameter Error (Breakdown of Control P.C.B.)
-----
80060f Alternated Feeder
Alarm Code:A1 - Over Current Error (Foreign substances in the tape feeding drive
section)
-----
800610 Alternated Feeder
Alarm Code:A4 - Main Circuit Power Supply Error (Please check the power supply
voltage.) (G04)
-----
800611 Alternated Feeder
Alarm Code:A5 - Fault Speed Error (Tape catching)
-----
800612 Alternated Feeder
Alarm Code:A7 - Fault Load Error (Tape twisting, Catching foreign substances)
-----
800613 Alternated Feeder
Alarm Code:A8 - Encoder Error (Breaking wire, Breakdown of control P.C.B. and
Defective servo motor)
-----
800614 Alternated Feeder
Alarm Code:Ab - System Error
-----
800615 Alternated Feeder
Alarm Code:Ac - Reckless Run Detection Error
-----
800616 Alternated Feeder
Alarm Code:Ad - Excessive deviation in position
-----
800617 Alternated Feeder
Alarm Code:E0 - (1)Damaged cover tape/ (2)Cover tape jammed in the storage/ (3)
Splicing section peeling off
-----
