Speciedlubricationtools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.

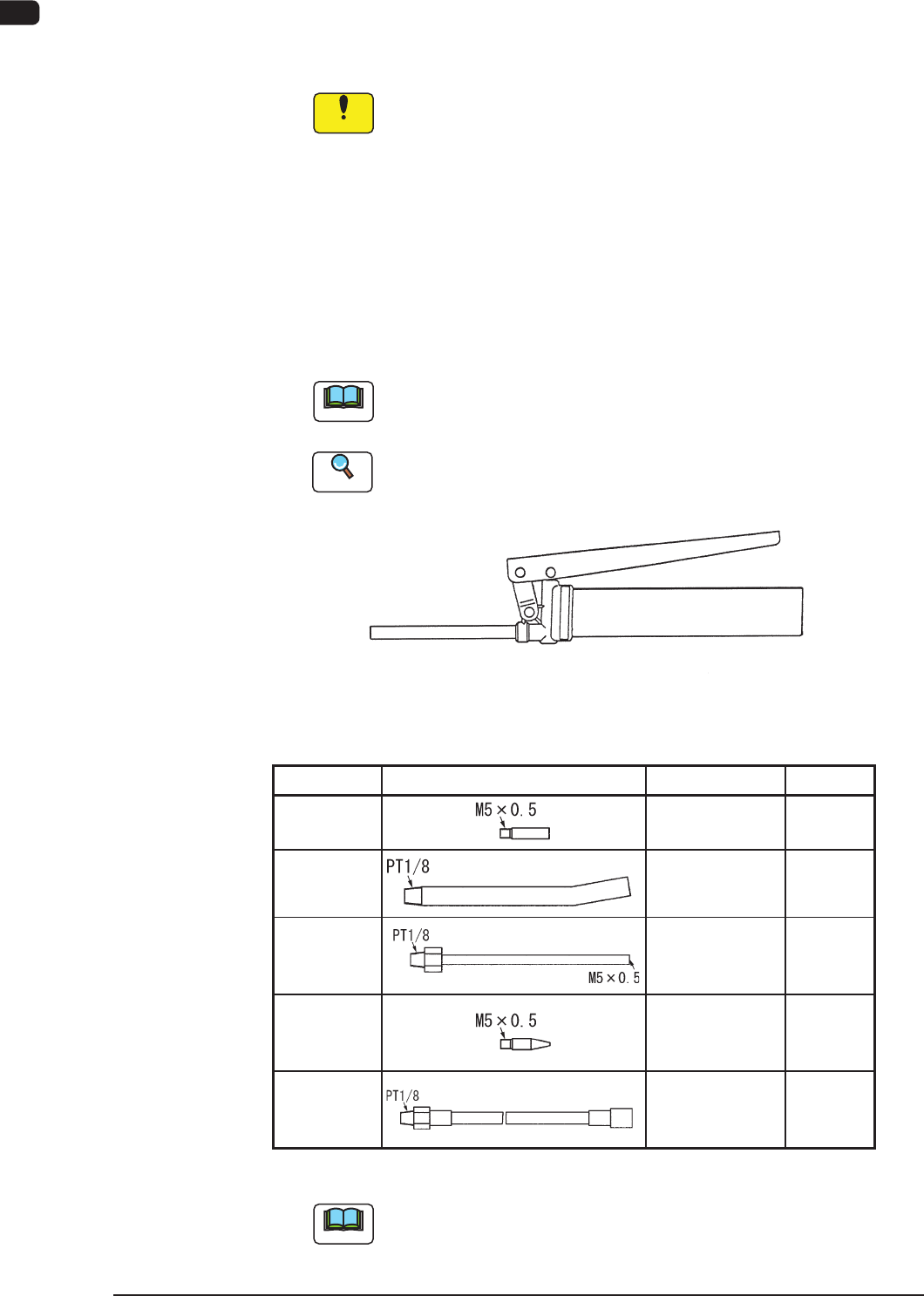

(3) Hand Grease Gun
Standard
：
KH-120
Part No.
：
228A022
Maker
：
Yamada Corporation
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
F4A4
•
Attachment for Hand Grease Gun KH-120
Standard Shape Part No. Remarks
Type N
216M0440 THK
Type H
216M0439 THK
Type U
216M0438 THK
Type P
0920H11Q THK
SPK-3C
228A0021
Yamada
Corporation
T4A4
Note
It is not attached to the machine. Purchase it separately if necessary.
1007-004
4OM-1603
1-7
1. Outline of Maintenance : Chap.1
(4) Syringe
Maker: TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases : DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
F4A5
Standard Shape Part No. Remarks
Syringe
228A0171
Maker : TERUMO
10ml SS-10-LZ
Nozzle No.18
(Color : Green)
216A0451
Maker : SAN-EI TECH
Inside Diameter :
f
0.84
Tapered Nozzle #5118TT-B
Nozzle No.19
(Color : Brown)
0916D108
Maker : NIPRO
Inside Diameter :
f
0.79
Length : 65 mm Flat End
Nozzle No.49
0916D712 Length : 145 mm
T4A5
1003-003
4OM-1603
1-8
1. Outline of Maintenance : Chap.1
1.3 Items for Periodic Maintenance
The items (inspection, cleaning, lubrication, etc.) that require periodic
maintenance are classied and described based on each individual devices.
Reference
Refer to "2. Maintenance Check List" in "Chapter 1" for the maintenance based
on frequency of use.
Notice
The * -marks represent that the items require maintenance only for the
rsttime.
Followthe○-markedmaintenancecycleforthesubsequentuse.
Device Name
Inspection Cleaning,
and Lubricating Spots
Work
Maintenance Cycle
Daily Weekly Monthly
Every
3 Months
Every
6 Months
Yearly
3.2.1 Air Source
Main Air Pressure
Inspection
○
Air Blowing Pressure
Inspection
○
Z Clamp Pressure
Inspection
○
Drain
Cleaning
○
Filter
Cleaning
○
3.2.2 Vacuum System
Vacuum Pressure
Inspection
○
Filter
Cleaning
○
3.2.3 Component
Recognition Camera
Section
Component Recognition
Camera
Cleaning
○
Component Storage Box
Cleaning
○
Hanenaito
Cleaning
○
Fiducial Mark
Cleaning
○
QFP Glass Plate Jig
Cleaning
○
Teaching Plate
Cleaning
○
3.2.4 Feeder Base
Driving Section
Worm Gear
Lubrication
○
3.2.5 Feeder Cart Section
Groove on Feeder Base
Cleaning
○
Upper Surface of Feeder
Base
Cleaning
○
Real Box
Cleaning
○
Scrap Box
Cleaning
○
Upper Surface of
Suppressor
Cleaning
○
