4OM-1603 1-25 3. Maintenance Spots : Chap.1 1003-003 3.2.5 Feeder Cart Section Groove on Feeder Base Every W eek Cleaning Required T ime :2 minutes Suck dirt and dust wit ha vacuum cleaner . Upper Surface of Feeder Base …

4OM-1603

1-24

3. Maintenance Spots : Chap.1

1007-003

3.2.4 Feeder Base Driving Section

Worm Gears

(2 locations)

Every 3 Months Lubrication

(MOLYNOC GREASE AP1)

Required Time: 2 minutes

Use No. 19 (brown) nozzle.

Note

No. 19

Apply a small amount of new grease to the

worm gears with a syringe.

F4A16

4OM-1603

1-25

3. Maintenance Spots : Chap.1

1003-003

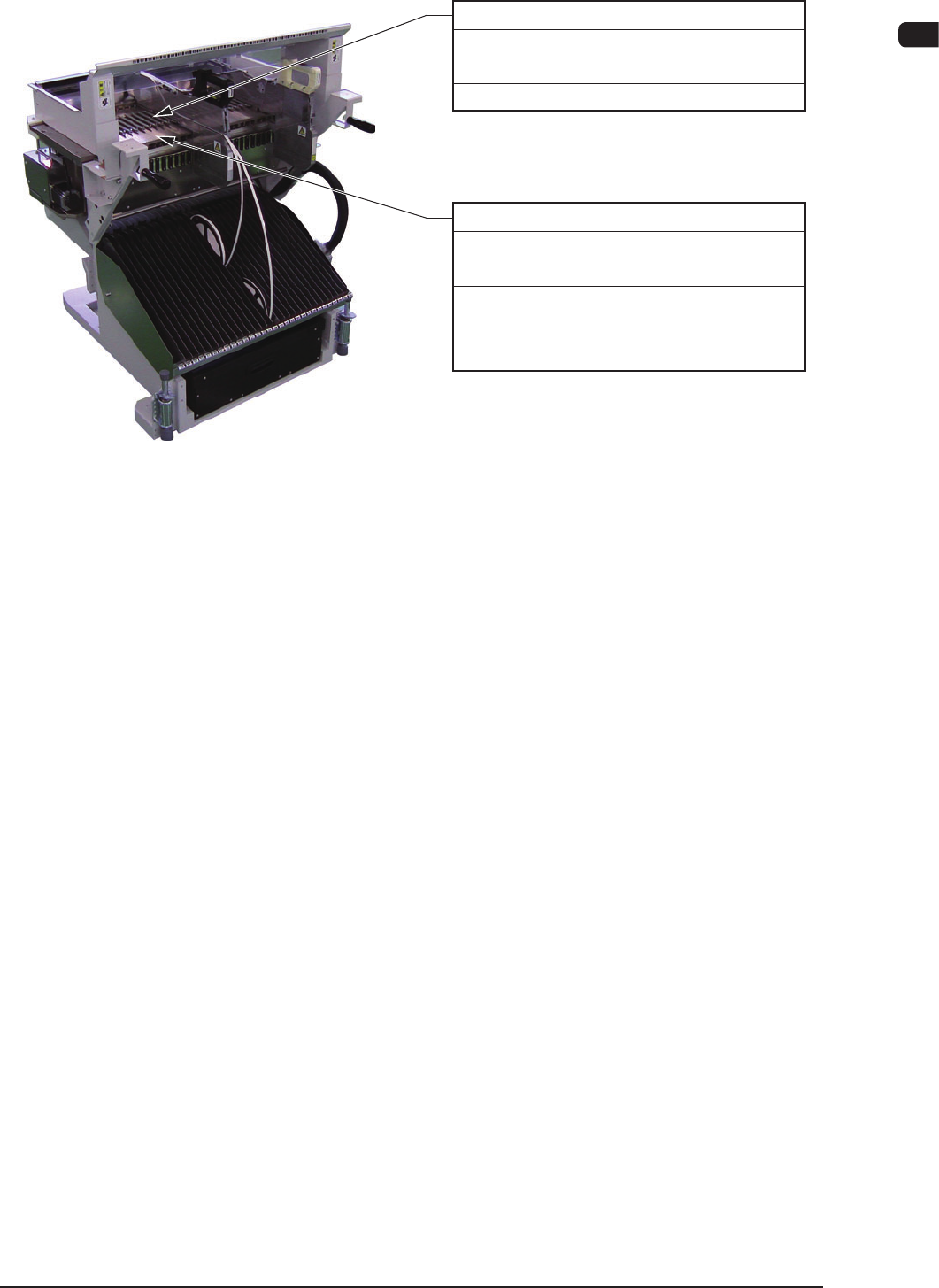

3.2.5 Feeder Cart Section

Groove on Feeder Base

Every Week Cleaning

Required Time:2minutes

Suck dirt and dust withavacuum cleaner.

Upper Surface of Feeder Base

Every Day Cleaning

Required Time:2minutes

Remove foreign substances and unrequired

components withavacuum cleaner and

wipe off dirt and dust witharag.

F4A17

4OM-1603

1-26

3. Maintenance Spots : Chap.1

1003-003

Scrap Box

Every Day Cleaning

Required Time:1minute

When the scrap box is filled with the tape with

no components, draw the scrap box out and

remove such tape.

Reel Box

Every Day Cleaning

Required Time:5minutes

Clean the dust and debris at the bottom of the

reel box using a vacuum cleaner, or open the

cover and drop any dust and debris into the

scrap box.
