4OM-1603 1-52 3. Maintenance Spots : Chap.1 3.2.13 Fans Section Every 3 Months Cleaning Required T ime: 10 minutes Suck dirt and dust from the dust filters with a vacuum cleaner. Ventilating Fan (3 locations) F4A38 Fan E…
4OM-1603
1-51
3. Maintenance Spots : Chap.1
1007-003
3.2.12 Control Box Section
Screws
Filter (1 location)
Every 3 Months Cleaning
Required Time: 4 minutes
(1) Remove the screws (3 locations) fixing the
dust filter and remove the dust filter.
(2) Suck dirt and dust with a vacuum cleaner.
(3) Attach the dust filter.
F4A37
4OM-1603
1-52
3. Maintenance Spots : Chap.1
3.2.13 Fans Section
Every 3 Months Cleaning
Required Time: 10 minutes
Suck dirt and dust from the dust filters with
a vacuum cleaner.
Ventilating Fan (3 locations)
F4A38
Fan
Every 3 Months Cleaning
Required Time: 10 minutes
Air-Intake Fan (Filter)
Remove the screws (3 locations) fixing the fan
guard and remove the fan guard. Then, clean any
debris or dust in the filter using the vacuum
cleaner.
F4A39
1007-004
4OM-1603
1-53
4. Maintenance Method : Chap.1
4. Maintenance Method
Periodically clean the vacuum nozzles to maintain reliable and stable component
picks and placement.
•
It is advisable that the nozzles be cleaned at least once a week.
Note
The nozzle for 0402 recommends the cleaning every 3 or 4 days.
•
Change cleaning frequency according to various frequency of use and
accumulation of debris along with certain environmental conditions.
•
When the vacuum suction force weakens or a nozzle constantly fails to pick or
place components, it is required to check the nozzle for debris and cleanliness.

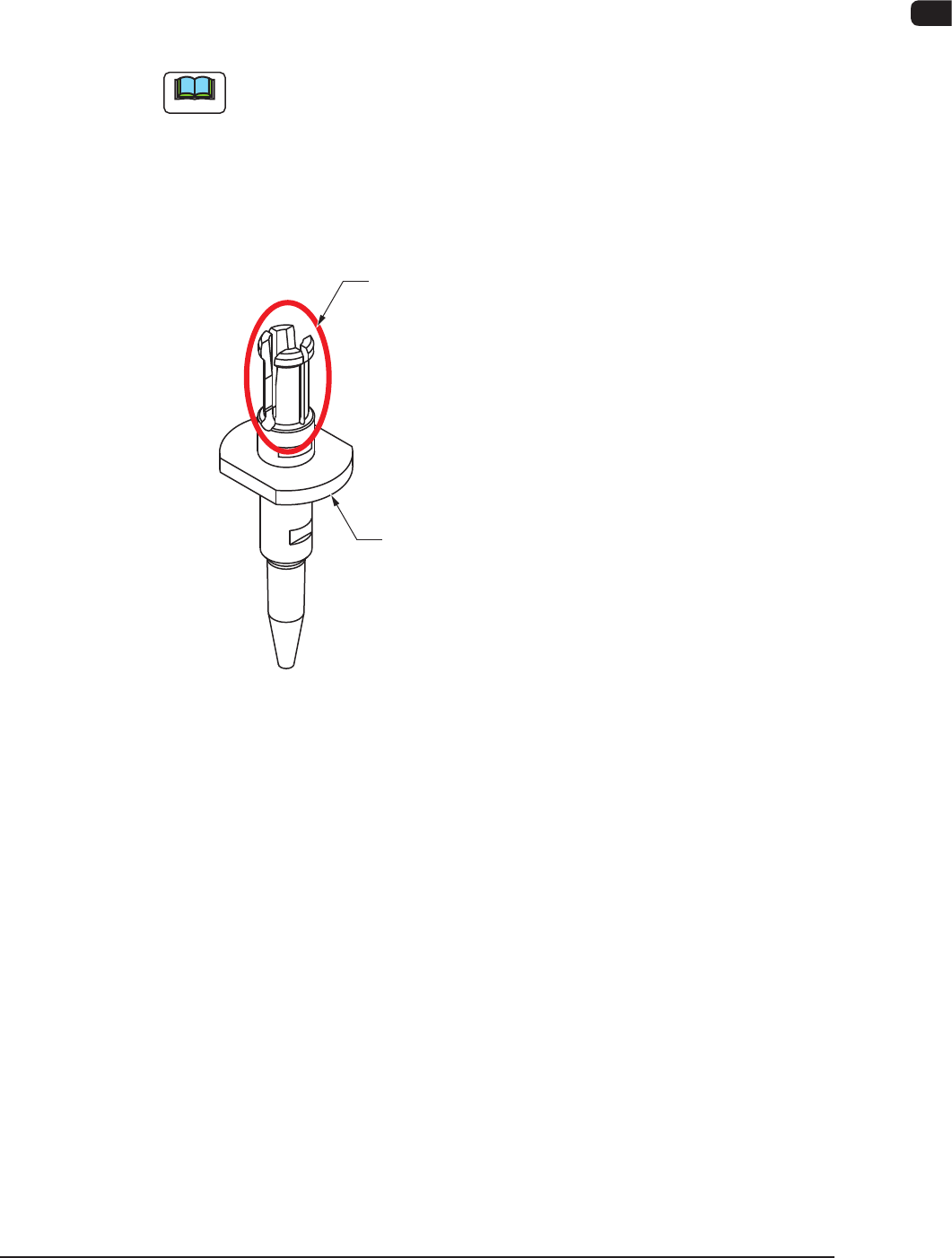

Do not grasp this part strongly during the
nozzle cleaning.
Otherwise, the nozzle may be damaged.
When it is necessary to hold the nozzle firmly,
try to grasp the collar portion.
When a recognition error occurs frequently,
rub the back of the collar approximately
20 times with a toothbrush.
F4A39-1
