3. Troubleshooting on Placement Errors : Chap.5

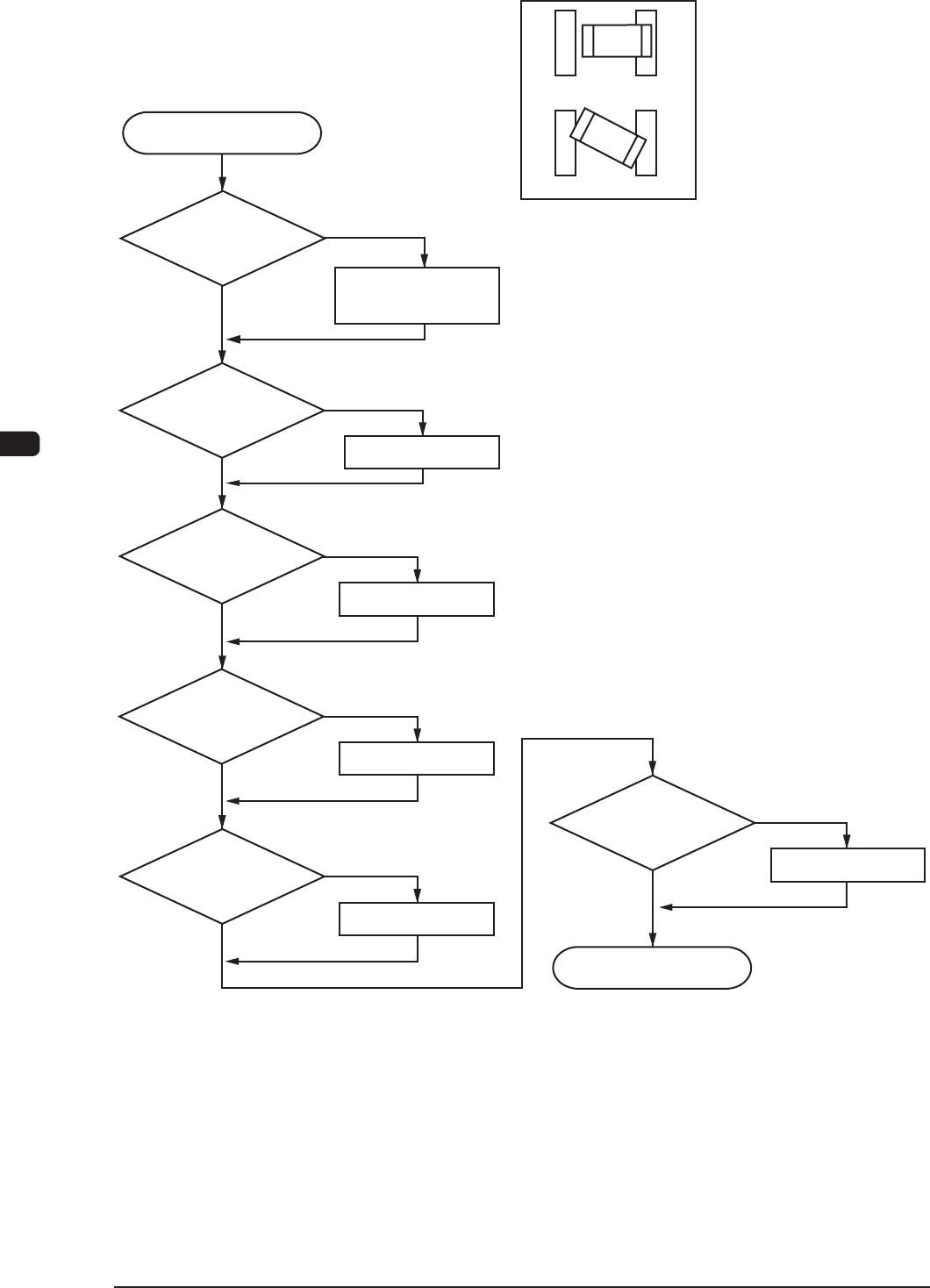

(3) Positional and Angular Deviations of Component Placement
END
OK
OK
OK
OK
OK
OK
NG
NG
NG
NG
NG
NG
START
Dirt,Magnetization,
and/or Electrification on
Vacuum Nozzle
Cleaning,
Demagnetization,
and/or Deelectrification
Clogged Hole of
Vacuum Nozzle
Adjustment
Verification of PCB
Thickness Data
Correction
Component
Library Data
Confirmation of
Component Shape
Correction
Check Item 3.1.
Air Joint Disconnected
Replacement or Repair
Positional Deviation
Angular Deviation
