4OM-1603 1-22 3. Maintenance Spots : Chap.1 1 109-005 NOTICE Before removing the accumulated components from the box, eliminate the static electricity from your body. Otherwise, some components may be damaged due to stat…
4OM-1603
1-21
3. Maintenance Spots : Chap.1
1109-004
3.2.3 Component Recognition Camera Section
NOTICE
Do not put your hand onto the reference mark block.
If too much force is given to the reference mark block
it may become deformed.
Notice
Be sure to use a suction force such as a vacuum cleaner for the
cleaning.
Do not blow air to any cleaning section with an air gun.
When air is blown, the dirt and dust inside the machine will disperse,
causing the recognition system and the machine to malfunction.
Component Recognition Camera
(2 locations)
Every Day Cleaning
Required Time: 4 minutes
Remove the components that have fallen with a
pair of vacuum tweezers and wipe off dust with
a lens cleaning cloth.
Reference Mark Block
F4A12
Note
G -S047-01 Adhesive Cleaner (Part No: 226J2091) is also available as an option
Adhesive Cleaner
F4A13
4OM-1603
1-22
3. Maintenance Spots : Chap.1
1109-005
NOTICE
Before removing the accumulated components from
the box, eliminate the static electricity from your
body.
Otherwise, some components may be damaged due
to static electricity.
Component Storage Box
Every Day Cleaning
Required Time: 1 minute
Remove components collected in the box.
Hanenaito (Vibration Proof Rubber)
Every Day Cleaning
Required Time: 1 minute
Take out Hanenaito from the component
storage box and clean it with a vacuum cleaner.
Reference Mark Block
F4A14
4OM-1603
1-23
3. Maintenance Spots : Chap.1
1007-004
Notice
Use a suction force (of a vacuum cleaner) for the cleaning.
Do not blow air to any cleaning section with an air gun.
When the air is blown, dirt or dust inside the machine will disperse,
causing a malfunction in the recognition or machine operation.

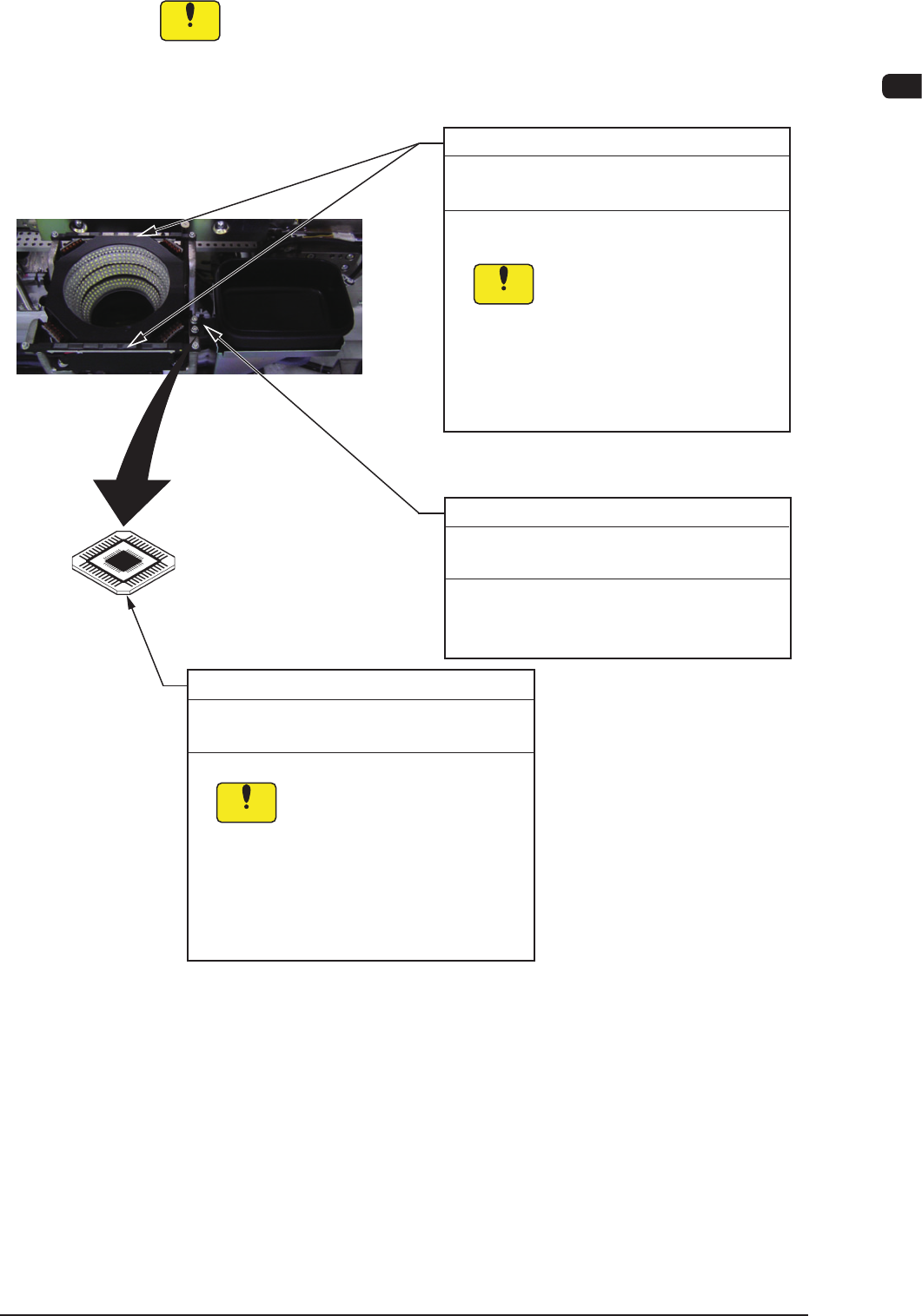

QFP Glass Plate Jigs (2 pcs.)
Every Month Cleaning
Required Time: 1 minute
Wipe the jigs with a dry lens cleaning cloth.
Sebum (fingerprint) or oil
should not adhere to the QFP
glass plate jigs.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Fiducial Marks (4 locations)
Every Week Cleaning
Required Time: 2 minutes
Sebum (fingerprint) or oil
should not adhere to the
fiducial marks.
If sebum or oil adheres, wipe it
off with a lens cleaning cloth
which contains a small amount
of alcohol.
Notice
Wipe the upper surfaces of the fiducial marks
with a dry lens cleaning cloth.
Teaching Plates (2 locations)
Every Month Cleaning
Required Time: 1 minute
Remove foreign substances and unrequired
components and wipe off dirt and dust with a
rag.
F4A15
