3. Example of Pattern Program Creation (2) Example of Data Creation Use placement data (P) U01 and placement data (O) U01. Placement Data (P) U01 Enter “0” (zero) in all data fields of the last step and “E” as a control …

100%1 / 258
3. Example of Pattern Program Creation
9910-001 2-97 Tg0247-PM-PM

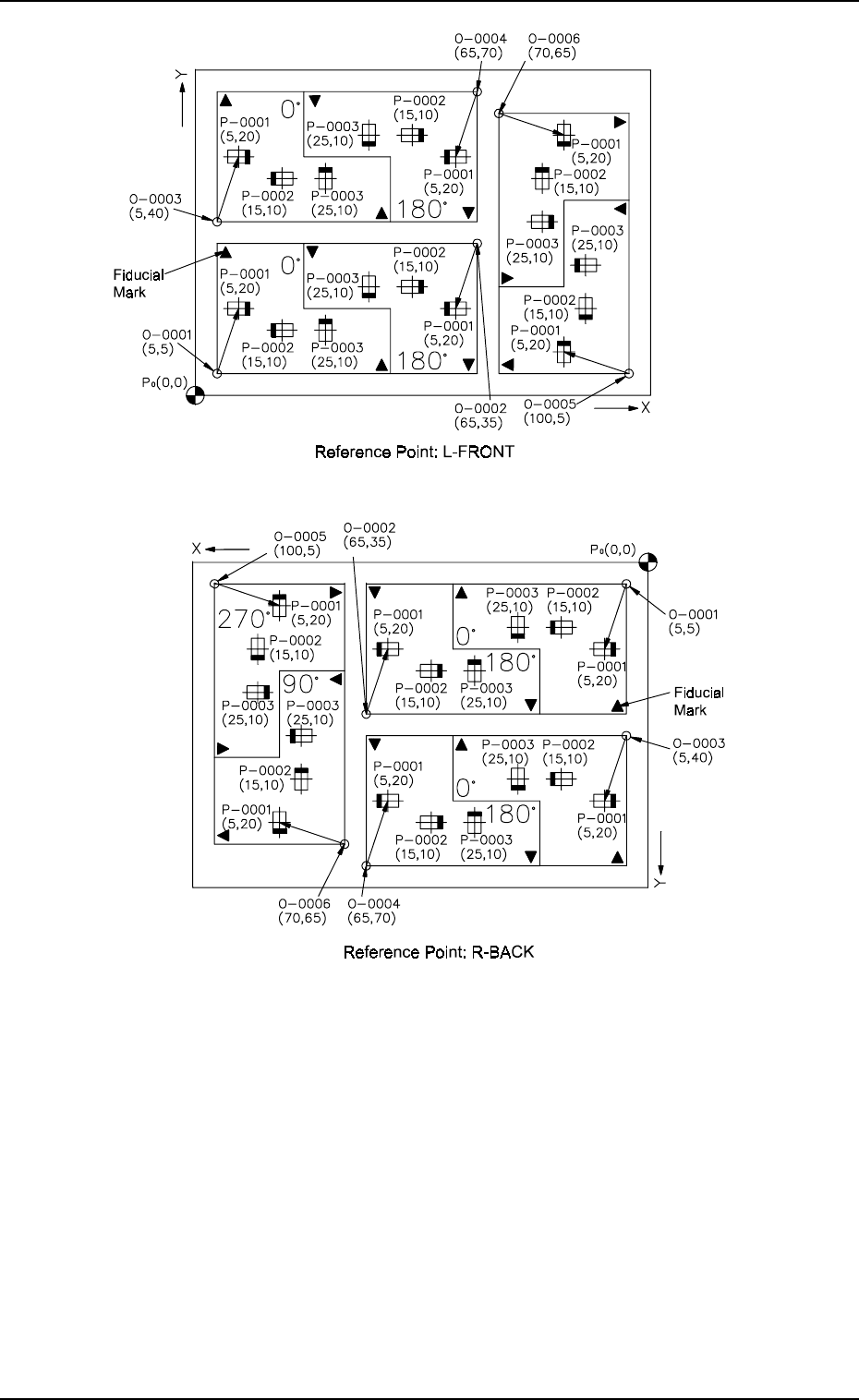

Fig. 2.84-4
Notes: (a) Component placement coordinates must be measured from the
pattern origin.
(b) P
0
shows the P.C.B. positioning reference.
(c) “O-0001”, “O-0002”, “O-0003”, “O-0004”, “O-0005”, and “O-
0006” are called “Pattern Origins”. Each coordinate measured from
the P.C.B. positioning reference point must be entered.
(d) Measure the coordinates (distances) based on the pattern origins
and enter them for component placement.
Fig. 2.84-3
3. Example of Pattern Program Creation
(2) Example of Data Creation
Use placement data (P) U01 and placement data (O) U01.
Placement Data (P) U01
Enter “0” (zero) in all data fields of the last step and “E” as a
control command.
Fig. 2.86
Enter “0” (zero) in all data fields of the last step and “P” or
“Q” as a control command.
Fig. 2.85
Placement Data (O) U01
P-NO. X(mm) Y(mm) Z(THETA) H(mm) FDR S V C COMMENT
0000 +0.00 +0.00 +0
°
00’ +0.00 000 - 00 -
0001 +5.00 +20.00 +0
°
00’ +0.00 101 - 00 -
0002 +15.00 +10.00 +180
°
00’ +0.00 201 - 00 -
0003 +25.00 +10.00 +90
°
00’ +0.00 301 - 00 -
0004 +0.00 +0.00 +0
°
00’ +0.00 000 - 00 P
O-NO. X(mm) Y(mm) Z(THETA) H(mm) C COMMENT
0000 +0.00 +0.00 +0
°
00’ +0.00 -
0001 +5.00 +5.00 +0
°
00’ +0.00 -
0002 +65.00 +35.00 +180
°
00’ +0.00 -
0003 +5.00 +40.00 +0
°
00’ +0.00 -
0004 +65.00 +70.00 +180
°
00’ +0.00 -
0005 +100.00 +5.00 +270
°
00’ +0.00 -
0006 +70.00 +65.00 +90
°
00’ +0.00 -
0007 +0.00 +0.00 +0
°
00’ +0.00 E
9910-001 2-98 Tg0247-PM-PM
3. Example of Pattern Program Creation
0004-002 2-99 Tg0247-PM-PM
3.3 Pattern Program Data Sheet
Before creating or editing pattern program data, refer to the detailed descrip-
tion of each data editing in items (2.2) and (2.3) and fill in this sheet (attached
at the end of this manual) with required parameters.
Fig. 2.91
OPERATION DATA
PROGRAM NAME
COMMENT #1
COMMENT #2
DATE OF PREP
PREPARED BY
COMPONENT DATA (TAPE FEEDER)
PROGRAM NAME
COMMENT #1
COMMENT #2
DATE OF PREP
PREPARED BY
PLACEMENT DATA (P) U_
PROGRAM NAME
COMMENT #1
DATE OF PREP
PREPARED BY
PLACEMENT DATA (V) U_
COMMENT #2
