1. TEST MODE Display 9910-001 6-3 Tg0247-PM-PM First Page DRY CYCLE MODE Set “ENABLE” or “DISABLE” in the data box. When “ENABLE” is set, the machine can be operated in the test mode and the parameters set in the data bo…
Fig. 6.1-1
First Page
Second Page
Fig. 6.1-2
1. TEST MODE Display
9910-001 6-2 Tg0247-PM-PM
1. TEST MODE Display
Various test modes are provided to maintain or inspect the machine. For ex-
ample, when “ENABLE” is set in the text box of the label “CMPNT MISSING
MODE”, the machine can be operated without placing any components, facili-
tating inspection of the machine performance without wasting components.
Note: Unlike normal machine operation, the machine can be operated in vari-
ous modes (masking of error detection functions, simulated recogni-
tion communication, etc.) set deliberately by changing the test mode
parameters.
CAUTION
Do not operate the machine in the test mode
for actual P.C.B. production. Otherwise, the
machine breaks down or damage will occur,
making it impossible to pick up components
correctly.

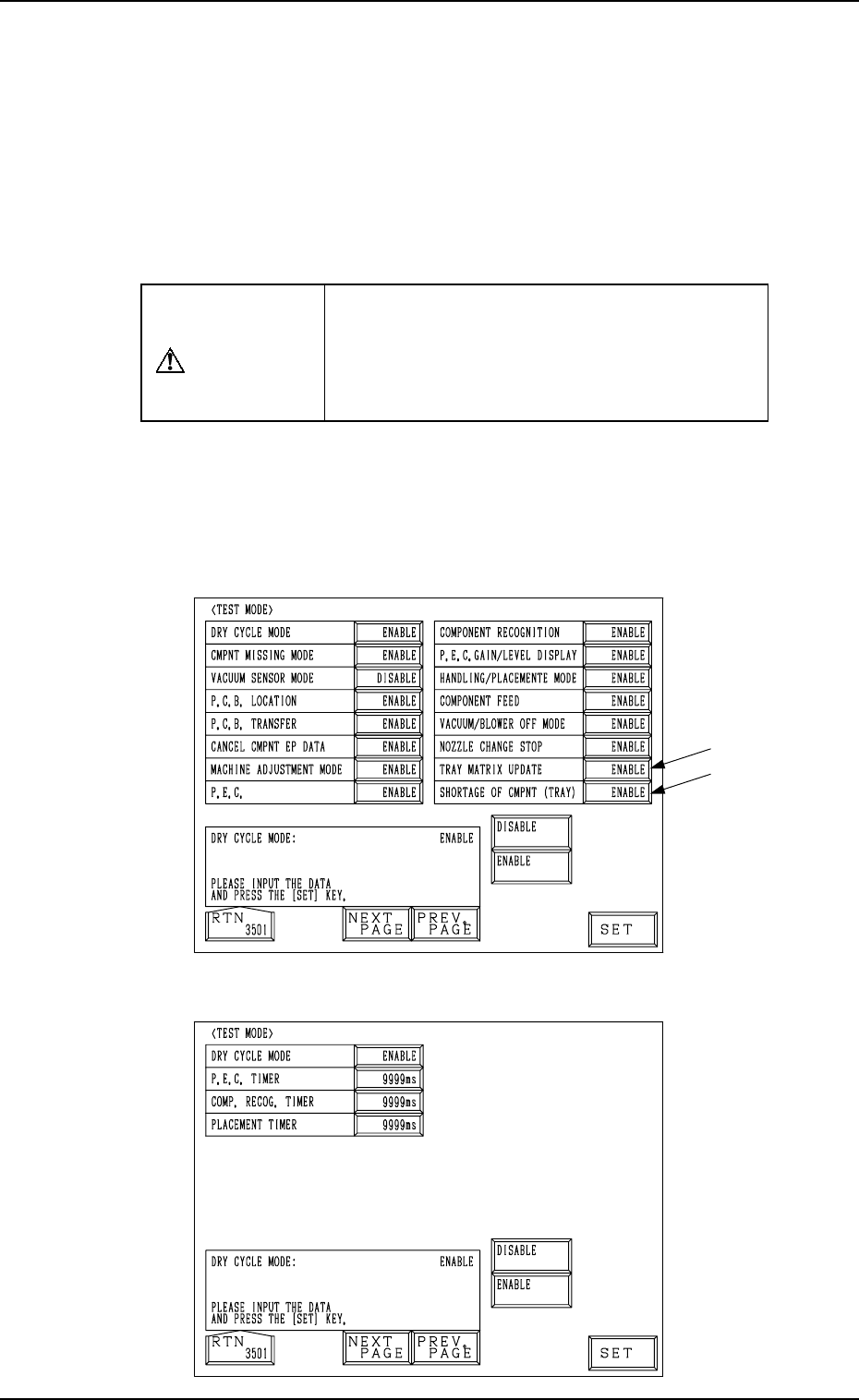

When the [DEVICE TEST] key is pressed at the “DATA EDIT” display, the
following display appears on the screen.
Every time the [NEXT PAGE] or the [PREV. PAGE] key is pressed, another or
previous page appears on the screen.
Note: The -marked functions are optional.
1. TEST MODE Display
9910-001 6-3 Tg0247-PM-PM

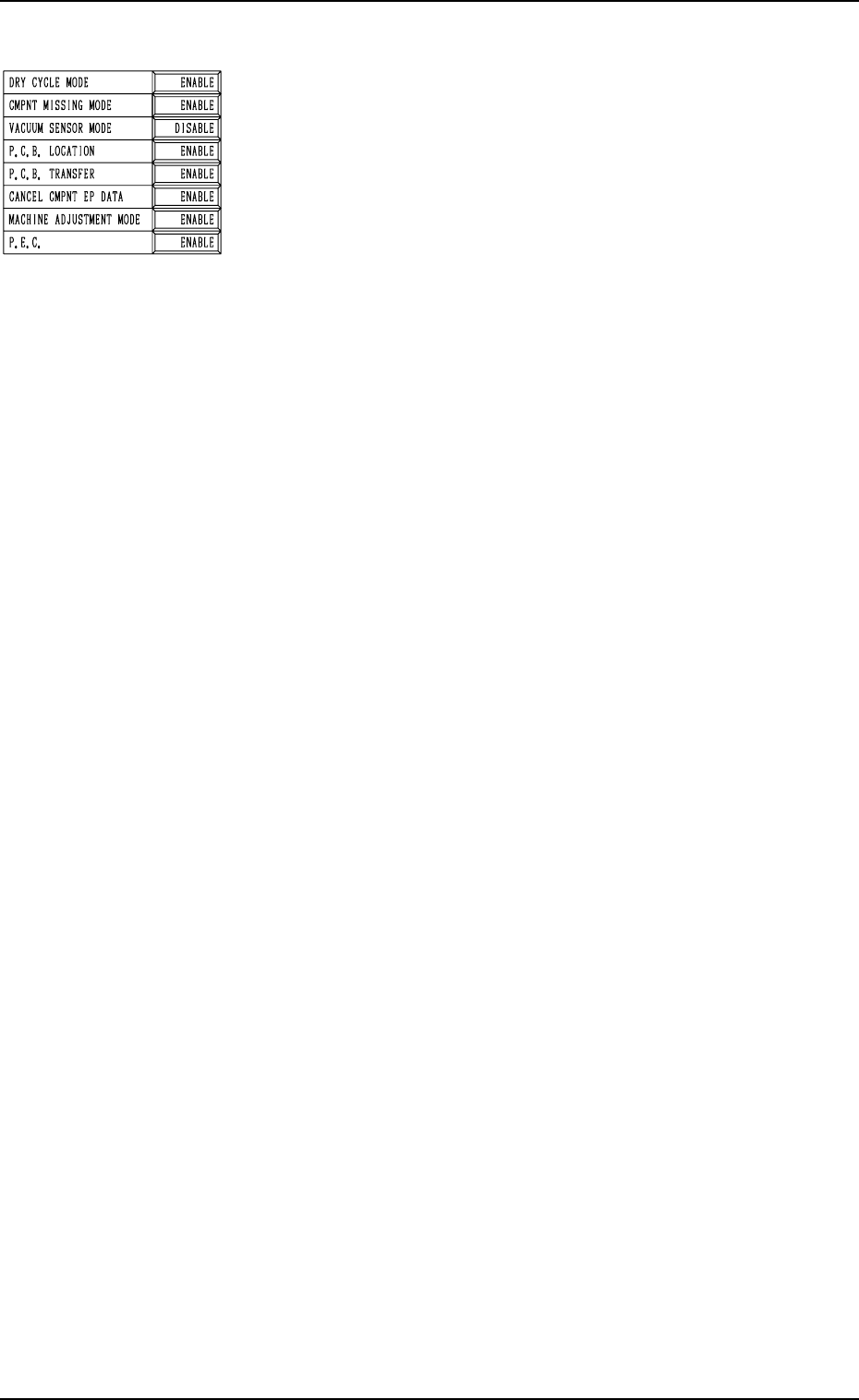

First Page
DRY CYCLE MODE
Set “ENABLE” or “DISABLE” in the data box.
When “ENABLE” is set, the machine can be operated in the
test mode and the parameters set in the data boxes of the sub-
sequent labels such as “CMPNT MISSING MODE”, etc., be-
come valid.
When “DISABLE” is set, all parameters set in the data boxes
of the subsequent labels are ignored and the machine can be
operated in the normal mode (normal production mode).
The machine cannot be set in the test mode.
CMPNT MISSING MODE
The missing component detection function (detection by a
vacuum sensor) can be canceled.
When “DISABLE” is set, the missing component detection
function is deactivated.
VACUUM SENSOR MODE
The vacuum sensor detection function can be canceled.
P.C.B. LOCATION
The P.C.B. positioning function can be canceled.
When “DISABLE” is set in the data box, the machine does
not perform any P.C.B. positioning operation.
P.C.B. TRANSFER
The P.C.B. transfer function can be canceled.
When “DISABLE” is set in the data box, the machine does
not perform any P.C.B. transfer operation.
CANCEL CMPNT EP DATA (ERROR PROCESS DATA 1
and 2)
Set “ENABLE” or “DISABLE” in the data box for error pro-
cessing (EP).
When “DISABLE” is set, the data value is handled as “1”
regardless of the parameters set in the “ERROR PROCESS
DATA 1” and “ERROR PROCESS DATA 2” data boxes.
That is, the machine stops in an error condition whenever a
pick error occurs.
MACHINE ADJUSTMENT MODE
An error message is issued in the “MGT. INFO” text box and
the machine sometime continues to run even though an error
has occurred. However, when “ENABLE” is set in this data
box, the machine is stopped unconditionally regardless of what
kind of error has occurred.
P.E.C.
The processing with the P.E.C. camera can be canceled.
When “DISABLE” is set in the data box, the processing with
the P.E.C. camera is not implemented.
Note : In the case of the P.C.B. recognition, the deviation in
P.C.B. position is regarded as “0” (zero).
1. TEST MODE Display
9910-001 6-4 Tg0247-PM-PM

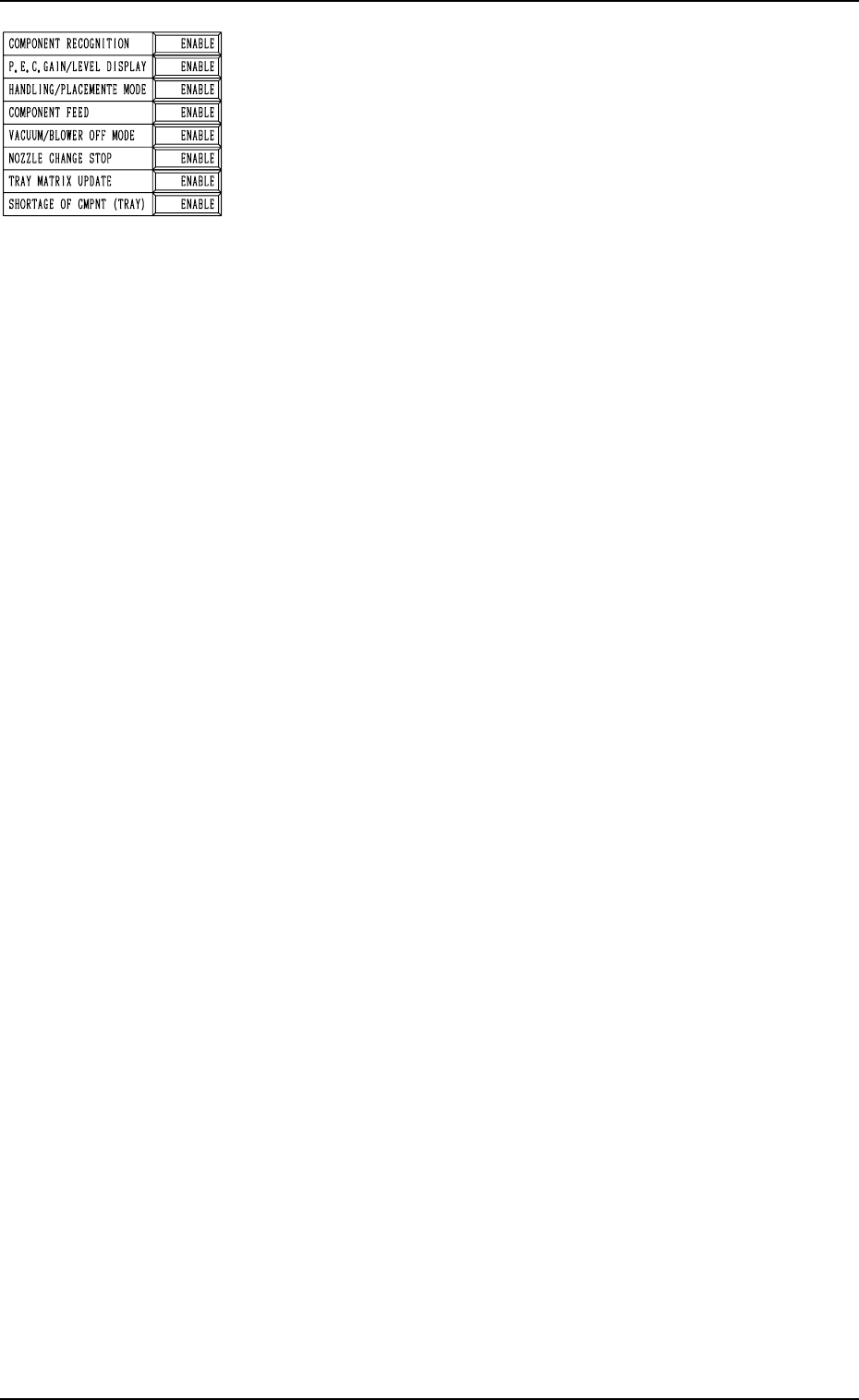

COMPONENT RECOGNITION
The processing with the component recognition camera can
be canceled.
When “DISABLE” is set in the data box, the processing with
the component recognition camera is not implemented.
Note : In the case of the component recognition, the devia-
tion in component position is regarded as “0” (zero).
P.E.C. GAIN/LEVEL DISPLAY
Set “ENABLE” or “DISABLE” in the data box.
When “ENABLE” is set, the gain & level data used for P.E.C.
recognition is displayed on the recognition monitor.
HANDLING/PLACEMENT MODE
Set “ENABLE” or “DISABLE” in the data box.
When “DISABLE” is set in the data box, the machine does
not perform any pick-up and placement operation.
COMPONENT FEED
Set “ENABLE” or “DISABLE” in the data box.
When “DISABLE” is set in the data box, the machine does
not perform any feeder forward movement and component
feeding from the tray feeder.
VACUUM/BLOWER OFF MODE
The vacuum pump motor can be forcibly stopped.
When “DISABLE” is set in the data box, the vacuum pump is
deactivated.
NOZZLE CHANGE STOP
Set “ENABLE” or “DISABLE” in the data box.
When “DISABLE” is set in the data box, the nozzle change
error detection function is canceled.
TRAY MATRIX UPDATE: Option
The update of the tray matrix can be canceled.
When components are picked up from the tray, the matrix po-
sition of the tray moves in normal cases. However, when “DIS-
ABLE” is set, components are always picked up from the fixed
matrix position (the matrix position of the same tray).
SHORTAGE OF CMPNT (TRAY): Option
The tray component shortage detection can be canceled.
When “DISABLE” is set in the data box, the machine does
not perform the tray component shortage detection and con-
tinues the pick-up operation.
(After the machine has picked up all component, it starts to
pick up components from the first cell of the tray.)
