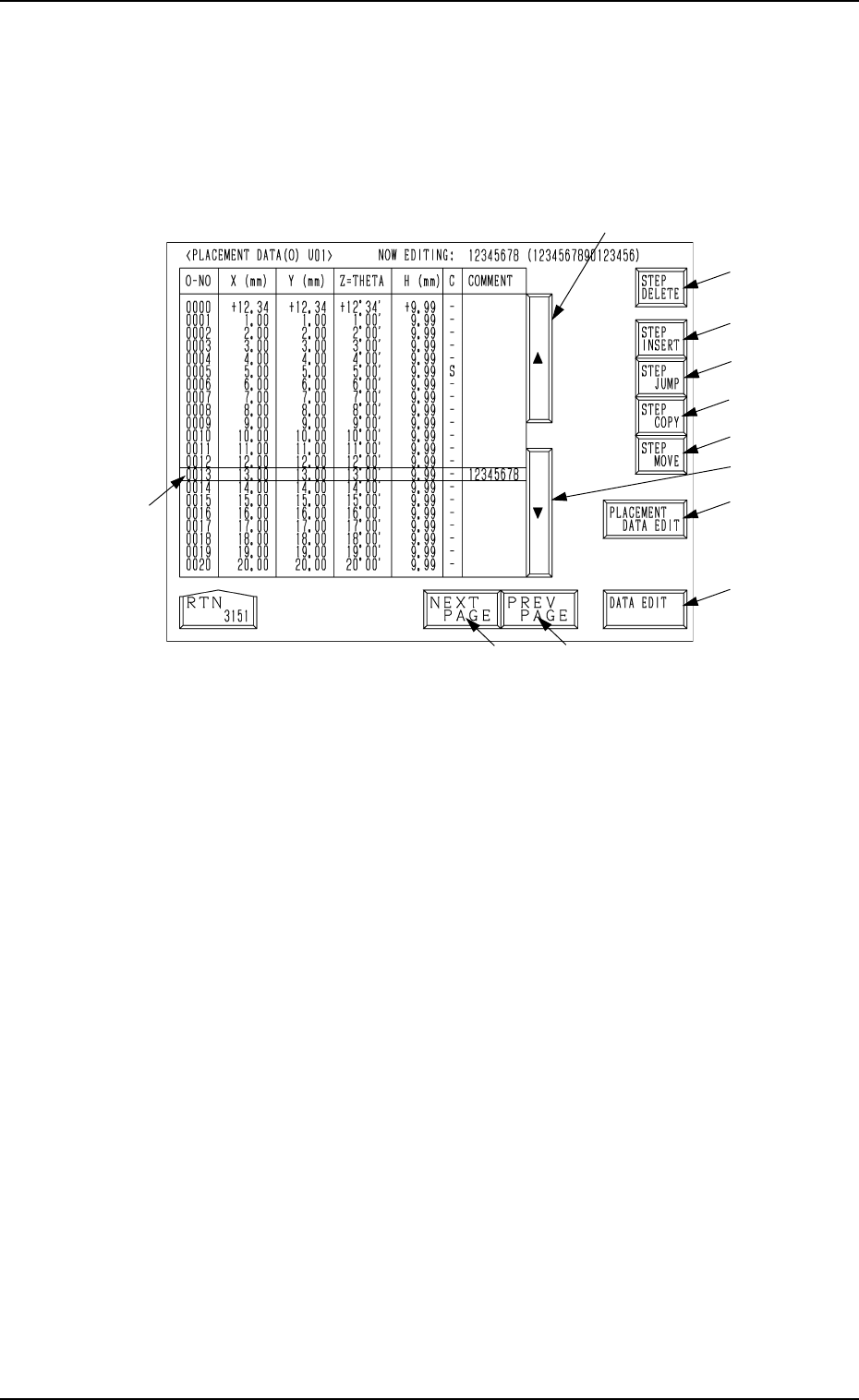

2.6.3 PLACEMENT DATA (O) Display [Repetitive Placement Data]
When the [DATA EDIT] key is pressed at the “PLACEMENT DATA (P) U01”
display (Fig. 2.45-1 or Fig. 2.45-2), the follwing display appears on the screen.
A list of repetitive placement data is displayed.
Parameters can be edited at the display opened by pressing the [DATA EDIT]
key *13.
Fig. 2.46
*1
*5
*4
*8
*9
*10
*11
*12
*16
*13
*3
*2
2. Pattern Program
For *1 to *15, refer to the description in “2.6.2 Placement Data (P) Display
[Component Placement Data]”.
*16 [PLACEMENT DATA EDIT] Key
When this key is pressed, the “PLACEMENT DATA (P) U01” display
appears on the screen.
0004-002 2-63 Tg0247-PM-PM
Description of Parameters
O-NO
This shows the step Nos. of repetitive placement data.
(The step “O-0000” always appears on the screen.)
• Enter “0” (zero) in all data fields and “-” as a control command in step
“O-0000”.

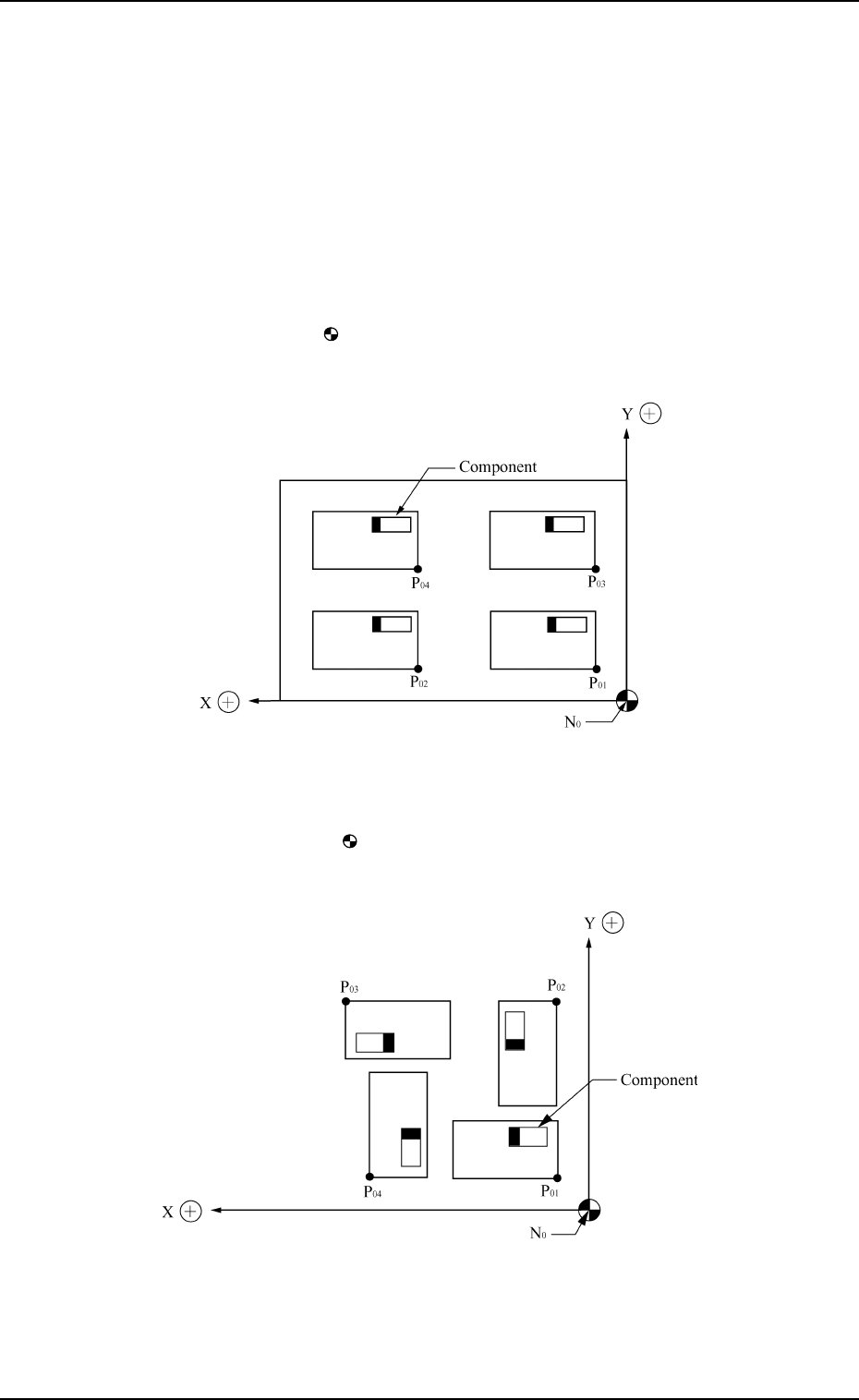

X (mm) and Y (mm)
Set the coordinates (X and Y) from the placement data reference to the
origin for each pattern.
Ref.: The pattern origin refers to the coordinates for the multi-unit P.C.B.
which forms repetitive patterns.
N
0
: The center of mark is Placement Data Reference.
P
01
: Pattern Origin of Pattern 1
P
02
: Pattern Origin of Pattern 2
P
03
: Pattern Origin of Pattern 3
P
04
: Pattern Origin of Pattern 4
Pattern 1: 0°
Pattern 2: 90°
Pattern 3: 180°
Pattern 4: 270°
N
0
: The center of mark is Placement Data Reference.
P
01
: Pattern Origin of Pattern 1
P
02
: Pattern Origin of Pattern 2
P
03
: Pattern Origin of Pattern 3
P
04
: Pattern Origin of Pattern 4
0004-002 2-64 Tg0247-PM-PM
2. Pattern Program
Z=THETA (Angle)
Set the angle of each pattern.
• 0°, 90°, 180°, or 270° can be set as a parameter.
H (mm)
Set the component placement height.
A parameter can be set for each pattern.
C
Control commands can be set.
“-” : This command specifies the steps as those for repetitive placement.
“S” : This command invalidates the steps specified as those for repetitive
placement data, bypassing the specified steps.
“C” : This command invalidates the steps specified as repetitive placement
data (only the component placement machine).
“D” : This command handles the steps as those used for repetitive place-
ment.
(Step invalidating command for a glue dispenser)
“E” : This command shows the end of repetitive placement data (O).
Note : Positional offset data is not valid in the steps where a control com-
mand other than “-” and “D” is entered.
(Including indefinite commands other than the above-described
ones)
COMMENT
A comment can be entered for each step No.
Up to 8 characters can be entered.
Any operation is not affected by the comment.
