Fig. 2.19
Note: When the global recognition is used together with the
image recognition, both recognizing actions take place
but the placement coordinates are corrected according
to the result of the image recognition.

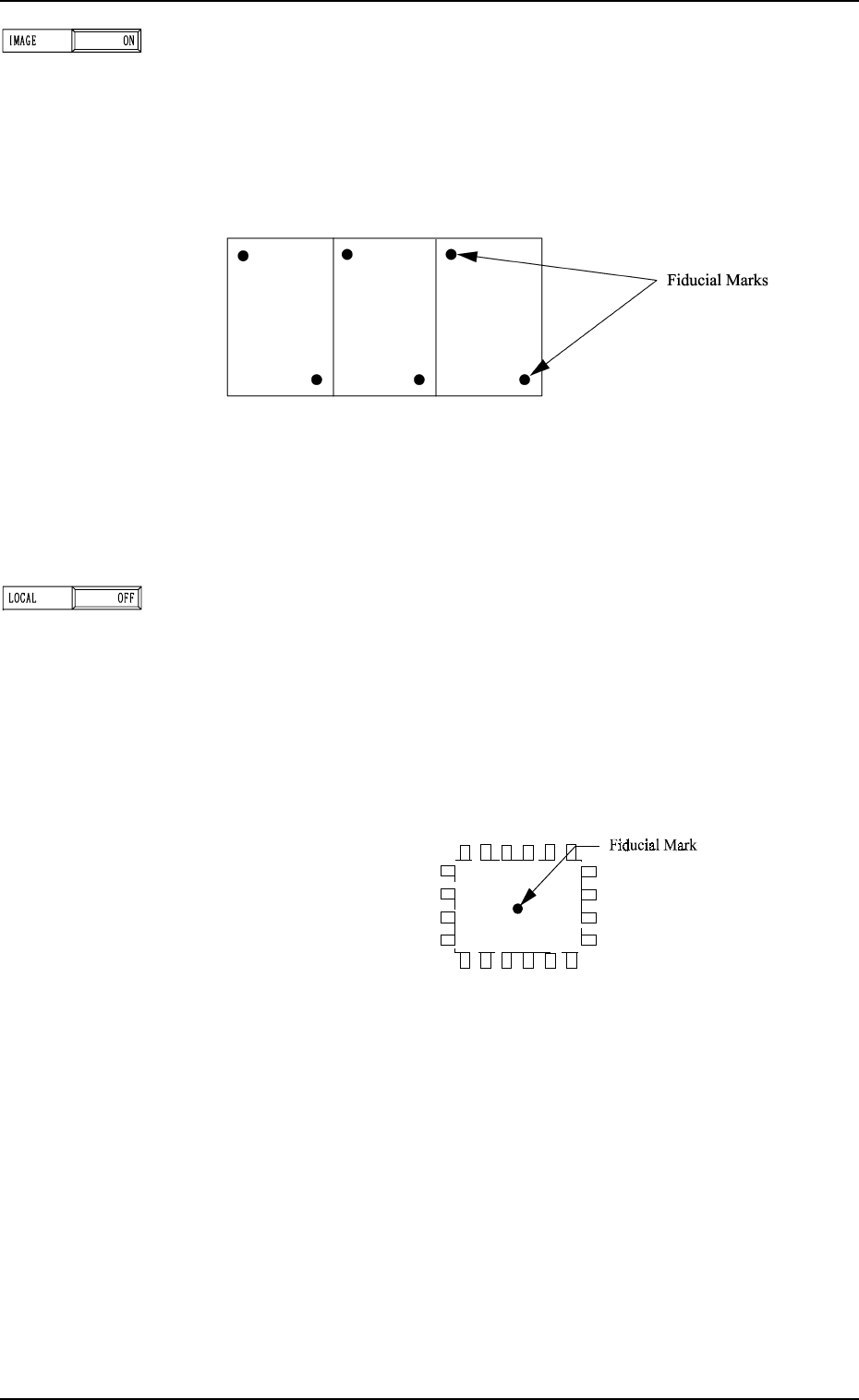

P.E.C. RECOGNITION MODE LOCAL
Set one of the following options to determine whether or not
the fiducial mark on each component placement point should
be recognized.
“OFF”
“ON”
1PT.: Put a fiducial mark on the center of component place-
ment point or a desired point around the center.
P.E.C. RECOGNITION MODE IMAGE
Set one of the following options to determine whether or not
the P.E.C. image recognition function should be performed.
“OFF”
“ON”
Note: The coordinates and mark data of a fiducial mark are
designated in the placement data (V).
2. Pattern Program
0004-002 2-22 Tg0247-PM-PM
Fig. 2.20
9910-001 2-23 Tg0247-PM-PM

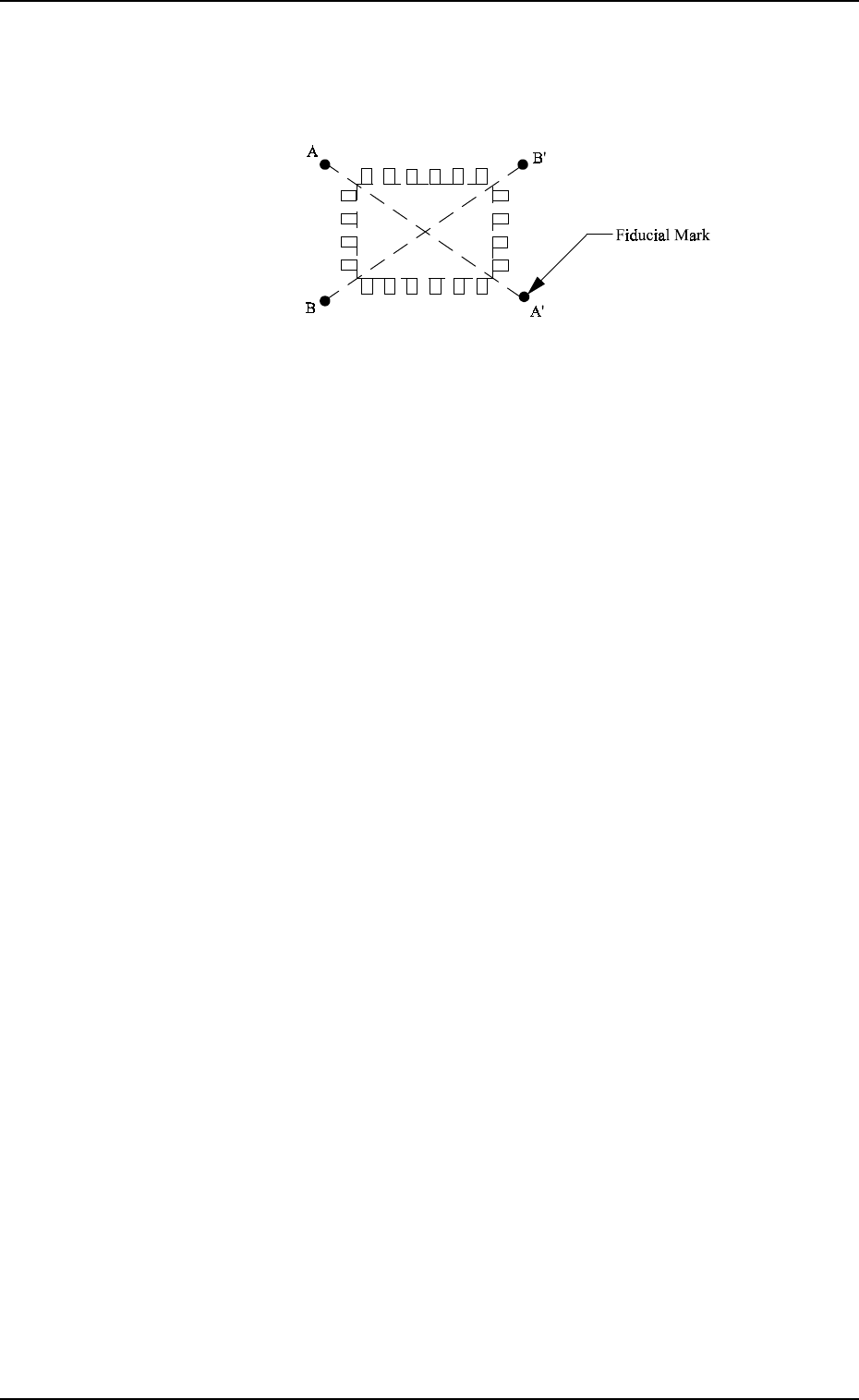

2PT.: It is recommended that two points (fiducial marks)
should be located symmetrically on both sides of the
center of the placement position.
(A-A’, B-B’)
2. Pattern Program
Fig. 2.21
When “ON” is set in the data box, the deviation of each com-
ponent placement point can be corrected.
Note: The coordinates and mark data of a fiducial mark are
designated in the placement data (V).

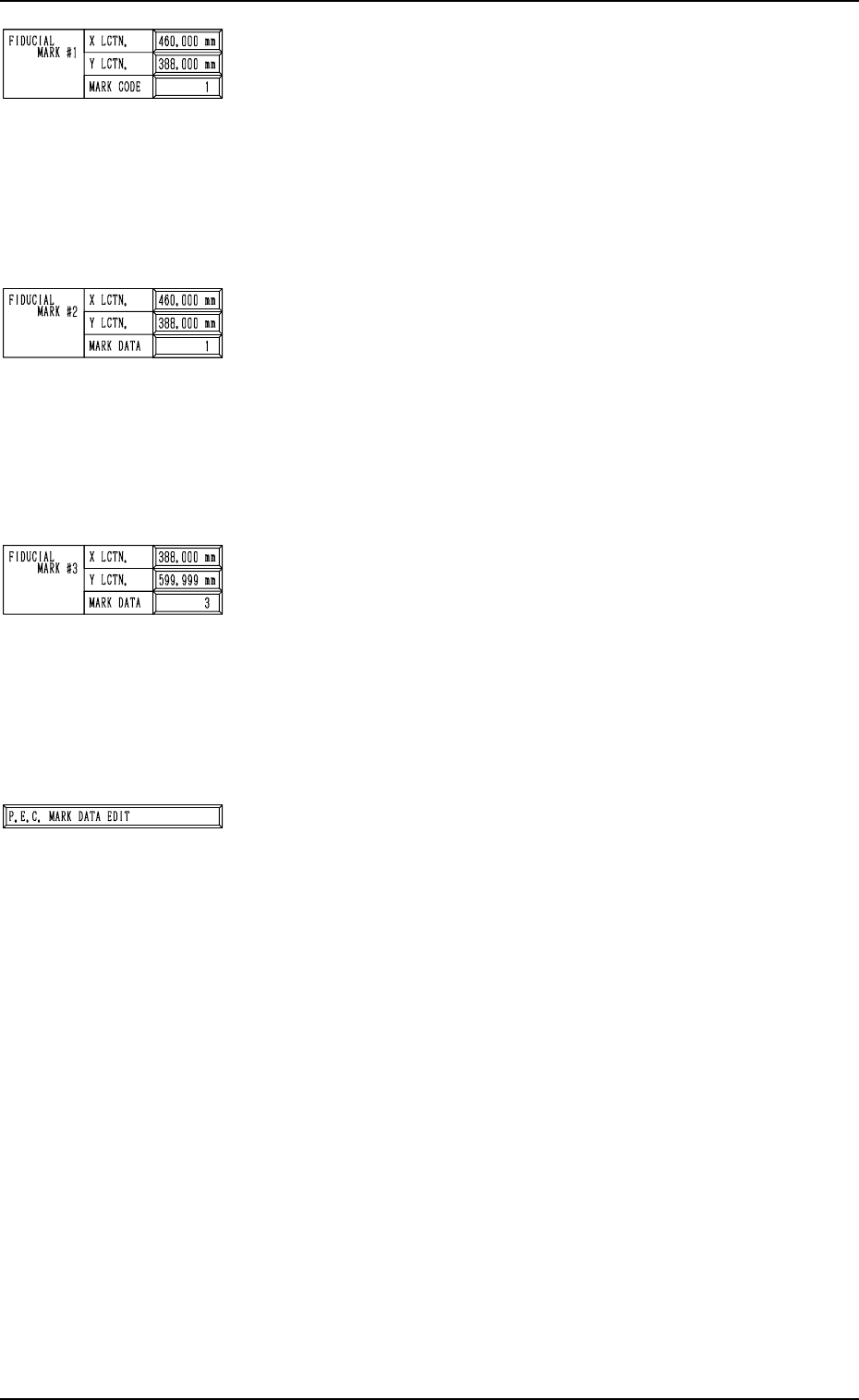

FIDUCIAL MARK #1
X LCTN. (Horizontal) and Y LCTN. (Vertical)
Set the coordinates of the first fiducial mark for the P.E.C.
global recognition function. (Unit: mm)
MARK CODE
Set the code No. of the first fiducial mark for the P.E.C. global
recognition function.
• Select one of the 10 mark codes registered in the P.E.C.
mark data.
FIDUCIAL MARK #2
X LCTN. (Horizontal) and Y LCTN. (Vertical)
Set the coordinates of the second fiducial mark for the P.E.C.
global recognition function. (Unit: mm)
MARK DATA
Set the code No. of the second fiducial mark for the P.E.C.
global recognition function.
• Select one of the 10 mark codes registered in the P.E.C.
mark data.
FIDUCIAL MARK #3
X LCTN. (Horizontal) and Y LCTN. (Vertical)
Set the coordinates of the third fiducial mark for the P.E.C.
global recognition function. (Unit: mm)
MARK DATA
Set the code No. of the third fiducial mark for the P.E.C. glo-
bal recognition function.
• Select one of the 10 mark codes registered in the P.E.C.
mark data.
[P.E.C. MARK DATA EDIT] Key
Press this key to shift to the display for P.E.C. mark data (mark
type, size, etc.) editing.
