7. NOZZLE STOCKER OFFSET Display
BEAM-A NOZZLE STOCKER [B1]
The set offset data is used to adjust the positional deviations based on the
design dimensions representing the nozzle stocker unit position viewed from
the X/Y coordinate system (PL-XY: Origin P0) for P.C.B. positioning.
The values based on the PL-XY coordinate system must be entered in the
data boxes.
Set the values which represent the positional deviations of Nozzle Stocker
B1 based on Beam A.
X (Horizontal) and Y (Vertical)
When offset parameters are set with a plus (+) sign, the nozzle change
directions are changed to “X (+)” and “Y (+)” shown in the figure.
9910-001 5-30 Tg0247-PM-PM

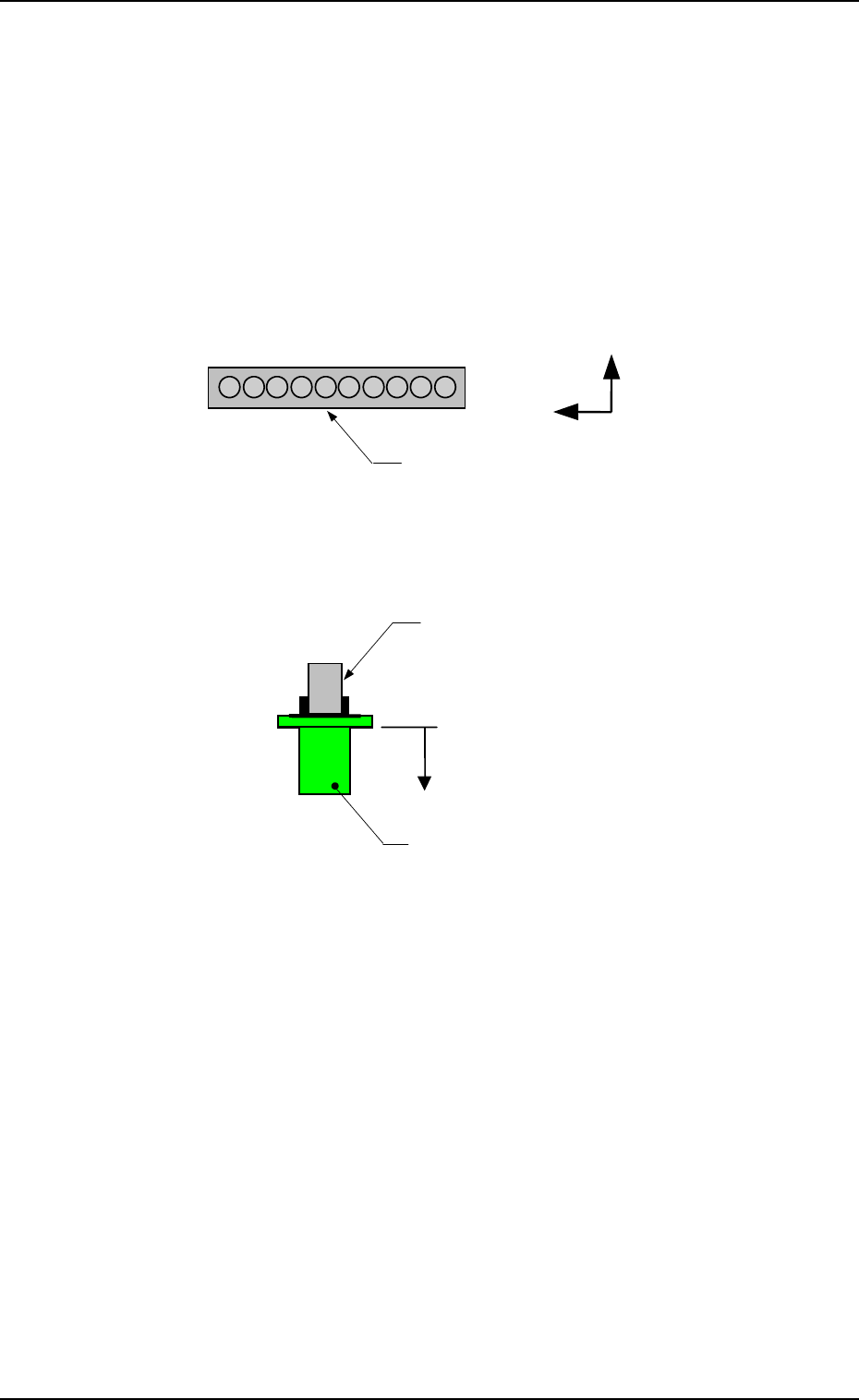

L(+)
Nozzle
Nozzle Clamp Section
1
10
Y(+)
X(+)
Nozzle Stocker B1
LEVEL (Height)
When an offset parameter is set with a plus (+) sign, the nozzle change
direction is changed to “L (+)” shown in the figure, concluding that the
descending stroke has increased.
SET LVL
Set an offset value (offset in vertical (height) direction of the head) re-
quired when a nozzle is attached to the head.
(This is added to the parameter in the “LEVEL (Height)” data box.)
When an offset parameter is set with a plus (+) sign, the up/down shaft
descends, concluding that the descending stroke has increased.
RESET LVL
Set an offset value (offset in vertical (height) direction of the head) re-
quired when the nozzle is stored.
(This is added to the parameter in the “LEVEL (Height)” data box.)
When an offset parameter is set with a plus (+) sign, the up/down shaft
descends, concluding that the descending stroke has increased.
Note: As for the values to be set in the “X” and “Y” data boxes, align the
nozzle position manually at several places (1 through 10) and per-
form the measurement. Then, set the mean values in each data box.
When the nozzle is manually aligned only at one place, it may be
positioned at a place where the nozzle cannot be changed easily.
7. NOZZLE STOCKER OFFSET Display
BEAM-B NOZZLE STOCKER [B1]
The set offset data is used to adjust the positional deviations based on the
design dimensions representing the nozzle stocker unit position viewed from
the X/Y coordinate system (PL-XY: Origin P0) for P.C.B. positioning.
The values based on the PL-XY coordinate system must be entered in the
data boxes.
Set the values which represent the positional deviations of Nozzle Stocker
B1 based on Beam B.
X (Horizontal) and Y (Vertical)
When offset parameters are set with a plus (+) sign, the nozzle change
directions are changed to “X (+)” and “Y (+)” shown in the figure.
9910-001 5-31 Tg0247-PM-PM
L(+)
Nozzle
Nozzle Clamp Section
1
10
Y(+)
X(+)
Nozzle Stocker B1
LEVEL (Height)
When an offset parameter is set with a plus (+) sign, the nozzle change
direction is changed to “L (+)” shown in the figure, concluding that the
descending stroke has increased.
SET LVL
Set an offset value (offset in vertical (height) direction of the head) re-
quired when a nozzle is attached to the head.
(This is added to the parameter in the “LEVEL (Height)” data box.)
When an offset parameter is set with a plus (+) sign, the up/down shaft
descends, concluding that the descending stroke has increased.
RESET LVL
Set an offset value (offset in vertical (height) direction of the head) re-
quired when the nozzle is stored.
(This is added to the parameter in the “LEVEL (Height)” data box.)
When an offset parameter is set with a plus (+) sign, the up/down shaft
descends, concluding that the descending stroke has increased.
Note: As for the values to be set in the “X” and “Y” data boxes, align the
nozzle position manually at several places (1 through 10) and per-
form the measurement. Then, set the mean values in each data box.
When the nozzle is manually aligned only at one place, it may be
positioned at a place where the nozzle cannot be changed easily.
7. NOZZLE STOCKER OFFSET Display
NOZZLE STOCKER OFFSET (For Individual Addresses)
NOZZLE STOCKER [A1] (BEAM-A)
The set offset data is used to adjust the positional deviations based on the
design dimensions representing the nozzle stocker unit position viewed from
the X/Y coordinate system (PL-XY: Origin P0) for P.C.B. positioning.
The values based on the PL-XY coordinate system must be entered in the
data boxes.
Set the values which represent the positional deviations of Nozzle Stocker
A1 based on Beam A for each individual addresses.
X (mm) and Y (mm)
When offset parameters are set with a plus (+) sign, the nozzle change
directions are changed to “X (+)” and “Y (+)” shown in the figure.
9910-001 5-32 Tg0247-PM-PM

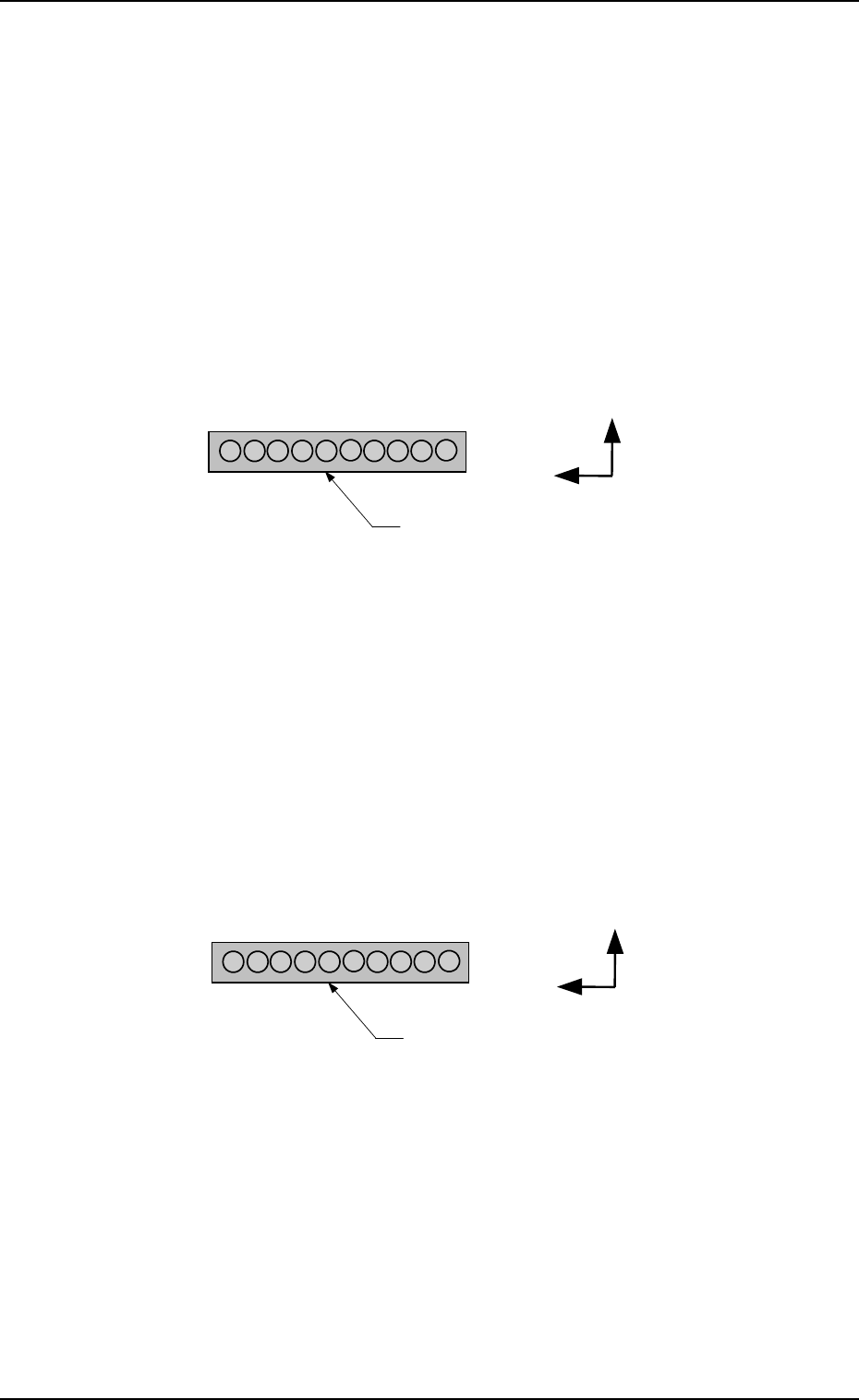

Nozzle Stocker A1
1
10
Y(+)
X(+)
Nozzle Stocker A1
1
10
Y(+)
X(+)
NOZZLE STOCKER [A1] (BEAM-B)
The set offset data is used to adjust the positional deviations based on the
design dimensions representing the nozzle stocker unit position viewed from
the X/Y coordinate system (PL-XY: Origin P0) for P.C.B. positioning.
The values based on the PL-XY coordinate system must be entered in the
data boxes.
Set the values which represent the positional deviations of Nozzle Stocker
A1 based on Beam B for each individual addresses.
X (mm) and Y (mm)
When offset parameters are set with a plus (+) sign, the nozzle change
directions are changed to “X (+)” and “Y (+)” shown in the figure.
