4.6 PLACEMENT DATA (P) Display

(1) Press the [PLACEMENT DATA U01] key at the “PATTERN PROGRAM

EDIT” display. The following display appears on the screen.

Pressing the [SCREENS] key at this display opens another “PLACEMENT

DATA (P) U01” display.

The “PLACEMENT DATA (P) U02” and the subsequent displays

look almost the same.

Fig. 2.111-1

Fig. 2.111-2

[SCREENS] Key

4. PATTERN PROGRAM Display

0004-002 2-118 Tg0247-PM-PM

(2) Move the line cursor to the step No. of the data to be edited.

(Use the [ ] or the [ ] key. )

(3) Press the key required for editing.

[OFFSET DATA EDIT] Key

[VISION DATA EDIT] Key

[DATA EDIT] Key

(4) Open the display required for your editing.

Ref.: Similar procedures can be followed for data editing at the “PLACE-

MENT DATA (O) U01” and “PLACEMENT DATA (V) U01” dis-

plays.

0004-002 2-119 Tg0247-PM-PM

4.6.1 Special Operation (Step Delete) for Placement Data

(1) Move the line cursor to the step No. of the data to be deleted.

(2) Press the [STEP DELETE] key.

The data of the step No. at the line cursor is deleted.

The line at the line cursor position is deleted and the subsequent lines

scroll up.

4.6.2 Special Operation (Step Insert) for Placement Data

(1) Move the line cursor to the step No. of the data to be inserted.

(2) Press the [STEP INSERT] key.

A new step line (placement data) is inserted below the step No. at the

cursor position.

4.6.3 Special Operation (Step Jump) for Placement Data

(1) When the [STEP JUMP] key is pressed at the “PLACEMENT DATA (P)

U01” display (Fig. 2.111-1 or Fig. 2.111-2), the following display ap-

pears on the screen.

Pressing the [STEP JUMP] key at the “PLACEMENT DATA (O)

U01” or the “PLACEMENT DATA (V) U01” display follows the

similar hierarchical sequence.

4. PATTERN PROGRAM Display

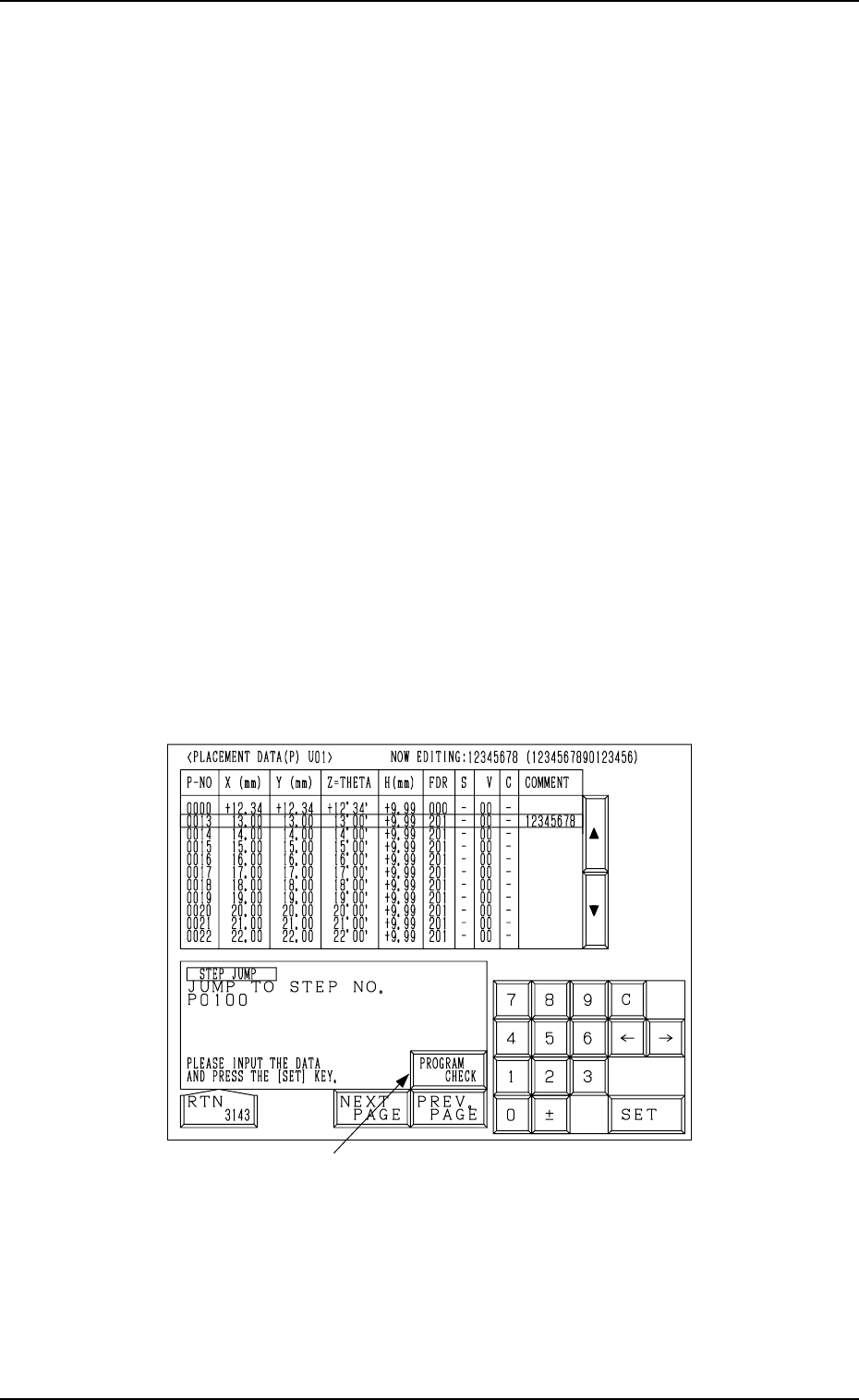

Fig. 2.112-1

(2) Enter the step No. to jump to, using the ten-key pad and press the [SET]

key.

0004-002 2-120 Tg0247-PM-PM

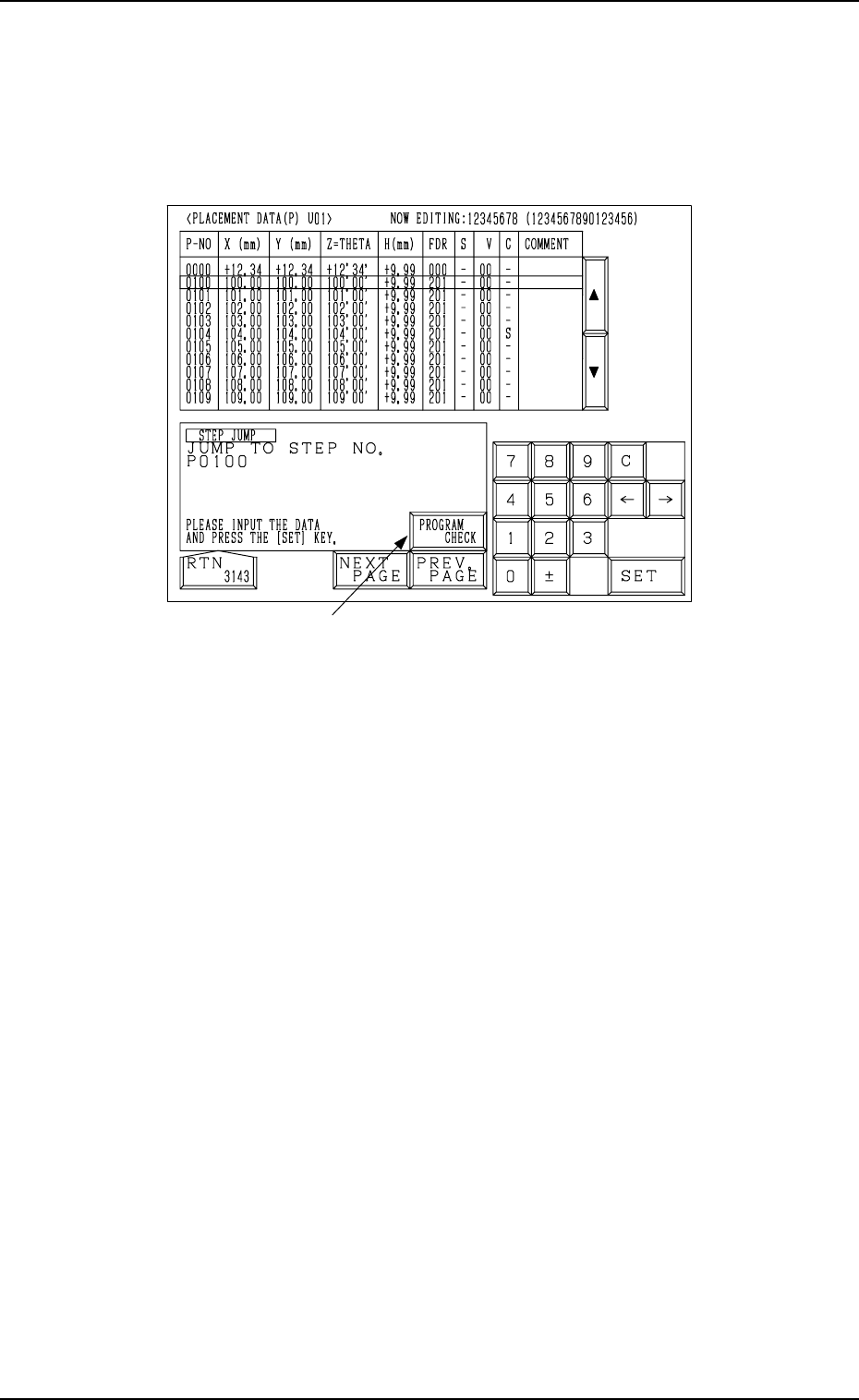

Example: Jumping to the P0100 Step

(1) Open the “PLACEMENT DATA (P) U01” display (Fig. 2.112-1).

(2) Enter “0100”, using the ten-key pad and press the [SET] key. The line

cursor jumps to the P0100 step as shown in Fig. 2.112-2.

4. PATTERN PROGRAM Display

Fig. 2.112-2

Ref.: When the [PROGRAM CHECK] key *1 is pressed, the current pattern

program is checked.
