Fig. 5.3-3 First Page Second Page Third Page Fig. 5.3-2 Fig. 5.3-1 *1 *1 2. DEVICE OFFSET Display 9910-001 5-5 Tg0247-PM-PM 2. DEVICE OFFSET Display When the [DEVICE OFFSET] key is pressed at the “OFFSET DA T A” display …
[OFFSET TEACHING BRIGHTNESS] Key
When this key is pressed, the “OFFSET TEACHING BRIGHT-
NESS” display appears on the screen, enabling the setting of
brightness values through automatic teaching operation based
on the image captured in the lighting system for the offset teach-
ing operation.
[ROOM TEMPERATURE AT LTG TEACHING] Key
Reserved Data
[TRAY FEEDER OFFSET] Key (Option)
When this key is pressed, the “TRAY FEEDER OFFSET” dis-
play appears on the screen, enabling the adjustment of the po-
sition where a pallet is drawn out from the magazine by the
traverse shaft.
[COMPONENT REJECT OFFSET] Key
When this key is pressed, the “NG WORK STORAGE OFF-
SET” display appears on the screen, enabling the adjustment
of the positional and vertical (height direction) deviations, com-
pared with the design dimensions of the component storage
box position.
When the [OFFSET TEACH] key *1 is pressed at the “OFFSET DATA” dis-
play (Fig. 5.1), the following display appears on the screen.
This display can also be opened from the “SPECIAL SEL.” dis-
play.
Note: The -marked function is optional.

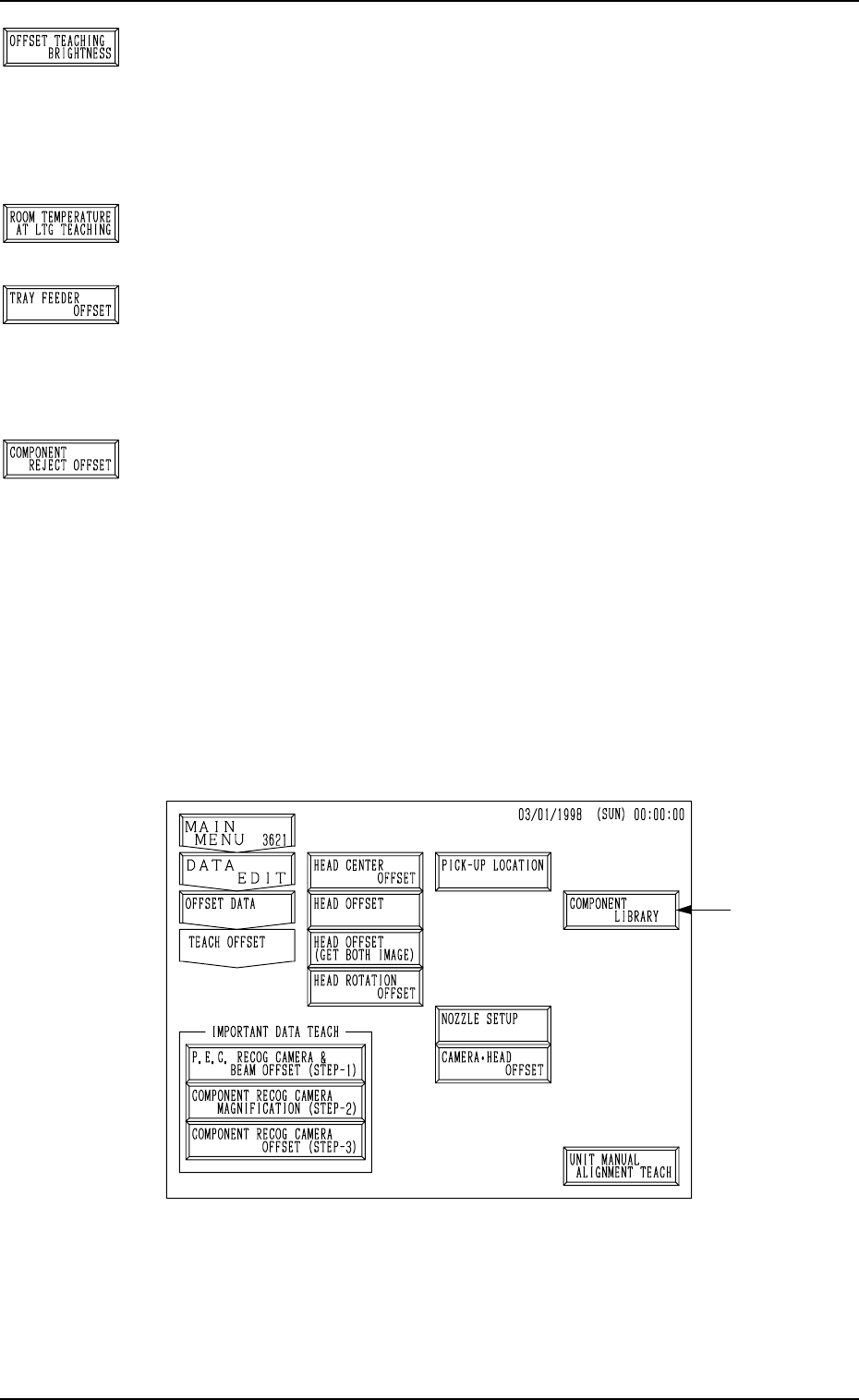

1. OFFSET DATA Display
Fig. 5.2
• Refer to “6. OFFSET TEACH Display of Section 3 in Volume 4” for de-
tails.
0004-002 5-4 Tg0247-PM-PM
Fig. 5.3-3
First Page
Second Page
Third Page
Fig. 5.3-2
Fig. 5.3-1
*1
*1
2. DEVICE OFFSET Display
9910-001 5-5 Tg0247-PM-PM
2. DEVICE OFFSET Display

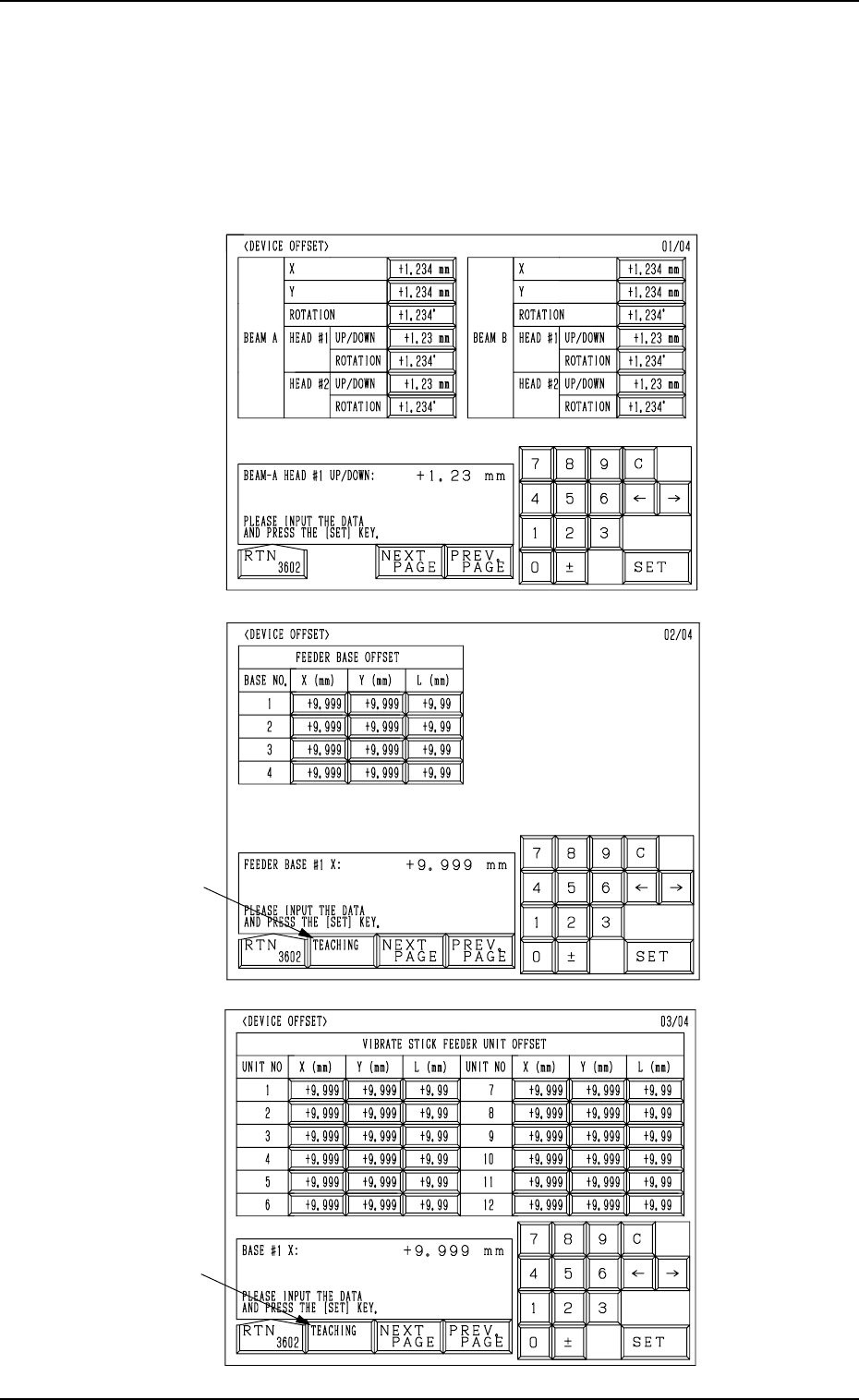

When the [DEVICE OFFSET] key is pressed at the “OFFSET DATA” display,
the following display appears on the screen.

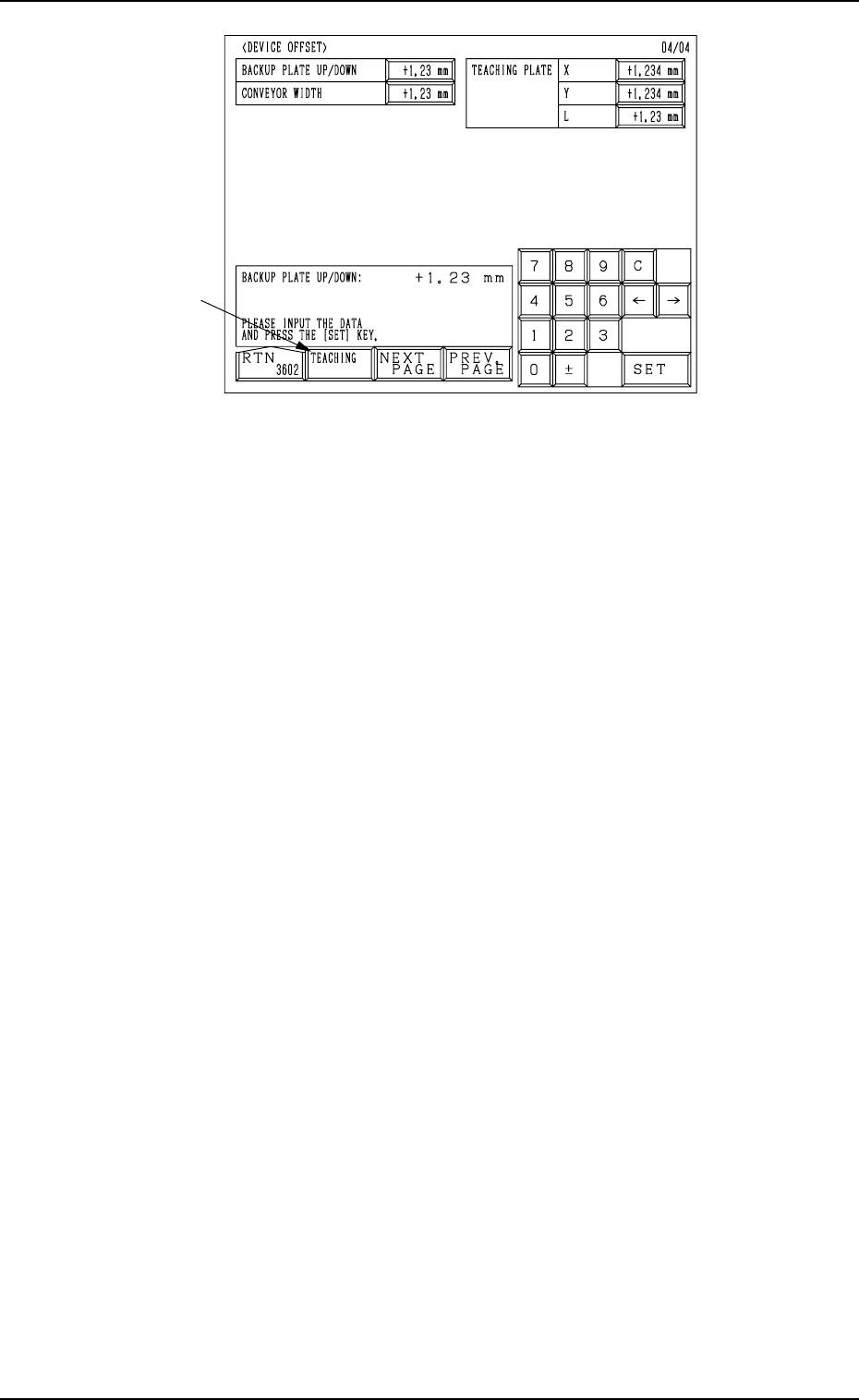

Every time the [NEXT PAGE] or the [PREV. PAGE] key is pressed, another or
previous page appears on the screen.
Fourth Page
Fig. 5.3-4
*1
2. DEVICE OFFSET Display
