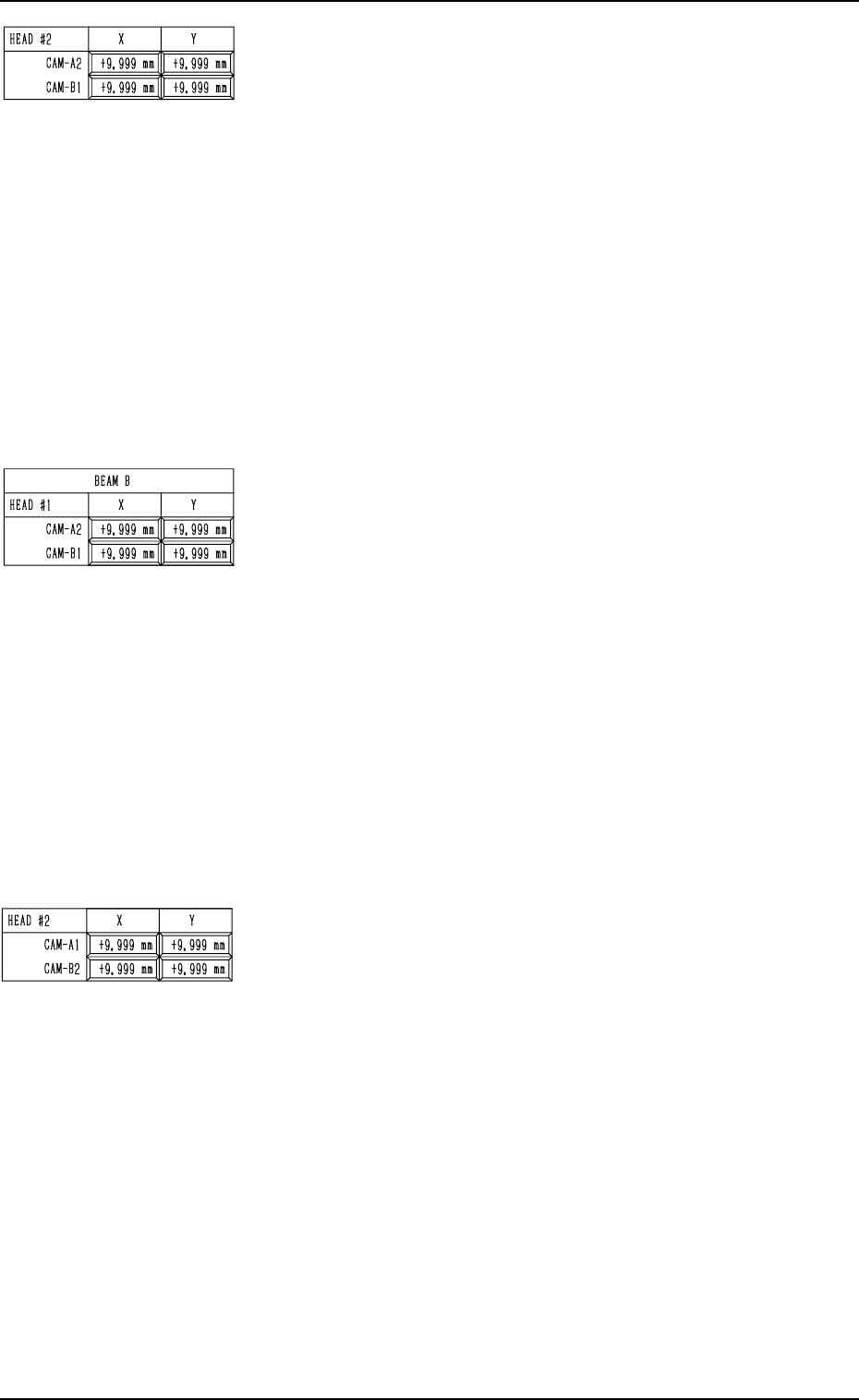

BEAM A HEAD #2
CAM-A2 X (Horizontal), (Vertical)
These offset parameters indicate the positional deviations
of the head rotational center compared with the center of
Camera A2 when Head #2 on Beam A faces Camera A2 as
a subordinate head. The parameters are set based on the
camera scanning coordinate system of the component rec-
ognition camera.
CAM-B1 X (Horizontal), (Vertical)
These offset parameters indicate the positional deviations
of the head rotational center compared with the center of
Camera B1 when Head #2 on Beam A faces Camera B1 as
a subordinate head. The parameters are set based on the
camera scanning coordinate system of the component rec-
ognition camera.
BEAM B HEAD #1
CAM-A2 X (Horizontal), Y (Vertical)
These offset parameters indicate the positional deviations
of the head rotational center compared with the center of
Camera A2 when Head #1 on Beam B faces Camera A2 as
a subordinate head. The parameters are set based on the
camera scanning coordinate system of the component rec-
ognition camera.
CAM-B1 X (Horizontal), Y (Vertical)
These offset parameters indicate the positional deviations
of the head rotational center compared with the center of
Camera B1 when Head #1 on Beam B faces Camera B1 as a
subordinate head. The parameters are set based on the cam-
era scanning coordinate system of the component recogni-
tion camera.
BEAM B HEAD #2
CAM-A1 X (Horizontal), (Vertical)
These offset parameters indicate the positional deviations
of the head rotational center compared with the center of
Camera A1 when Head #2 on Beam B faces Camera A1 as
a subordinate head. The parameters are set based on the
camera scanning coordinate system of the component rec-
ognition camera.
CAM-B2 X (Horizontal), (Vertical)
These offset parameters indicate the positional deviations
of the head rotational center compared with the center of
Camera B2 when Head #2 on Beam B faces Camera B2 as a
subordinate head. The parameters are set based on the cam-
era scanning coordinate system of the component recogni-
tion camera.
9910-001 5-51 Tg0247-PM-PM
16. HEAD OFFSET (GET BOTH IMAGE) Display
9910-001 5-52 Tg0247-PM-PM
16. HEAD OFFSET (GET BOTH IMAGE) Display
Reference
Subordinate Head:
When two steps are paired through the simultaneous pick-up or the pick-up priority function
designated in the placement data, this head handles the component related to the step No.
larger than the other.
On the other hand, the head which handles the component related to the smaller step No. is
called “Guide Head”.
The simultaneous recognition is automatically prohibited and images are captured individu-
ally when,
•
components which require BGA lighting are picked up.
•
a value other than “0” (zero) is set (designation of eccentric pick-up) in the “X” and “Y”
data boxes of the label “PICK-UP LOCATION CORRECTION” at the “CMPNT LI-
BRARY” display.
•
The visual field of the confronting camera cannot cover the components picked up by the
right and left heads.
In this case, the beams must be moved such that the rotational centers of the heads are located
at the camera centers before the images are captured.
Compared with this, in the case of the simultaneous recognition, the guide head (for the smal-
ler step) moves normally but the subordinate head faces the other one at the position where the
head rotational center does not match the camera center due to the relation between the head-
to-head and camera-to-camera pitches. Therefore, this offset data is required for recognition
processing and correction calculation.
17. DATA SAVE MODE Display
When the [RTN] key is pressed at each display for offset data editing, the
following display appears on the screen.

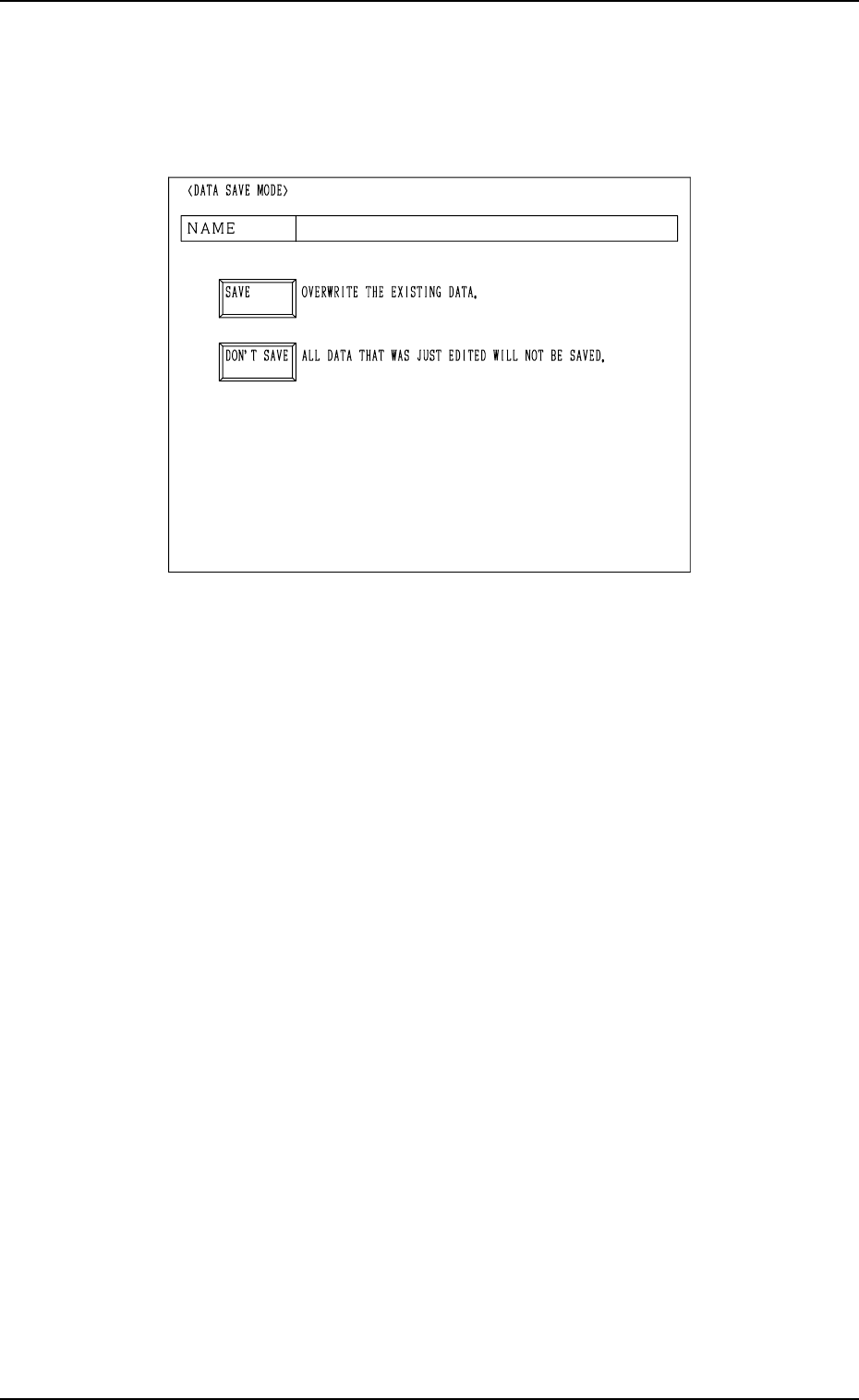

17. DATA SAVE MODE Display
Fig. 5.47
[SAVE] Key : Press this key to save the data.
[DON’T SAVE] Key : Press this key not to save the data.
The data is not saved and the “OFFSET DATA” dis-
play (Fig. 5.1) appears on the screen.
Note: The edited parameters become invalid.
