Fig. 5.26
BEAM A HEAD #1, X (horizontal), Y (vertical)
This offset data is used to set the distance between the scan-
ning coordinate center (actual position) of the P.E.C. camera
on Beam A and the rotational center of Head #1. The distances
deviating from the design values must be entered in each data
box. The parameters must be those viewed in the X/Y coordi-
nate system (PL-XY) for P.C.B. positioning.
• Design Values (distances between the center of P.E.C. cam-
era on Beam A and the rotational center of Head #1)
X : +54.000 mm
Y : +0.000 mm
When the rotational center of Head #1 is actually located at
the position shown in the figure below, the offset parameters
representing the X (horizontal) and Y (vertical) must be pro-
vided with plus (+) signs.
0004-002 5-24 Tg0247-PM-PM
6. HEAD CENTER OFFSET Display
6. HEAD CENTER OFFSET Display

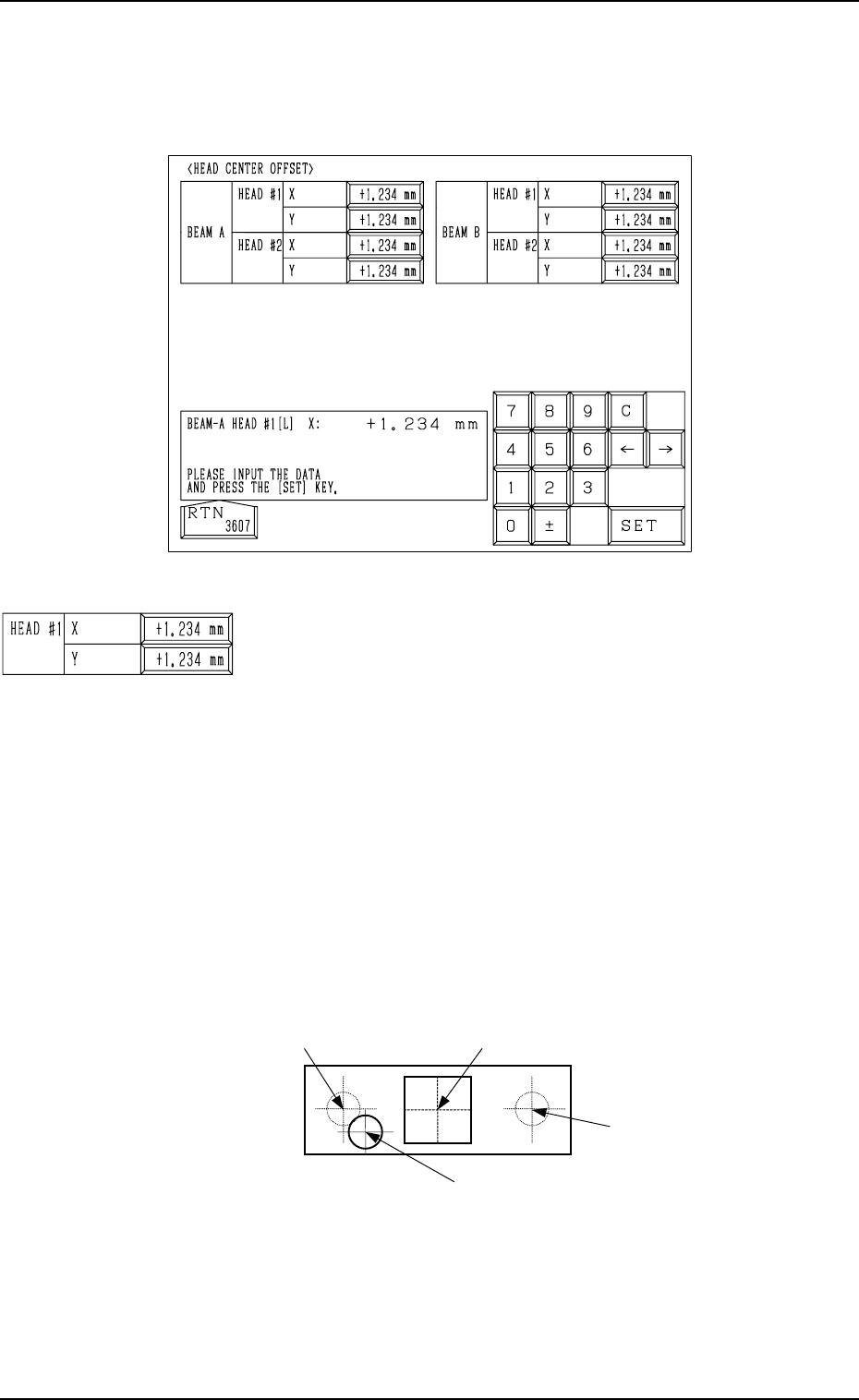

When the [HEAD CENTER OFFSET] key is pressed at the “OFFSET DATA”
display, the following display appears on the screen.

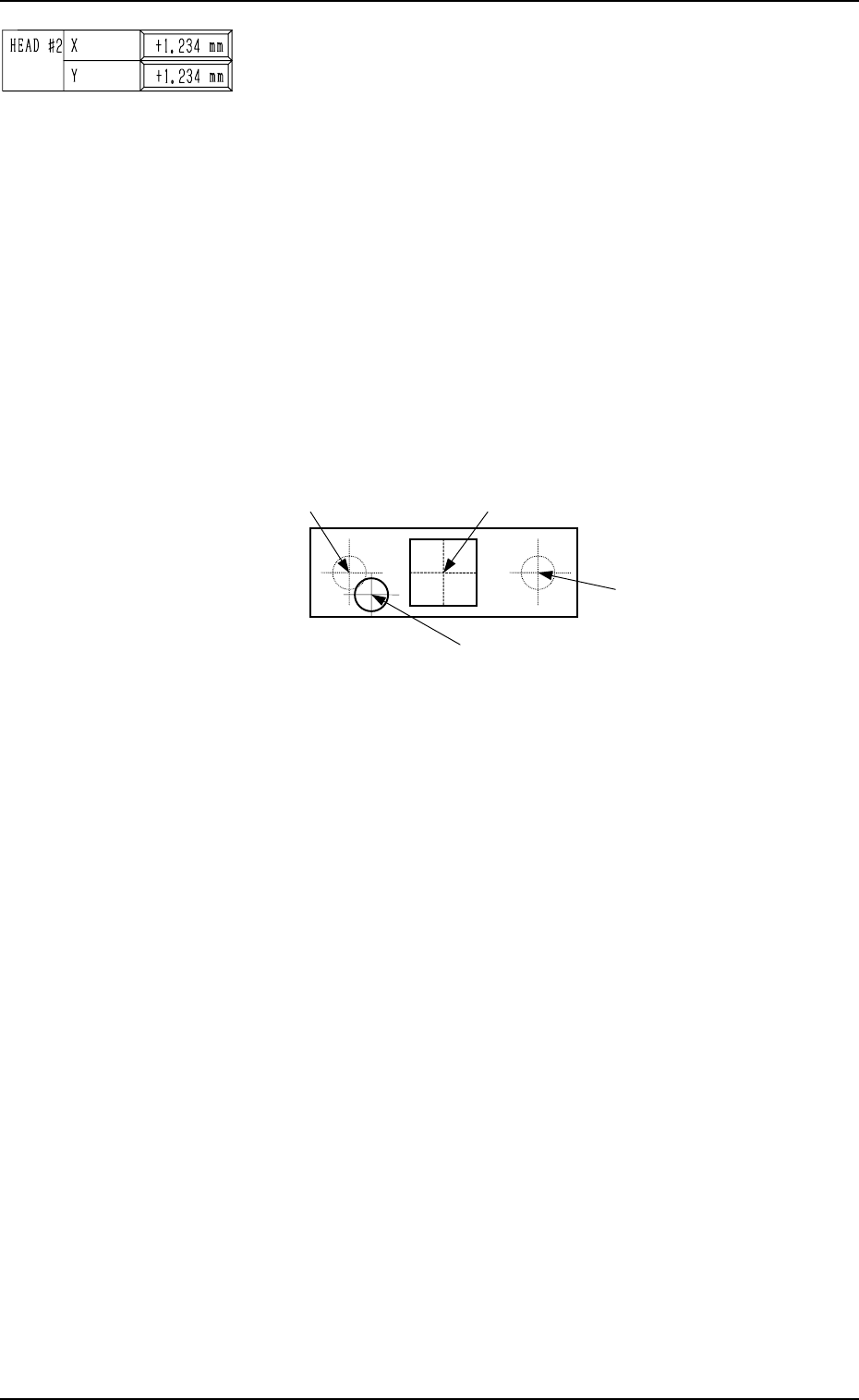

Center of P.E.C. Camera on Beam A
Rotational Center (Design Position)
of Head #1 on Beam A
Actual Rotational Center of Head #2 on Beam A
Rotational Center (Design Position)
of Head #2 on Beam A
(Front Side of Machine)
Top View
Fig. 5.27
This offset data is automatically calculated through teaching
operation which is performed, using the jig component sta-
tioned at the teaching plate inside the machine.
Center of P.E.C. Camera on Beam A
Rotational Center (Design Position)
of Head #1 on Beam A
Actual Rotational Center of Head #2 on Beam A
Rotational Center (Design
Position) of Head #2 on Beam A
(Front Side of Machine)
Top View
BEAM A HEAD #2, X (horizontal), Y (vertical)
This offset data is used to set the distance between the scan-
ning coordinate center (actual position) of the P.E.C. camera
on Beam A and the rotational center of Head #2. The distances
deviating from the design values must be entered in each data
box. The parameters must be those viewed in the X/Y coordi-
nate system (PL-XY) for P.C.B. positioning.
• Design Values (distances between the center of P.E.C. cam-
era on Beam A and the rotational center of Head #2)
X : -54.000 mm
Y : +0.000 mm
When the rotational center of Head #1 is actually located at
the position shown in the figure below, the offset parameters
representing the X (horizontal) and Y (vertical) must be pro-
vided with plus (+) signs.
6. HEAD CENTER OFFSET Display
0004-002 5-25 Tg0247-PM-PM
Center of P.E.C. Camera on Beam A
Rotational Center (Design Position)
of Head #2 on Beam B
Actual Rotational Center of Head #1 on Beam B
Rotational Center (Design Position)
of Head #1 on Beam B
(Front Side of Machine)
Top View
This offset data is automatically calculated through teaching
operation which is performed, using the jig component sta-
tioned at the teaching plate inside the machine.
BEAM B HEAD #1, X (Horizontal), Y (Vertical)
This offset data is used to set the distance between the scanning
coordinate center (actual position) of the P.E.C. camera on Beam
B and the rotational center of Head #1. The distances deviating
from the design values must be entered in each data box.
The parameters must be those viewed in the X/Y coordinate
system (PL-XY) for P.C.B. positioning.
• Design Values (distances between the center of P.E.C. cam-
era on Beam B and the rotational center of Head #1)
X : -54.000 mm
Y : +0.000 mm
When the rotational center of Head #2 is actually located at
the position shown in the figure below, the offset param-
eters representing the X (horizontal) and Y (vertical) must
be provided with plus (+) signs.

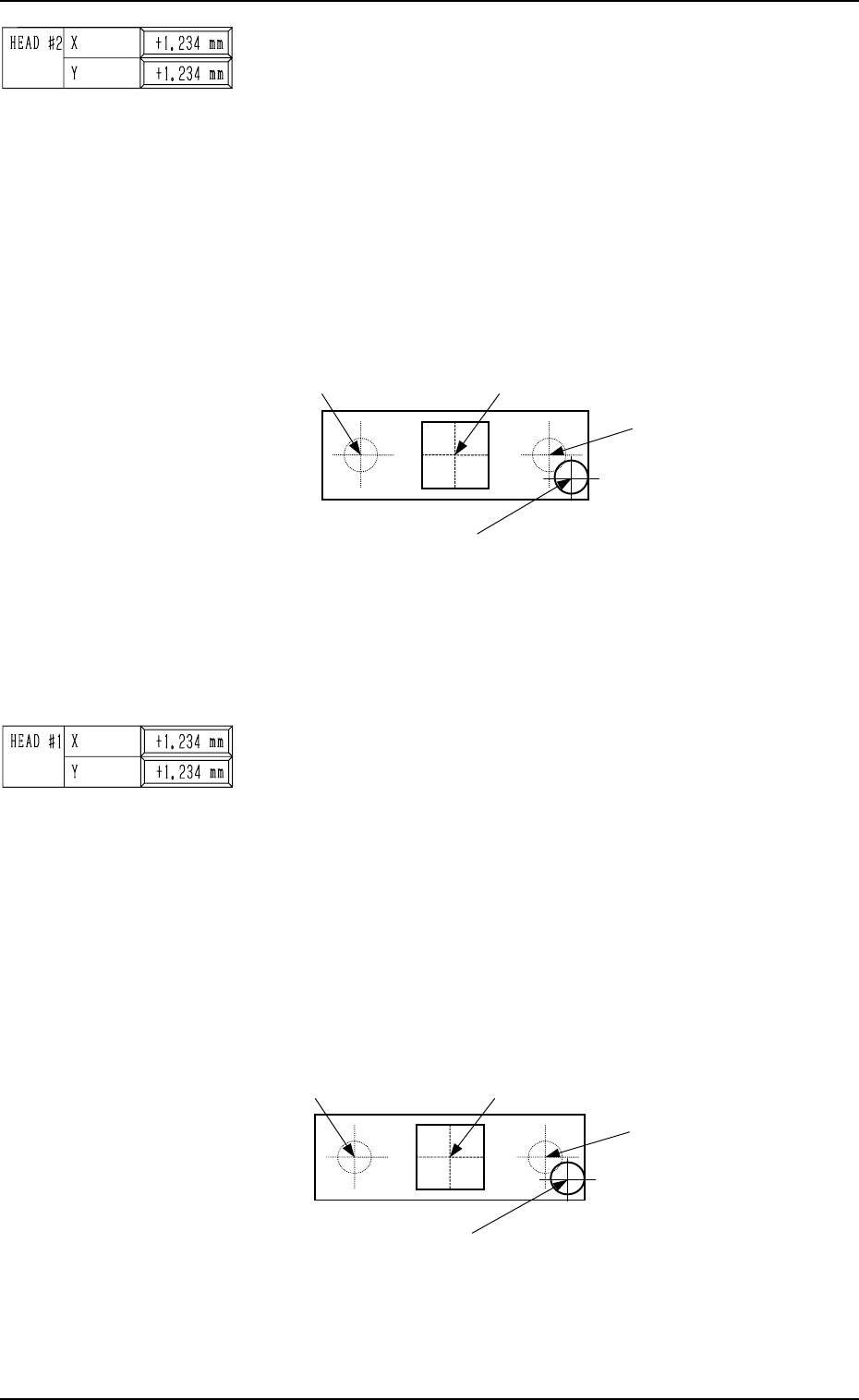

Fig. 5.28
This offset data is automatically calculated through teaching
operation which is performed, using the jig component sta-
tioned at the teaching plate inside the machine.
Fig. 5.29
BEAM B HEAD #2, X (Horizontal), Y (Vertical)
This offset data is used to set the distance between the scan-
ning coordinate center (actual position) of the P.E.C. camera
on Beam B and the rotational center of Head #2. The distances
deviating from the design values must be entered in each data
box.
The parameters must be those viewed in the X/Y coordinate
system (PL-XY) for P.C.B. positioning.
• Design Values (distances between the center of P.E.C. cam-
era on Beam B and the rotational center of Head #2)
X : +54.000 mm
Y : +0.000 mm
When the rotational center of Head #2 is actually located at
the position shown in the figure below, the offset param-
eters representing the X (horizontal) and Y (vertical) must
be provided with plus (+) signs.
0004-002 5-26 Tg0247-PM-PM
6. HEAD CENTER OFFSET Display
Center of P.E.C. Camera on Beam B
Rotational Center (Design Position)
of Head #2 on Beam B
Actual Rotational Center of Head #2 on Beam B
Rotational Center (Design Position)
of Head #1 on Beam B
(Front Side of Machine)
Top View
Fig. 5.30
This offset data is automatically calculated through teaching
operation which is performed, using the jig component sta-
tioned at the teaching plate inside the machine.
