About error screen
1
2
3
6 7
4 5

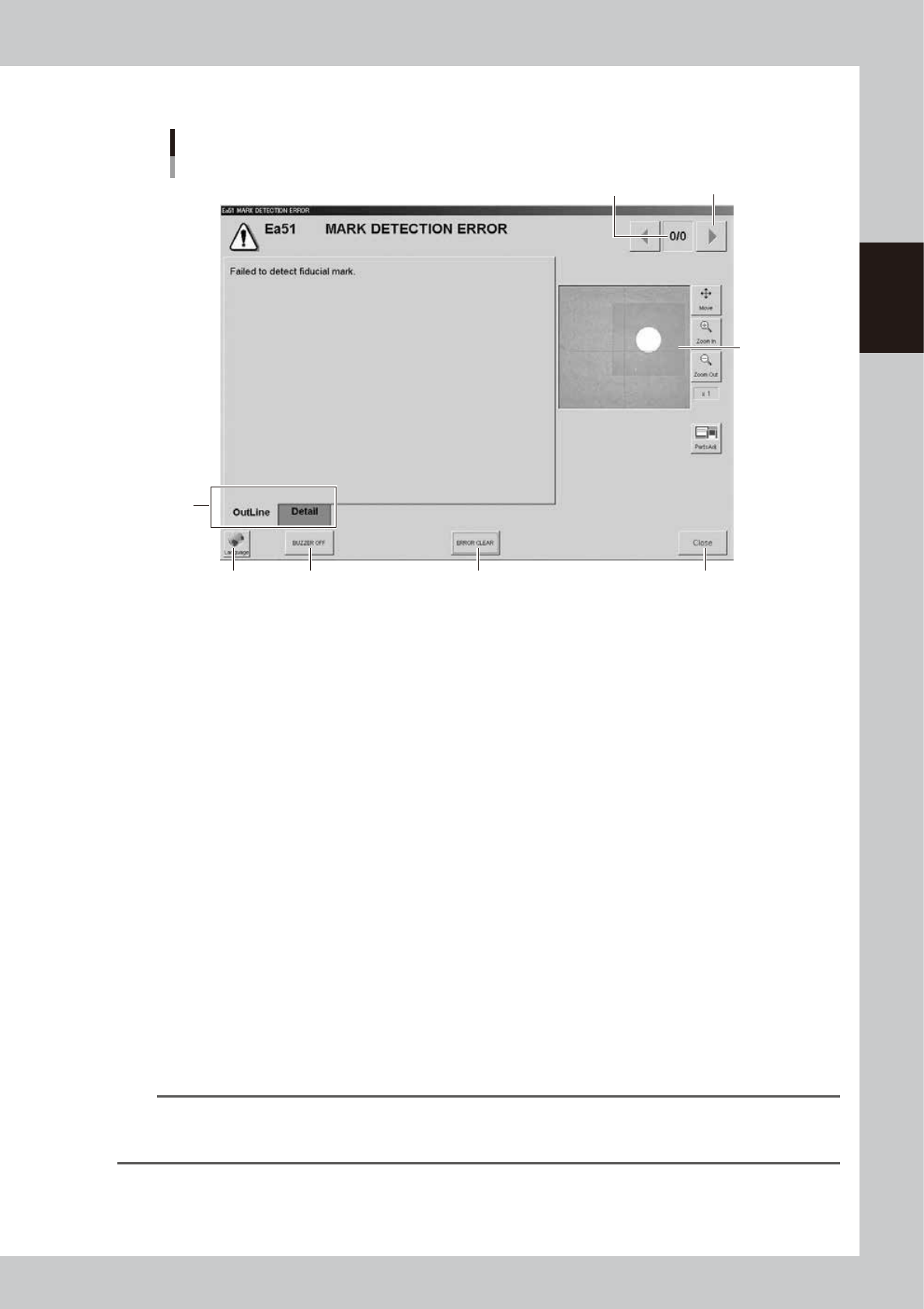

Error screen
Mark detection error
[Error Switching] button
24202-KMK-00
1. Error count display
Shows the currently displayed error and the total number of errors. If two or more errors occurred, use the [Error
Switching] buttons (right/left arrow buttons) to switch to other error screens.
2. Message switching tab
Outline:
Displays a message for the operator.
Detail:
Displays a message for the administrator/supervisor or service personnel. This tab does not appear unless a message is
available.
3. Recognition image display (component pickup error and mark recognition error screens)
If an error has occurred in image processing during component pickup or mark recognition, the error image is displayed
here.
4. [BUZZER OFF]
Turns off the buzzer.
5. [ERROR CLEAR]
Clears the error that has occurred.
6. [Language] button
Switches the language of the message displayed on the error screen.
7. [Close] button
Closes the error screen without clearing the error.
TIP
The positions where errors occurred can be checked graphically by opening the [Monitor] - [Production] tab after
closing the error screen by pressing the [Close] button. Pressing the [Error Detail] button on the [Production] screen
redisplays the error message. See "3.1 Production" in this chapter for the [Production] screen.
2-12
2
Basic operation
2.2 Setup screen
This section describes the operation buttons displayed on the "Setup" screen.
18
19
20
23
2221
3 4
9 10
11
16
8
12
7
6
15
17
5
1 2
13 14

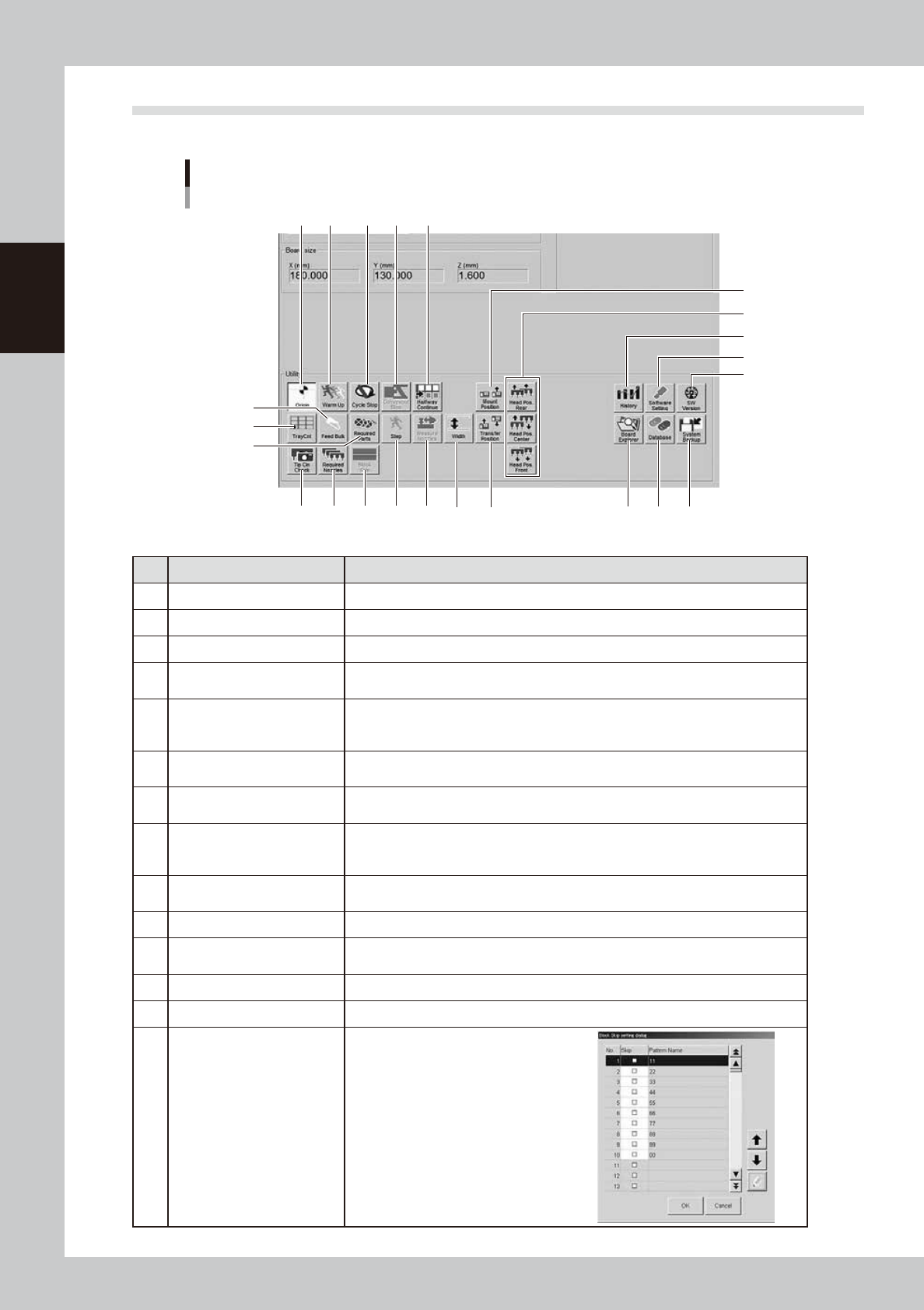

Setup screen
24203-KMK-00
Button name Function
1 Origin Move all the axes other than the W-axis of the machine to their respective origins.
2 Warm Up Warms up the machine. Specifying the desired time is available.
3 Cycle Stop Stops the machine without flowing a mounted board to downstream.
4 Convey-out Stop
Stops machine operation after mounting components on all boards on the conveyor
and transferring them to the downstream machine.
5 Halfway Continue
Resumes mounting components on the board that reset the suspended machine
operation due to an error. See chapter 3, "1.13 Resuming operation from the stopped
point" for more details.
6 Tray Cnt
Displays the number of tray components that have been used. (Single - lane / Dual -
lane+sATS
II
)
7 Feed Bulk
This button is operable only when using the bulk feeder (custom-made). It is not
used in normal operation.
8 Required Parts
Displays the component types and feeder positions that are set up for the production
to be started. Regarding dual-lane type, the required parts for both lanes are
displayed.
9 Step
Temporarily stops the machine at a specific position, for example, during initial
component mounting, test mounting, or trouble analysis.
10 Nozzle type acquisition The scan camera (side view camera) acquires the nozzle shape.
11 Width
Aligns the conveyor width with the board surface for production. It is the same
function as the [Width] button of the [Unit] – [Conveyor] screen.
12 Tip Cln Check Checks if nozzle tips are dirty or clogged.
13 Required Nozzles Displays a list of nozzles to be used.
14 Block skip
This button becomes active when
board data with block distribution
performed is loaded.
Pressing this button displays the
"Block Skip Utility" dialog box that
allows you to set whether to skip
mounting components in each block.
Refer to Chapter 3 "1.13 Resuming
operation from the stopped point" for
more details.
2-13
2
Basic operation
Button name Function
15 Mount Position
Moves the conveyor to the mounting position for the backup pin setup. (Dual-stage
only)
16 Transfer Position
Aligns the conveyor with the transfer position when carrying in the board manually.
(Dual-stage only)
17
Head movement
(rear, center, front)
Moves head to the machine rear, center, or front.
18 History Saves and deletes production history data.
19 Software Setting Sets machine screen display items, adds or deletes operators, and sets passwords.
20 Version Shows version information on application software and system.
21 Board Explorer Moves, backs up, restores or copies board data.
22 Database
Makes a backup of and restores database regarding components required for
production and mark information. Also it can specify the database reference
destination.
23 System Backup
Makes a backup of machine coordinates, accuracy information, option device
information and standard coordinates necessary for machine operation or restores
the data using the backup.
